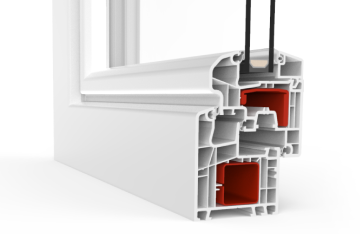

aluplast IDEAL® 5000 profile
aluplast IDEAL® 5000 profile

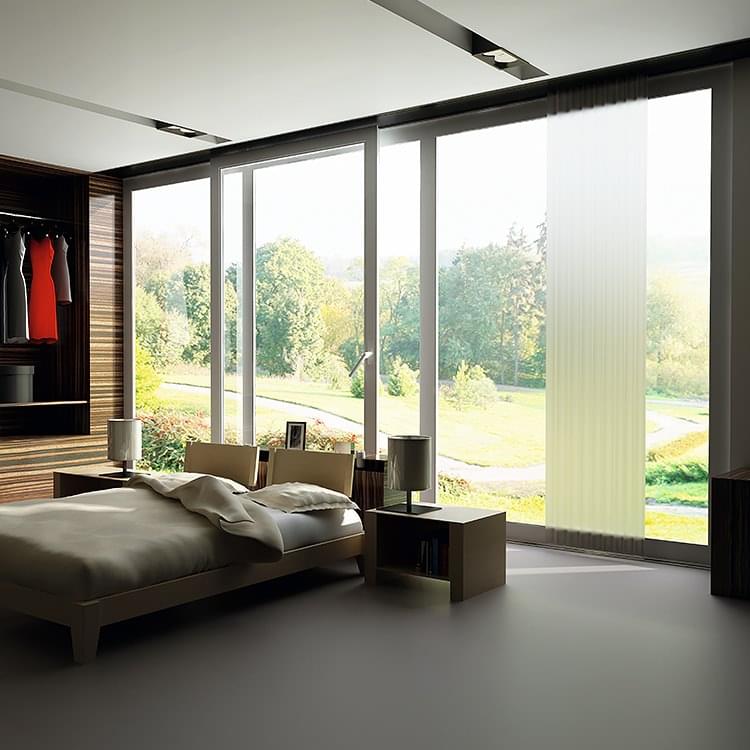

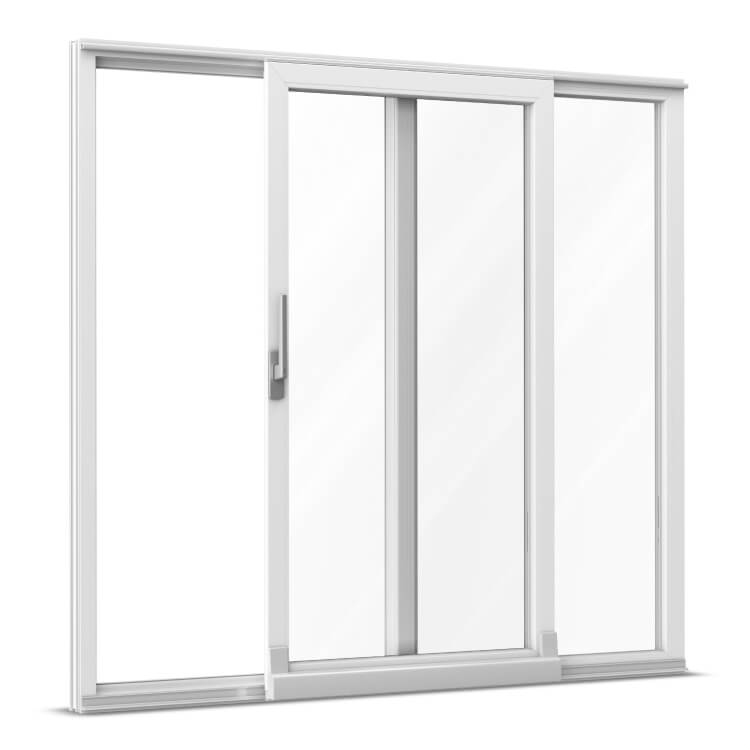

uPVC tilt and slide patio door
uPVC tilt and slide patio door
Open uPVC tilt and slide patio doors
Open uPVC tilt and slide patio doors

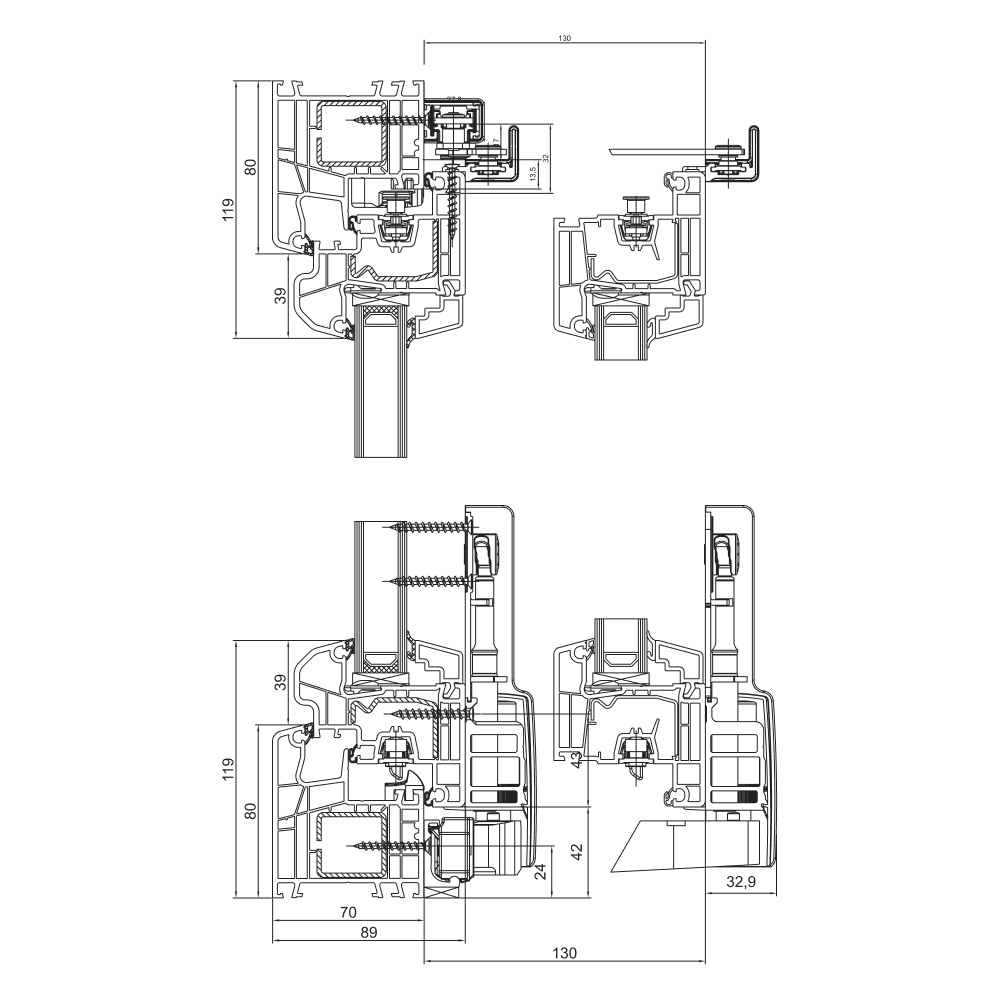

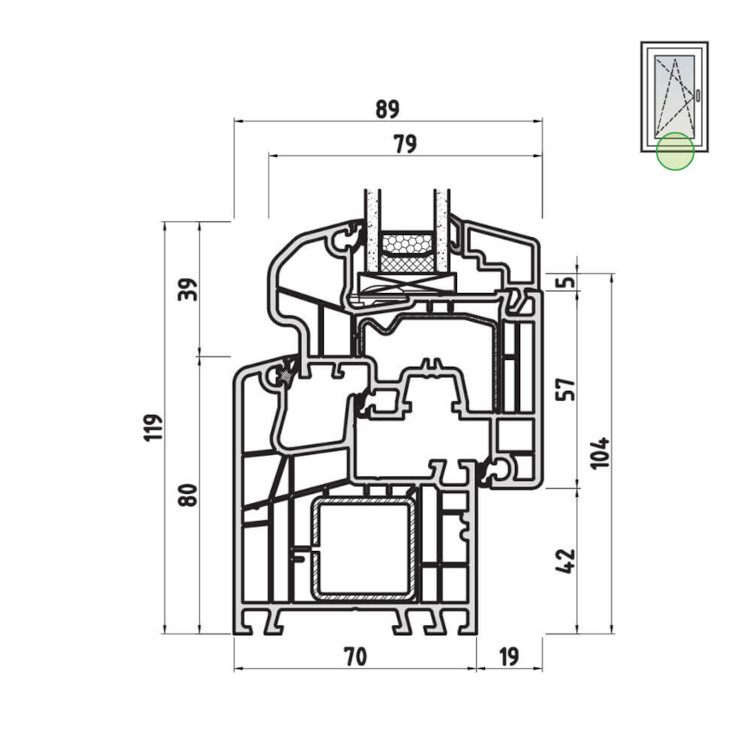

Ideal 5000 profile section
Ideal 5000 profile section
Ideal 5000 tilt and slide patio doors
Ideal 5000 tilt and slide patio doors

uPVC tilt and slide patio door – aluplast IDEAL® 5000

The uPVC comfort system with a rounded look

from € 1,175from € 1,175

incl. 19% VAT, free delivery**

  • Elegant 5-chamber profile system with RAL quality mark
  • Quaranteed no discolouration
  • Centre sealing system with 3 seals
Calculate Price
Estimated production time 3-6 weeks1
Product data sheet IDEAL 5000
Uw values IDEAL 5000
Detail drawings IDEAL 5000
Warranty

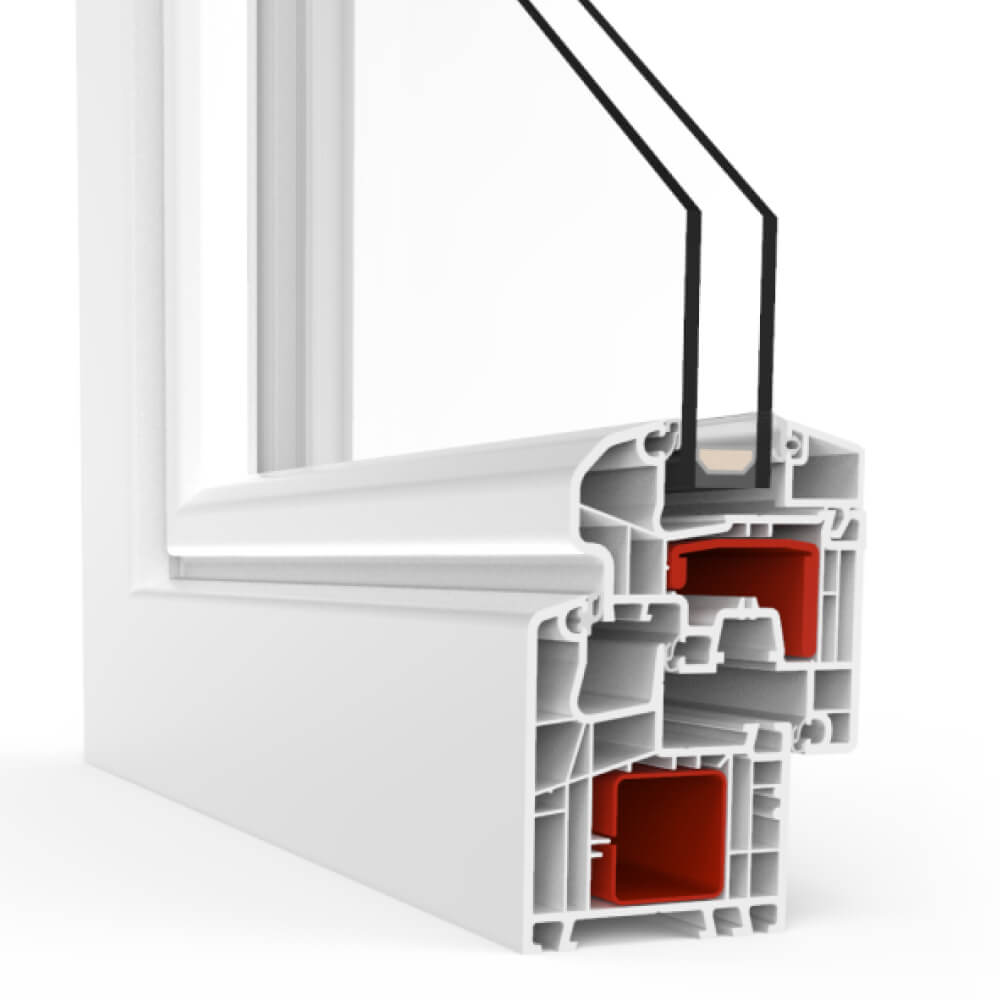

aluplast IDEAL® 5000

Overview of features

5-chamber profile from aluplast with semi-offset look

Additional break-in protection thanks to security fitting

Standard glazing with Ug value of 1.1 W/m²K

Surface quality

German brand quality

Customer satisfaction

Over 200,000 happy customers and counting

Jack’s Point, Otago, New Zealand
Residential building
Jack’s PointOtago, New Zealand
uPVC-alu windows and doors for a passive house

“windows24.com brought windows and doors with amazing quality to our project. The products are well-built and certified for passive house values.”

Heathmont, Melbourne, Australia
Residential building
HeathmontMelbourne, Australia
Composite windows and doors for a passive house

“We spent more than a year searching for a window manufacturer with high product quality and maximum design flexibility. At windows24.com we found the perfect solution for us.”

Cornwallis, Auckland, New Zealand
Residential building
CornwallisAuckland, New Zealand
uPVC windows and a sliding door for high wind zone

“Our architect recommended windows24.com to us. Their German-based window expert team was very helpful in finalising details, organising transport and training my onsite-builder.”

Private house Massachusetts
Residential building
Private houseMassachusetts, USA
uPVC windows

“windows24.com was a great partner for constructing our house. With their help we reached highest quality in terms of design and isolation.”

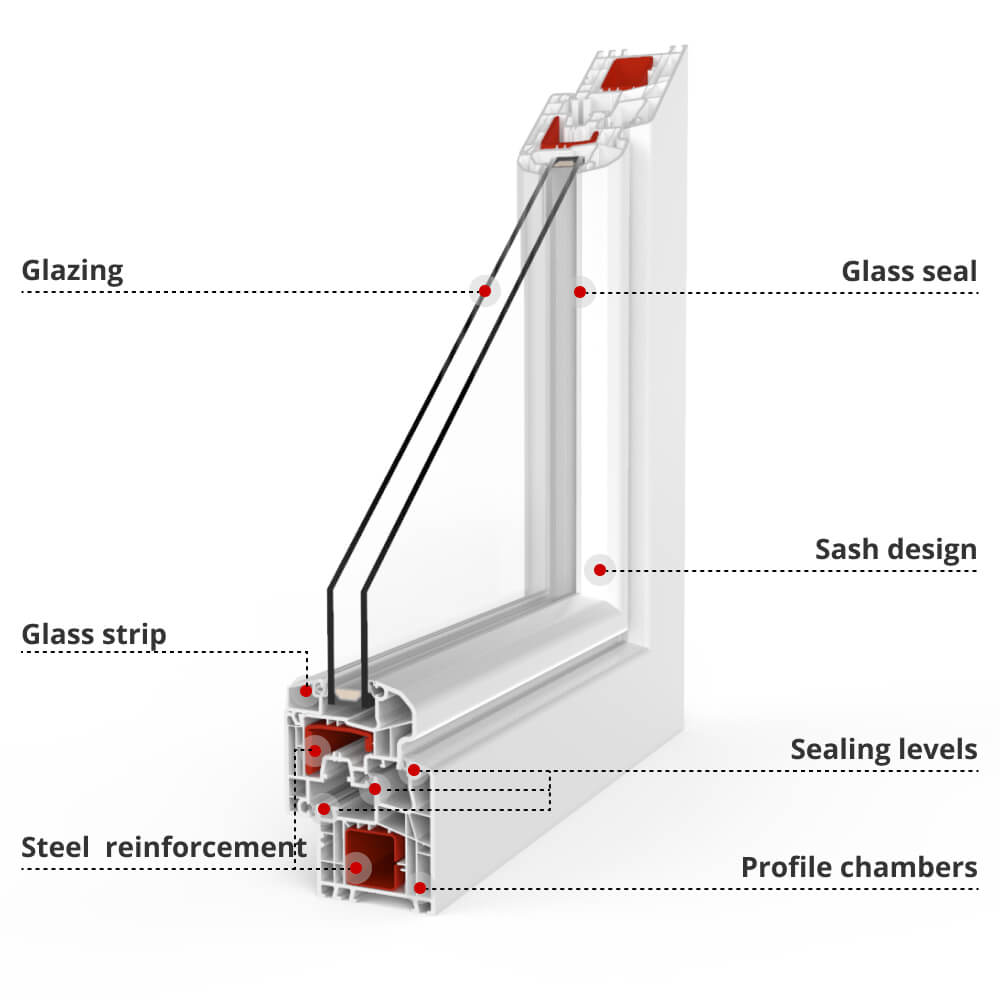

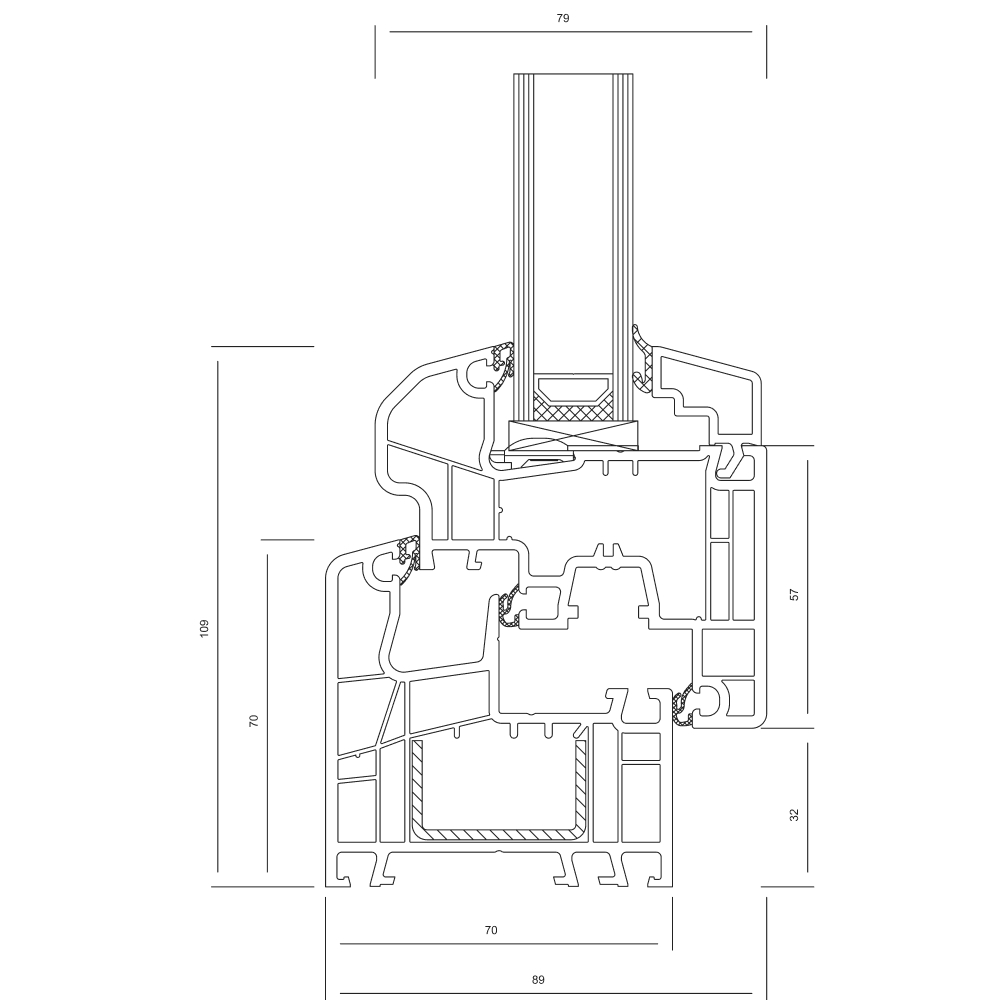

Profile Description

  • Glazing: choose between double or triple glazing.

  • Glass seal: The glass seal provides protection against water penetration.

  • Sash design: The casement is made in modern surface-displaced design.

  • Glass strip: Provides the required contact pressure between the gaskets and glass.

  • Sealing levels: Three sealing levels provide great heat and noise insulation.

  • Steel reinforcement: Using steel reinforcement ensures long term stability.

  • Profile chambers: To achieve good insulation values, these profiles are divided into several chambers.
profile description IDEAL 5000
TECHNICAL DETAILS

IDEAL 5000 – system description

  • 70 mm construction depth and Uf value = 1.2 W/m²K
  • Standard glazing Ug 1.1 W/m²K
  • Triple glazing up to a Ug value of 0.6 W/m²K
  • Frame with bolted steel insert with a visible width of 70 mm
  • Compression seal system with 3 levels in papyrus white
  • Black decor seal
  • Disc thicknesses from 20-42 mm
  • Parallel slide and tilt hardware with malfunction lock
  • Basic security with two mushroom-head locking bolts and two safety strike plates
  • Intuitive operation and elegant, smooth sliding of the sash into the closed position
  • Simplified assembly thanks to the height and tilt adjustment and a self-supporting running track without padding up to 160kg
  • Weather-resistant thanks to use of uPVC with modern additive technology
  • Weatherproof thanks to extruding seals; in accordance with DIN18055
  • Up to 97% recyclable materials
  • Thermal, safety and soundproof glazing possible

Optional

  • Integrated door lock, lockable from inside and outside
  • Lock monitoring
PRODUCT INFORMATION

IDEAL 5000 tilt and slide patio door

The Ideal 5000 profile from aluplast has a centre sealing system with 3 seals and is extremely weather-resistant.

ImageProfileModelProduct TypeWidthHeight
aluplastIDEAL 5000Tilt and slide patio doors from 151 cm from 163.50 cm
LogoBrandAvailabilityConditionColourPrice
windows24.com available New White, Decor from € 1,175

Order uPVC tilt and slide patio doors online at low prices

Configure uPVC tilt and slide patio doors now
