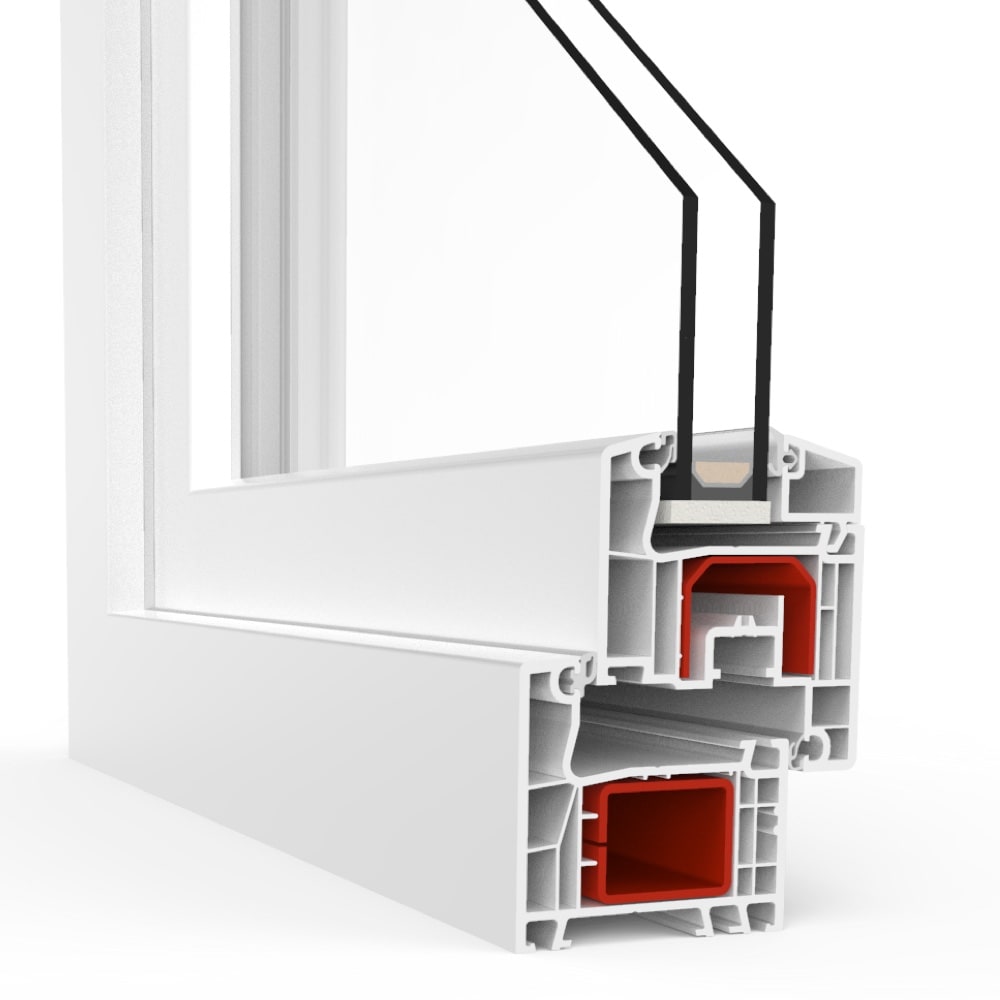

uPVC tilt and slide patio door - aluplast IDEAL® 4000

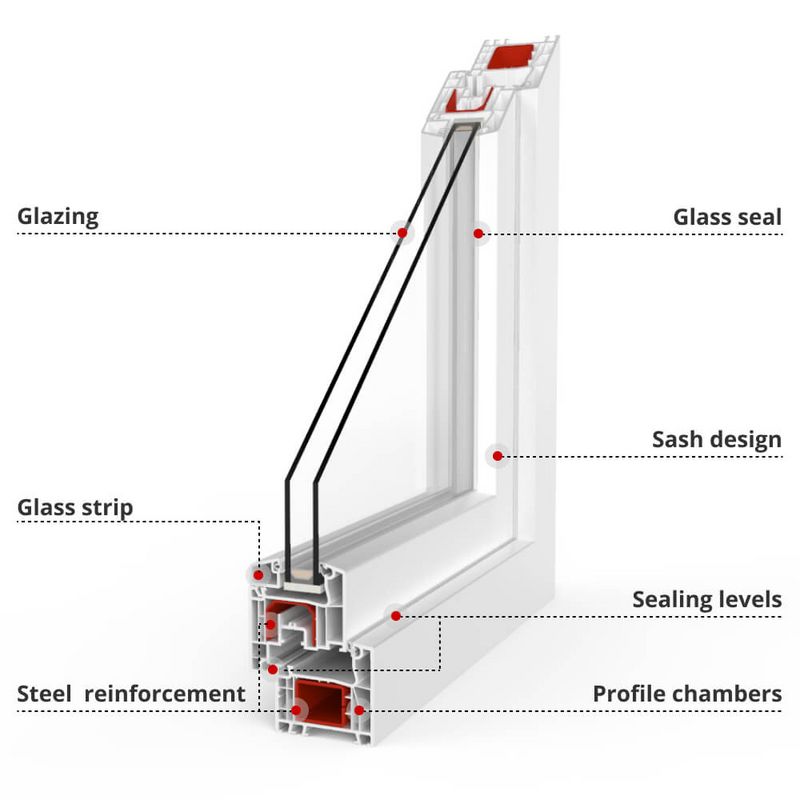

• Glazing: choose between double or triple glazing.

• Glass seal: The glass seal provides protection against water penetration.

• Sash design: Classic with a recessed casement design.

• Glass strip: Provides the required contact pressure between the gaskets and glass.

• Sealing levels: Two sealing levels maintain good thermal and noise insulation.

• Steel reinforcement: Steel reinforcement ensures long term stability.

• Profile chambers: To achieve good insulation values, these profiles are divided into several chambers.

• 70 mm construction depth and Uf value = 1.3 W/m²K
• Standard glazing Ug 1.1 W/m²K
• Triple glazing up to a Ug value of 0.6 W/m²K
• Frame with bolted steel insert with a visible width of 70 mm
• 2-level compression seal system in papyrus white
• Black decor seal
• Disc thicknesses from 20-42 mm
• Parallel slide and tilt hardware with malfunction lock
• Basic security with two mushroom-head locking bolts and two safety strike plates
• Intuitive operation and elegant, smooth sliding of the sash into the closed position

• Simplified assembly thanks to the height and tilt adjustment and a self-supporting running track without padding up to 160kg
• Weather-resistant thanks to use of uPVC with modern additive technology
• Weatherproof due to an extruded seal according to DIN18055
• Up to 97% recyclable materials
• Thermal, safety and soundproof glazing possible

Optional

• Integrated door lock, lockable from inside and outside
• Lock monitoring
