Floor connection for lift and slide door

Gap ventilation for lift and slide doors

lift-and-slide door uPVC installation situation

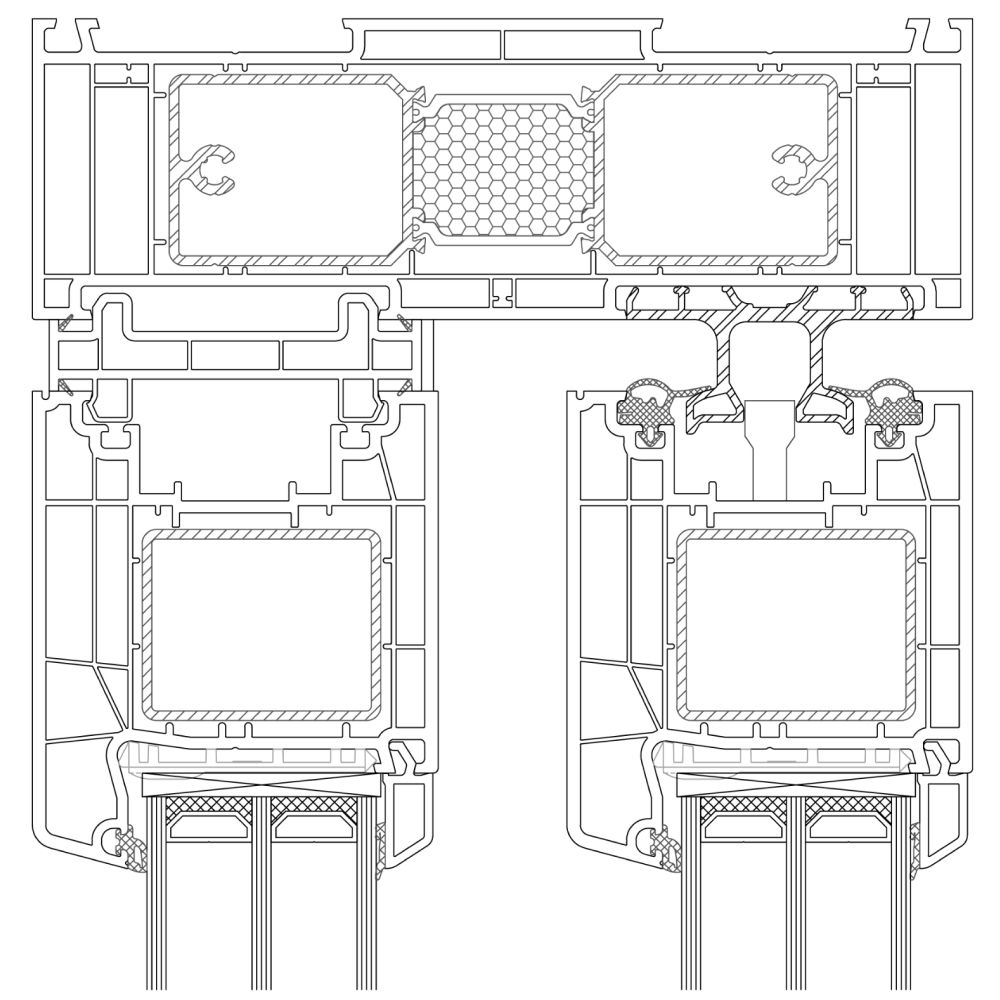

IDEAL Premium lift and slide door detailed drawing

U_W- value

≥ 0.79

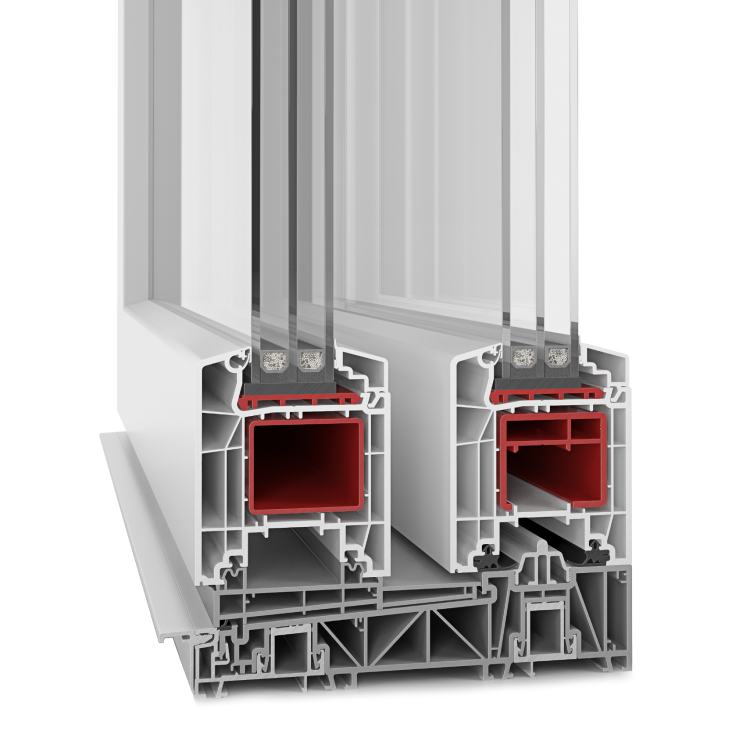

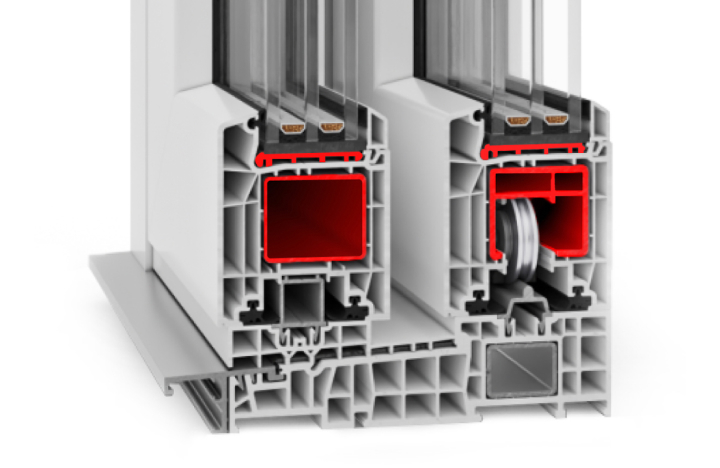

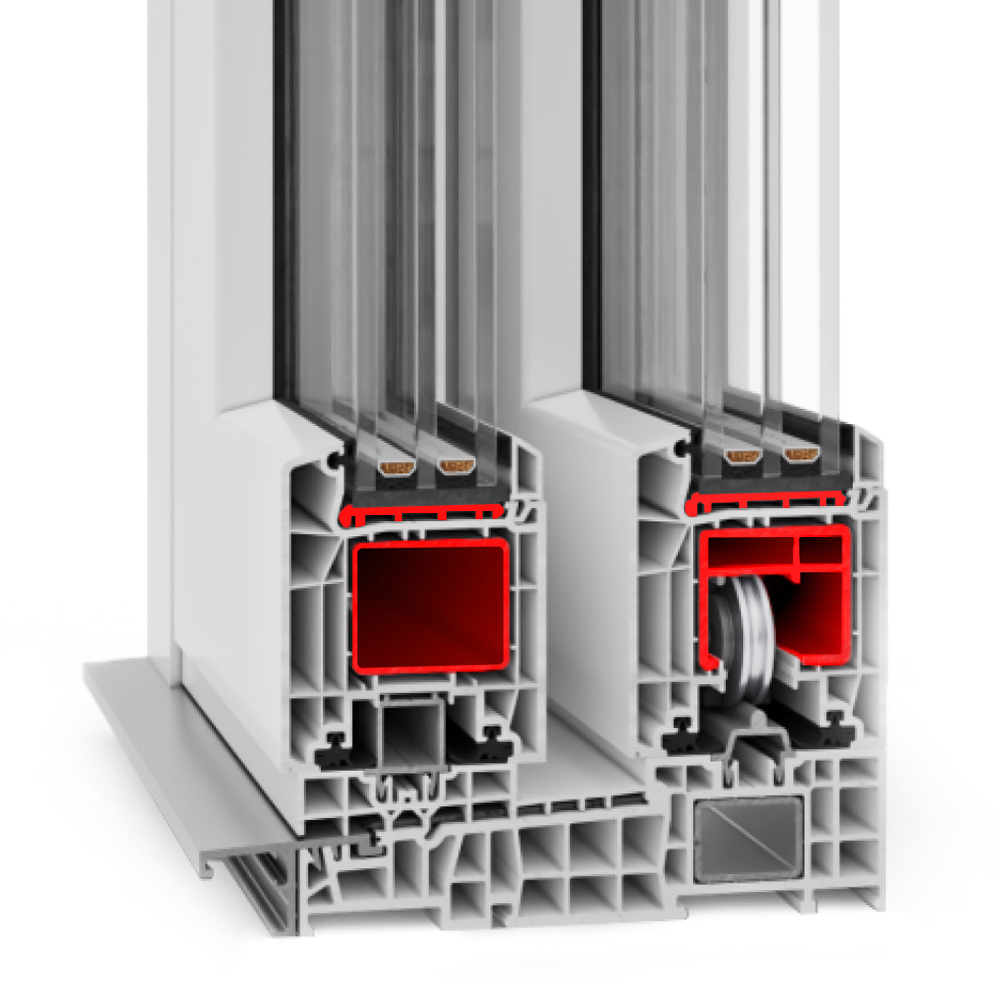

Ideal Premium uPVC lift and slide patio door profile

Lift-and-slide door (HST) uPVC

Lift and slide door in grey

Floor connection for lift and slide door

Gap ventilation for lift and slide doors

Installation situation lift-and-slide door made of uPVC

IDEAL Premium lift and slide door detailed drawing

uPVC lift-and-slide door - Ideal Premium

High-quality optics for your construction project

from € 3,313~~from € 3,313~~

incl. 19% VAT, free delivery^**

4 chamber system with a construction depth of 197mm
Thermally separated window frame reinforcement
Special thermally separated threshold

Calculate Price

Estimated production time 4-7 weeks¹

Product data sheet IDEAL Premium

Uw values IDEAL Premium

Detail drawings IDEAL Premium

Warranty

Ideal premium

Overview of features

4 chamber profile from aluplast in a flush design

High-quality Siegenia Aubi fitting with 2 locking bolts as standard

Special fibreglass foamed threshold

Upper guide rail made of fibreglass

Sash stiffener made of square steel with heat-insulating properties

Completely new sliding feeling thanks to maximum ease of movement

Simple and intuitive operation

High design standards due to concealed positioning

Quality made in Germany

Customer satisfaction

Over 250,000 Satisfied Customers and Counting

Residential building

Jack’s PointOtago, New Zealand

Wood-alu windows and doors for a passive house

“windows24.com brought windows and doors with amazing quality to our project. The products are well-built and certified for passive house values.”

Residential building

ColoradoUSA

Wood-alu and aluminium windows and doors

"We love our new windows and doors! The windows24 team gave us great advice and recommendations and was so patient with all changes to our project."

Residential building

HeathmontMelbourne, Australia

Composite windows and doors for a passive house

“We spent more than a year searching for a window manufacturer with high product quality and maximum design flexibility. At windows24.com we found the perfect solution for us.”

View all projects

TECHNICAL DETAILS

Ideal Premium - System Description

197mm construction depth with an Uf value = 1.1 W/m²K
Standard glazing with Ug value of 1.1 W/m²K
Triple glazing up to a Ug value of 0.6 W/m²K
Sash stiffener made of square steel with heat-insulating properties
Reinforcement in the frame with thermal break
Siegenia-Aubi HS PORTAL 300KF
High basic security with two locking bolts as standard
Lever shell and grip shell in the colours white, brown and titanium
Weather-resistant thanks to use of uPVC with modern additive technology
Weatherproof thanks to extruding seals; in accordance with DIN18055
Up to 97% recyclable materials

Thermal, safety and soundproof glazing possible
Effortless opening and closing, even with heavy sashes
Concealed locking technology through the swivel hook gear
High resistance to wind and driving rain-proof
Increased light penetration due to a large glass area

Options:

Additional break-in protection with security fittings rated up to RC2 N
Integrated door drive, lockable from inside and outside
Lock monitoring
Fitting up to 400kg
SoftClose

PRODUCT INFORMATION

Ideal Premium lift-and-slide door

The Ideal Premium profile made of uPVC has a 4 chamber system and is extremely weather-resistant thanks to special uPVCs.

Image	Profile	Model	Product Type	Width	Height
	aluplast	Ideal premium	Lift and slide door	from 200 cm	from 200 cm
Logo	Brand	Availability	Condition	Colour	Price
	windows24.com	available	New	White	from € 3,313

Order uPVC lift and slide patio doors online at low prices

Configure uPVC lift and slide patio doors now
