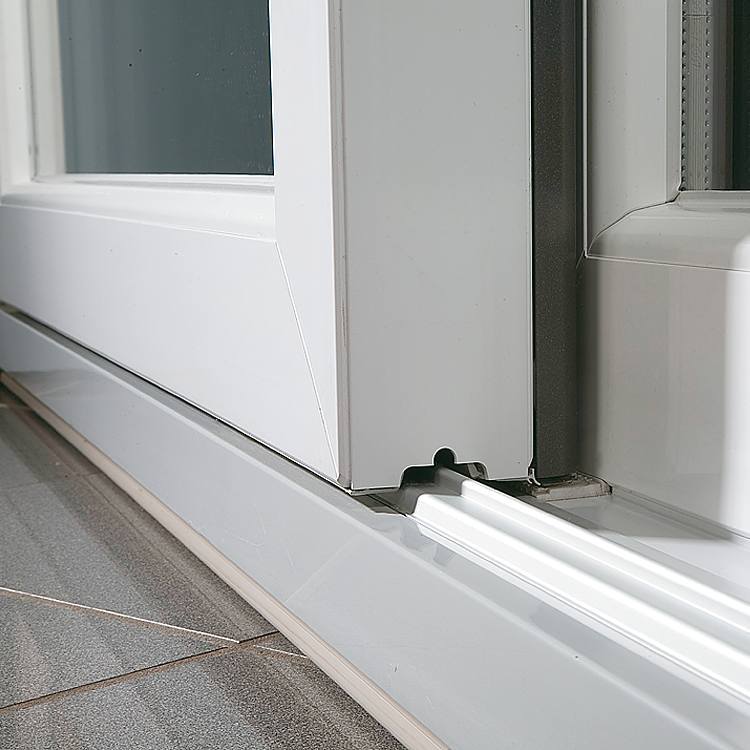

Floor connection for lift and slide door

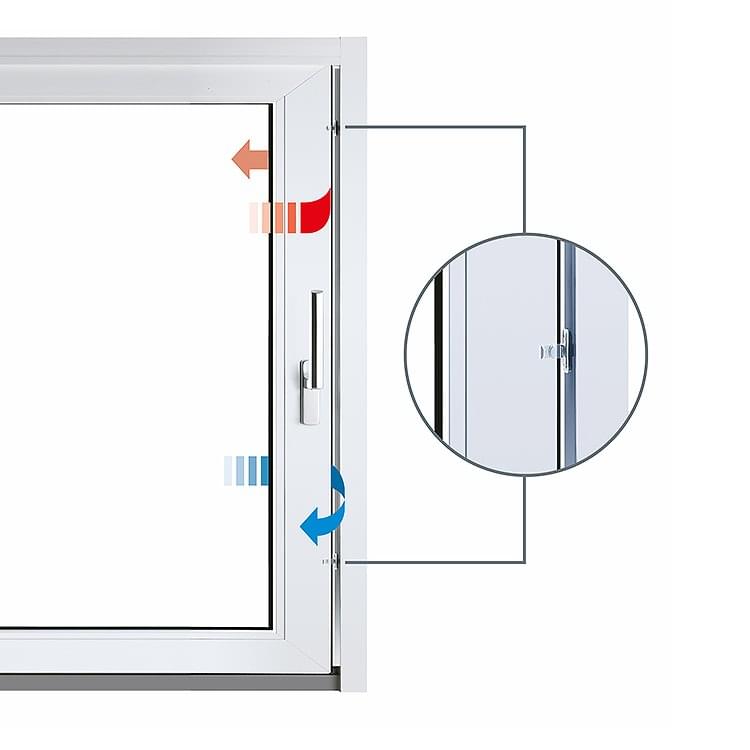

Gap ventilation for lift and slide doors

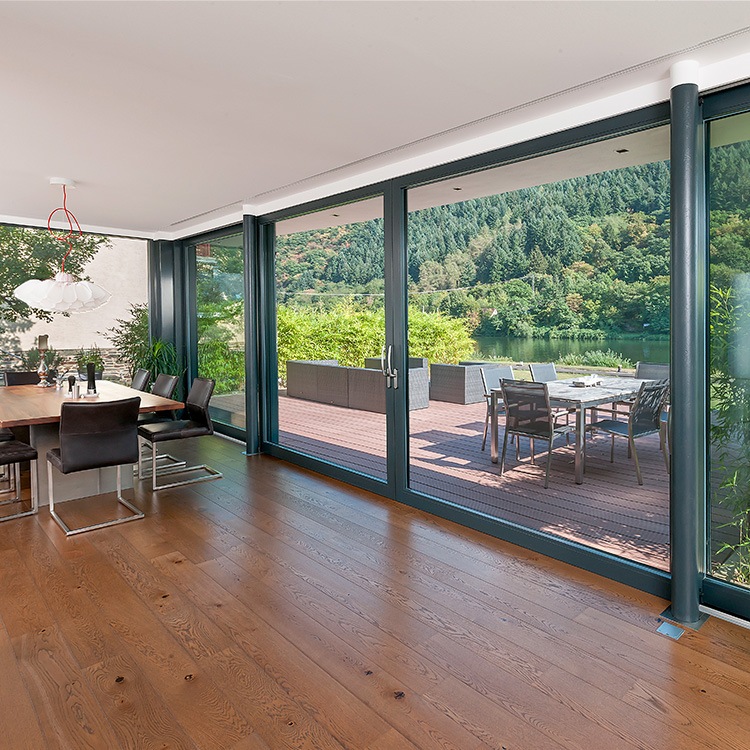

lift-and-slide door uPVC installation situation

U_W- value

≥ 0.96

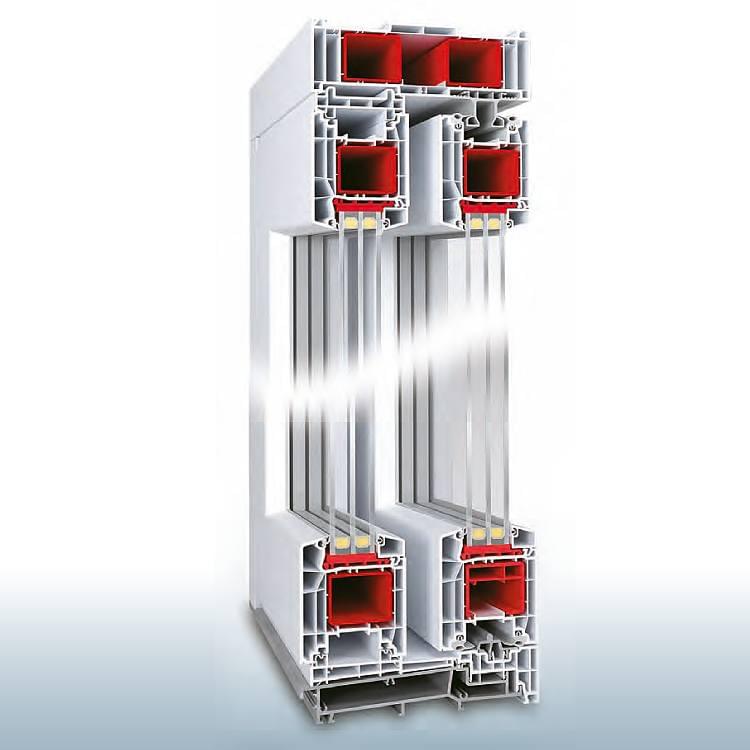

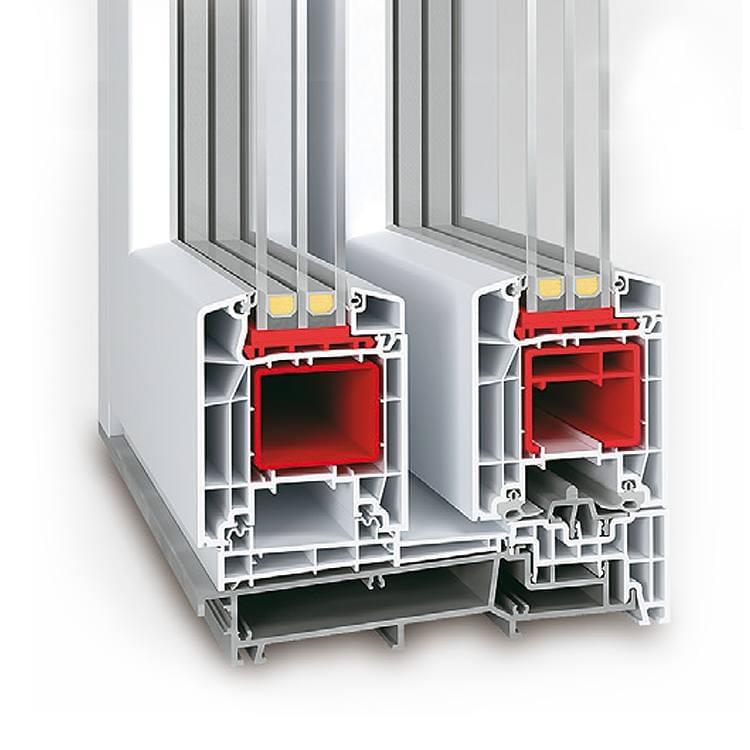

Lift-and-slide door profile HST plus BASIC - threshold

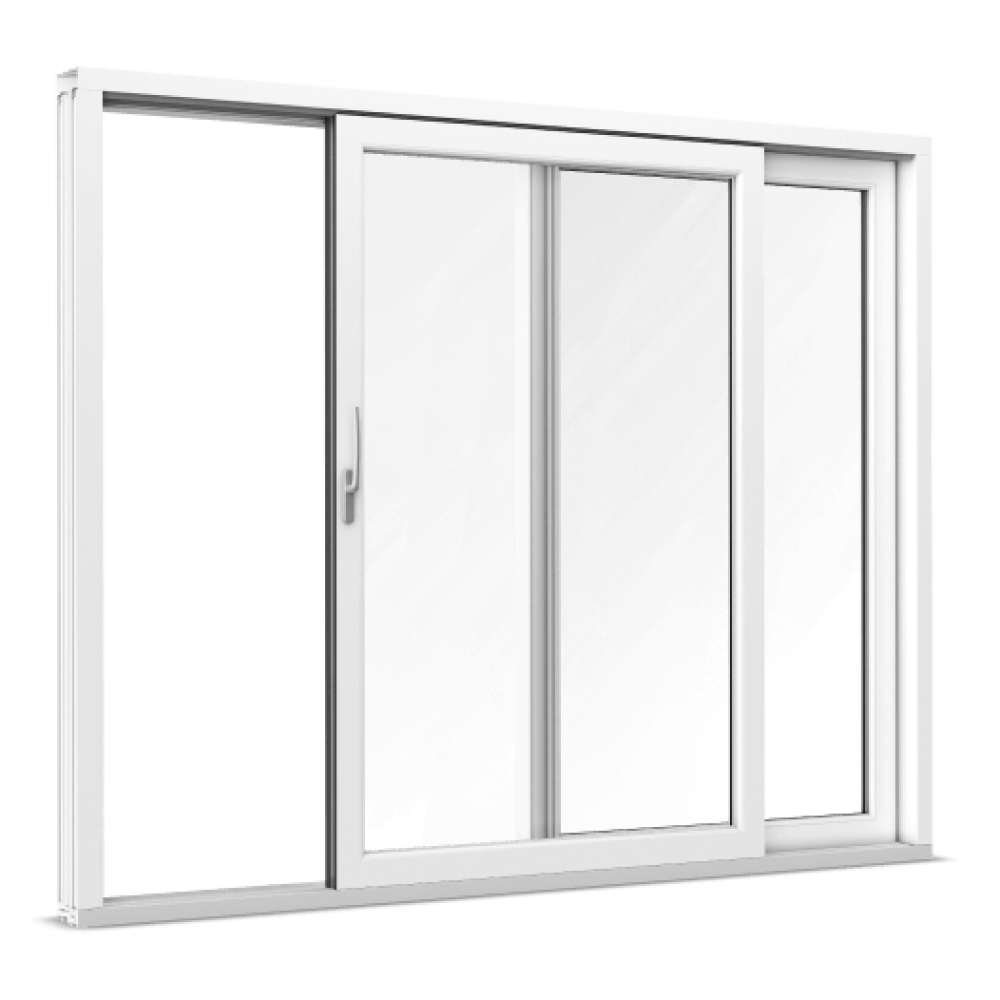

Lift-and-slide door (HST) uPVC

Lift and slide door in grey

Floor connection for lift and slide door

Gap ventilation for lift and slide doors

Installation situation lift-and-slide door made of uPVC

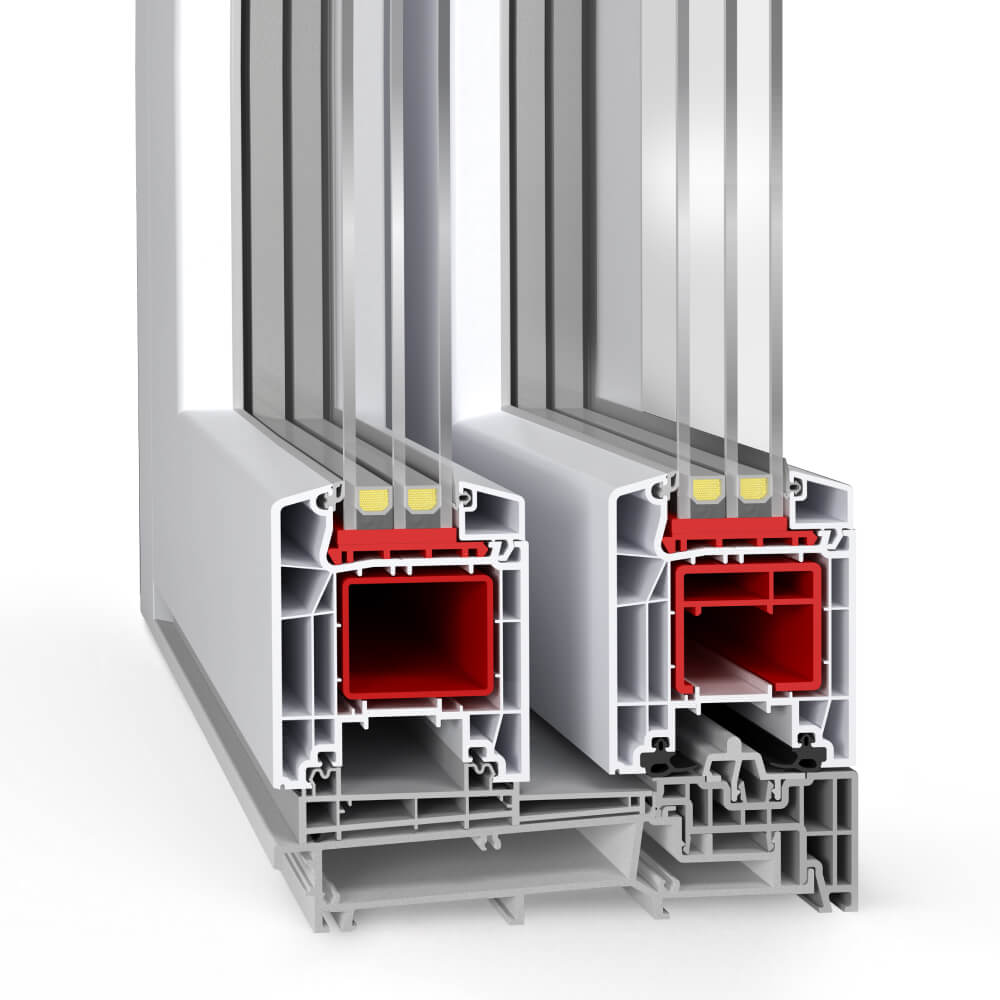

uPVC lift and slide door – Ideal Basic

High-quality optics for your construction project

from € 2,761~~from € 2,761~~

incl. 19% VAT, free delivery^**

4 chamber system with a construction depth of 197mm
Very good sound and thermal insulation properties
Thermally separated threshold

Calculate Price

Estimated production time 4-7 weeks¹

Product data sheet IDEAL Basic

Uw values IDEAL Basic

Detail drawings IDEAL Basic

Warranty

Ideal basic

Overview of features

4 chamber profile from aluplast in a flush design

High-quality Siegenia Aubi fitting with 2 locking bolts as standard

Dimensionally stable, thermally separated aluminium threshold

Completely new sliding feeling thanks to maximum ease of movement

Simple and intuitive operation

High design standards due to concealed positioning

Quality made in Germany

Customer satisfaction

Over 250,000 Satisfied Customers and Counting

Residential building

Jack’s PointOtago, New Zealand

Wood-alu windows and doors for a passive house

“windows24.com brought windows and doors with amazing quality to our project. The products are well-built and certified for passive house values.”

Residential building

ColoradoUSA

Wood-alu and aluminium windows and doors

"We love our new windows and doors! The windows24 team gave us great advice and recommendations and was so patient with all changes to our project."

Residential building

HeathmontMelbourne, Australia

Composite windows and doors for a passive house

“We spent more than a year searching for a window manufacturer with high product quality and maximum design flexibility. At windows24.com we found the perfect solution for us.”

View all projects

TECHNICAL DETAILS

Ideal Basic - System Description

197mm construction depth with an Uf value = 1.8 W/m²K
Standard glazing with Ug value of 1.1 W/m²K
Triple glazing up to a Ug value of 0.6 W/m²K
bolted steel insert in the frame and sash
Siegenia-Aubi HS PORTAL 300KF
High basic security with two locking bolts as standard
Lever and handle shell in the colours white, brown and titanium
Weather-resistant thanks to use of uPVC with modern additive technology
Up to 97% recyclable materials
Thermal, safety and soundproof glazing possible

Weatherproof thanks to extruding seals; in accordance with DIN18055
Effortless opening and closing, even with heavy sashes
Concealed locking technology through the swivel hook gear
High resistance to wind and driving rain-proof
Increased light penetration due to a large glass area

Options:

Additional break-in protection with security fittings rated up to RC2 N
Integrated door drive, lockable from inside and outside
Lock monitoring

PRODUCT INFORMATION

Ideal Basic lift and slide door

The uPVC lift and slide door with an Ideal Basic profile has a high level of basic security and enables smooth operation.

Image	Profile	Model	Product Type	Width	Height
	aluplast	Ideal basic	Lift and slide door	from 200 cm	from 200 cm
Logo	Brand	Availability	Condition	Colour	Price
	windows24.com	available	New	White	from € 2,761
