Classic IV 78 profile tilt and slide patio door in pine glaze walnutWood tilt and slide patio doorClassic IV 78 wooden tilt and slide patio door open with rain railClassic IV 78 wooden tilt and slide patio door with rain railOpen Classic IV 78 wooden tilt and slide patio door in whiteClassic IV 78 wooden tilt and slide patio door with rain railWood tilt and slide patio door - detail viewVertical section of IV 78 wooden tilt and slide patio doorSectional drawing of wooden Classic IV 78 tilt and slide patio door
UW- value
≥ 0.84

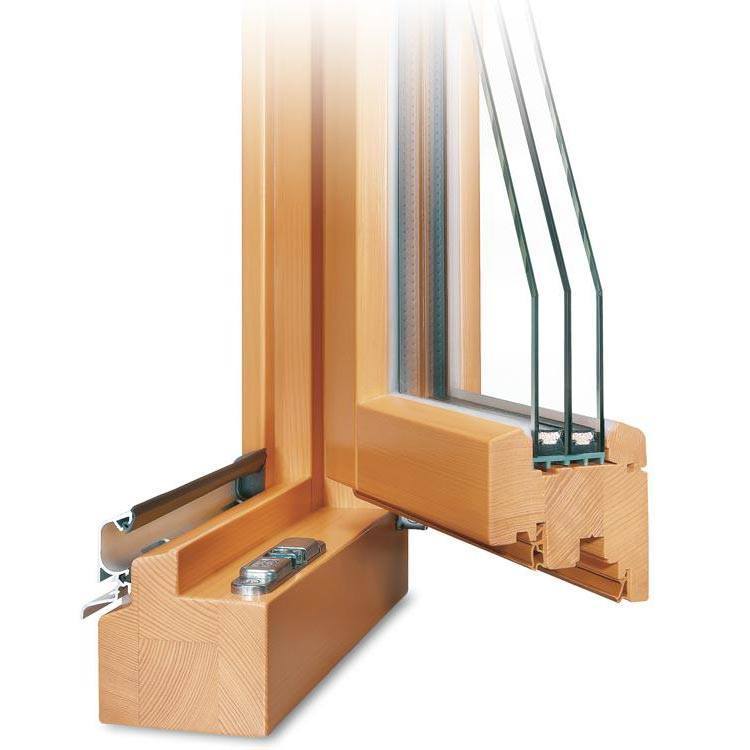

Classic IV 78 profile tilt and slide patio door in pine glaze walnut
Classic IV 78 profile tilt and slide patio door in pine glaze walnut

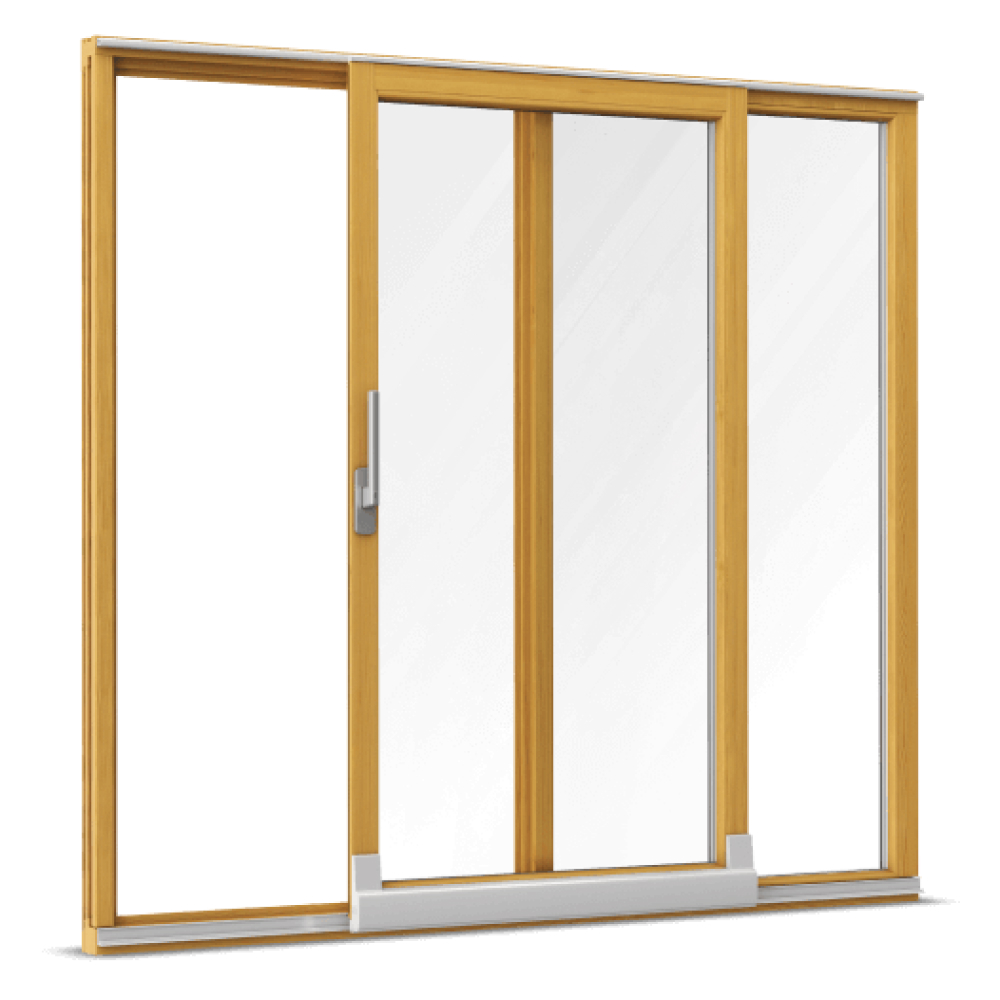

Wood tilt and slide patio door
Wood tilt and slide patio door

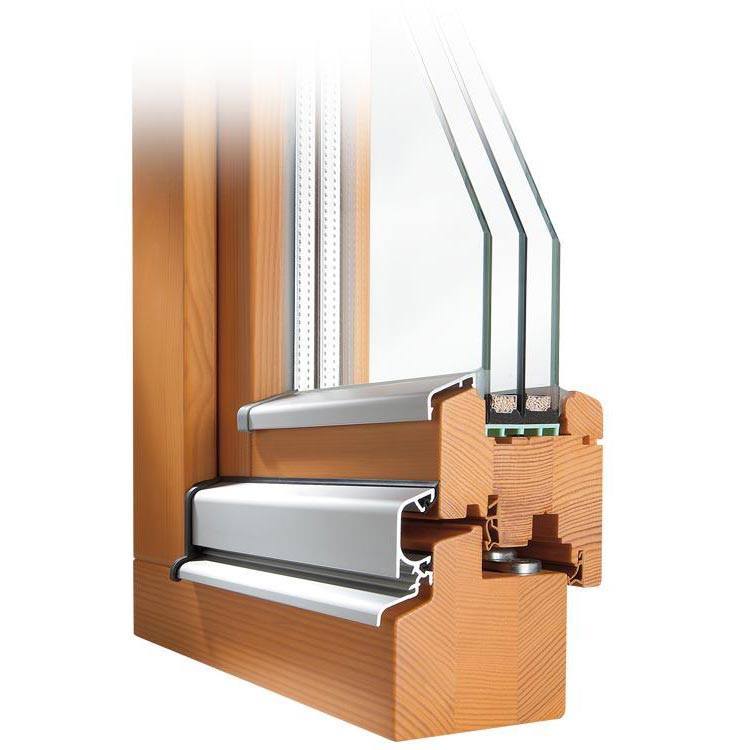

Classic IV 78 wooden tilt and slide patio door open with rain rail
Classic IV 78 wooden tilt and slide patio door open with rain rail

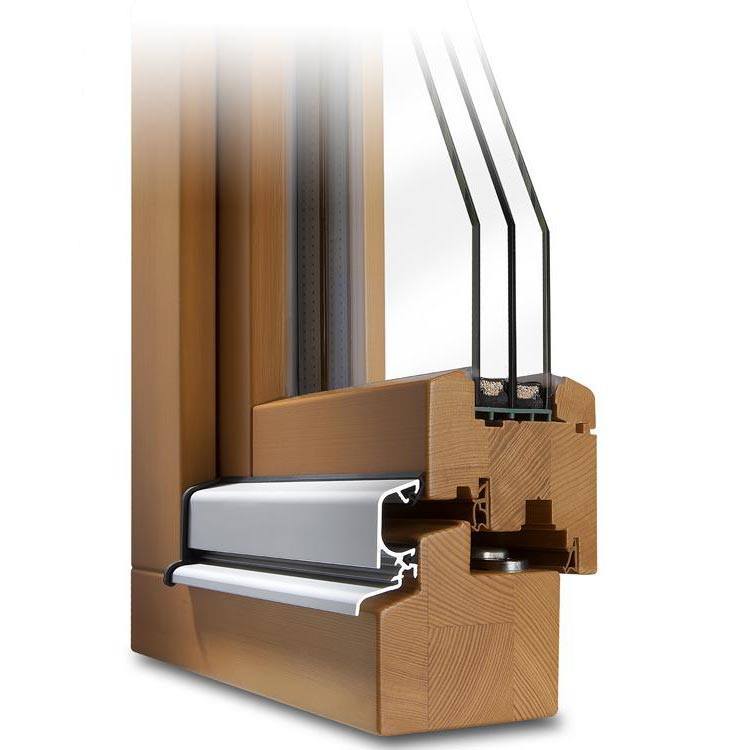

Classic IV 78 wooden tilt and slide patio door with rain rail
Classic IV 78 wooden tilt and slide patio door with rain rail

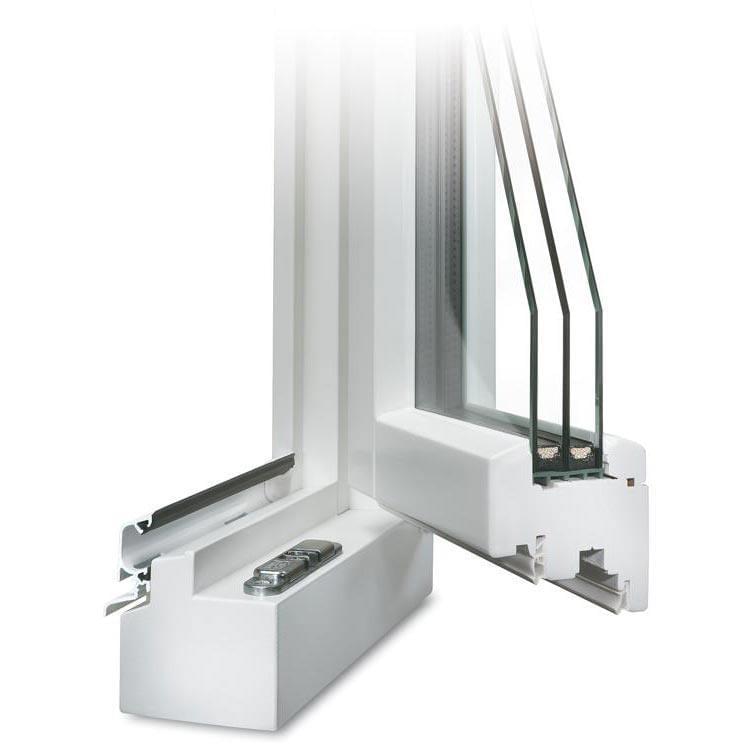

Open Classic IV 78 wooden tilt and slide patio door in white
Open Classic IV 78 wooden tilt and slide patio door in white
Classic IV 78 wooden tilt and slide patio door with rain rail
Classic IV 78 wooden tilt and slide patio door with rain rail

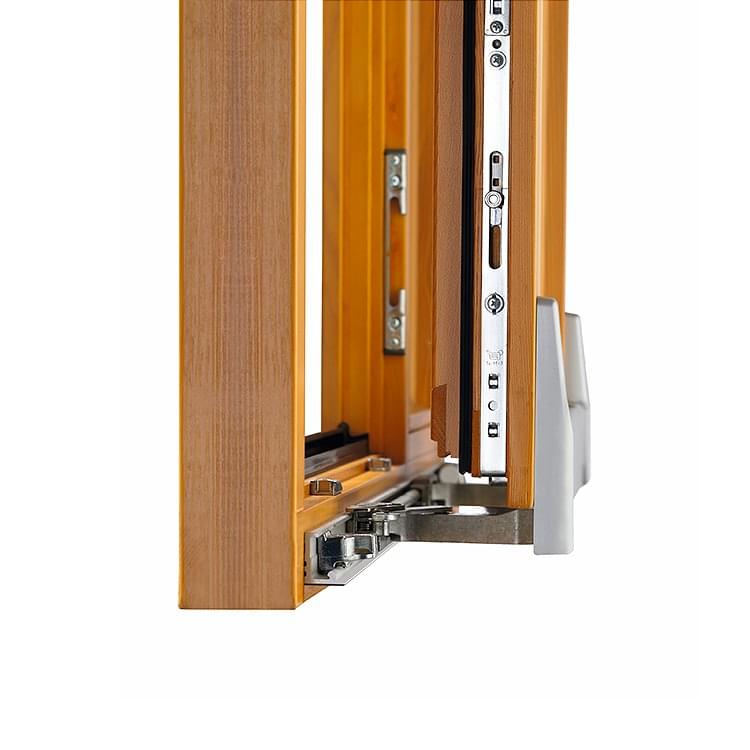

Wood tilt and slide patio door - detail view
Wood tilt and slide patio door - detail view

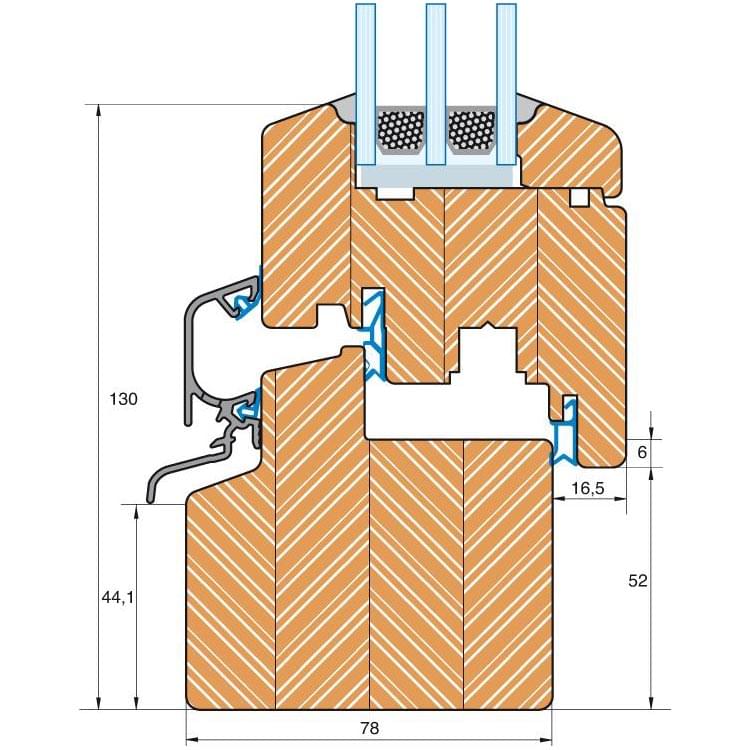

Vertical section of IV 78 wooden tilt and slide patio door
Vertical section of IV 78 wooden tilt and slide patio door

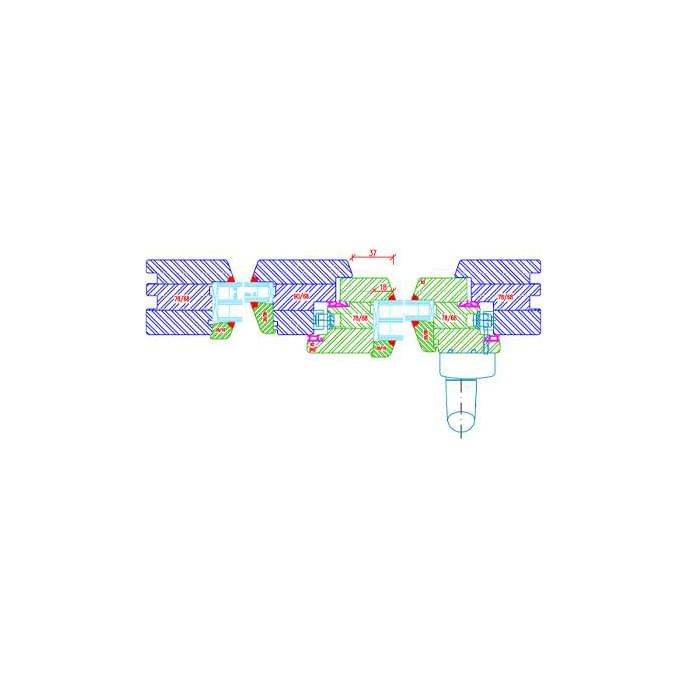

Sectional drawing of wooden Classic IV 78 tilt and slide patio door
Sectional drawing of wooden Classic IV 78 tilt and slide patio door

Wooden tilt and slide patio door - Classic IV 78

More design with convincing product features

from 3,222from 3,222

incl. 19% VAT, free delivery**

  • In the wood types pine, meranti, larch and oak
  • Available in 2 design options: Classic and Roundline
  • 78 mm construction depth
Calculate Price
Estimated production time 5-8 weeks1
Classic

5-year warranty

Blue stain protection

High-quality surface thanks to hydroplaning

Grade 1a wood

German brand quality

Customer satisfaction

Over 250,000 satisfied customers and counting

Jack’s Point, Otago, New Zealand
Residential building
Jack’s PointOtago, New Zealand
Wood-alu windows and doors for a passive house

“windows24.com brought windows and doors with amazing quality to our project. The products are well-built and certified for passive house values.”

Colorado project
Residential building
ColoradoUSA
Wood-alu and aluminium windows and doors

"We love our new windows and doors! The windows24 team gave us great advice and recommendations and was so patient with all changes to our project."

Heathmont, Melbourne, Australia
Residential building
HeathmontMelbourne, Australia
Composite windows and doors for a passive house

“We spent more than a year searching for a window manufacturer with high product quality and maximum design flexibility. At windows24.com we found the perfect solution for us.”

View all projects

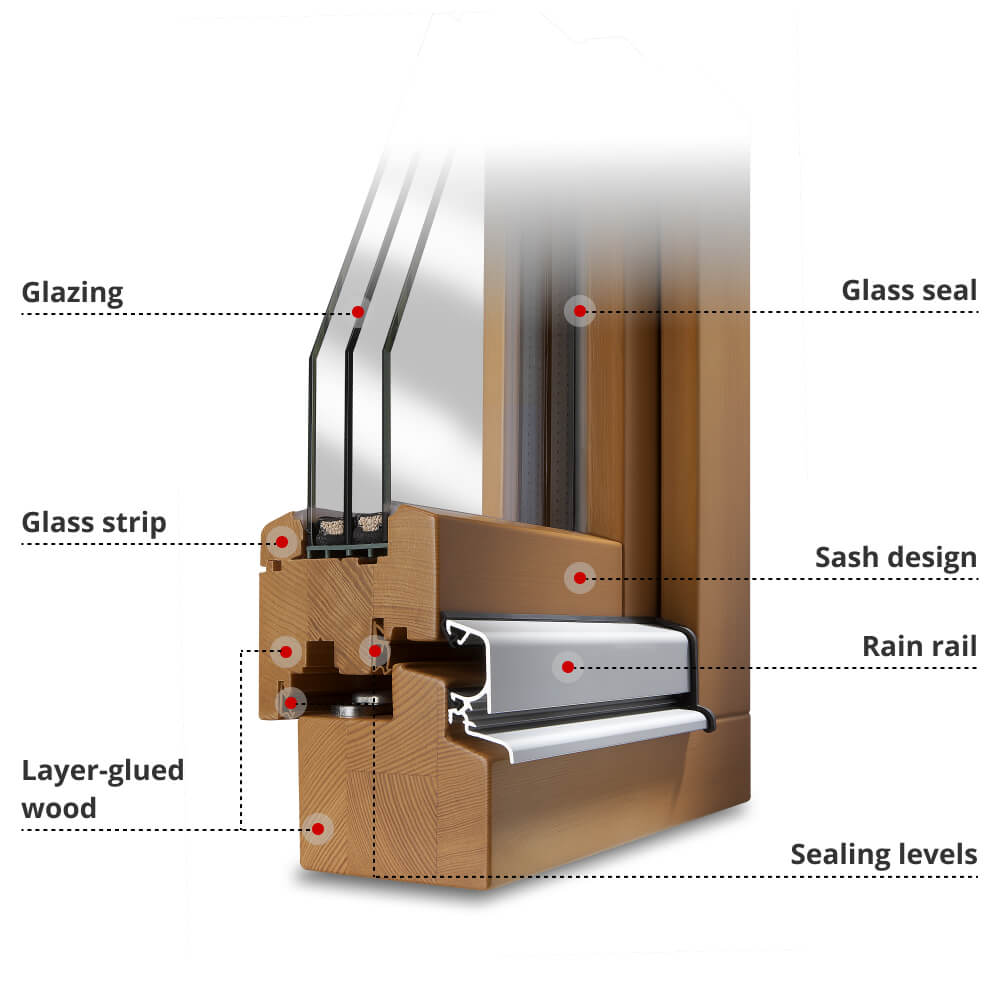

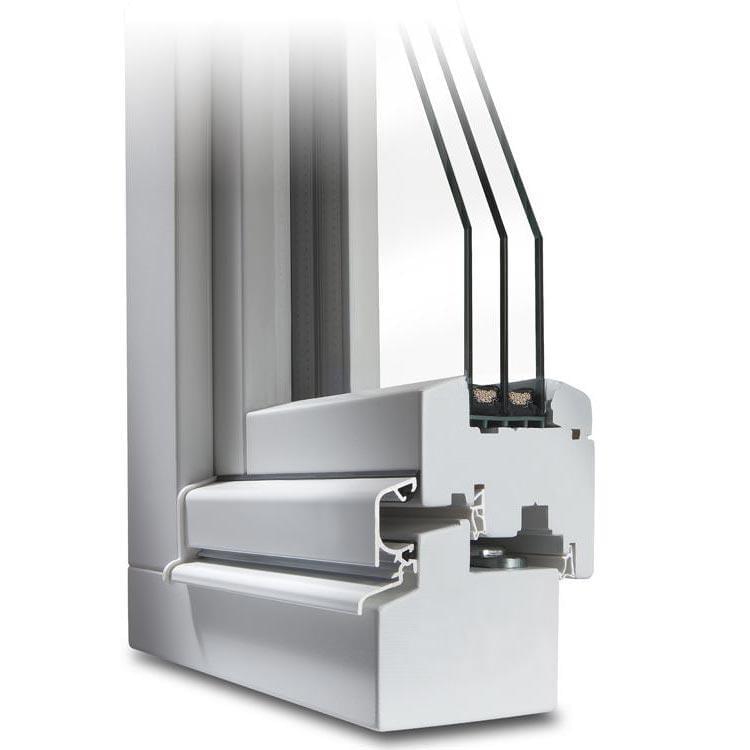

Profile description

  • Glazing: You can choose triple glazing depending on your requirements

  • Glass seal: The glass seal provides optimal protection against water penetration

  • Glass strip: Provides the necessary contact pressure between the seals and glass

  • Sash design: The sash has a classic offset design

  • Rain rail: The rain rail provides good protection for heavily used areas

  • Layer-glued wood: The layer-glued wood with continuous cover lamination ensures high stability and guarantees a long service life for your wood window

  • Sealing levels: The two sealing levels ensure good thermal and sound insulation
TECHNICAL DETAILS

System description

System and construction

  • Layer-glued sawn timber, available in wood types: pine, spruce, Meranti, larch, eucalyptus or oak

Surface

  • Smooth wood surface due to hydro-tensioned fine planing
  • Factory-applied finish to protect against UV rays and moisture
  • Finished with an electrostatic spraying process using environmentally friendly paints and varnishes
  • The lower frame moulds, which are particularly affected by the weather, are protected by a coated or anodised water drainage channel

Functionality

  • Normal windows, thermal insulation, soundproof and security windows, sliding elements, balcony and patio doors

Fitting

  • Parallel slide and tilt hardware with malfunction lock
  • Basic security with two mushroom-head locking bolts and two safety strike plates
  • Intuitive operation and elegant, smooth sliding of the sash into the closed position
  • Simplified assembly thanks to the height and tilt adjustment and a self-supporting running track without padding up to 160kg
PRODUCT INFORMATION

CLASSIC IV 78 tilt and slide patio door

The CLASSIC profile with its traditional design is available in the wood types pine, meranti, larch and oak and has a 5-year guarantee.

ImageProfileModelProduct TypeWidthHeight
IV 78 mmCLASSICTilt and slide patio door from 150 cm from 140 cm
LogoBrandAvailabilityConditionColourPrice
windows24.com available NewWhite, Mahogany, Walnut from € 3,222

Order wood tilt and slide patio doors online at low prices

Configure wood tilt and slide patio doors now
