Tilt and slide wood-aluminium door IDEALU Trendline IV 68 semi-offsetTilt and slide patio door made of wood-aluTilt and slide patio door wood-alu Trendline IV 68 Detailed drawing
UW- value
≥ 0.86

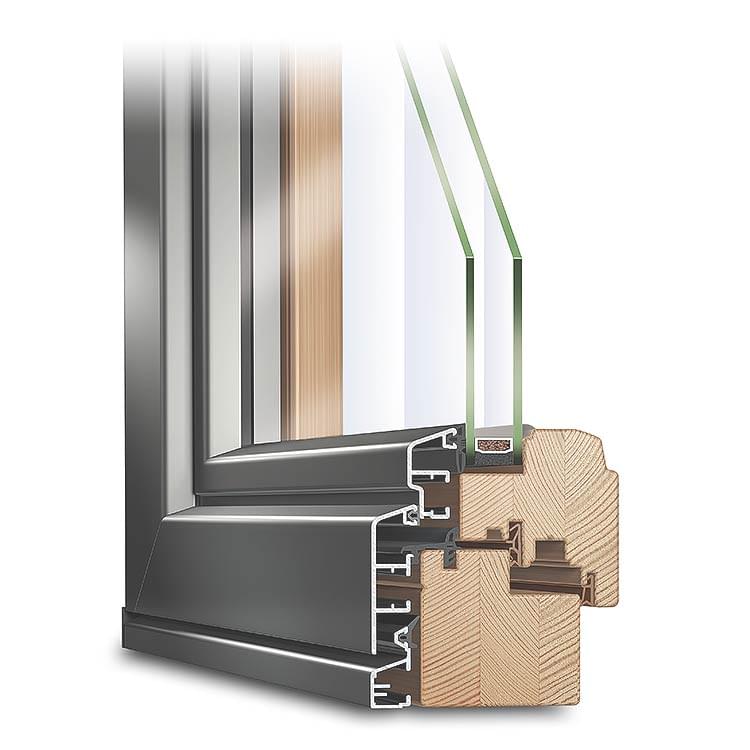

Tilt and slide wood-aluminium door IDEALU Trendline IV 68 semi-offset
Tilt and slide wood-aluminium door IDEALU Trendline IV 68 semi-offset
Tilt and slide patio door made of wood-alu
Tilt and slide patio door made of wood-alu
Tilt and slide patio door wood-alu Trendline IV 68 Detailed drawing
Tilt and slide patio door wood-alu Trendline IV 68 Detailed drawing

Wood-aluminium tilt and slide patio door - IDEALU Trendline IV 68

The wood and aluminium system with added quality

from 4,409from 4,409

incl. 19% VAT, free delivery**

  • High-quality system with a semi-offset design
  • 68 mm construction depth
  • Extremely weather-resistant and easy to care for
Calculate Price
Estimated production time 6-9 weeks1
Ideal Trendline

Overview of features

10 year guarantee

RAL quality-assured aluminium shell from "Stemeseder Alto Nova"

High-quality surface thanks to hydroplaning

Grade 1a wood

German brand quality

Customer satisfaction

Over 250,000 satisfied customers and counting

Jack’s Point, Otago, New Zealand
Residential building
Jack’s PointOtago, New Zealand
Wood-alu windows and doors for a passive house

“windows24.com brought windows and doors with amazing quality to our project. The products are well-built and certified for passive house values.”

Colorado project
Residential building
ColoradoUSA
Wood-alu and aluminium windows and doors

"We love our new windows and doors! The windows24 team gave us great advice and recommendations and was so patient with all changes to our project."

Heathmont, Melbourne, Australia
Residential building
HeathmontMelbourne, Australia
Composite windows and doors for a passive house

“We spent more than a year searching for a window manufacturer with high product quality and maximum design flexibility. At windows24.com we found the perfect solution for us.”

View all projects

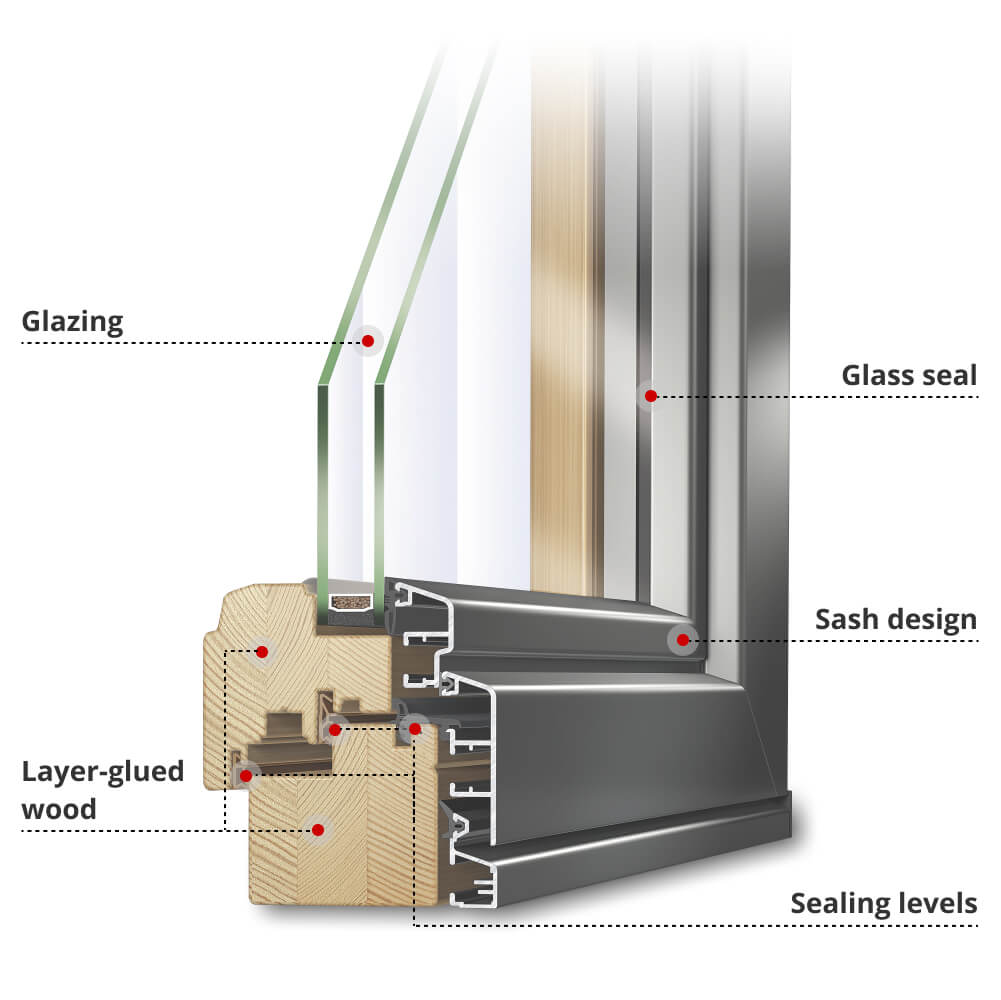

Profile Description

  • Glazing: Choose between double or triple glazing.

  • Glass seal: The glass seal provides optimum protection against water penetration.

  • Sash design: Modern with a semi-recessed design.

  • Layer glued wood: Glued wood edge bands with continuous laminated top layer provide stability and durability.

  • Sealing levels: Three sealing levels ensure both good thermal and noise insulation.
TECHNICAL DETAILS

Idealu Trendline – system description

Glazing

  • Use of branded insulating glass can be combined with sound insulation (up to class 5) as well as safety glass and ornamental glass
  • UV resistant seal
  • General wet glazing

Surface

  • The surface treatment ensures the longevity of the components
  • A colourless surface is also possible for wood-aluminium windows

Functionality

  • Normal windows, thermal insulation, soundproof and security windows, sliding elements, balcony and patio doors

Physical Requirements

  • Thermal insulation according to DIN 4108 and GEG
  • Sound insulation according to VDI 2719 SSK, SSK II to V
  • Burglar resistance according to DIN V ENV 1627-1630 up to resistance class 2
  • Wood-aluminium windows with a 10-year guarantee are only coated with products that have been tested according to all European requirements without exception

Fitting

  • Parallel slide and tilt hardware with malfunction lock
  • Basic security with two mushroom-head locking bolts and two safety strike plates
  • Intuitive operation and elegant, smooth sliding of the sash into the closed position
  • Simplified assembly thanks to the height and tilt adjustment and a self-supporting running track without padding up to 160kg
PRODUCT INFORMATION

Tilt and slide patio door IDEALU Trendline

The IDEALU Trendline profile is available in the wood types pine, larch, meranti and oak, and is extremely weather-resistant.

ImageProfileModelProduct TypeWidthHeight
IV 68 mm and IV 78 mmIDEALU Trendline IV 68Tilt and slide patio door from 150 cm from 140 cm
LogoBrandAvailabilityConditionColourPrice
windows24.com available NewWhite, Mahogany, Teak, RAL colours from € 4,409

Order wood aluminium tilt and slide patio doors online at low prices

Configure wood aluminium tilt and slide patio doors now
