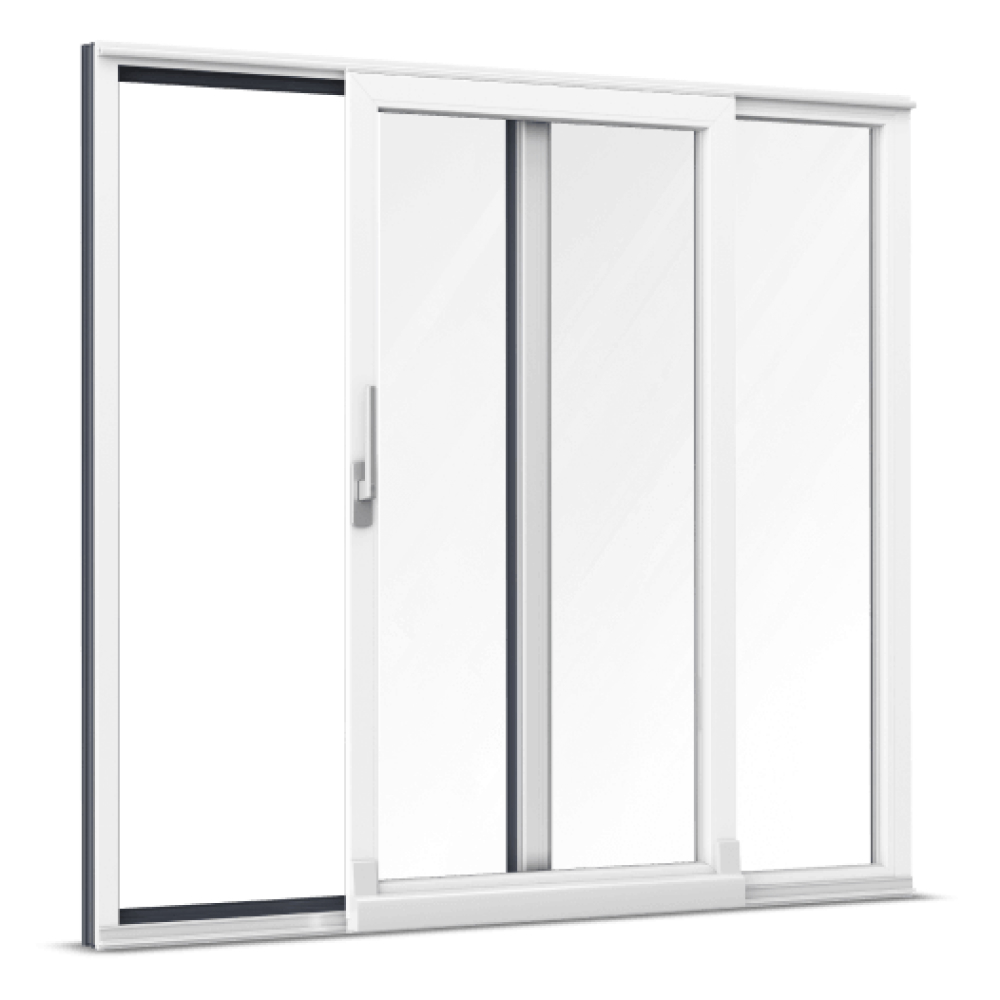

uPVC and aluminium tilt and slide patio door – Twinset 8000

• Glazing: Depending on your requirements, you can opt for double or triple glazing

• Glass seal: The glass seal provides optimal protection against water penetration

• Glass strip: Provides the necessary contact pressure between the seals and glass

• Highly weatherproof aluminium shell

• Glass bonding: Achieve great stability even without steel reinforcement thanks to glass bonding

• Sash design: The sash has a modern offset design

• Sealing levels: Three sealing levels ensure very good thermal insulation and soundproofing

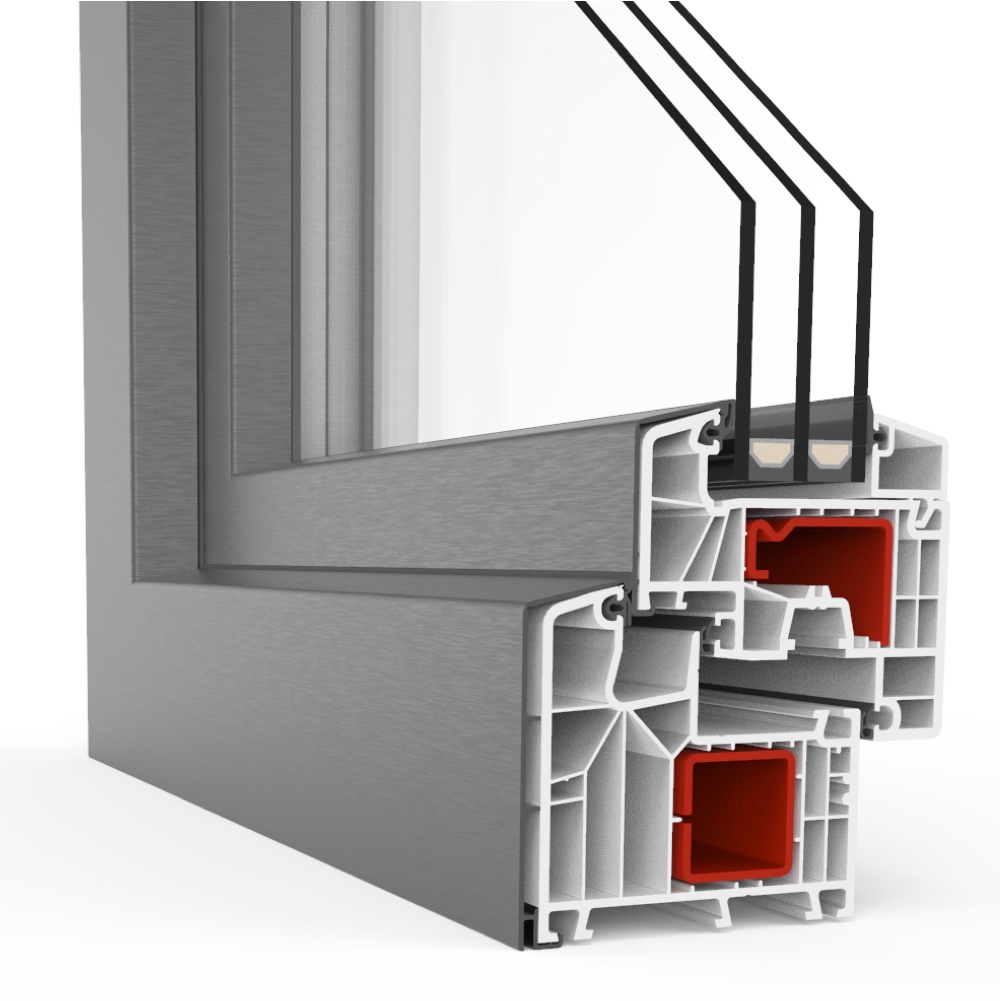

• Profile chambers: In order to achieve good thermal insulation, the profiles are divided into several chambers

• Insulating foam: The insulating foam within the large profile chambers ensures perfect thermal insulation

• Carbon fibre reinforcement: Special carbon fibre reinforcement from BASF replaces steel, thus significantly improving thermal insulation

• with conventional glazing, 6-chamber system with aluminium shell

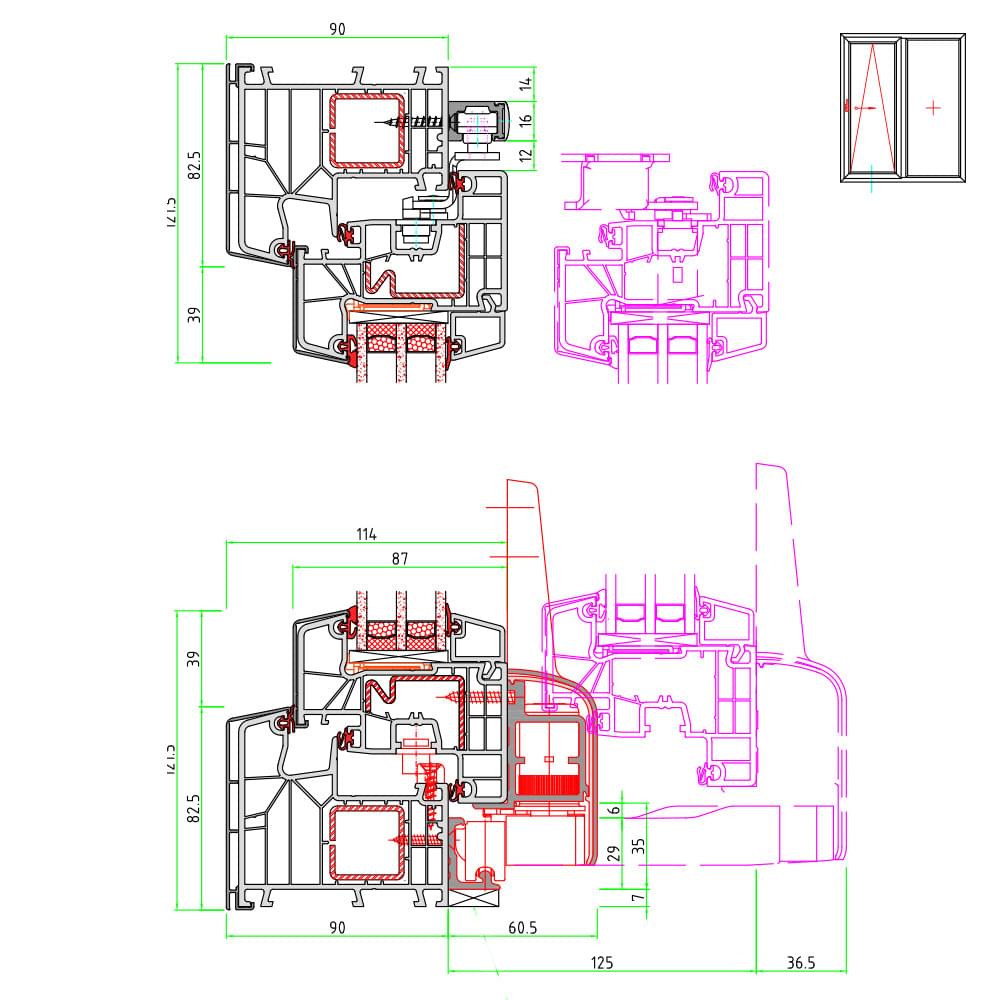

• Frames and sash with a construction depth of 90mm.
• Sleeker look with 77mm sash in offset model
• 3 sealing levels papyrus white / outer seal black.
• Thermal insulation possible up to Uw 0.80 W/m2K (in 1230x1480mm size).
• activPilot fitting, offers perfect functionality and ergonomics, understated design.
• Window thickness from 24 to 50mm.
• Sound insulation Rw ≤ 44dB.
• Parallel slide and tilt hardware with malfunction lock
• Basic security with two mushroom-head locking bolts and two safety strike plates

• Intuitive operation and elegant, smooth sliding of the sash into the closed position
• Simplified assembly thanks to the height and tilt adjustment and a self-supporting running track without padding up to 160kg
• Design: Inner uPVC profile in white or decor. Outside: weather-resistant, hard-wearing aluminium outer shell in an almost unlimited range of colours.
• Extremely weather-resistant thanks to uPVC featuring modern additive technology.
• Weatherproof thanks to extruding seals.
• Lead, cadmium and barium-free uPVC profile.

Optional

• Integrated door lock, lockable from inside and outside
• Lock monitoring
