Wood-aluminium lift and slide door with PLANO profile

Innovative combination of materials

from 4,706from 4,706

incl. 19% VAT, free delivery**

  • 198 mm construction depth
  • Excellent soundproofing and thermal insulation properties
  • Thermally separated threshold
Calculate Price
Estimated production time 6-9 weeks1
PLANO

Overview of features

High-quality SIEGENIA AUBI HS Portal 300 fitting with 2 locking bolts as standard

Very good thermal insulation values

Smooth, lightweight open and closing

Extremely waterproof and wind resistant

Modern design

Large variety of colours

German brand quality

Customer satisfaction

Over 200,000 happy customers and counting

The sales support is friendly, knowledgeable and always available.

It couldn't have gone better!

I am very satisfied with the quality and handling of the wood windows.

Technical details

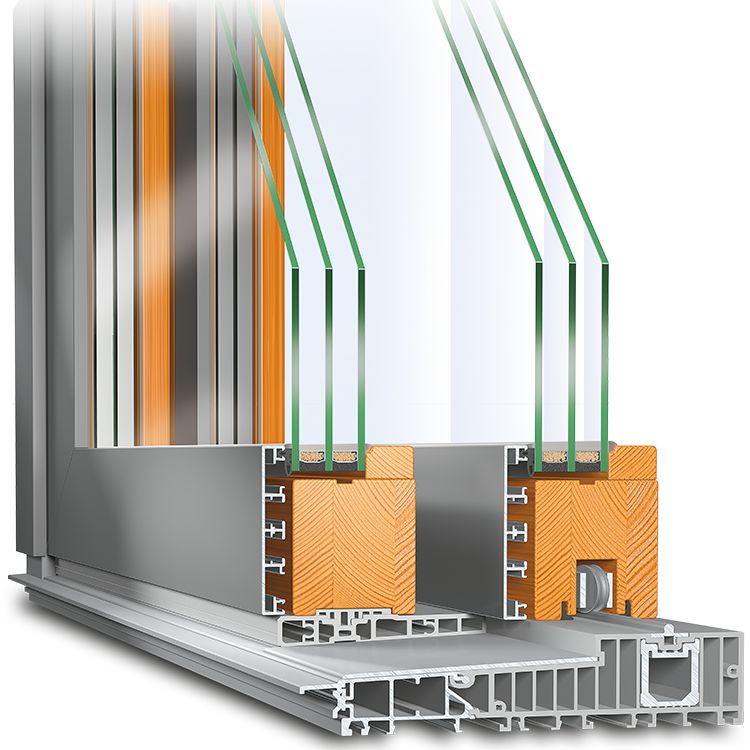

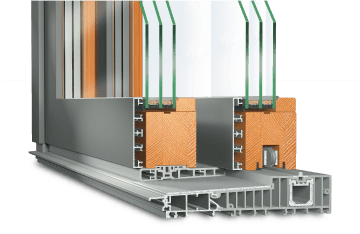

PLANO – system description

  • 198 mm construction depth / 221 mm profile depth with a Uw value of up to 0.94 W/m²K
  • Sash design also in IDEALU IV 78 for improved thermal insulation
  • Standard glazing with a Ug value of 1.1 W/m²K
  • Triple glazing up to a Ug value of 0.6 W/m²K
  • Glass thickness 36 mm to 54 mm
  • Siegenia-Aubi HS PORTAL 300KF
  • High level of basic security thanks to two locking bolts
  • Lever and handle shell in white, EV1, F9, C33 medium bronze or RAL 8022 black-brown
  • Modern additive technology
  • Weather protection thanks to extruding seals according to DIN18055
  • Thermal, safety and soundproof glazing possible
  • Effortless opening and closing, even with heavy sashes
  • Concealed locking technology with a swivel hook gear
  • Highly windproof and driving rain-proof
  • Increased light thanks to large glass surface
  • Guide rail prepared at the top for gentle closing (SoftClose)
  • Threshold, wood water drainage 20 mm standard, 50 mm or 90 mm optional
  • Concealed locking technology with a swivel hook gear
  • Highly windproof and driving rain-proof
  • Increased light thanks to large glass surface
  • Guide rail prepared at the top for gentle closing (SoftClose)
  • Threshold, wood water drainage 20 mm standard, 50 mm or 90 mm optional

Options:

  • Additional break-in protection with security fittings rated up to RC2 N
  • 4-way locking
  • Practical mechanism, lockable from inside and out
  • Lock monitoring
  • Sealing plate for threshold, underneath along the length or in front along the width
  • Accessible threshold
  • Extendable thermal insulation in 20 mm increments from 40 mm to 360 mm
  • Edged or smart glass strip
Product information

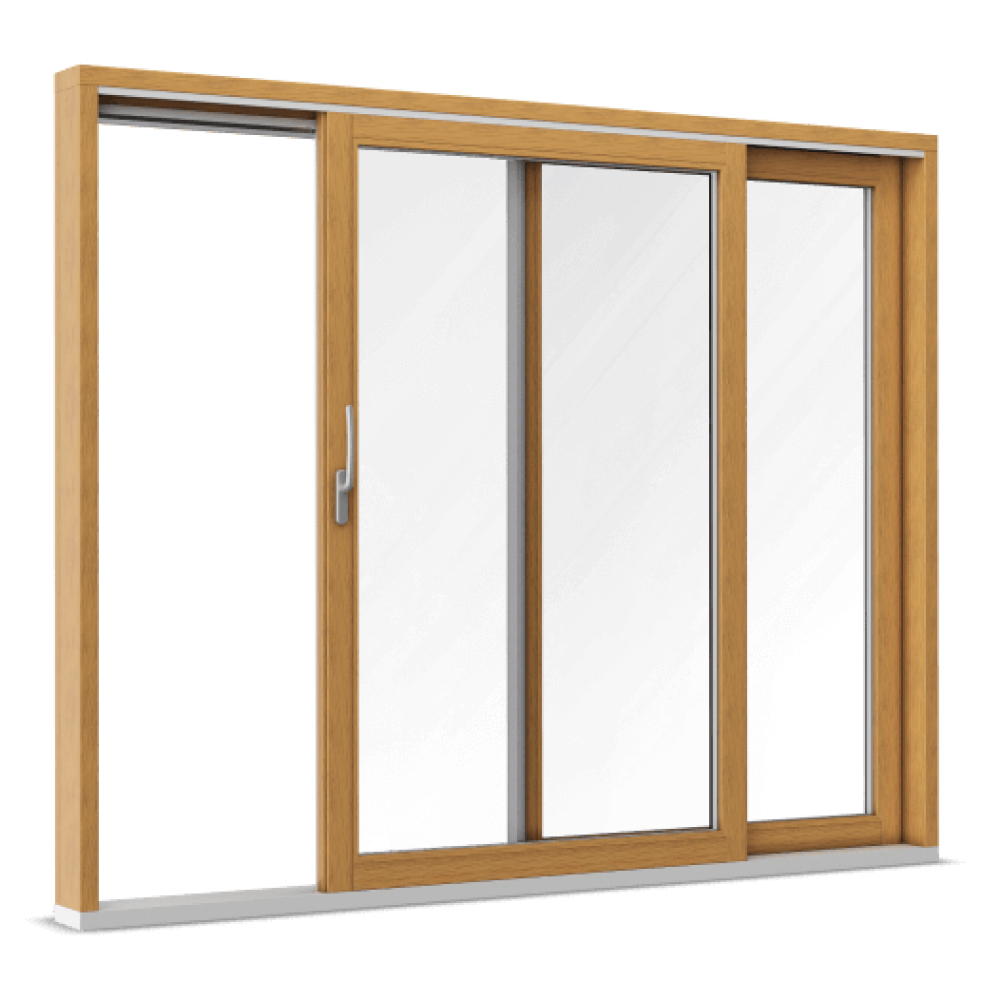

Lift and slide door PLANO

The lift and slide door with PLANO profile made of wood and aluminium offers excellent soundproofing and thermal insulation properties and many modern design options.

ImageProfileModelProduct TypeWidthHeight
PlanoPlanoLift and slide door from 210 cm from 200 cm
LogoBrandAvailabilityConditionColourPrice
windows24.com available New White from € 4,706

Order wood-aluminium lift and slide doors online at low prices

Configure wood-aluminium lift and slide doors now
