Detail drawings for wood-aluminium folding sliding doors

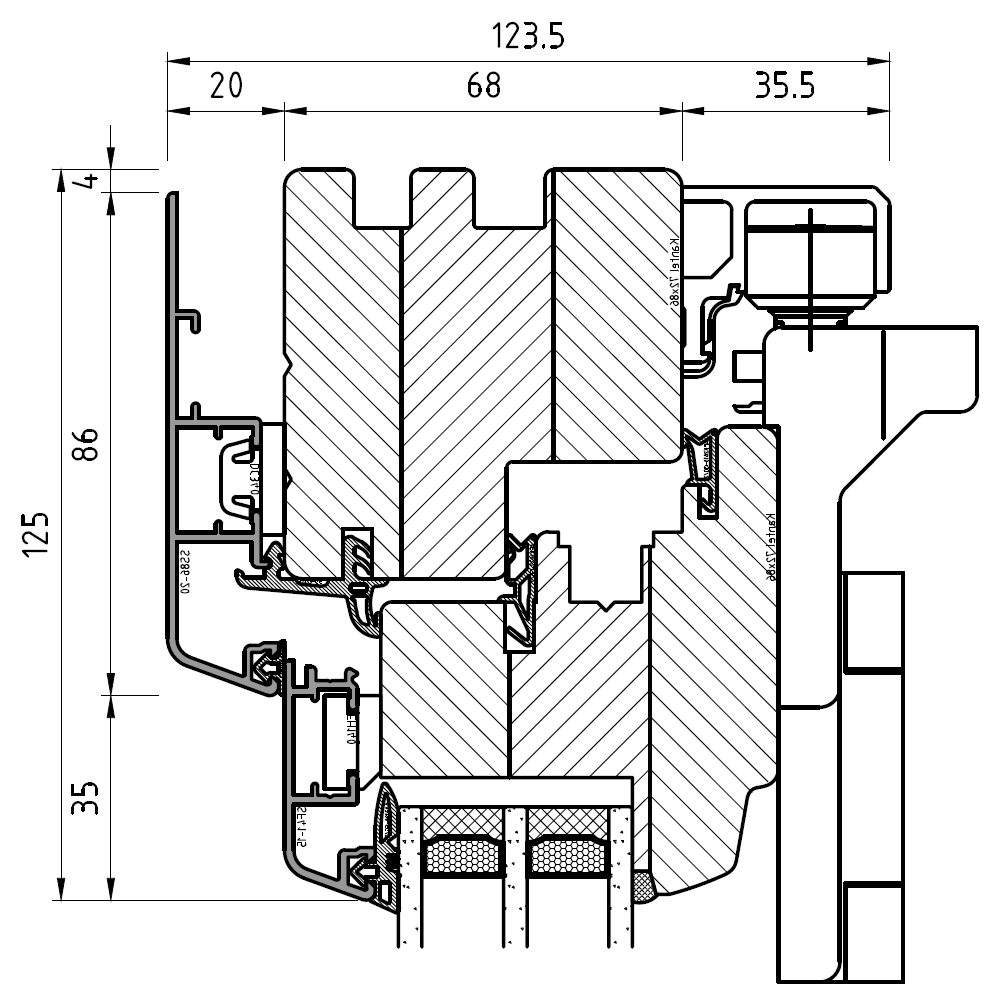

Folding sliding door Idealu IV 68 - detail above
Folding sliding door Idealu IV 68 - detail above

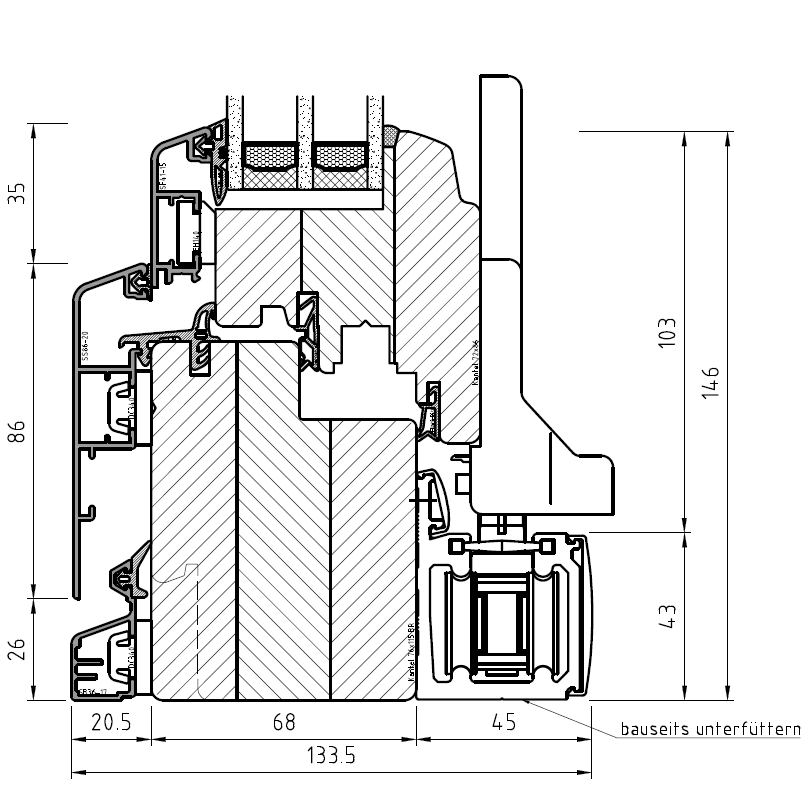

Folding sliding door Idealu IV 68 - detail below
Folding sliding door Idealu IV 68 - detail below

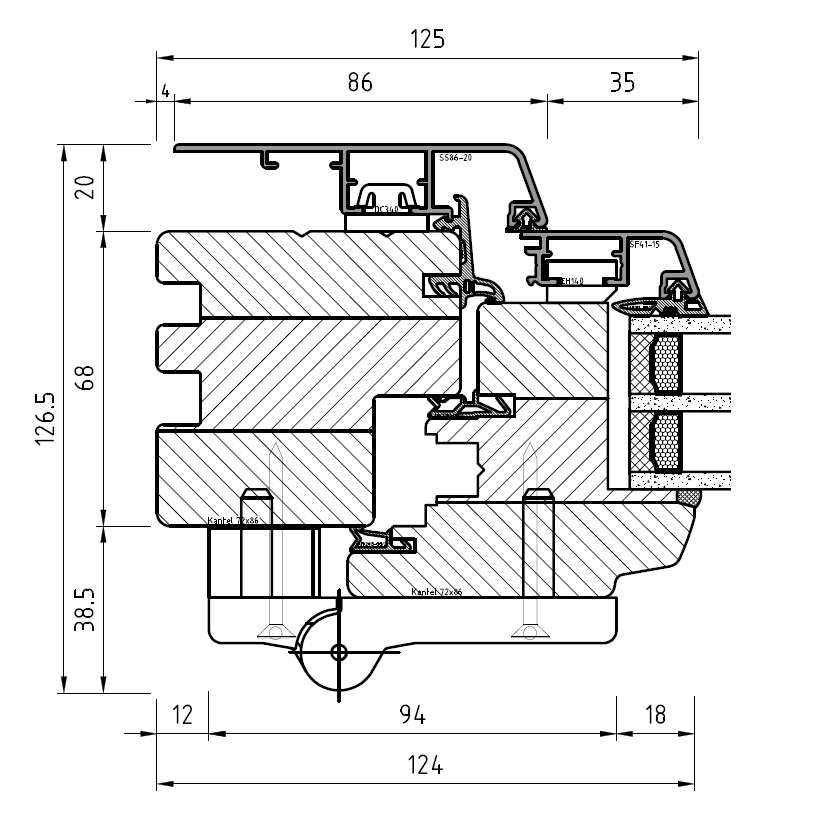

Folding sliding door Idealu IV 68 - side detail
Folding sliding door Idealu IV 68 - side detail

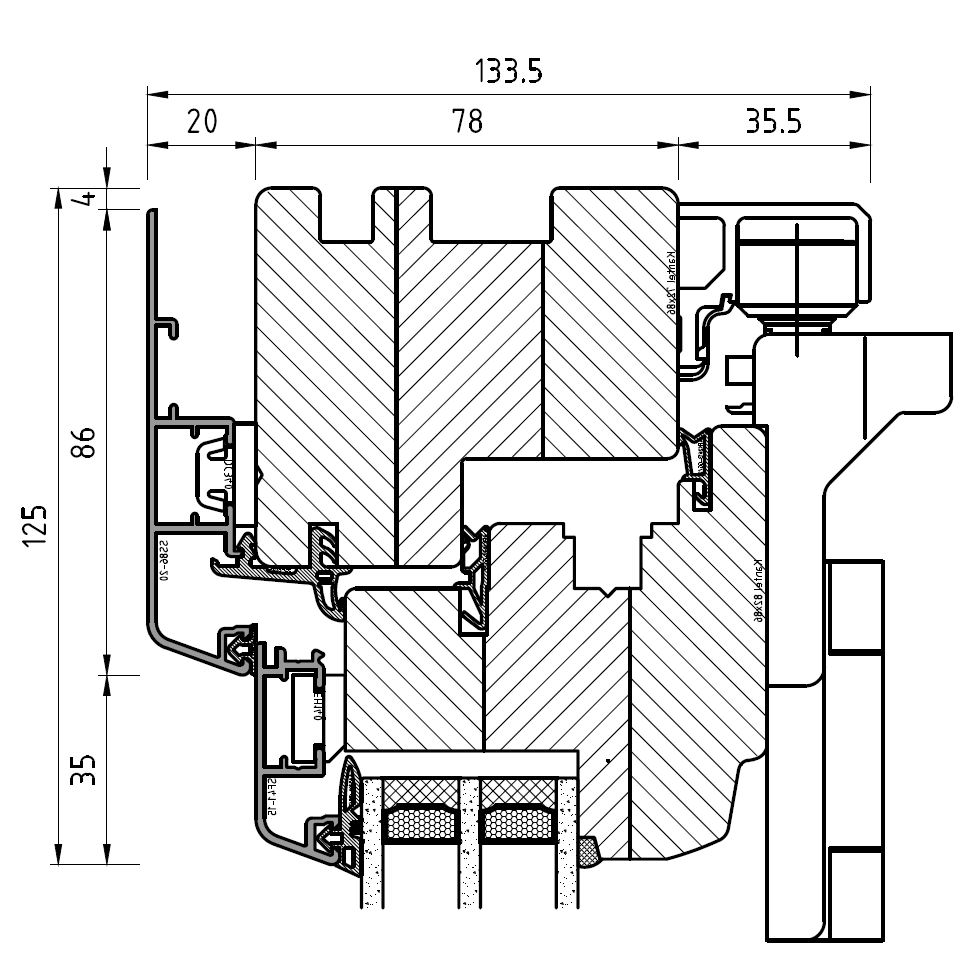

Folding sliding door Idealu IV 78 - detail above
Folding sliding door Idealu IV 78 - detail above

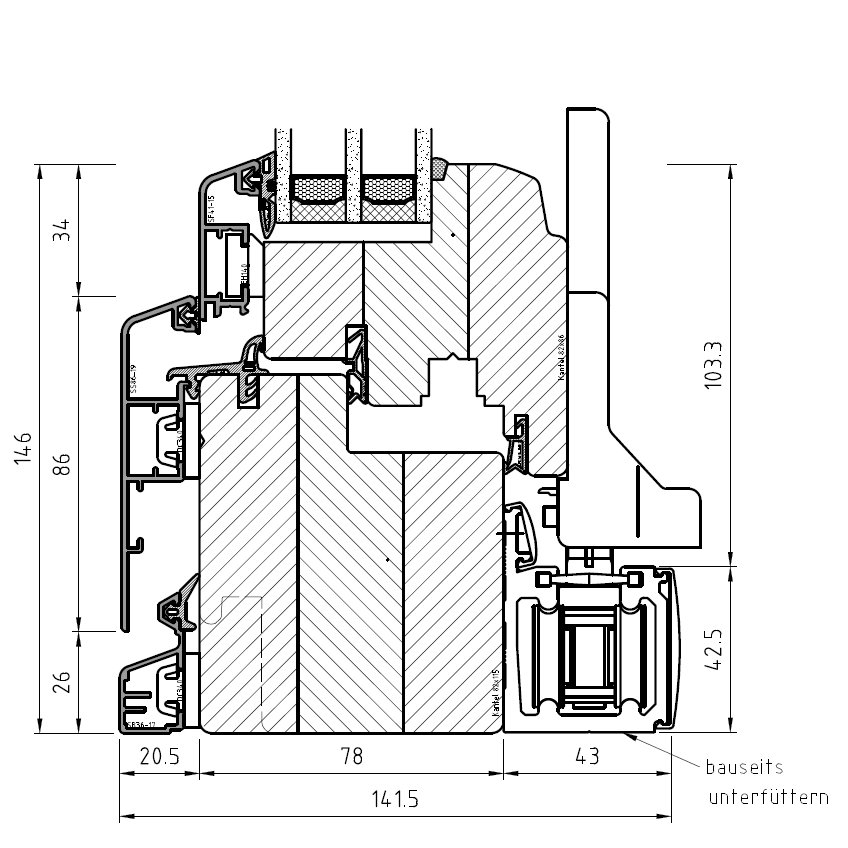

Folding sliding door Idealu IV 78 - detail below
Folding sliding door Idealu IV 78 - detail below

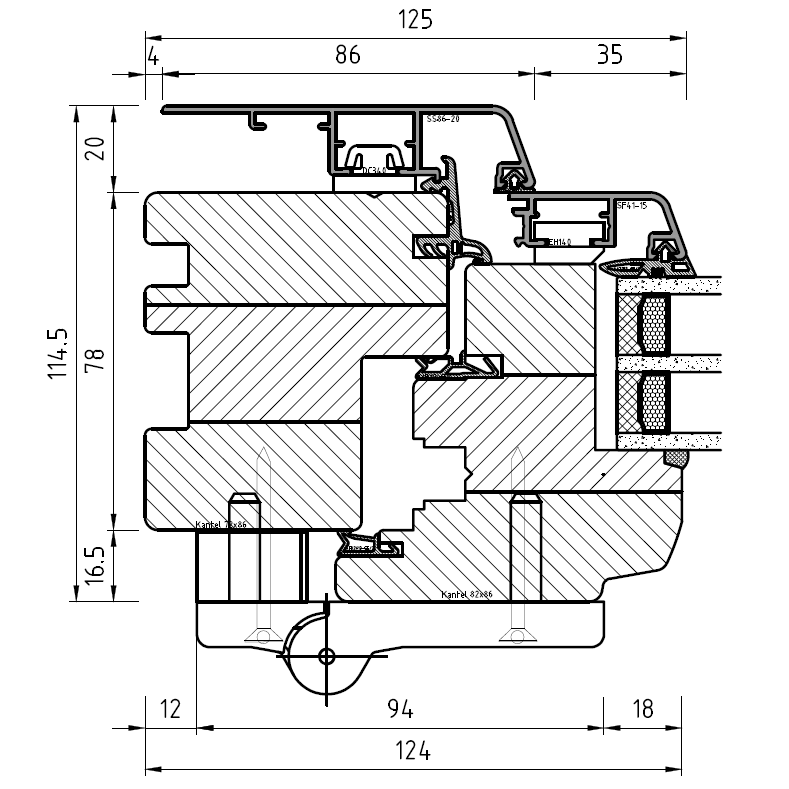

Folding sliding door Idealu IV 78 - side detail
Folding sliding door Idealu IV 78 - side detail
OPENING TYPES

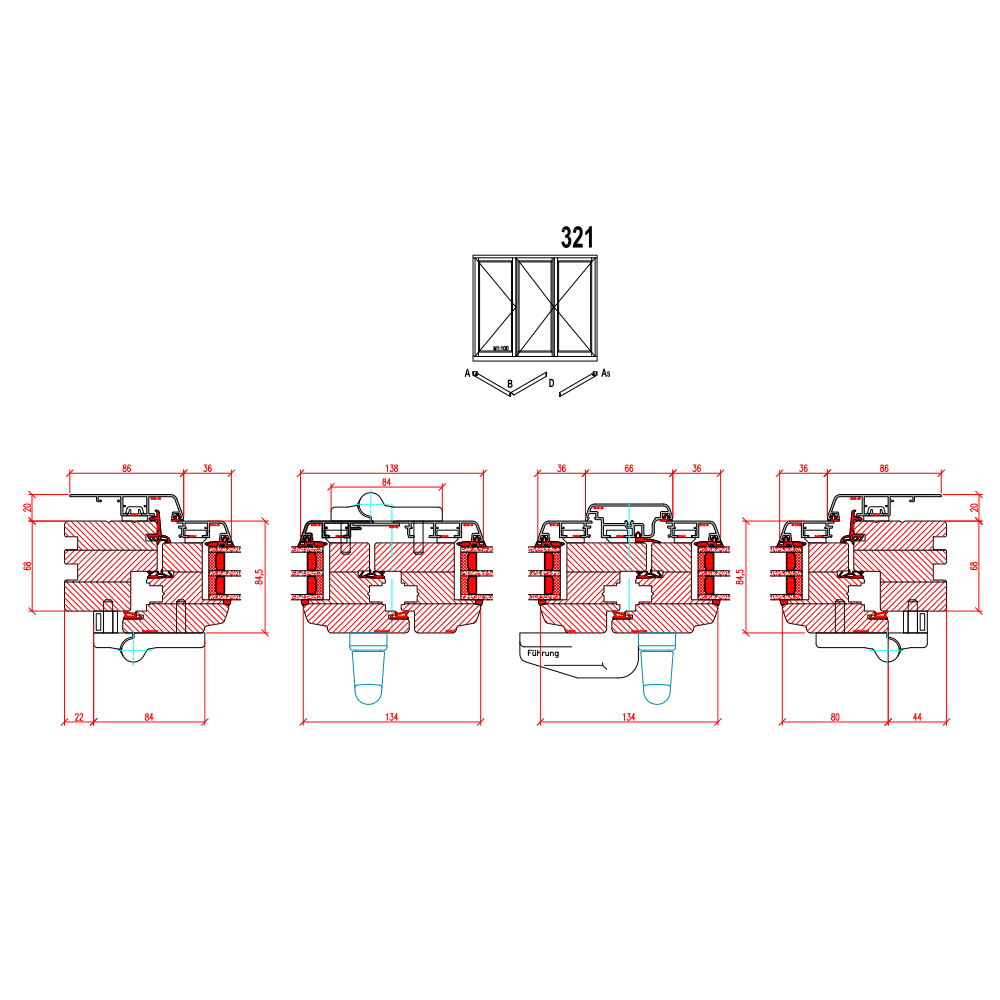

Wood-aluminium folding sliding doors - diagram 321
Wood-aluminium folding sliding doors - diagram 321

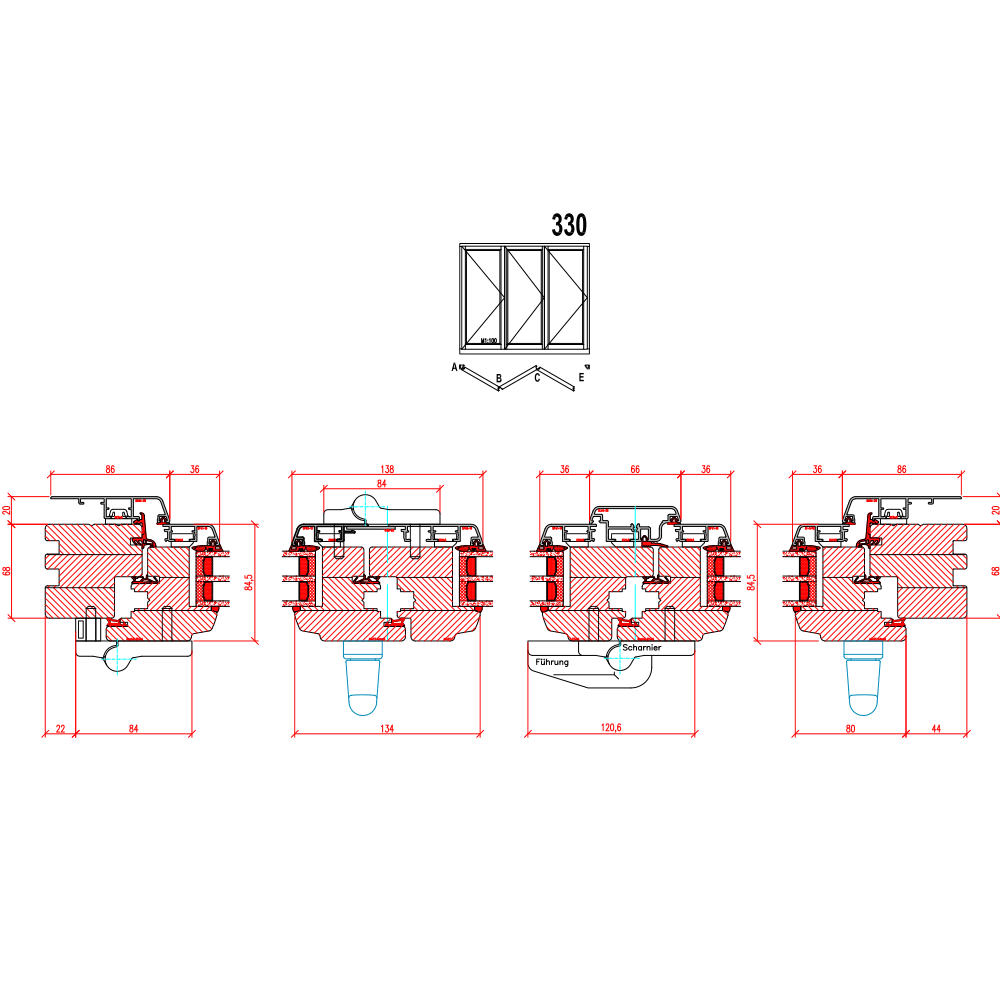

Wood-aluminium folding sliding doors - diagram 330
Wood-aluminium folding sliding doors - diagram 330

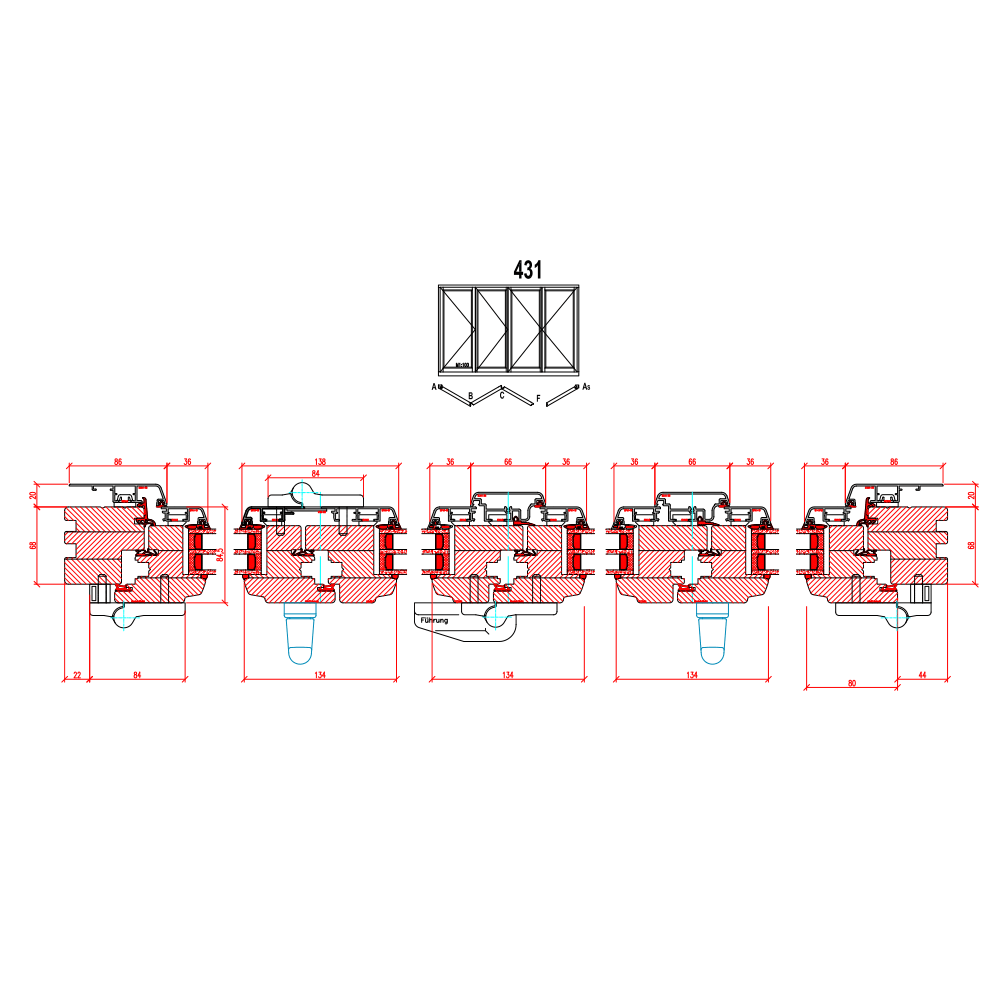

Wood-aluminium folding sliding doors - diagram 431
Wood-aluminium folding sliding doors - diagram 431

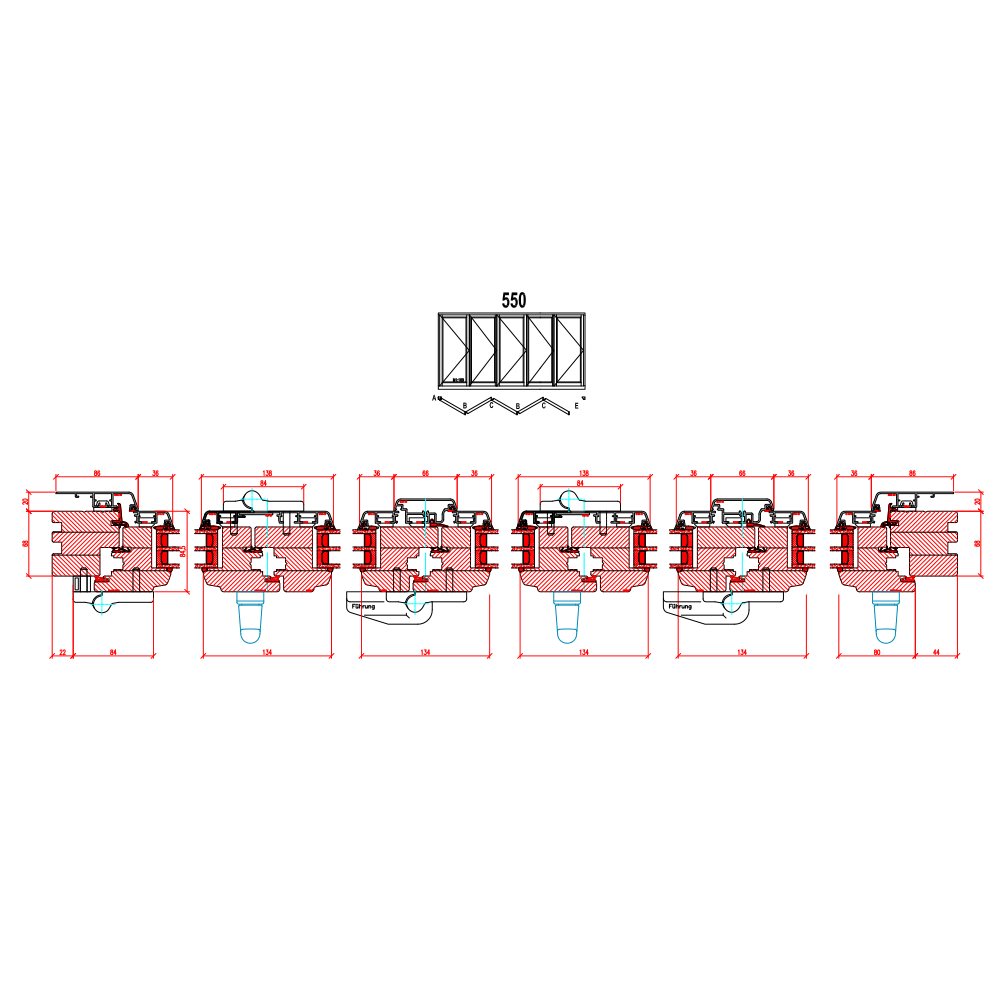

Wood-aluminium folding sliding doors - diagram 550
Wood-aluminium folding sliding doors - diagram 550

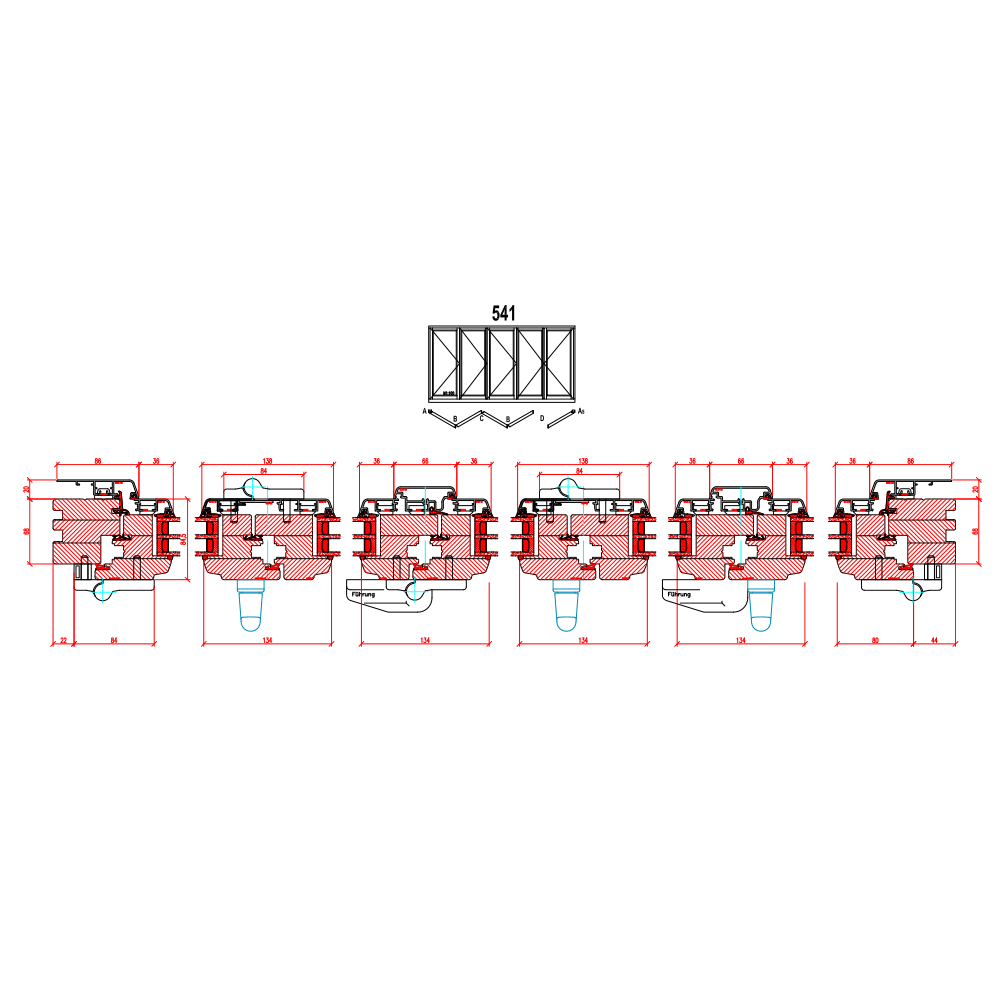

Wood-aluminium folding sliding doors - diagram 541
Wood-aluminium folding sliding doors - diagram 541
Wood-aluminium folding sliding doors - diagram 532
Wood-aluminium folding sliding doors - diagram 532

For a detailed explanation of the diagrams, see: Types of folding sliding door openings.

Please note that these are standard drawings. If you would like to know exactly which profiles and components are installed prior to ordering, please contact our customer service at +49 711 860 60 200 or by email info@noSpamwindows24.com. Our experts would be happy to assist you with configuration and answer any questions regarding our products.
