Detail drawings tilt and slide patio doors - ECO Plano

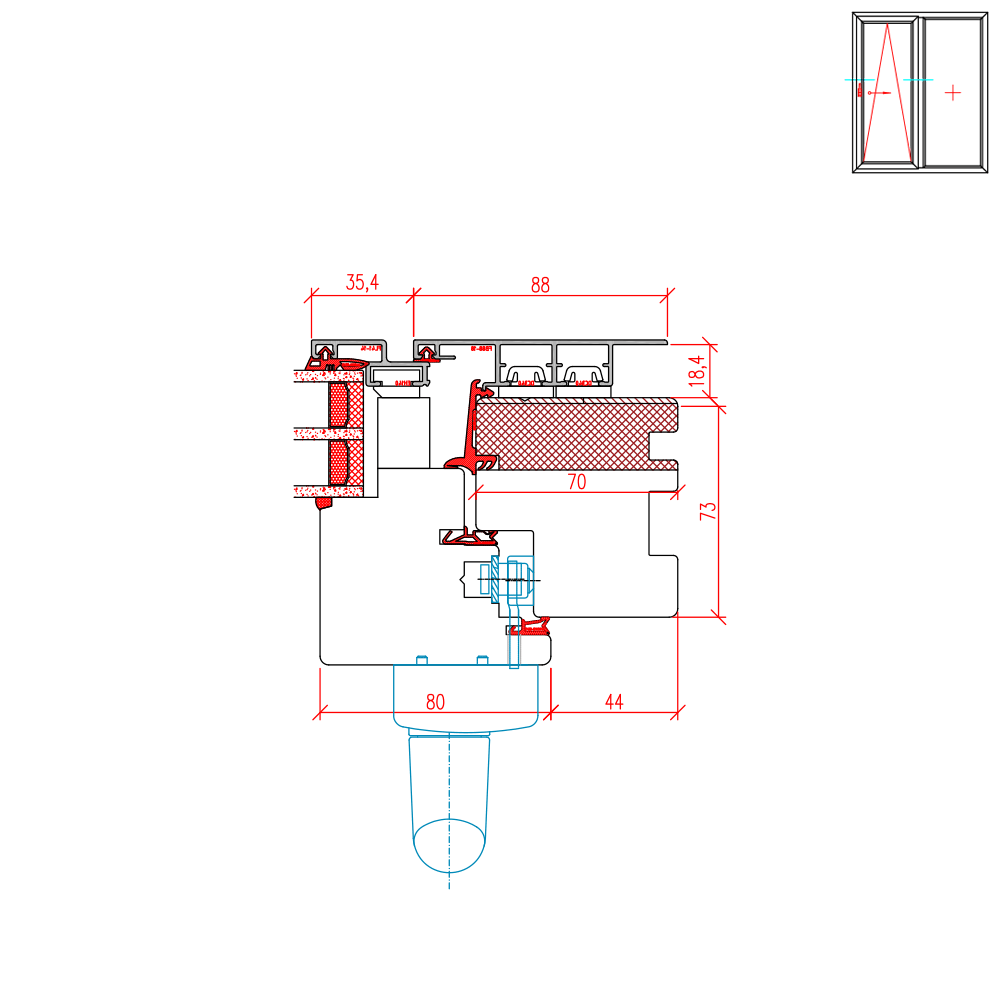

ECO Plano - handle side
ECO Plano - handle side

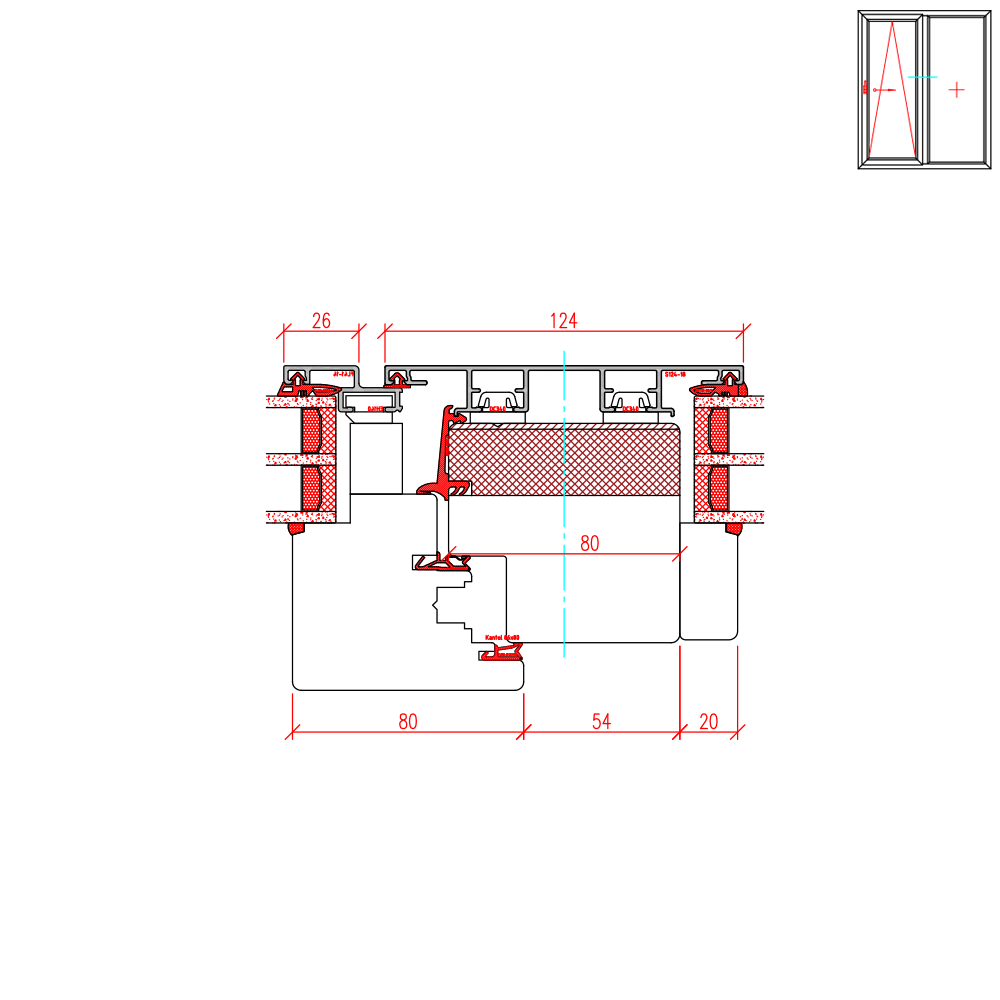

ECO Plano - post detail
ECO Plano - post detail

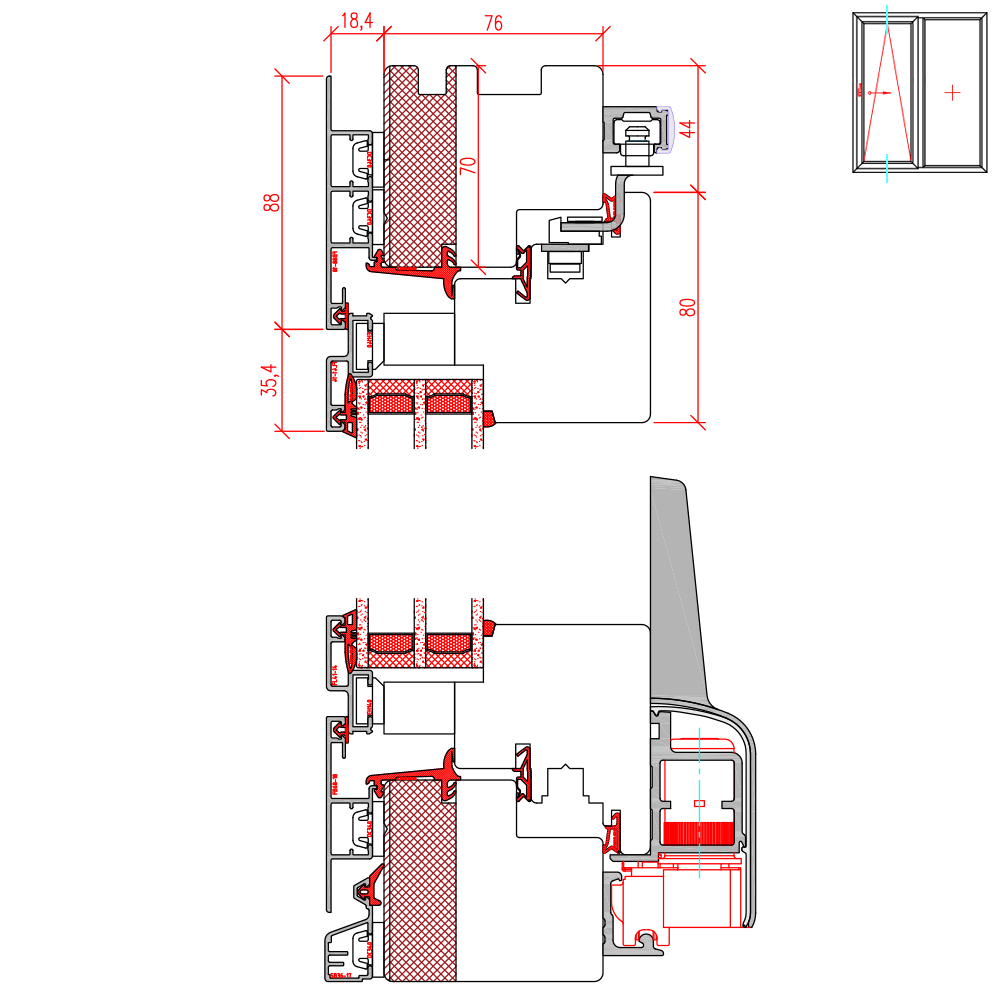

ECO Plano - vertical section
ECO Plano - vertical section

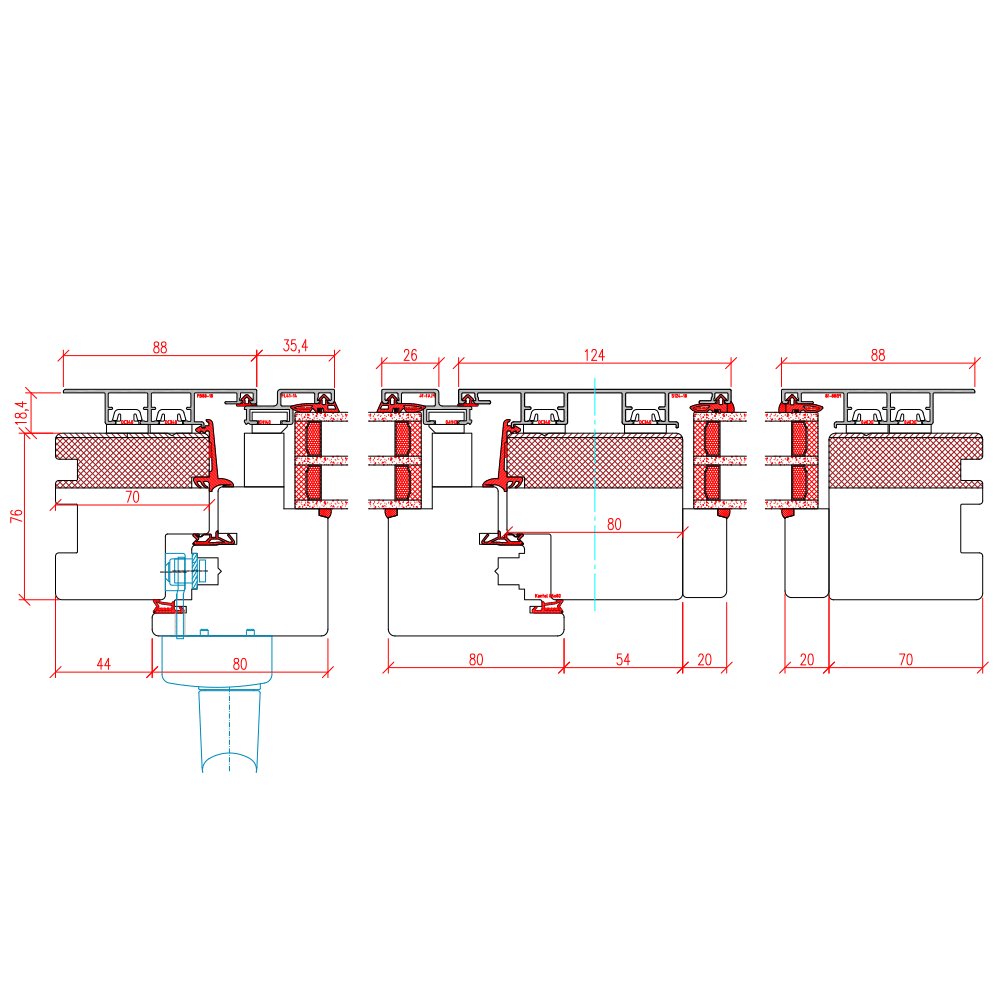

ECO Plano - horizontal section
ECO Plano - horizontal section
Roller shutter guide rails

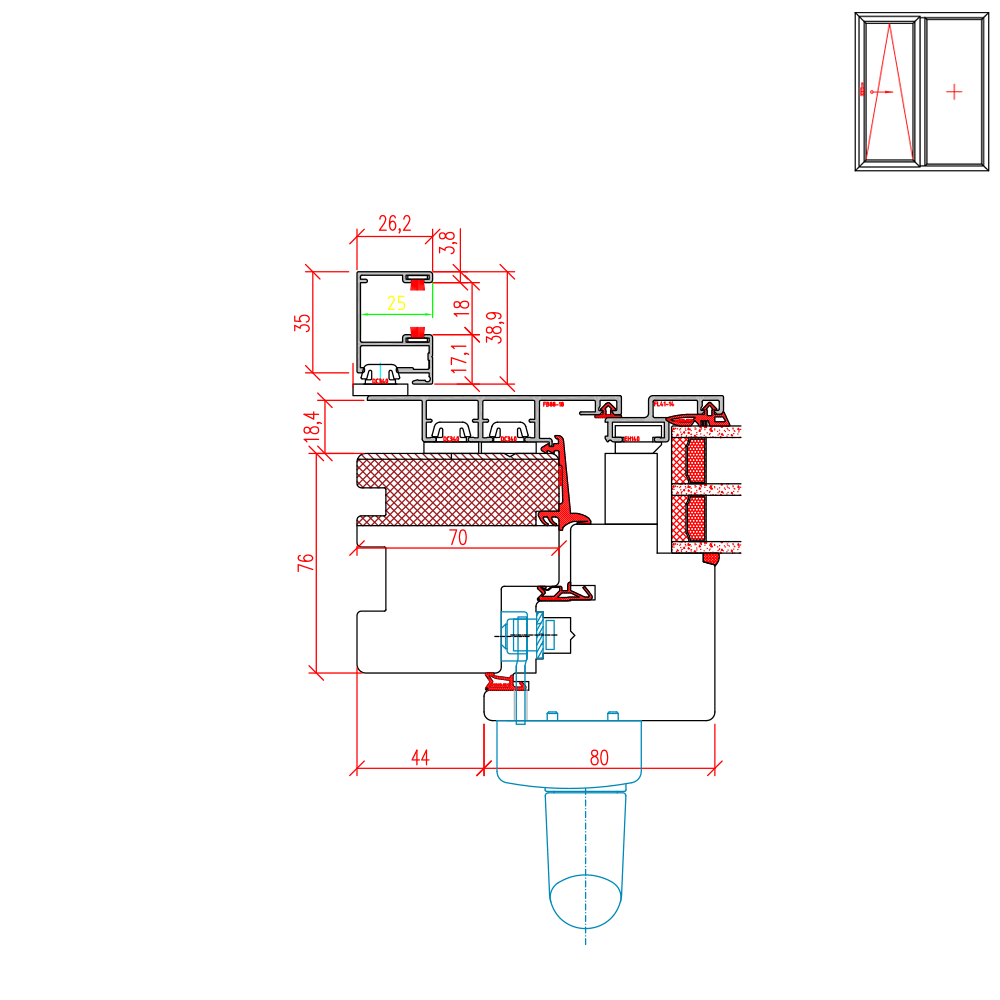

ECO Plano - roller shutter guilde rail - old building
ECO Plano - roller shutter guilde rail - old building

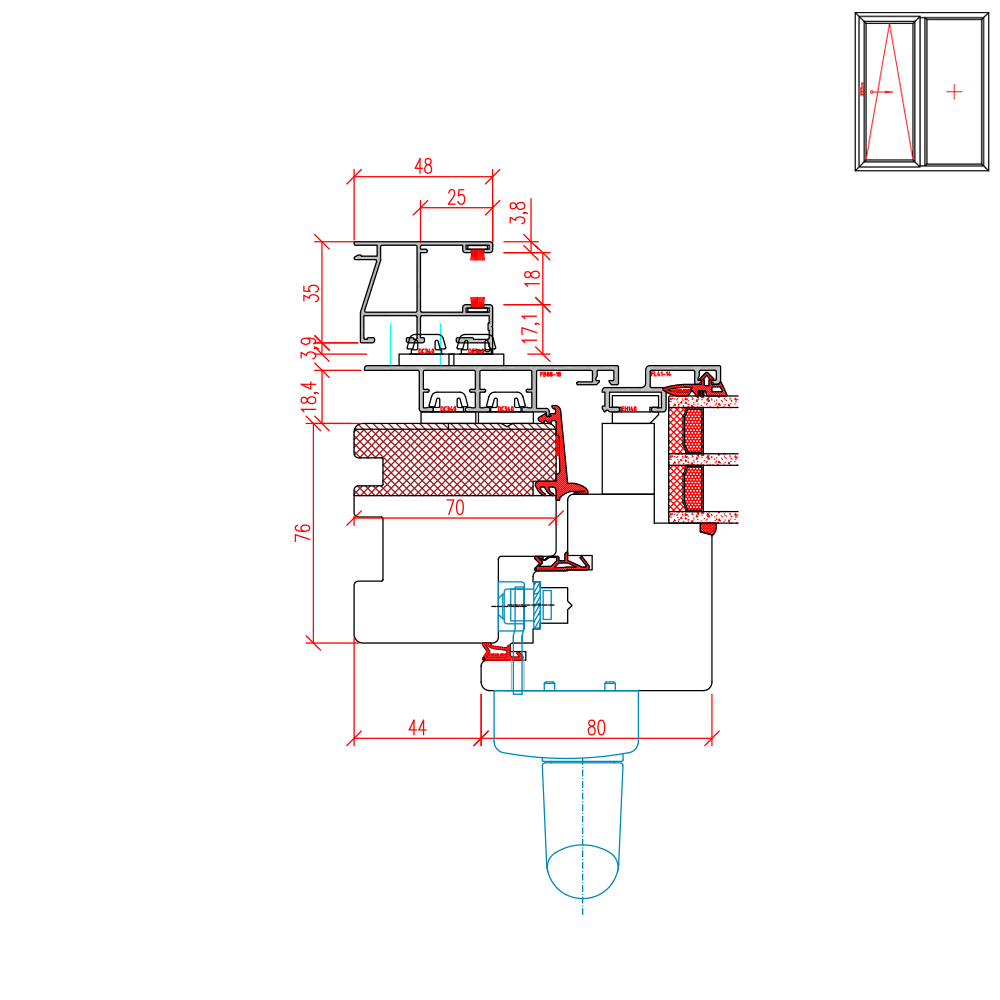

ECO Plano - roller shutter guilde rail - new building
ECO Plano - roller shutter guilde rail - new building
Window sill connection profile

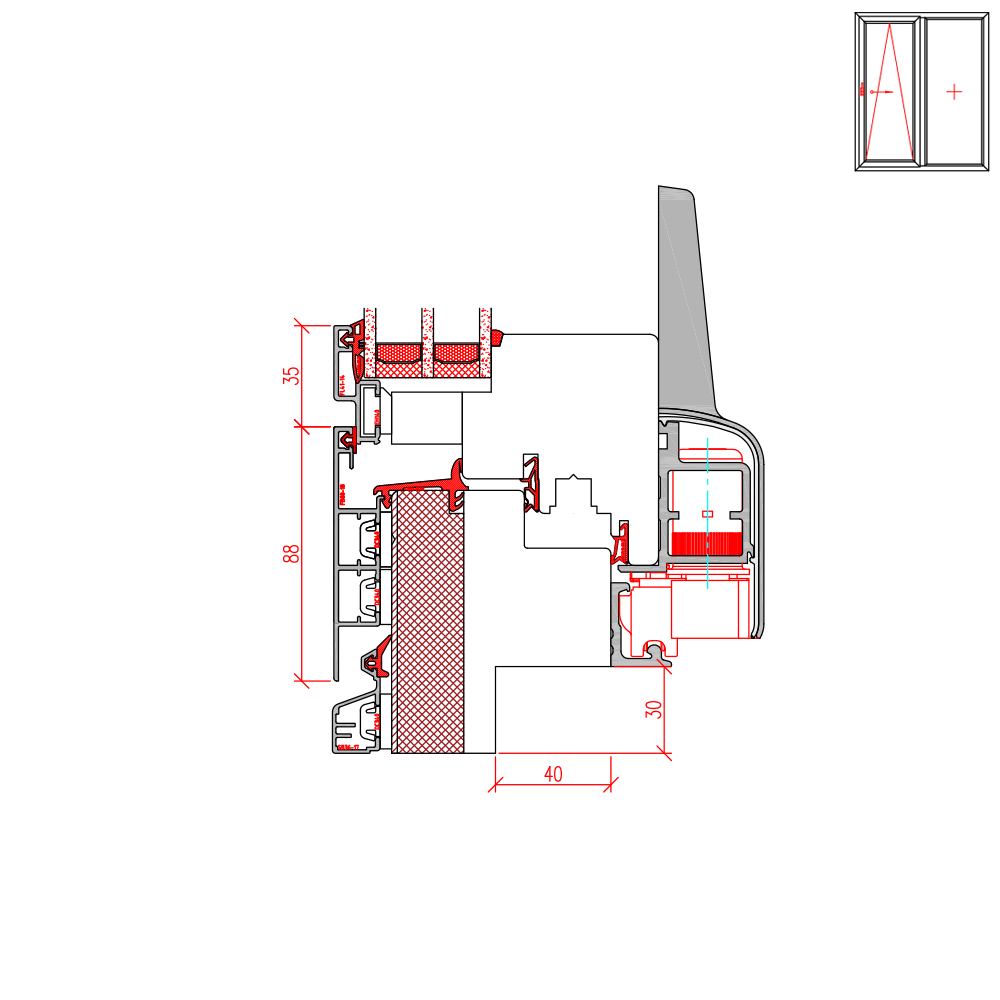

ECO Plano - milling for old building - 30 mm
ECO Plano - milling for old building - 30 mm

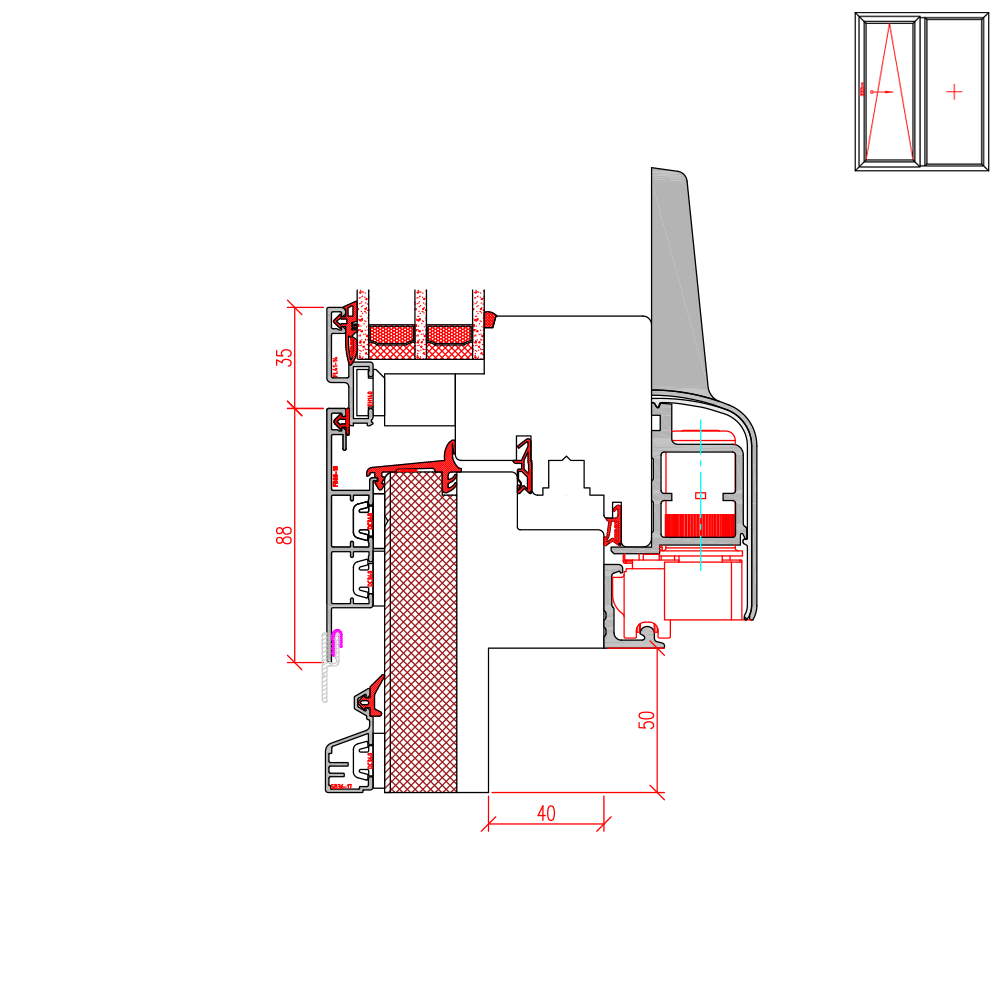

ECO Plano - milling for old building - 50 mm
ECO Plano - milling for old building - 50 mm

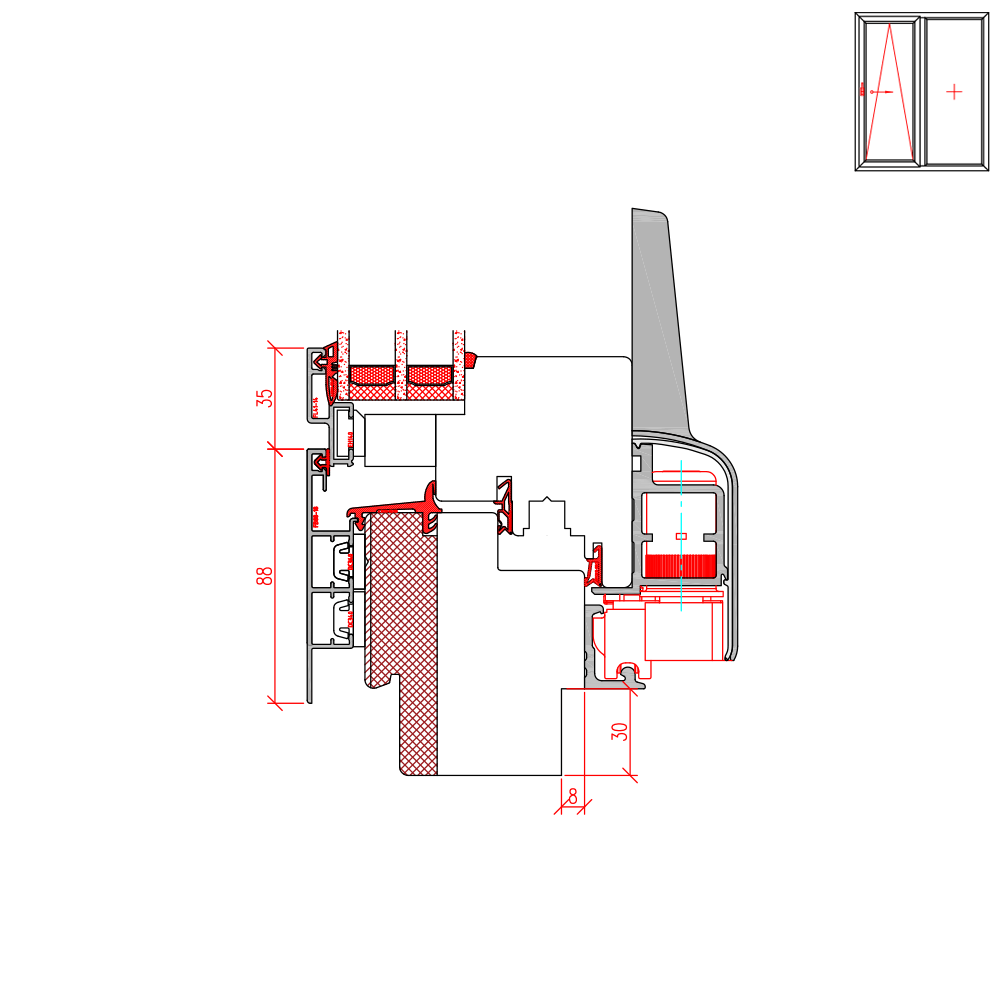

ECO Plano - milling for new building
ECO Plano - milling for new building
Frame extensions

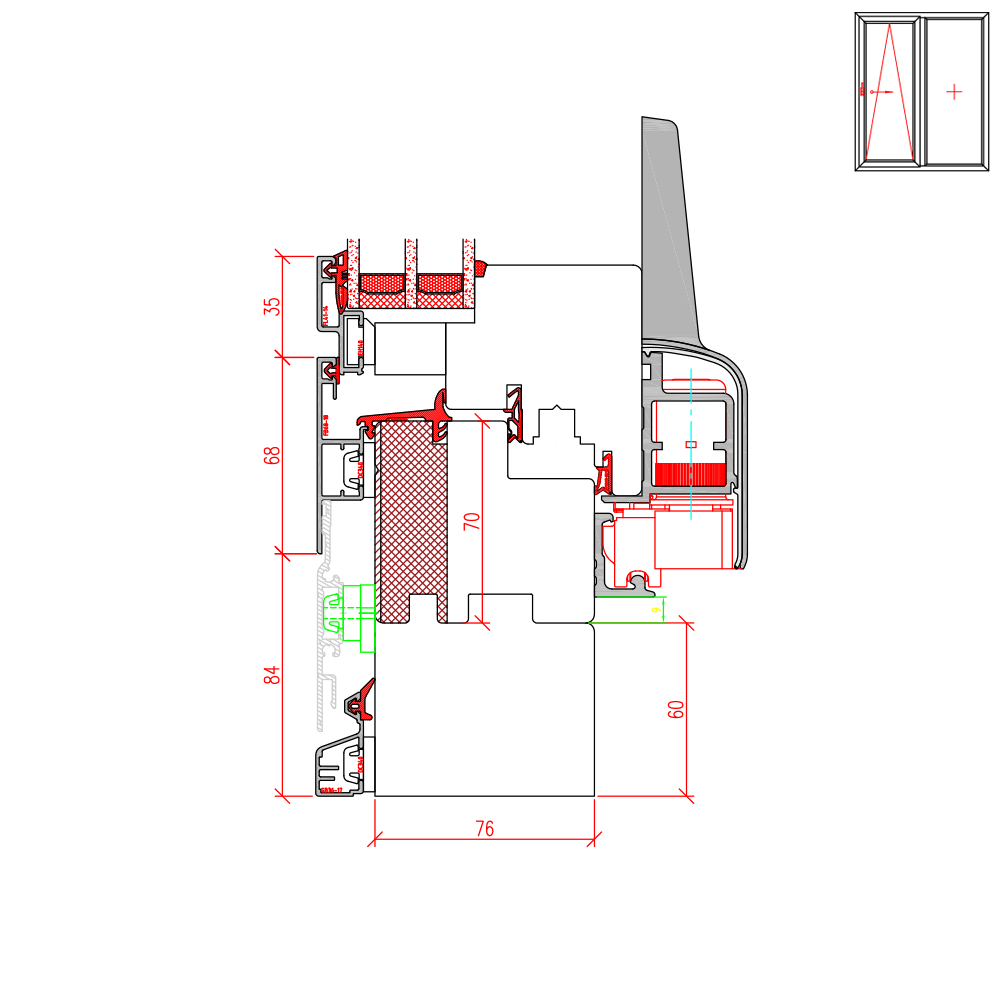

ECO Plano - frame extensions with extended aluminium casing
ECO Plano - frame extensions with extended aluminium casing

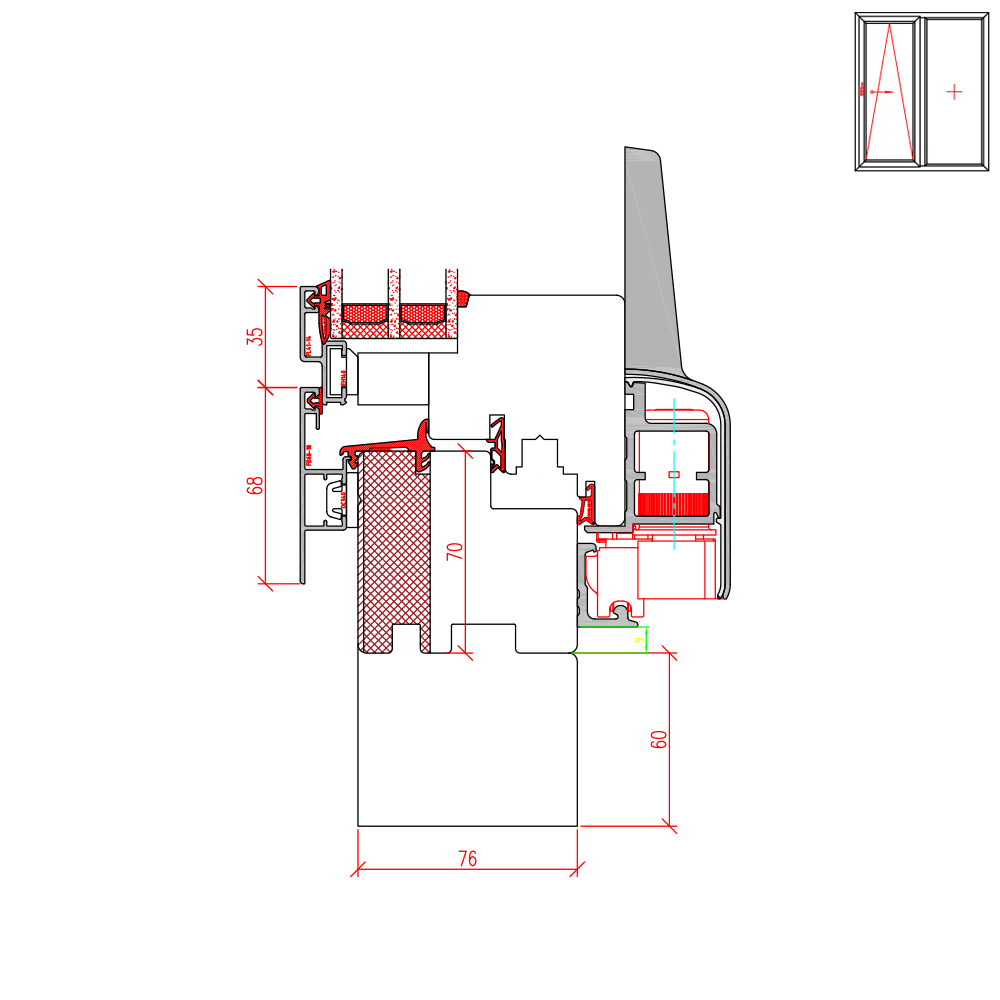

ECO Plano - frame extensions without extended aluminium casing
ECO Plano - frame extensions without extended aluminium casing
Roller shutters

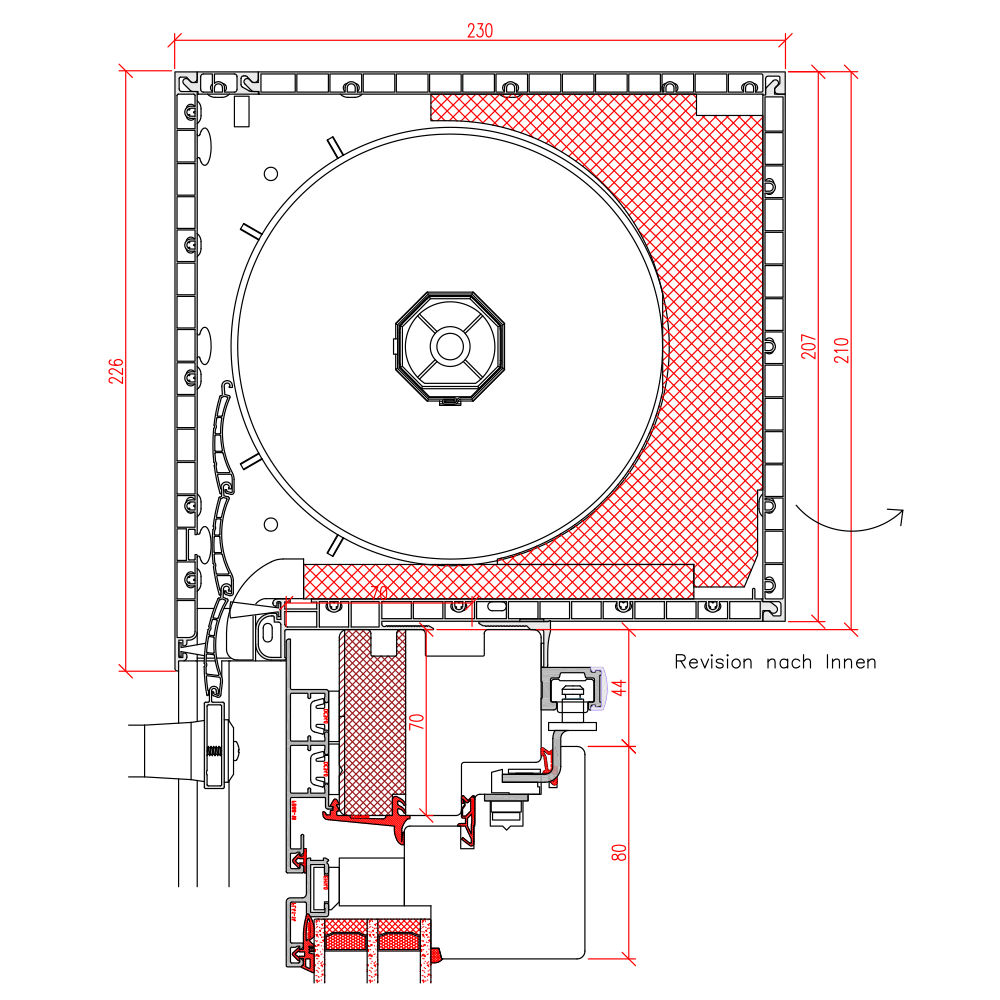

ECO Plano - top mounted roller shutter 1
ECO Plano - top mounted roller shutter 1

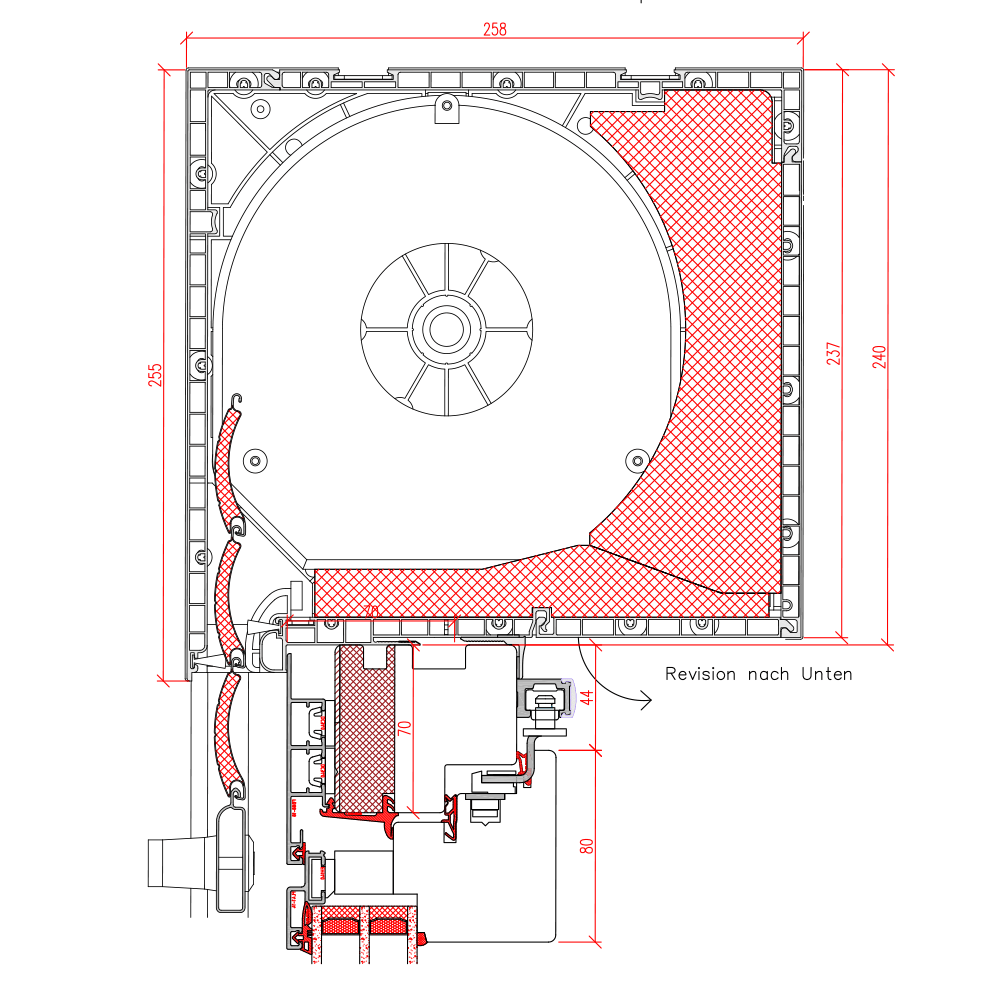

ECO Plano - top mounted roller shutter 2
ECO Plano - top mounted roller shutter 2

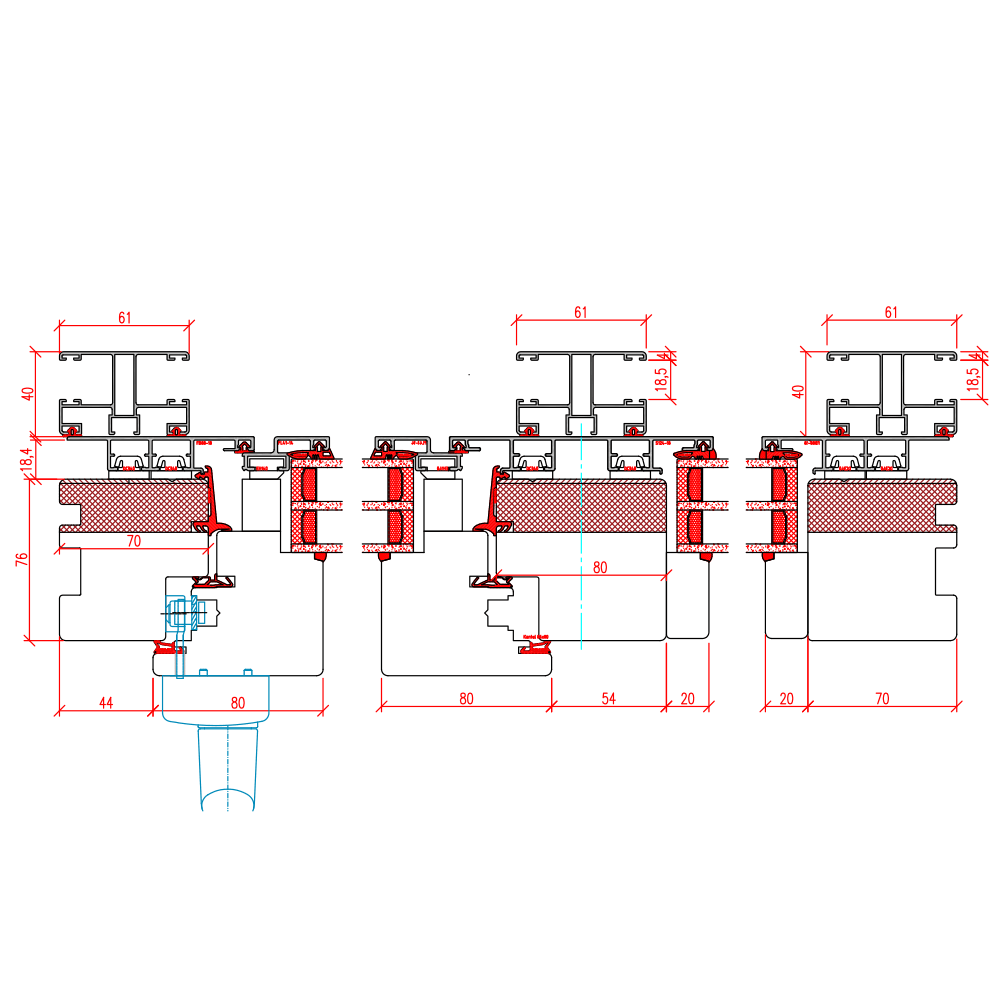

ECO Plano - top mounted roller shutter - horizontal section
ECO Plano - top mounted roller shutter - horizontal section

Please note that these are standard drawings. If you would like to know exactly which profiles and components are installed prior to delivery, please contact our customer service on +49 711 860 60 200 or by email at info@noSpamwindows24.com. Our experts would be happy to assist you with configuration and answer any questions about our products.
