Detail drawings tilt and slide patio doors - Ideal 7000

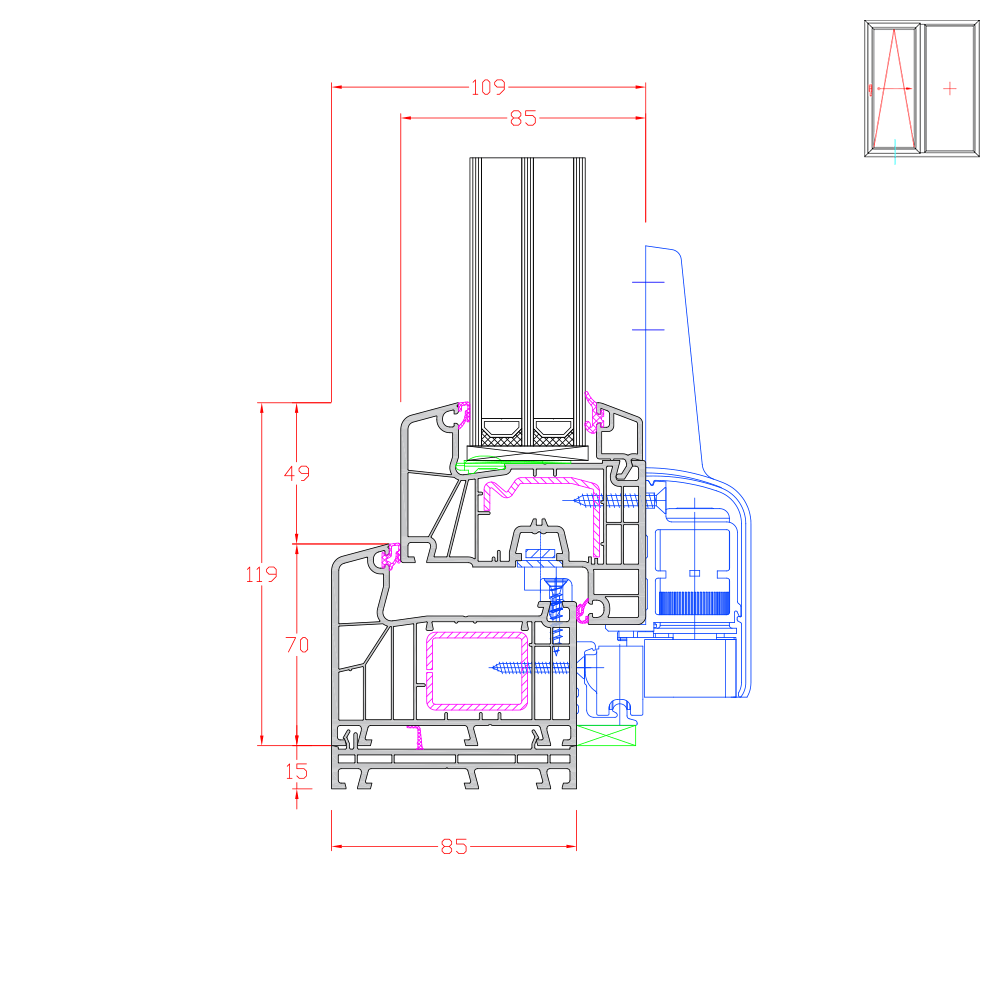

Ideal 7000 - frame extension 15mm
Ideal 7000 - frame extension 15mm

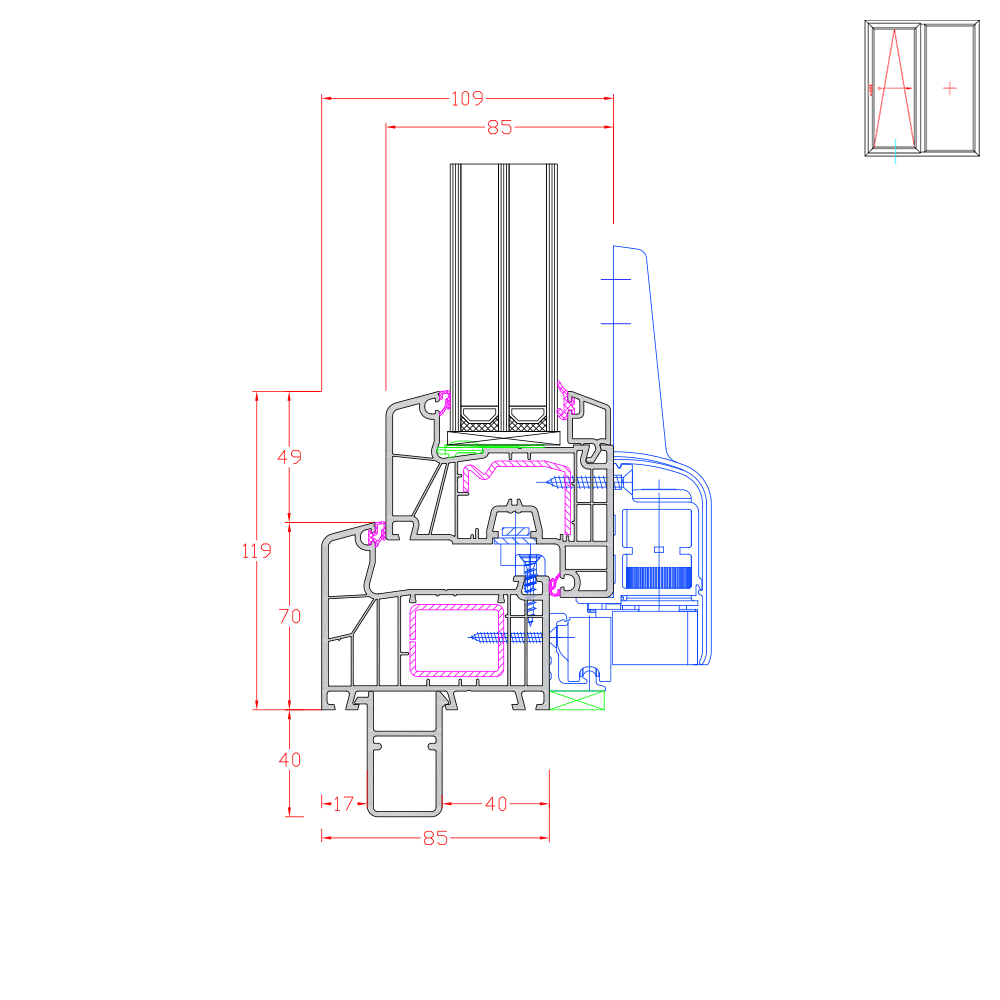

Ideal 7000 - window sill connection profile - new building 40mm
Ideal 7000 - window sill connection profile - new building 40mm

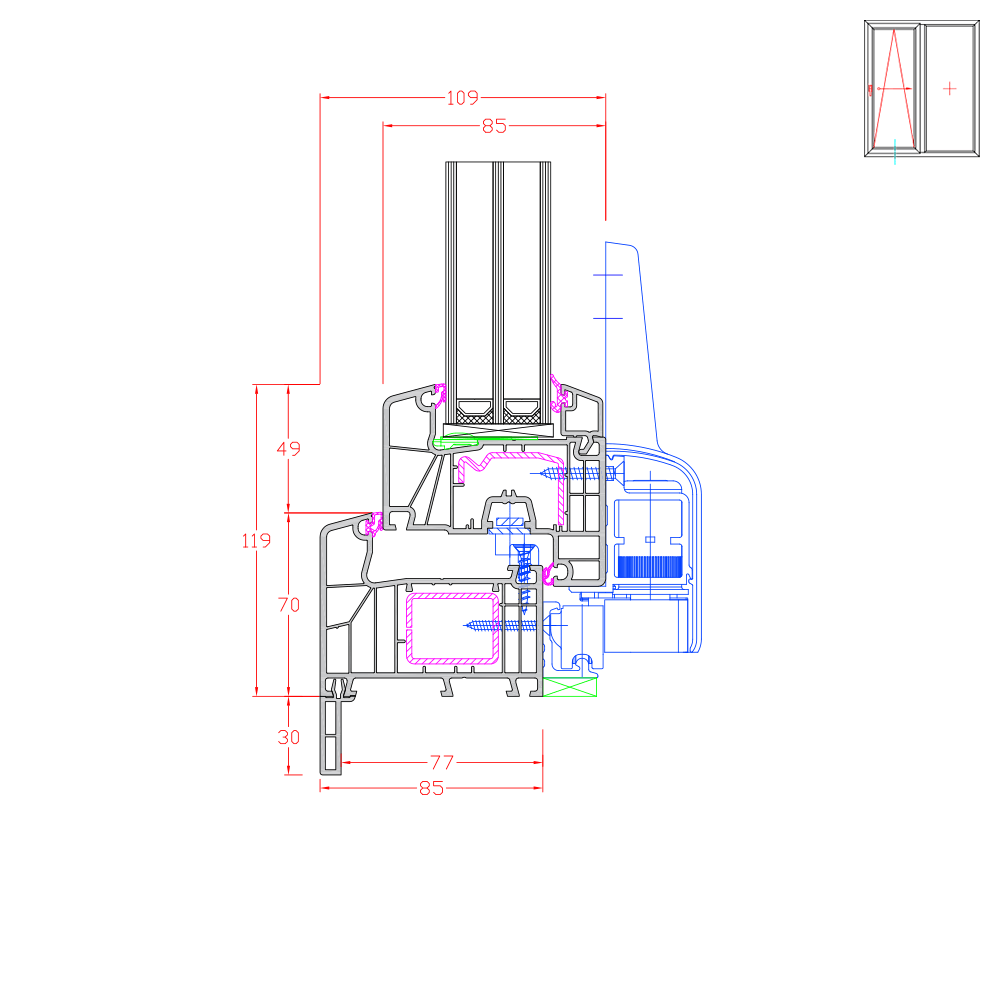

Ideal 7000 - window sill connection profile - stone sill 30mm
Ideal 7000 - window sill connection profile - stone sill 30mm

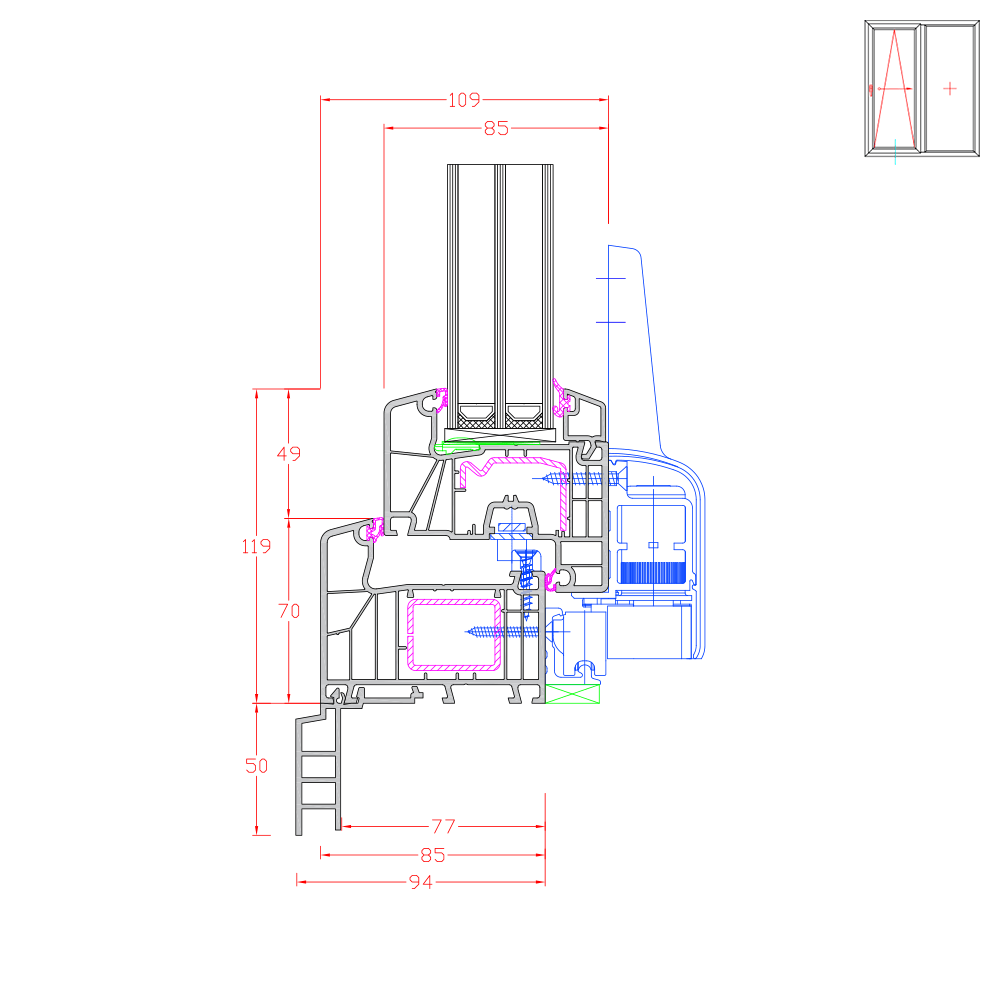

Ideal 7000 - window sill connection profile - stone sill 50mm
Ideal 7000 - window sill connection profile - stone sill 50mm

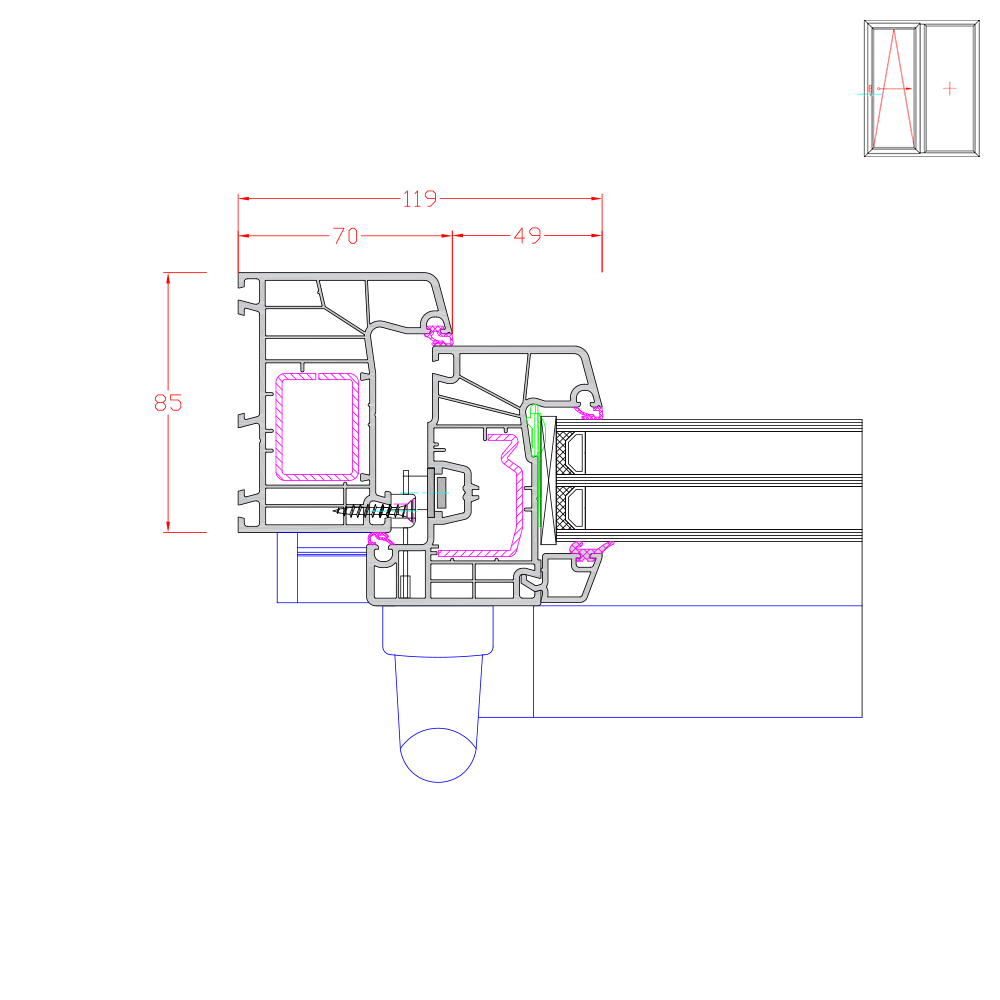

Ideal 7000 - handle side
Ideal 7000 - handle side
Ideal 7000 - horizontal section
Ideal 7000 - horizontal section

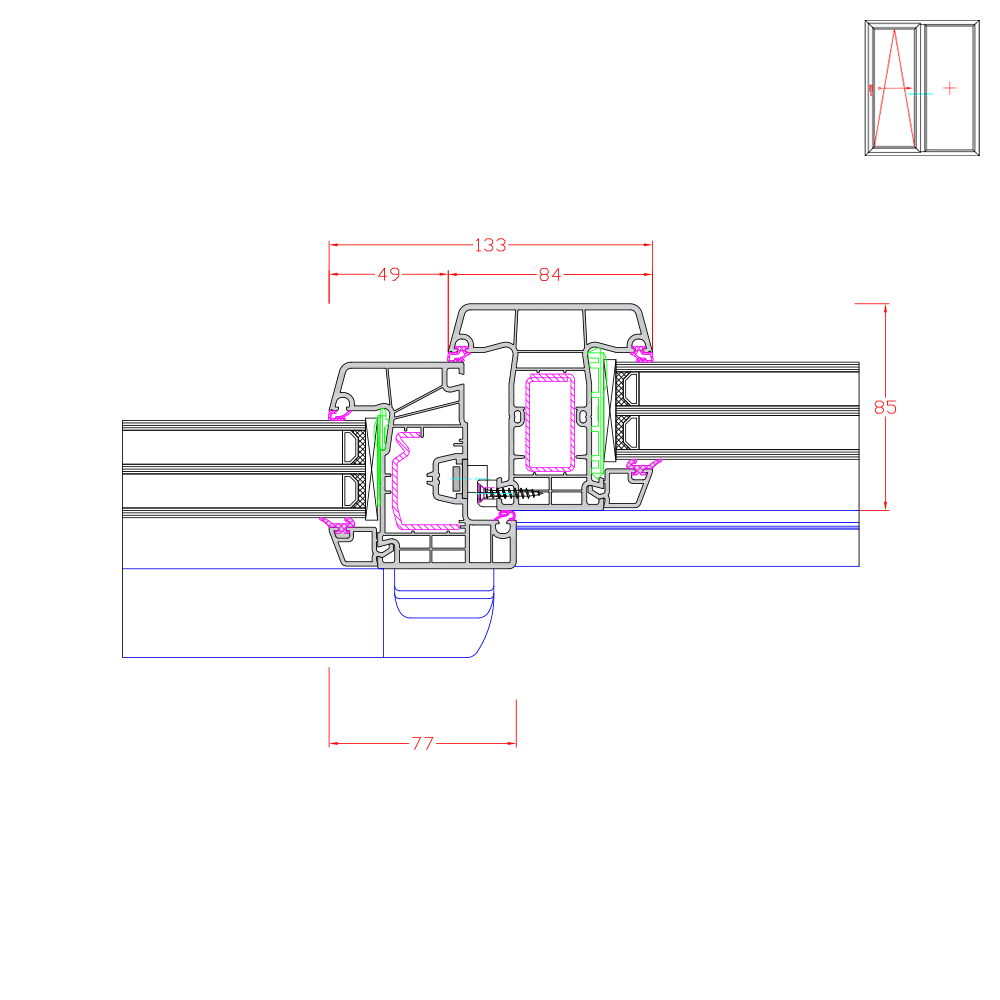

Ideal 7000 - post detail
Ideal 7000 - post detail

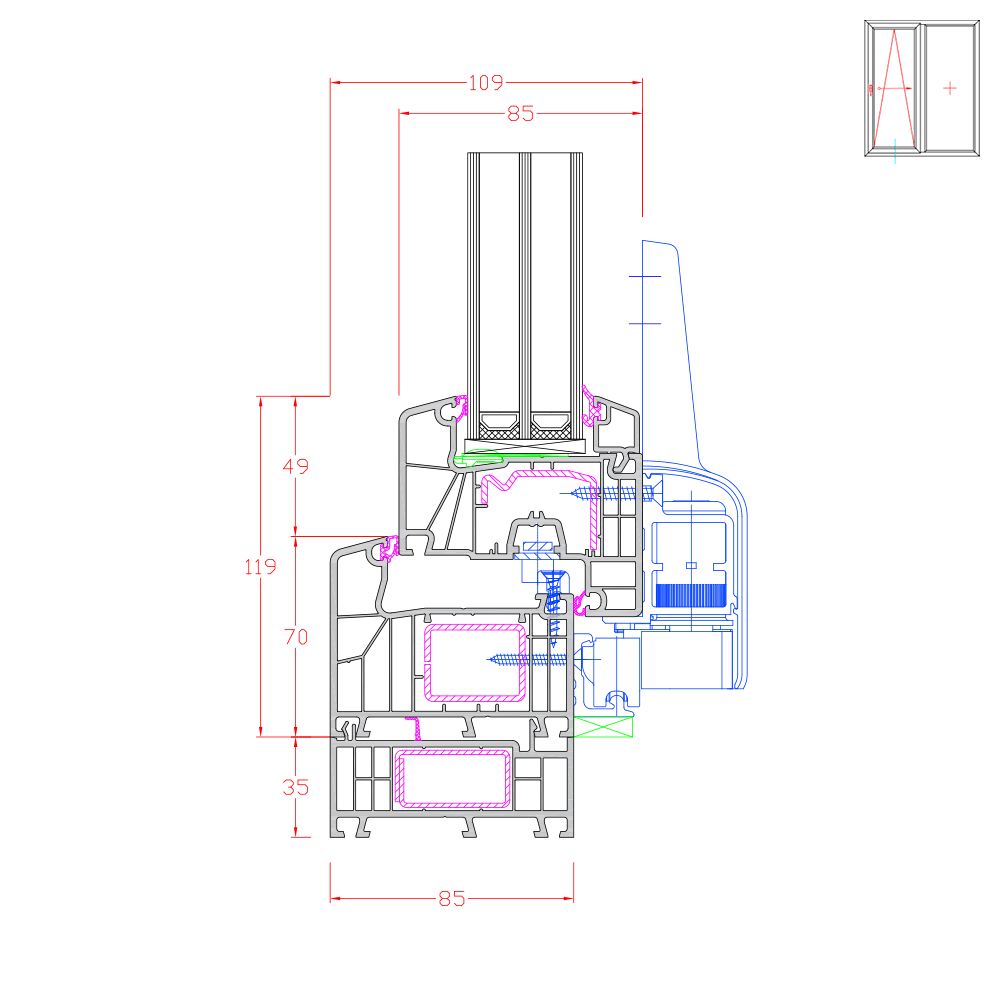

Ideal 7000 - frame extension 35mm
Ideal 7000 - frame extension 35mm

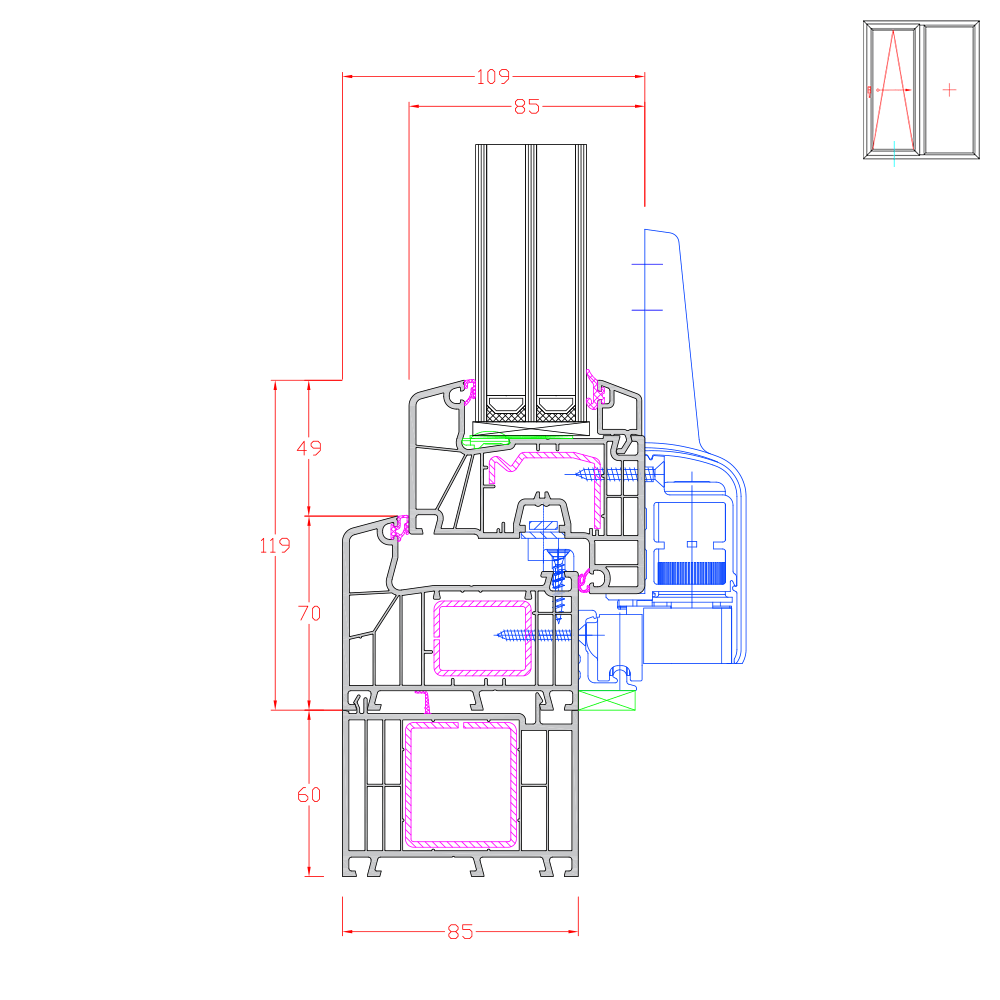

Ideal 7000 - frame extension 60mm
Ideal 7000 - frame extension 60mm

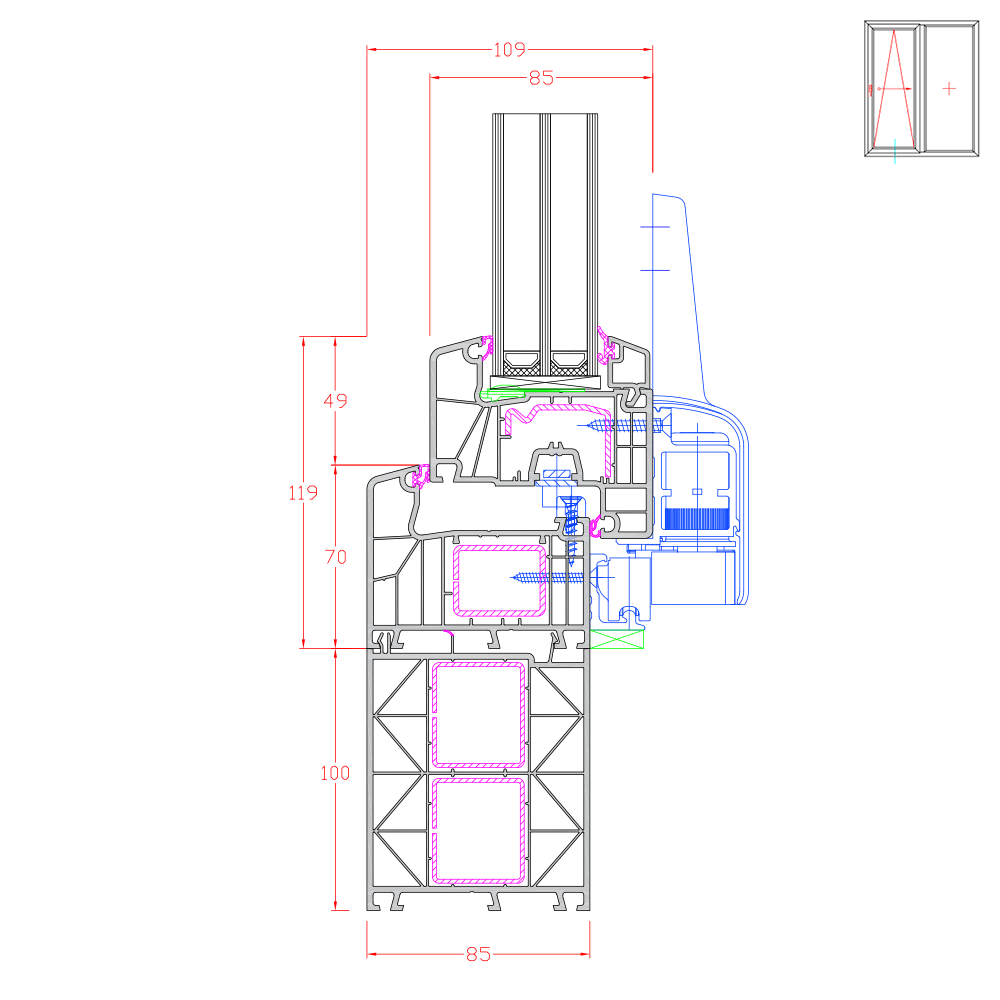

Ideal 7000 - frame extension 100mm
Ideal 7000 - frame extension 100mm

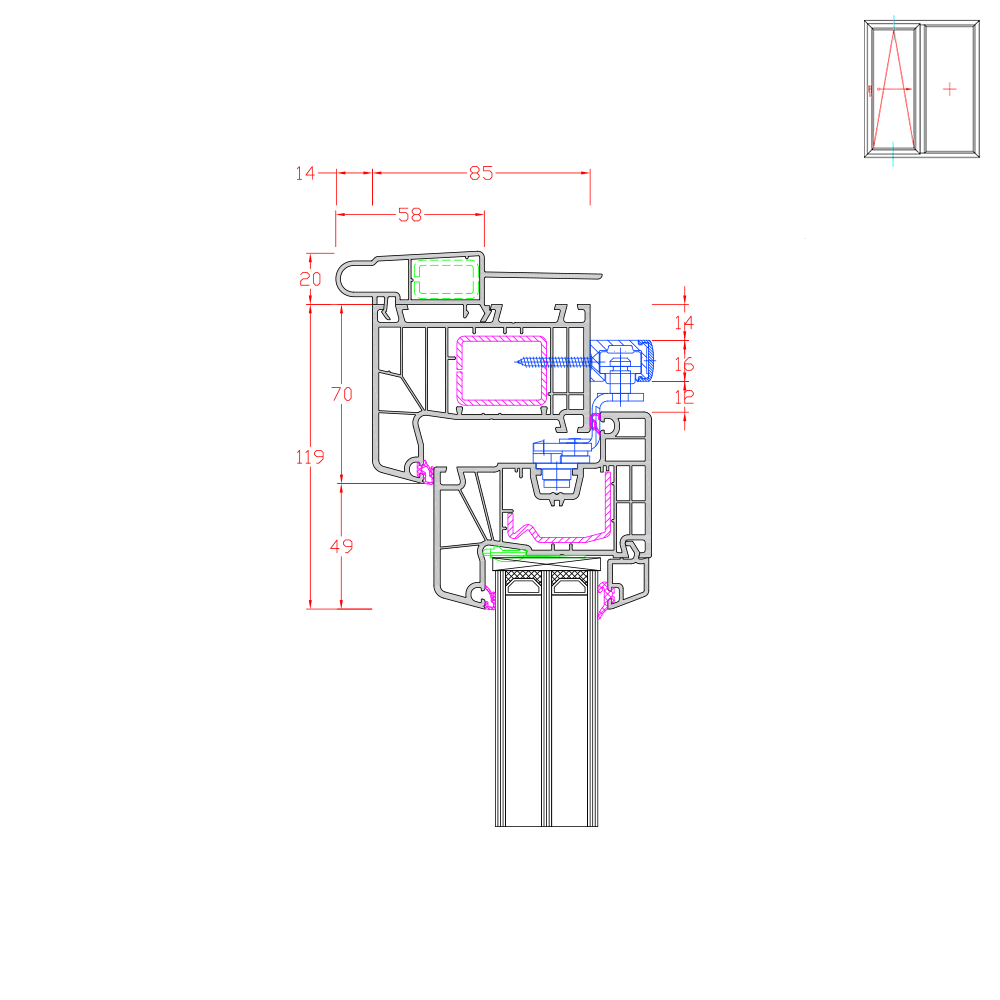

Ideal 7000 - roller shutter box lid - new building
Ideal 7000 - roller shutter box lid - new building

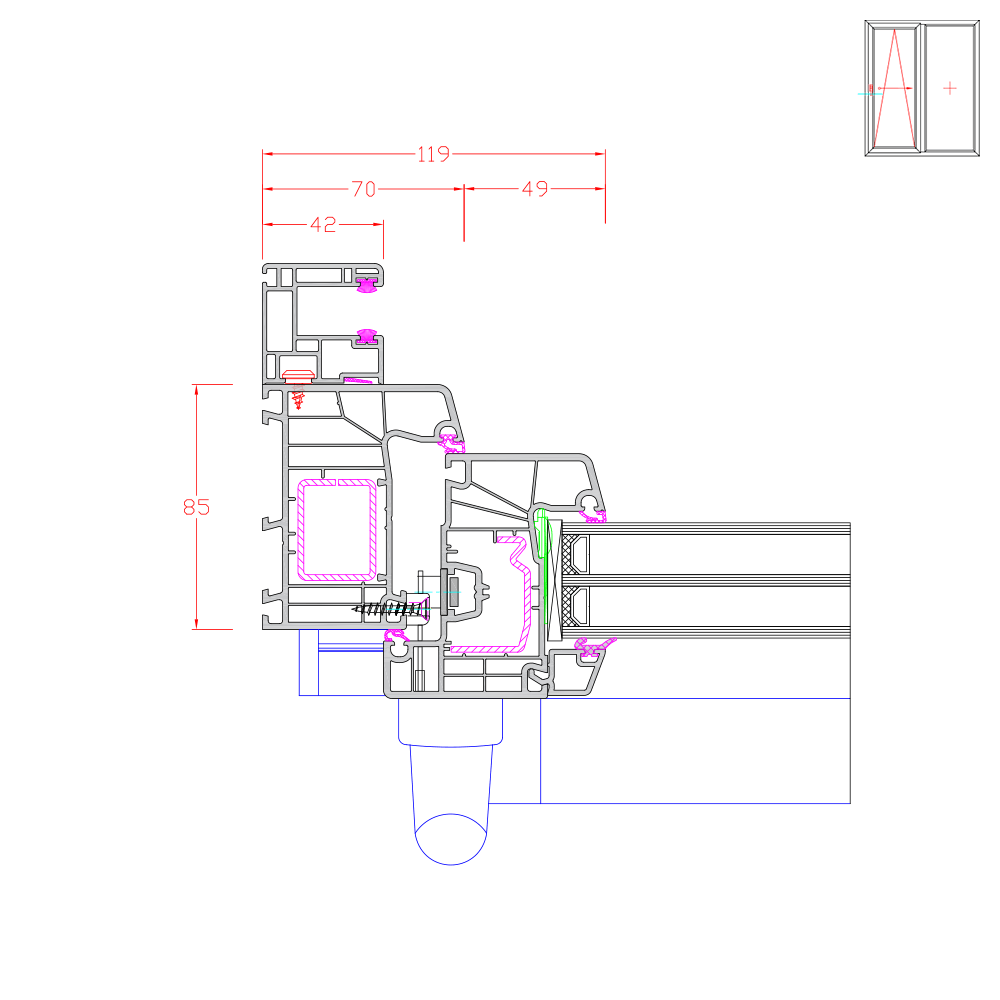

Ideal 7000 - roller shutter guide rails - new building
Ideal 7000 - roller shutter guide rails - new building

Please note that these are standard drawings. If you would like to know exactly which profiles and components are installed prior to ordering, please contact our customer service at +49 711 860 60 200 or by email info@noSpamwindows24.com. Our experts would be happy to assist you with configuration and answer any questions regarding our products.

Order uPVC tilt and slide patio doors online at low prices

Configure tilt and slide patio doors now
