HST Twinset Premium detail drawings

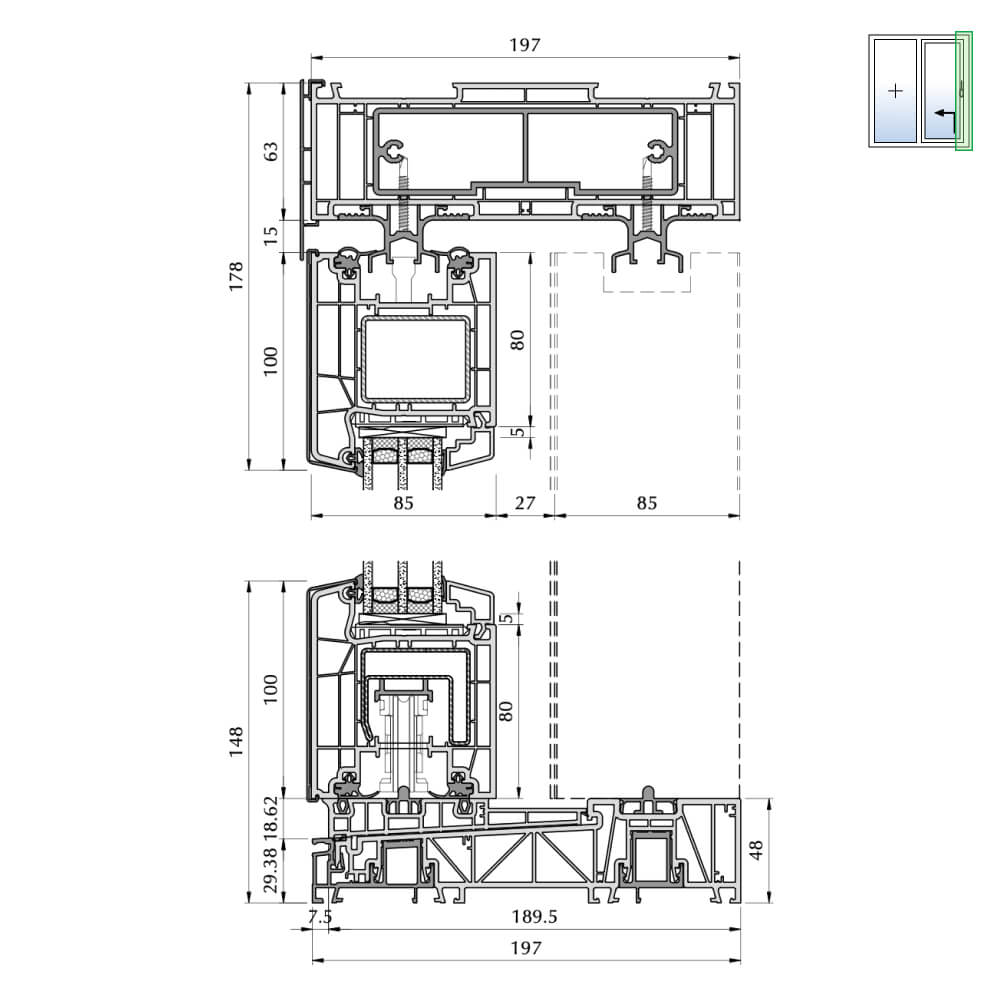

Drawing 1: top, outside, fixed sash / Drawing 2: bottom, outside, fixed sash
Drawing 1: top, outside, fixed sash Drawing 2: bottom, outside, fixed sash

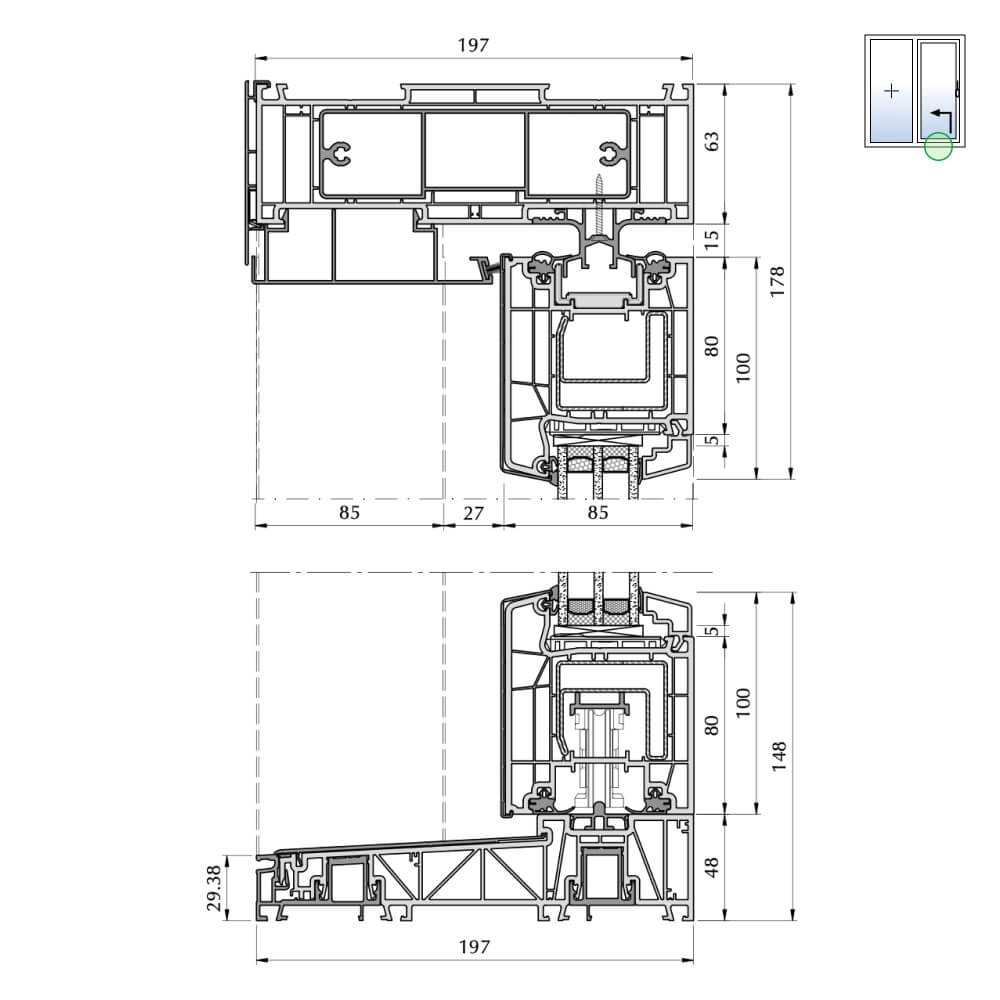

Drawing 3: top, inside, fixed sash / Drawing 4: bottom, inside, fixed sash
Drawing 3: top, inside, fixed sash / Drawing 4: bottom, inside, fixed sash

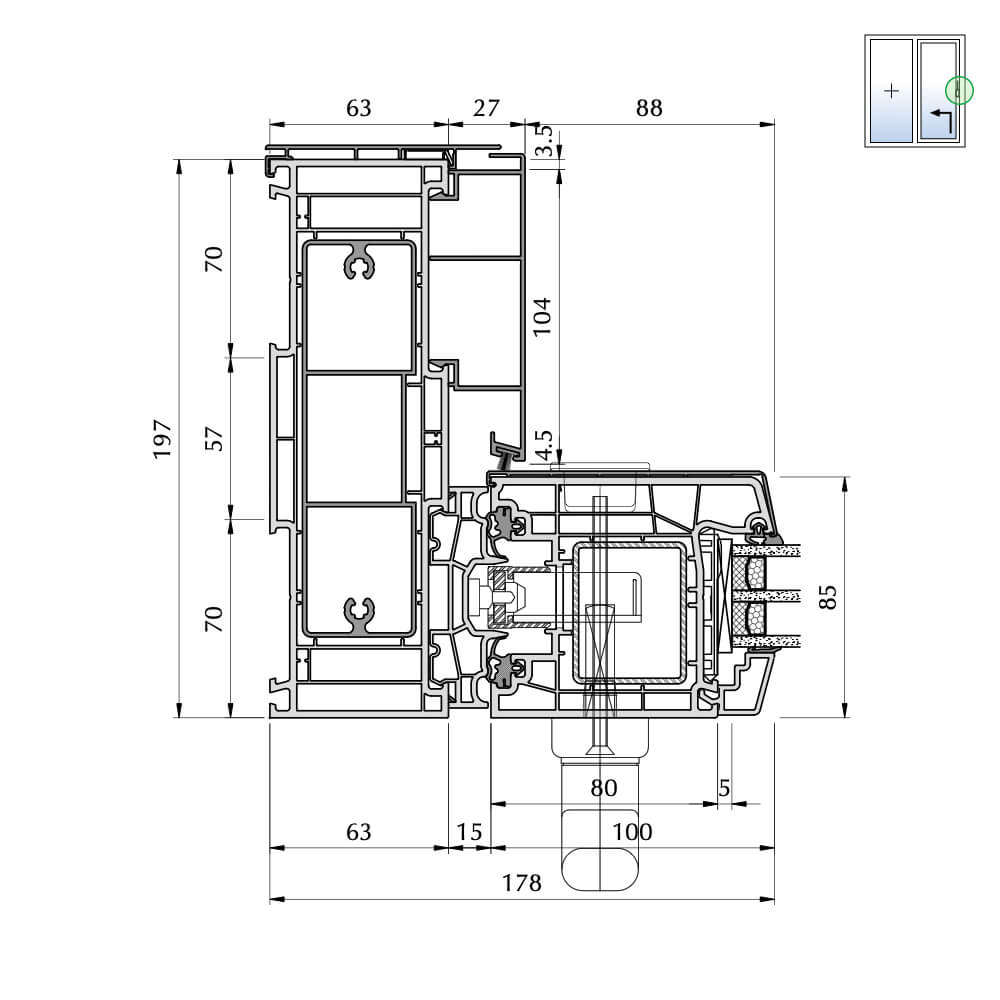

Scheme A: Handle side detail
Scheme A: Handle side detail

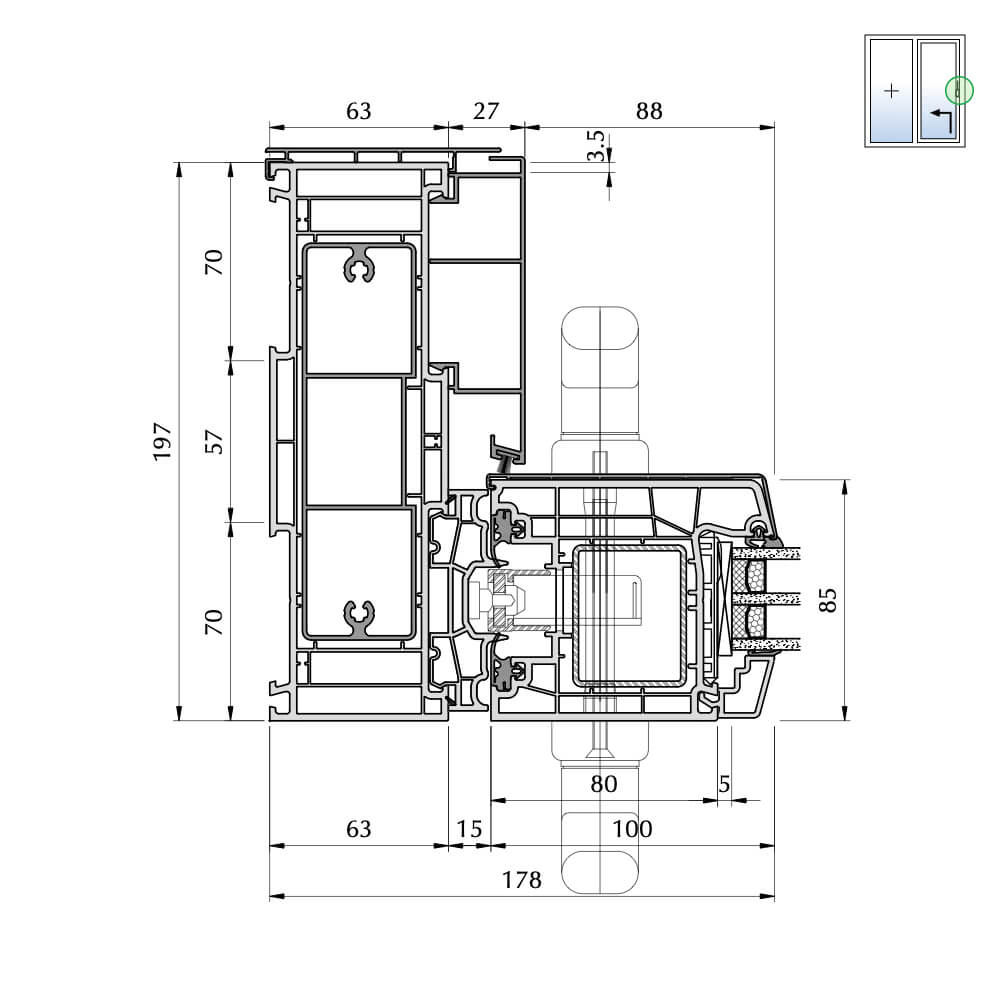

Scheme A: Handle side, inside and outside locking (PZ-gearbox)
Scheme A: Handle side, inside and outside locking (PZ-gearbox)

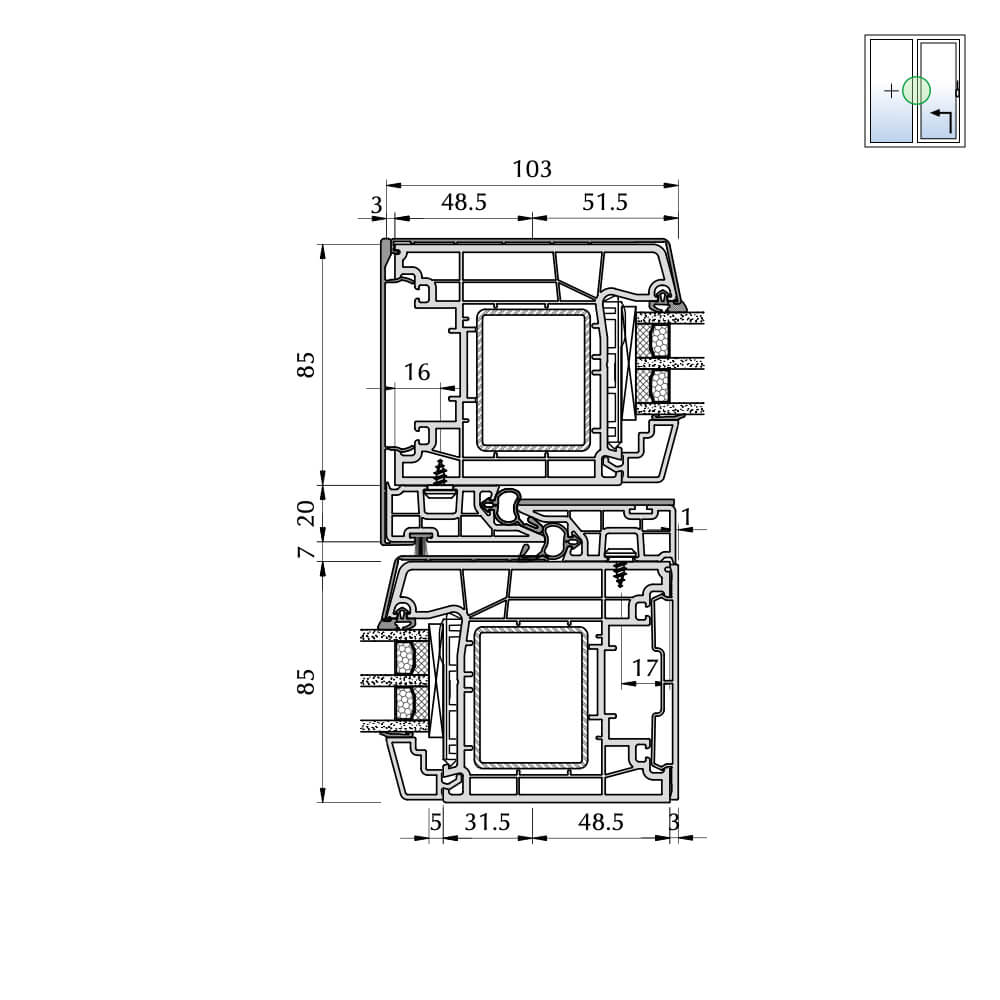

Scheme A: Middle post
Scheme A: Middle post

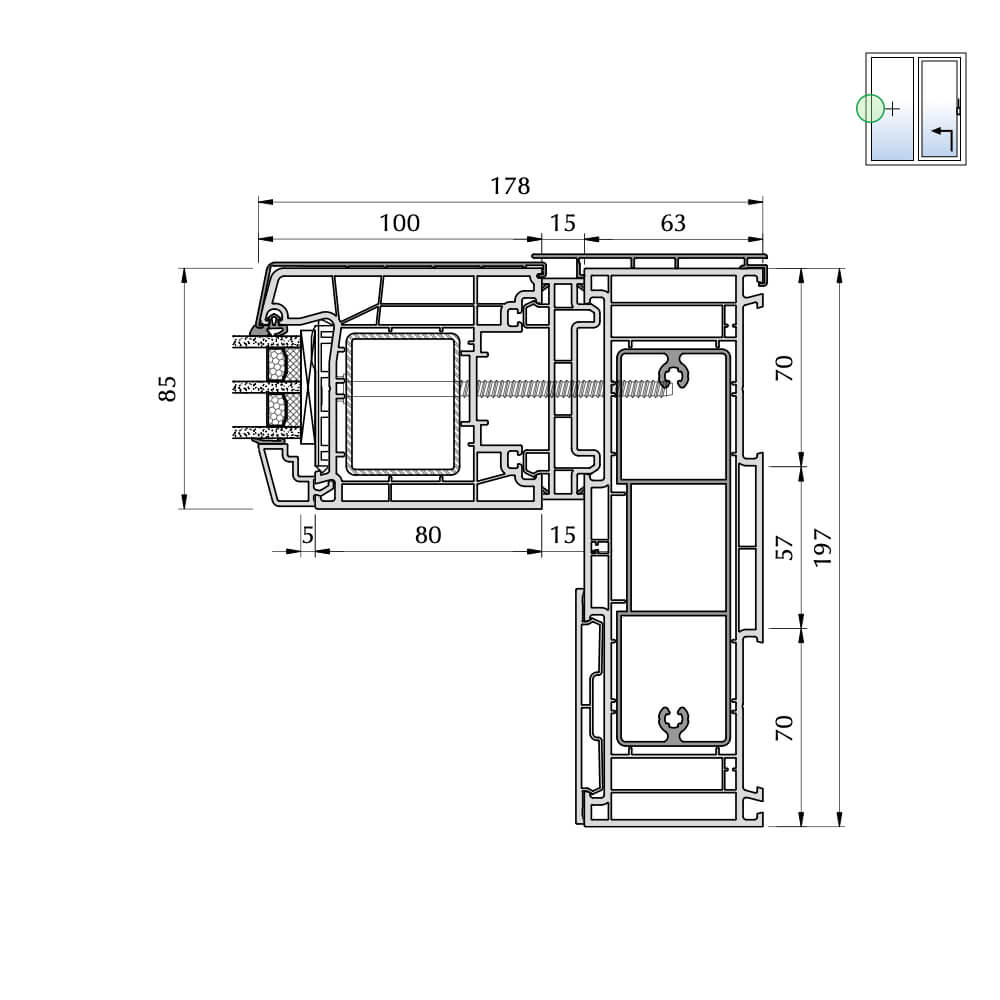

Scheme A: Side detail
Scheme A: Side detail

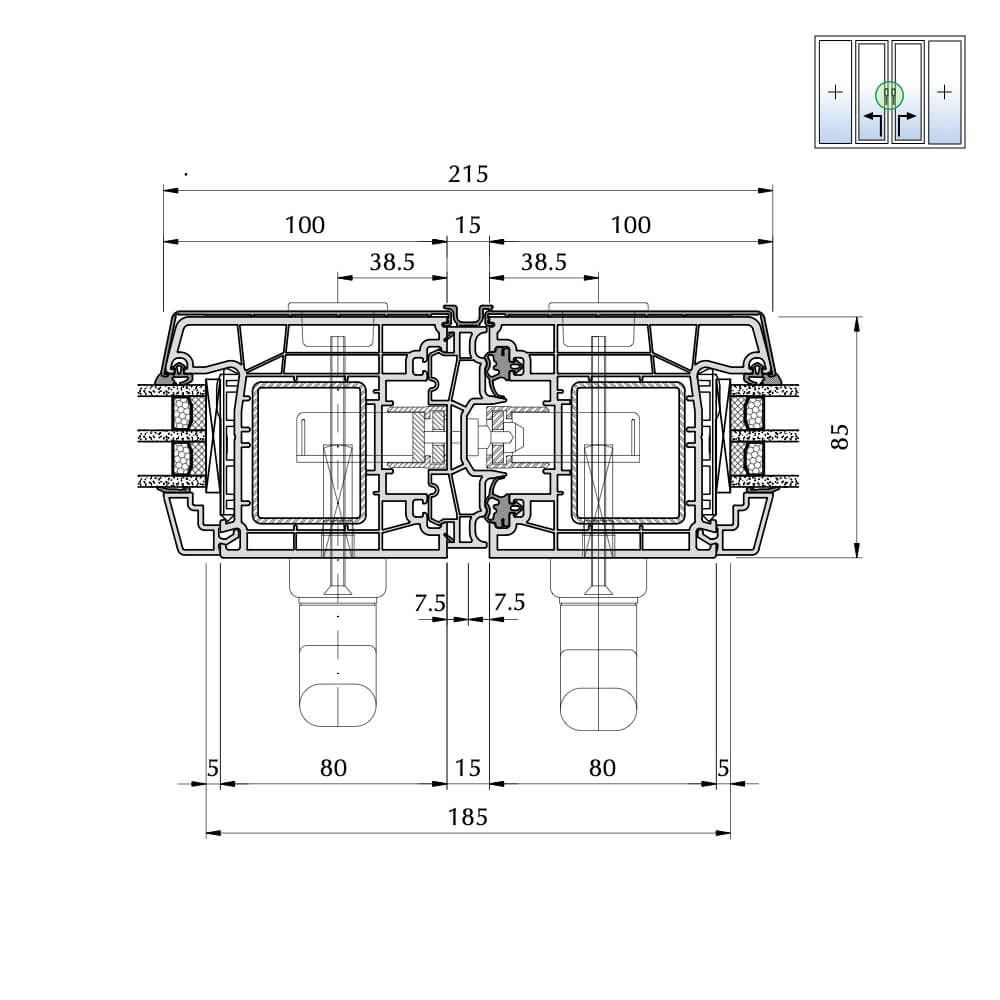

Scheme C: Forend, middle
Scheme C: Forend, middle

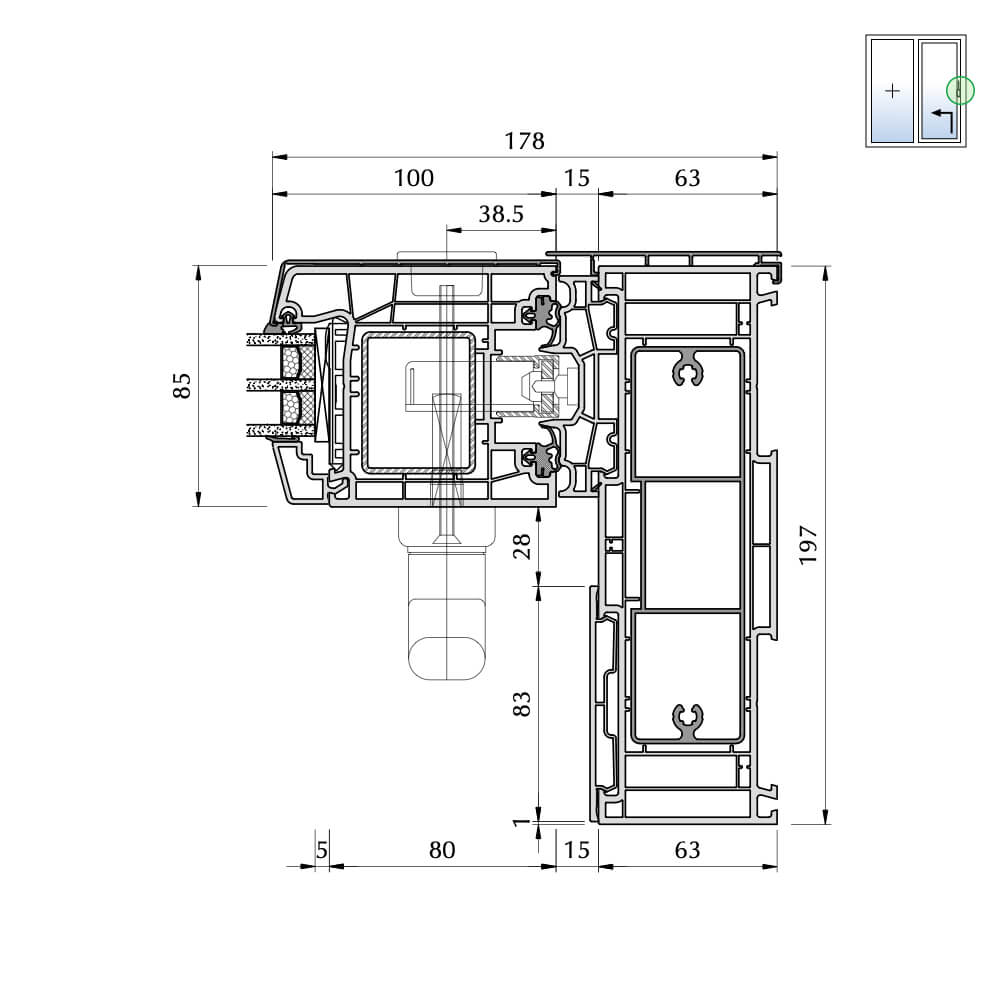

Scheme D: Handle side right
Scheme D: Handle side right

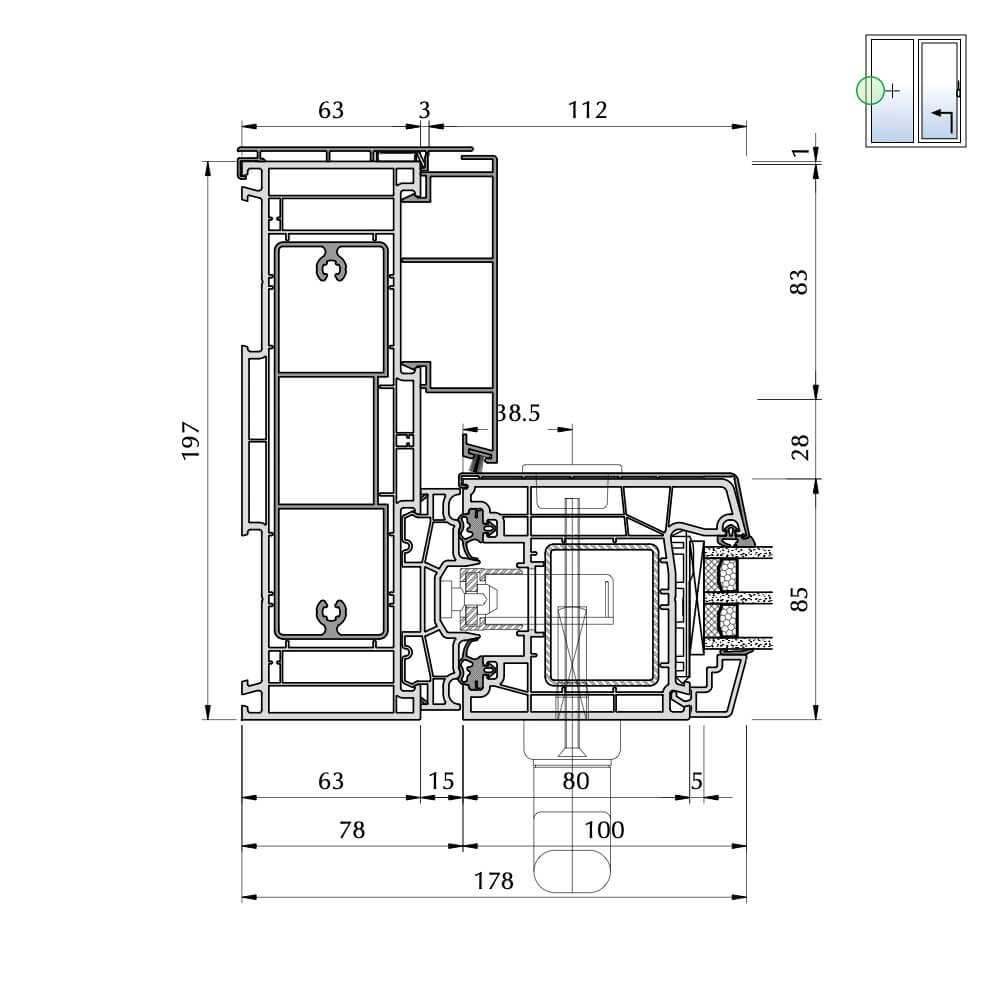

Scheme D: Handle side left
Scheme D: Handle side left

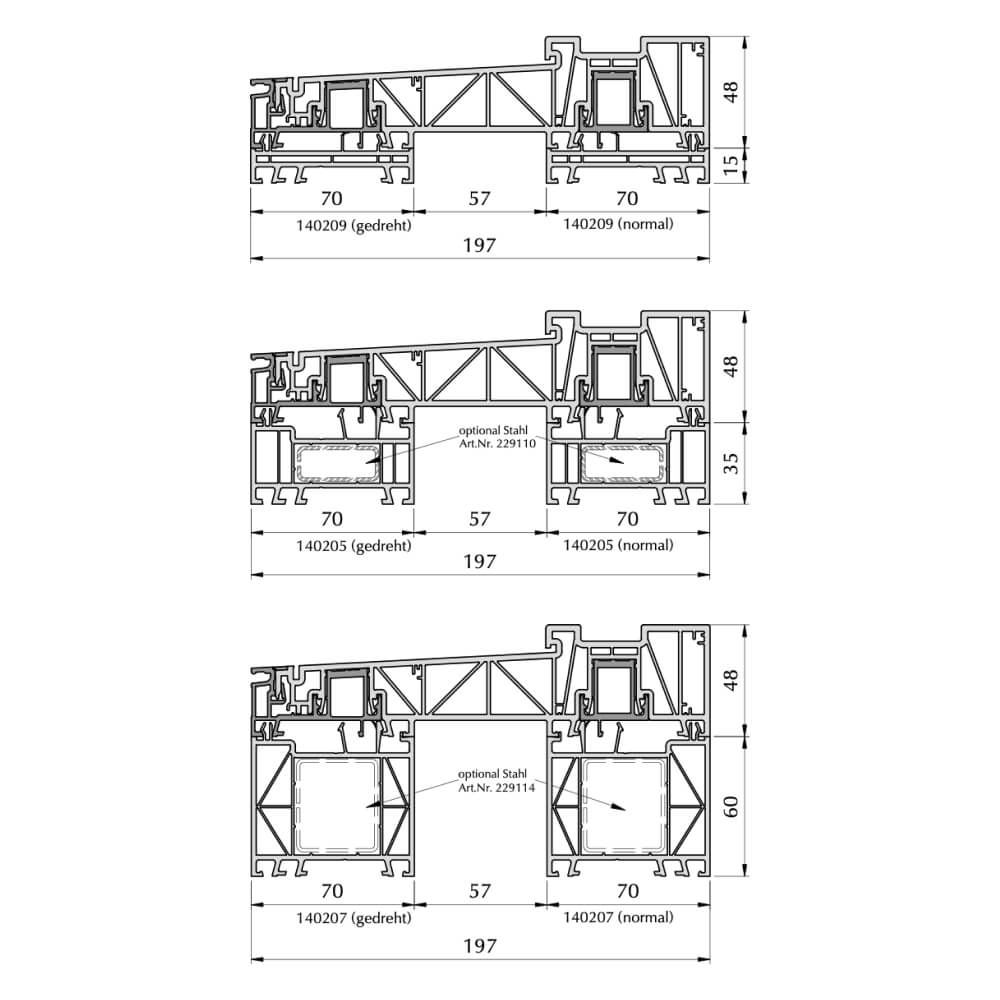

Twinset Premium: Extensions/Enlargement bottom side
Twinset Premium: Extensions/Enlargement bottom side

Please note that these are standard drawings. If you would like to know exactly which profiles and components are installed prior to delivery, please contact our customer service on +49 711 860 60 200 or by email at info@noSpamwindows24.com. Our experts would be happy to assist you with configuration and answer any questions about our products.
