Aluminium front doors - detailled drawings

Overview

  1. Series: Premium
    1. Elegant
    2. Modern
  2. Series: Exclusive
    1. Elegant
    2. Modern
    3. Modern: outward opening
    4. Classic

Series: Premium

Elegant

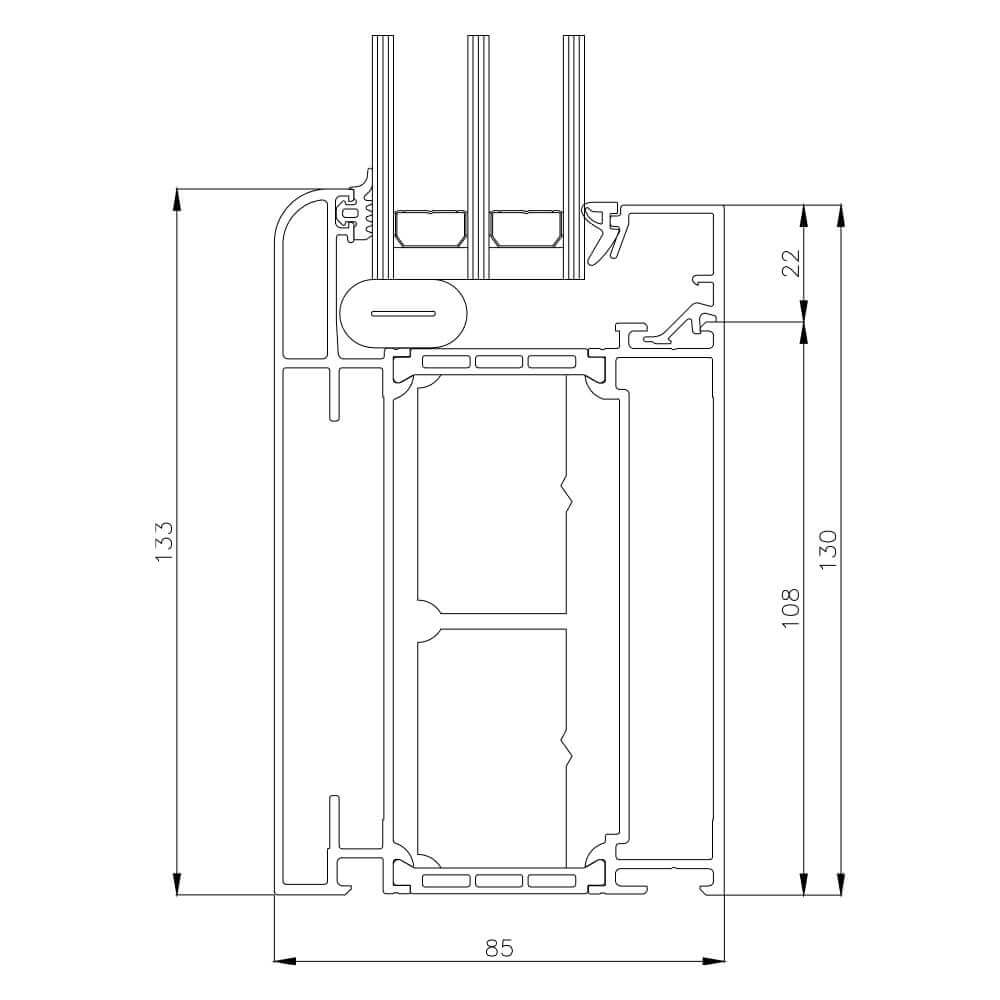

Premium Elegant: frame with fixed glazing, wide
Premium Elegant: frame with fixed glazing, wide

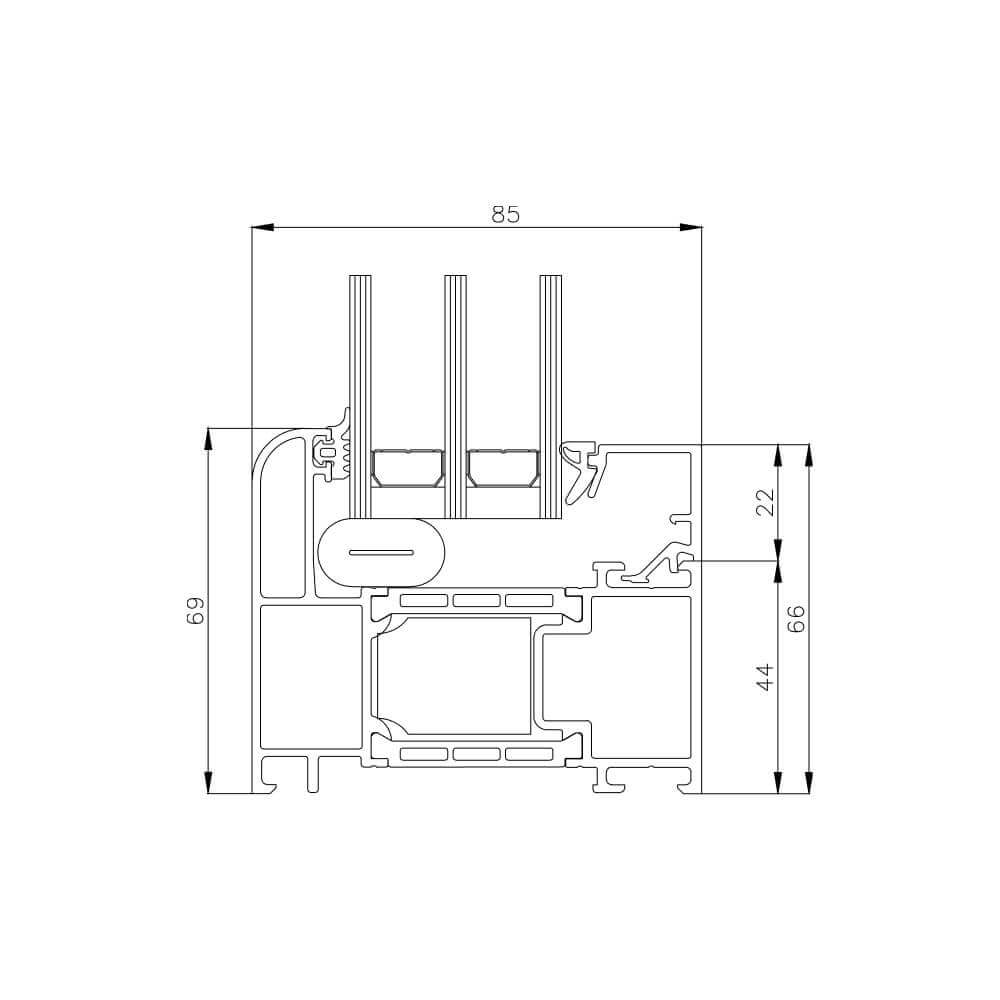

Premium Elegant: frame with fixed glazing, narrow
Premium Elegant: frame with fixed glazing, narrow

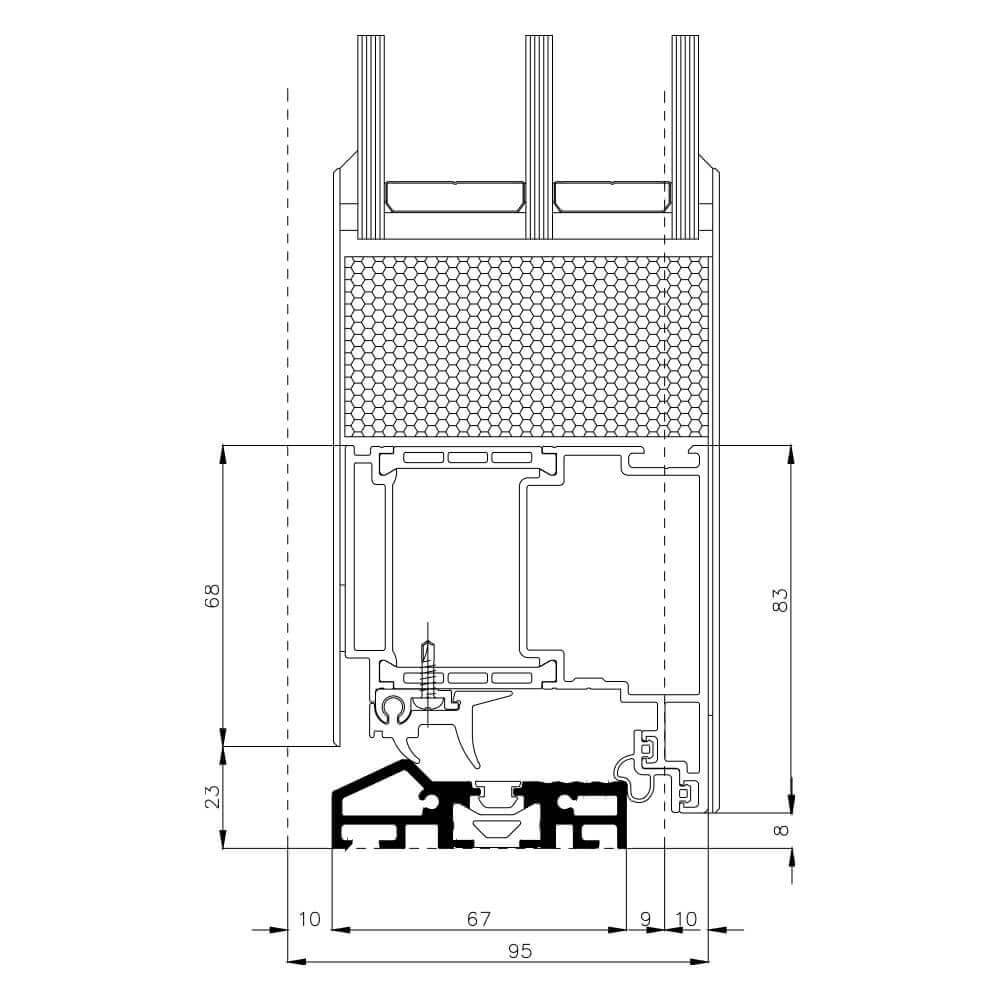

Premium Elegant: threshold with sash
Premium Elegant: threshold with sash

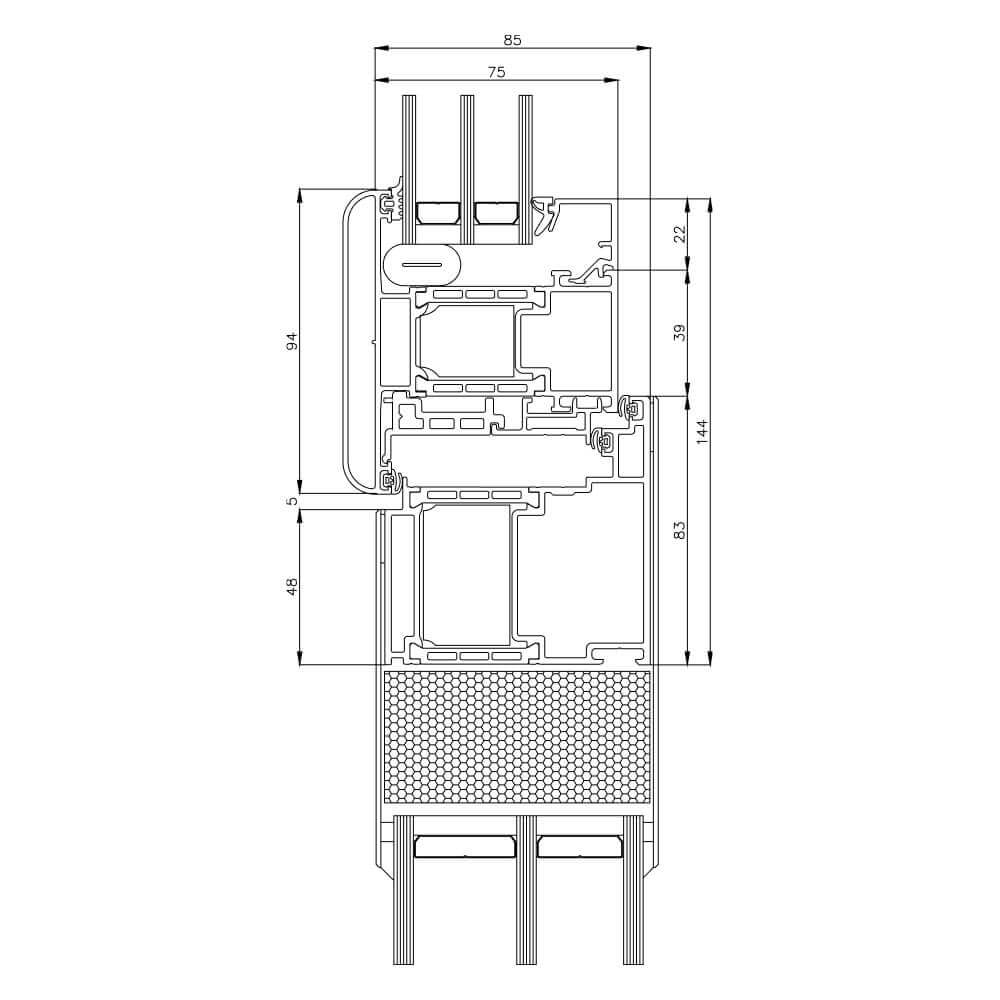

Premium Elegant: centre mullion with sash and fixed glazing
Premium Elegant: centre mullion with sash and fixed glazing

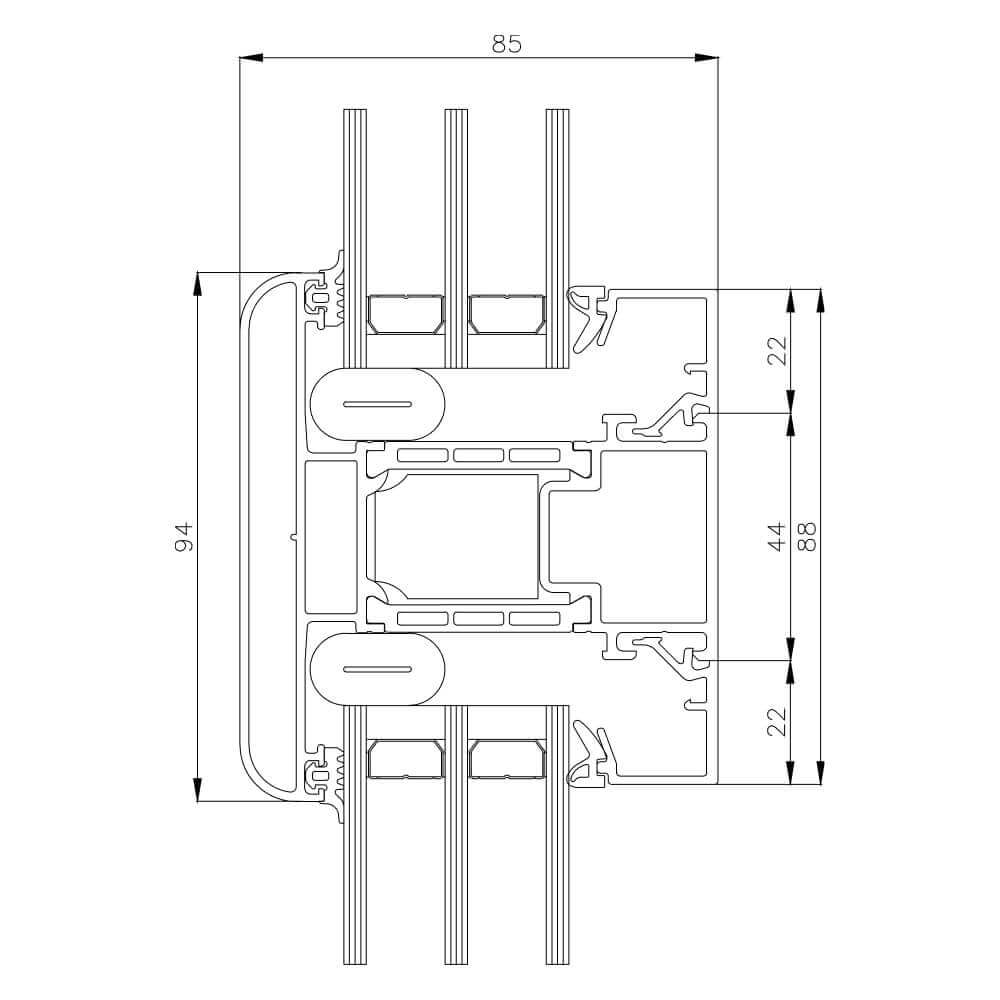

Premium Elegant: centre mullion with fixed glazing
Premium Elegant: centre mullion with fixed glazing

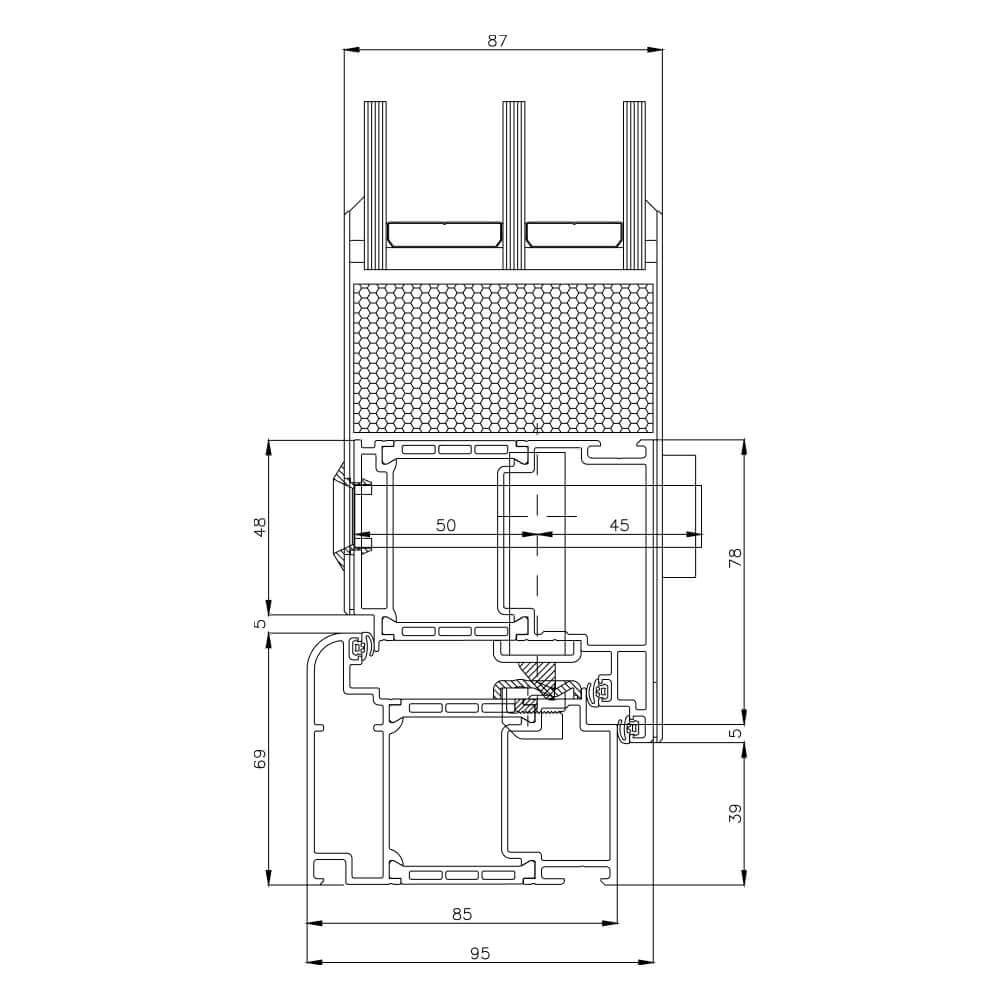

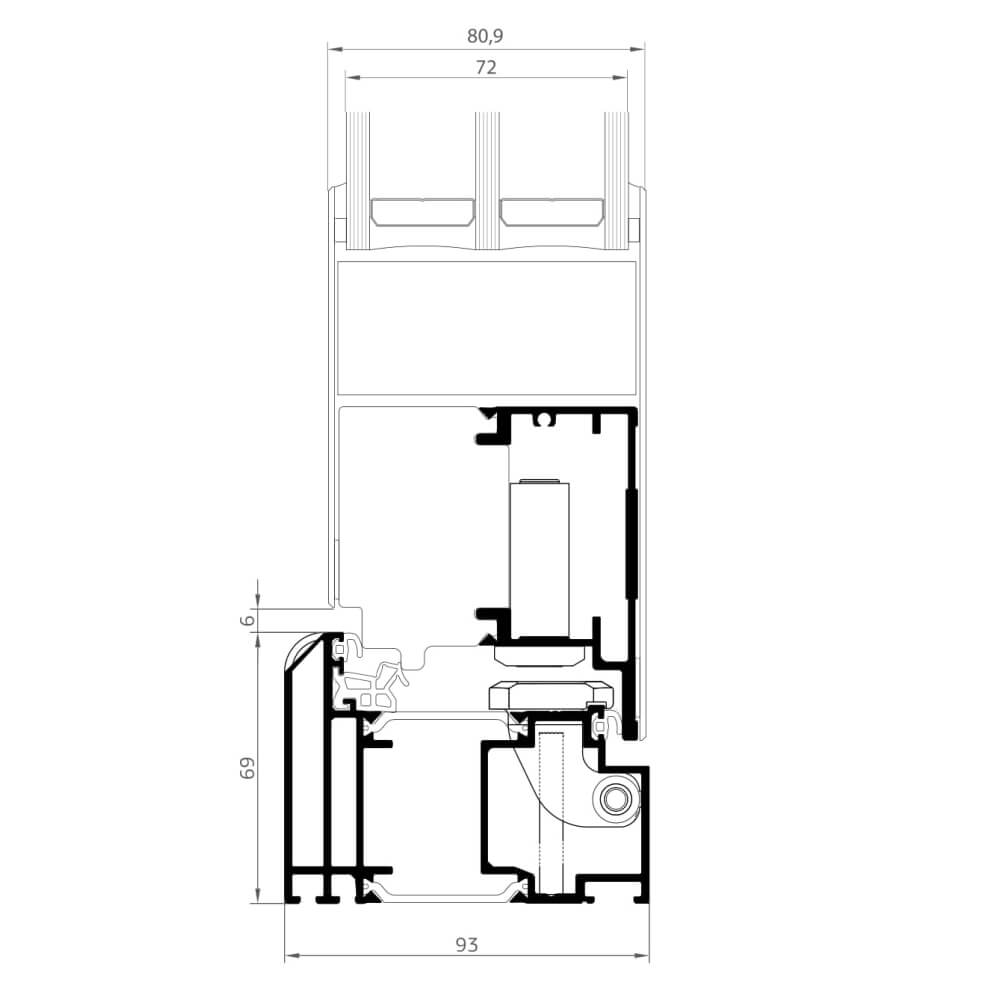

Premium Elegant: side frame (lock side) with sash
Premium Elegant: side frame (lock side) with sash

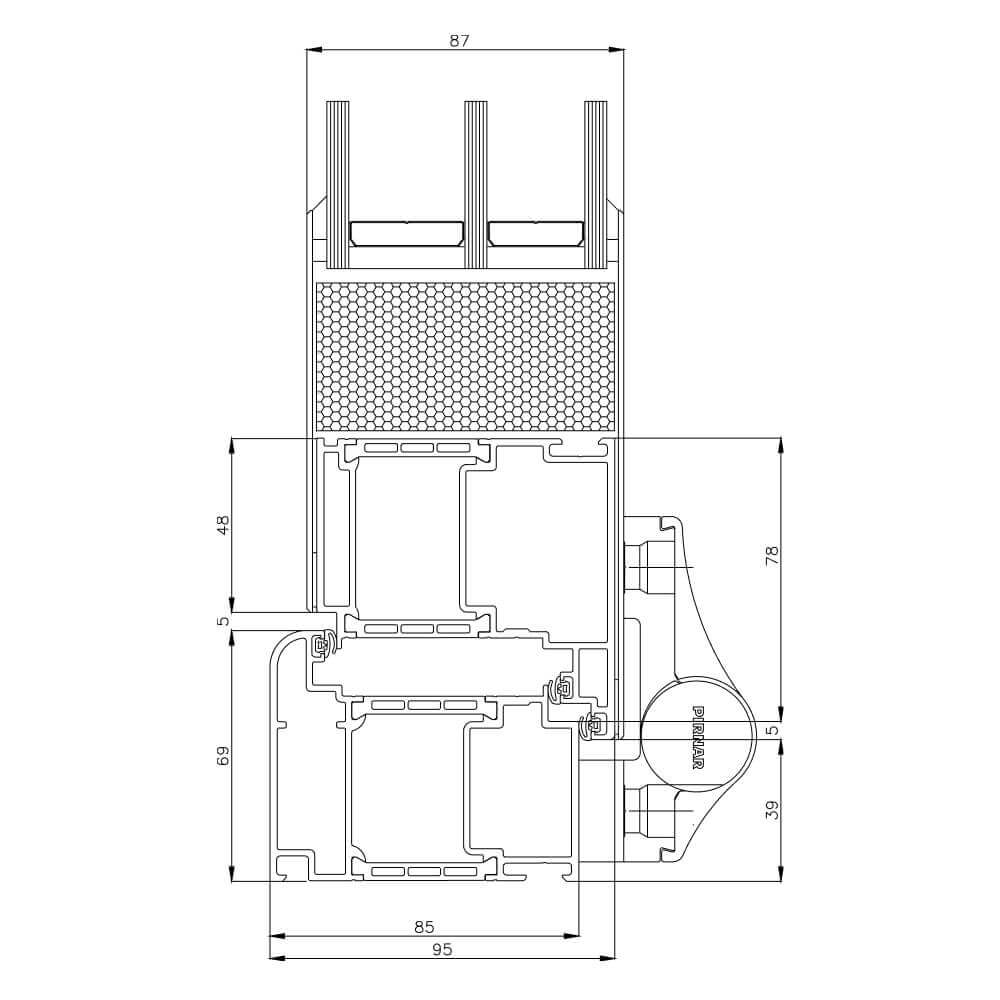

Premium Elegant: side frame (hinge side) with sash
Premium Elegant: side frame (hinge side) with sash

Modern

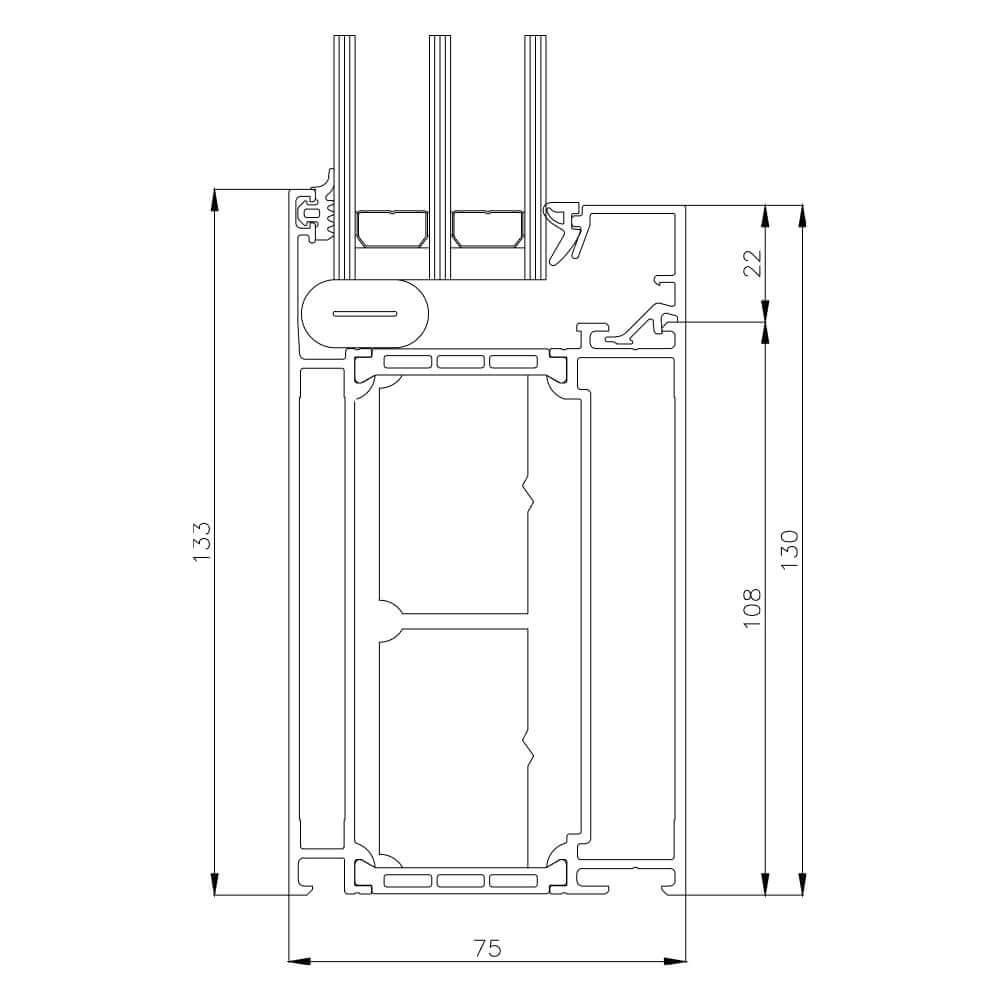

Premium Modern: frame with fixed glazing, wide
Premium Modern: frame with fixed glazing, wide

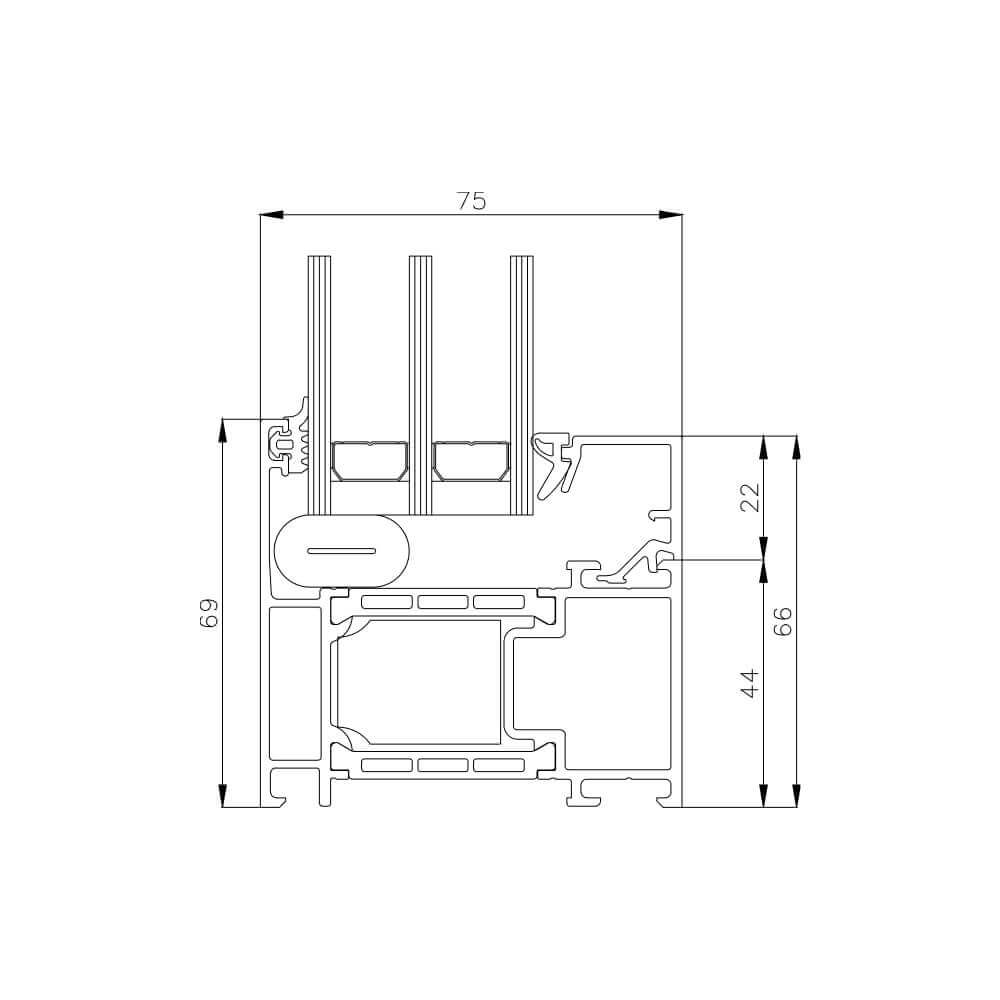

Premium Modern: frame with fixed glazing, narrow
Premium Modern: frame with fixed glazing, narrow

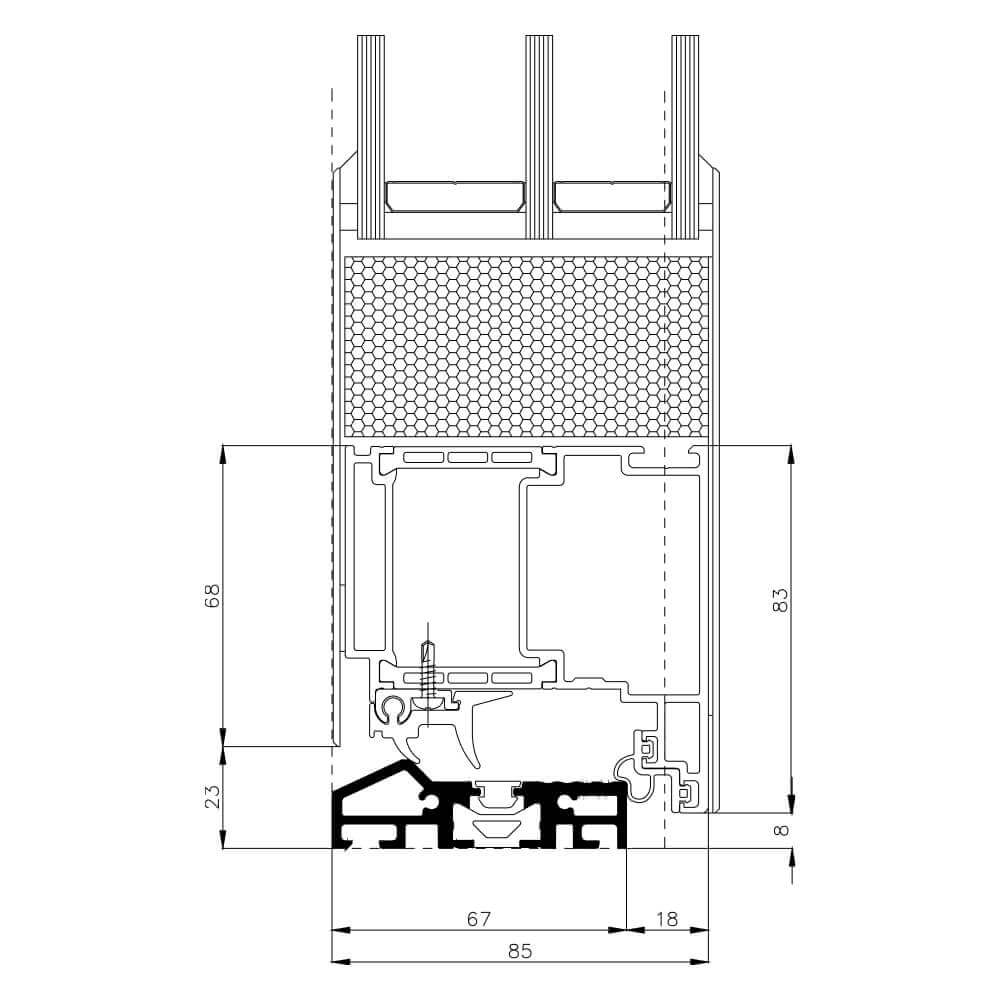

Premium Modern: threshold with sash
Premium Modern: threshold with sash

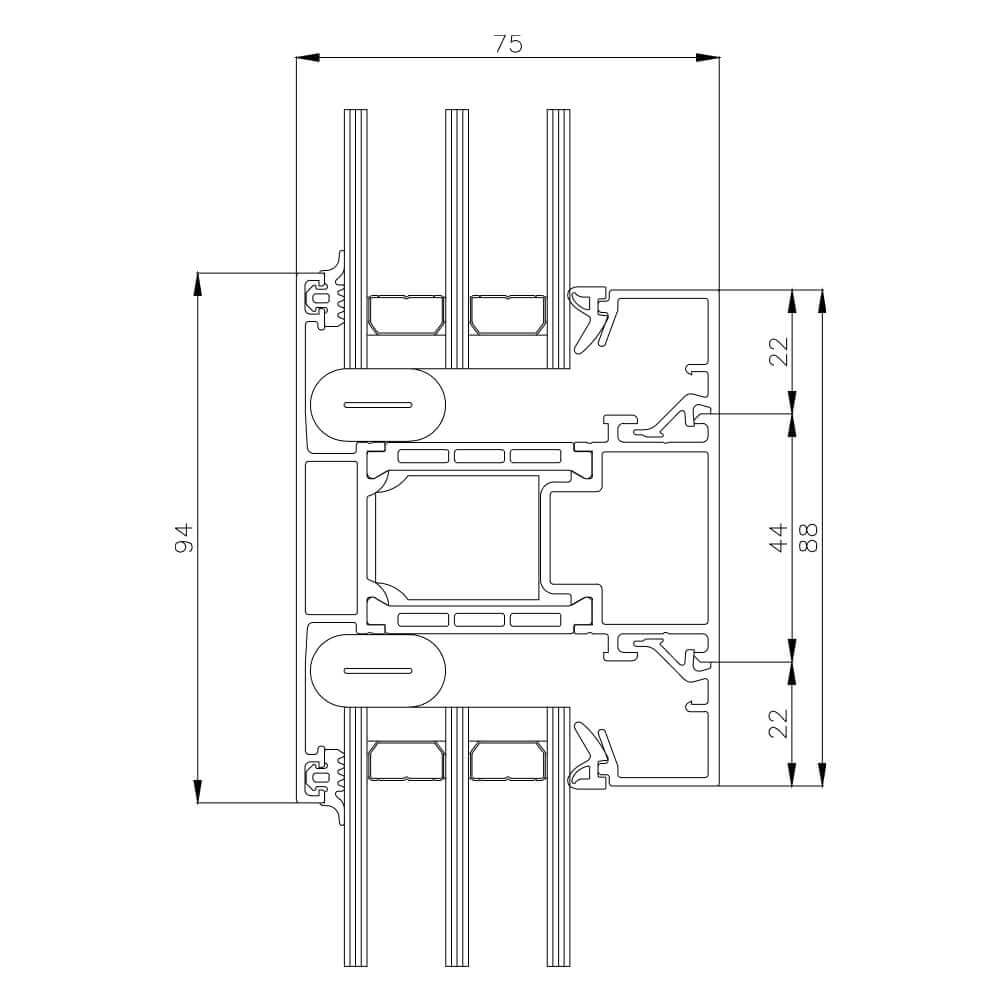

Premium Modern: centre mullion with fixed glazing
Premium Modern: centre mullion with fixed glazing

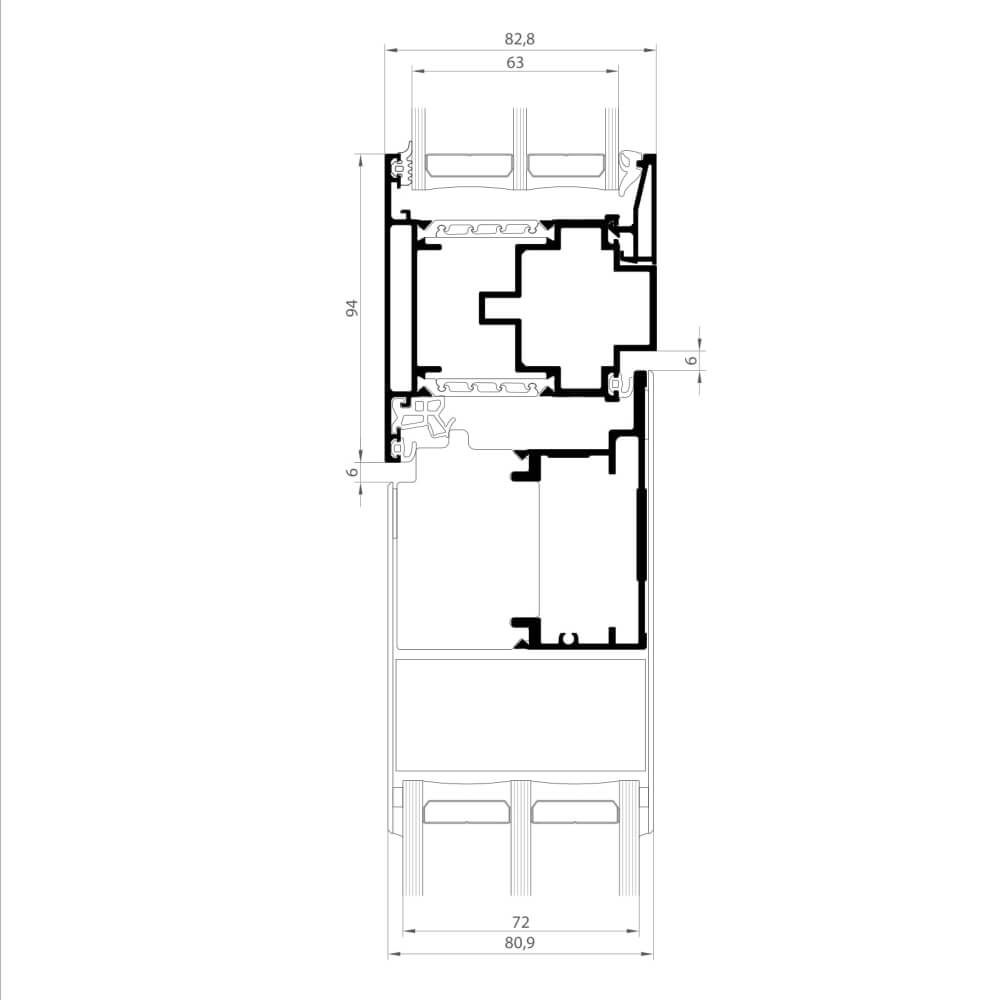

Premium Modern: centre mullion with fixed glazing and sash
Premium Modern: centre mullion with fixed glazing and sash

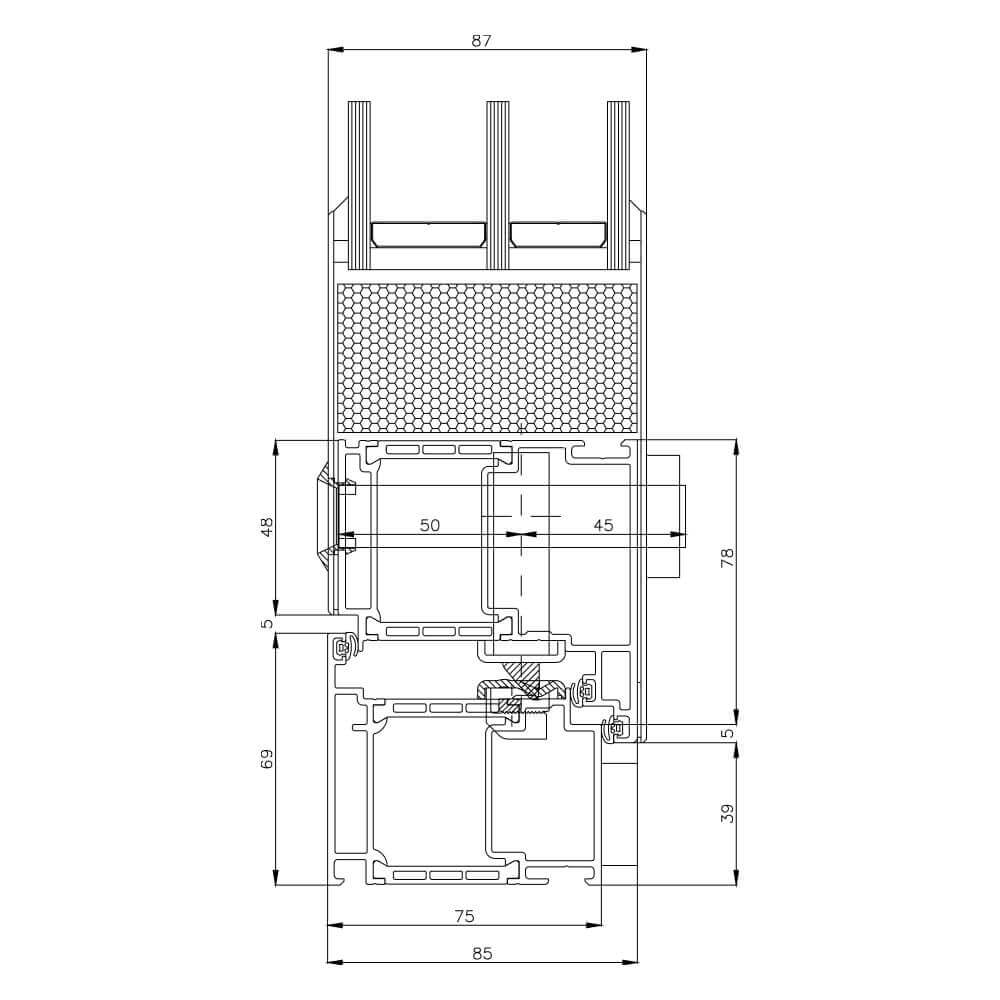

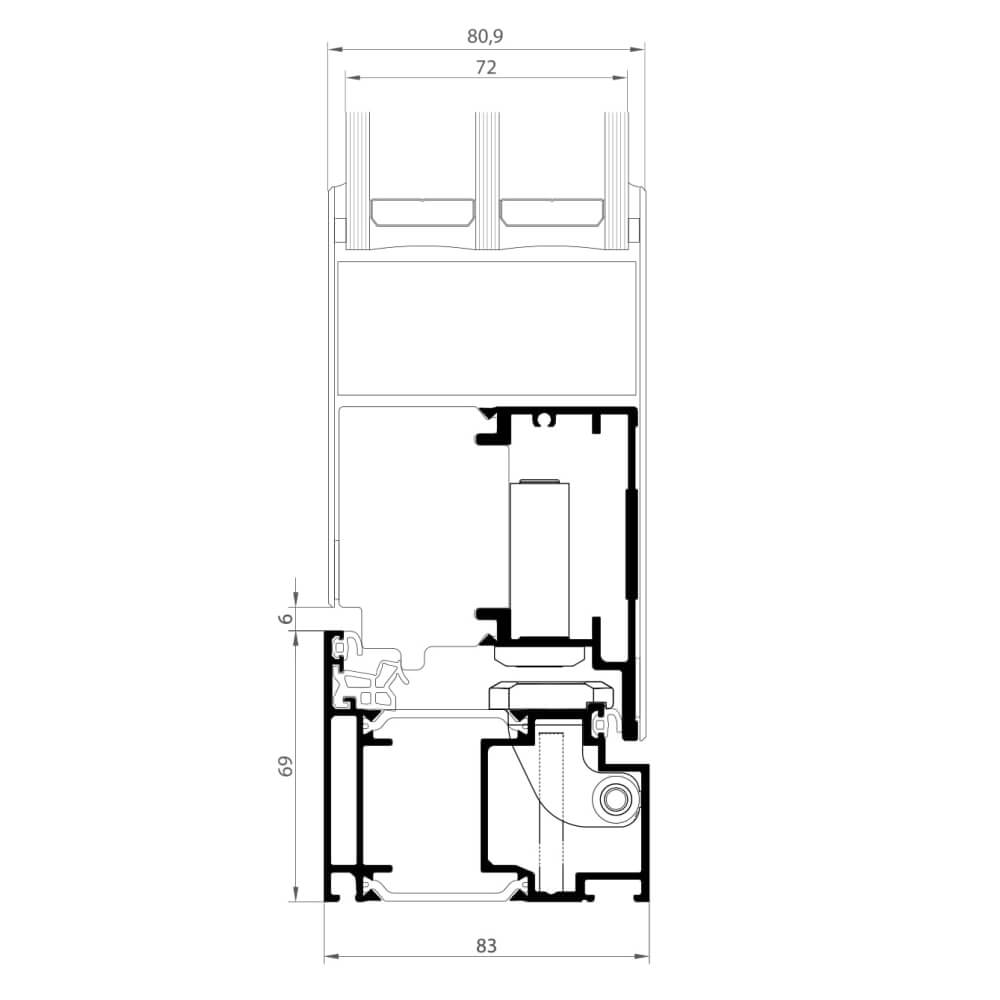

Premium Modern: side frame (lock side) with sash
Premium Modern: side frame (lock side) with sash

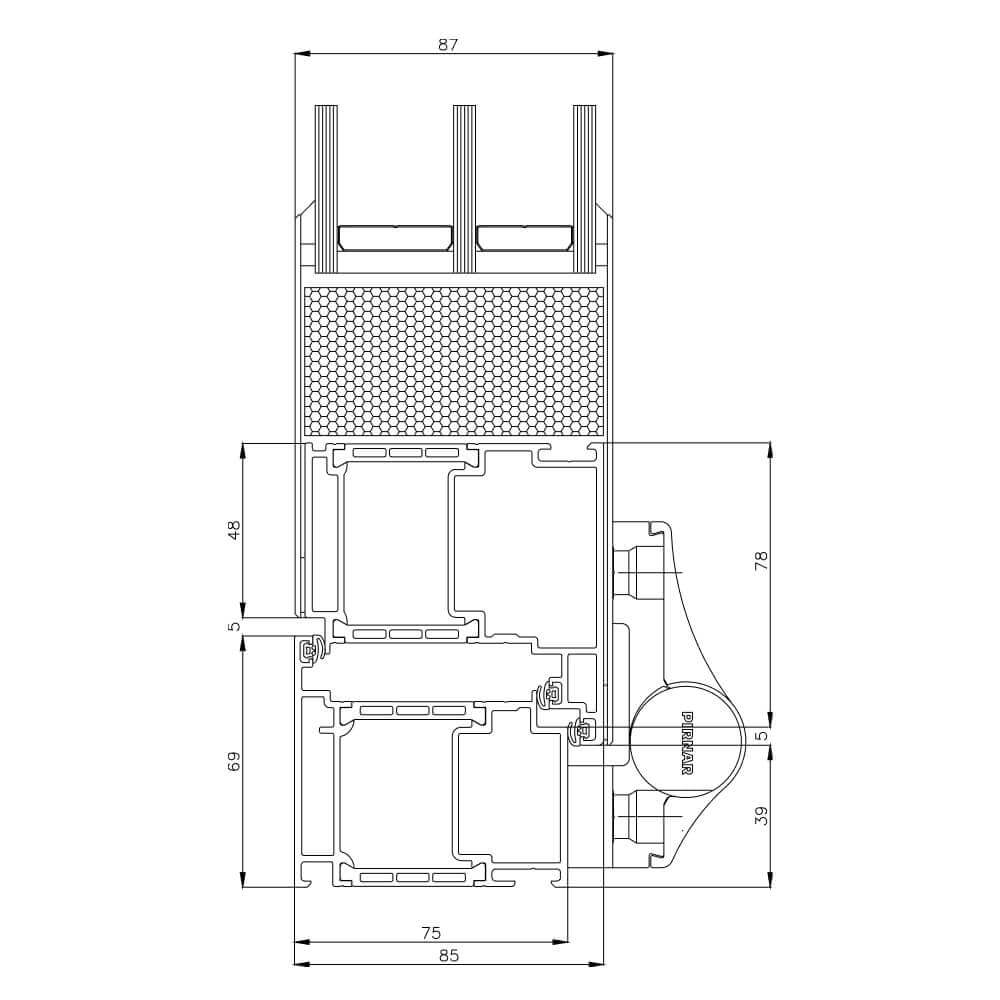

Premium Modern: side frame (hinge side) with sash
Premium Modern: side frame (hinge side) with sash

Series: Exclusive

Elegant

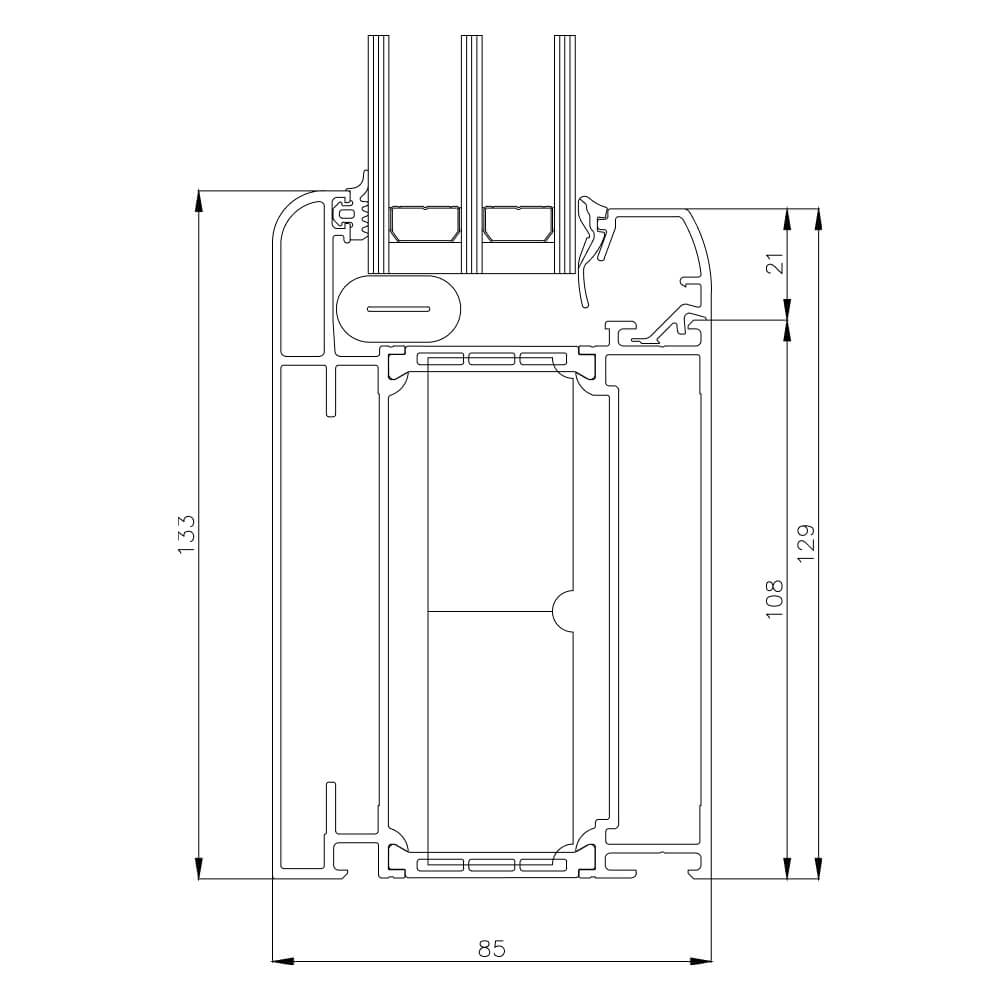

Exclusive Elegant: frame of fixed glazing wide
Exclusive Elegant: frame of fixed glazing wide

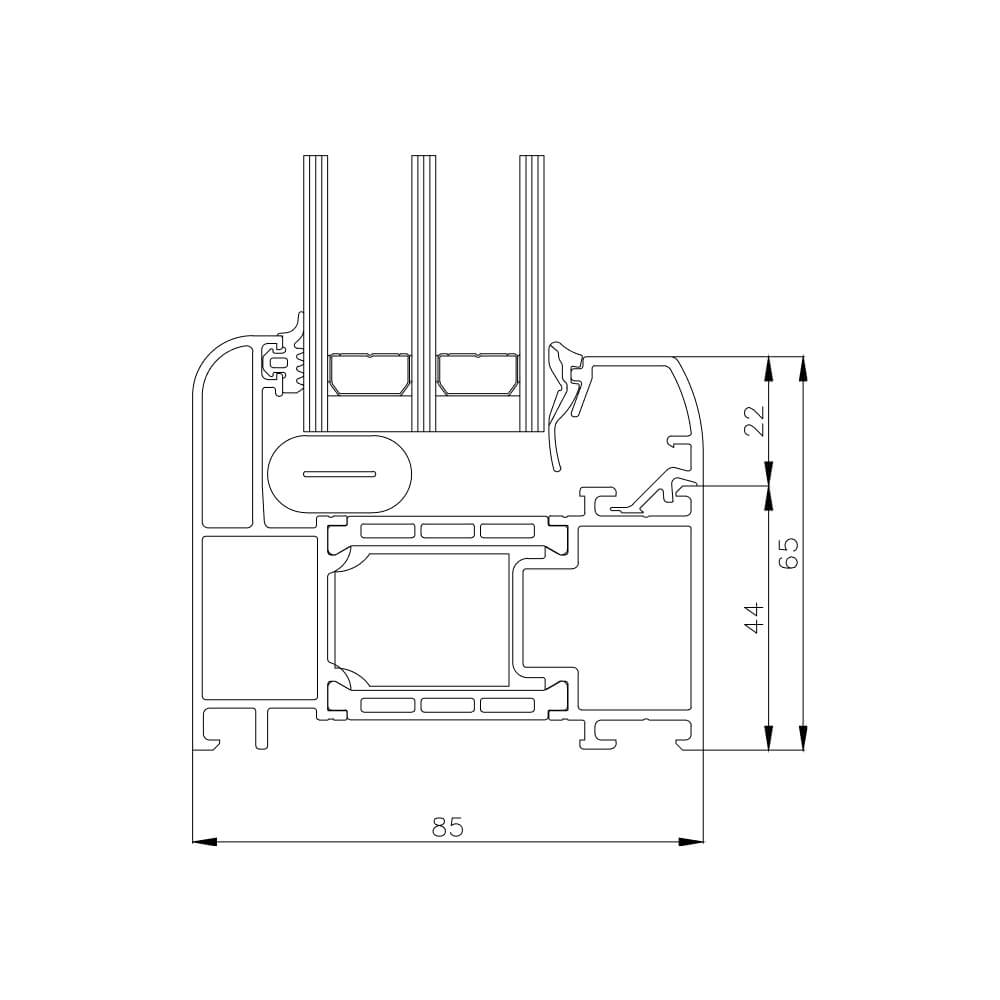

Exclusive Elegant: Narrow fixed glazing frame
Exclusive Elegant: Narrow fixed glazing frame

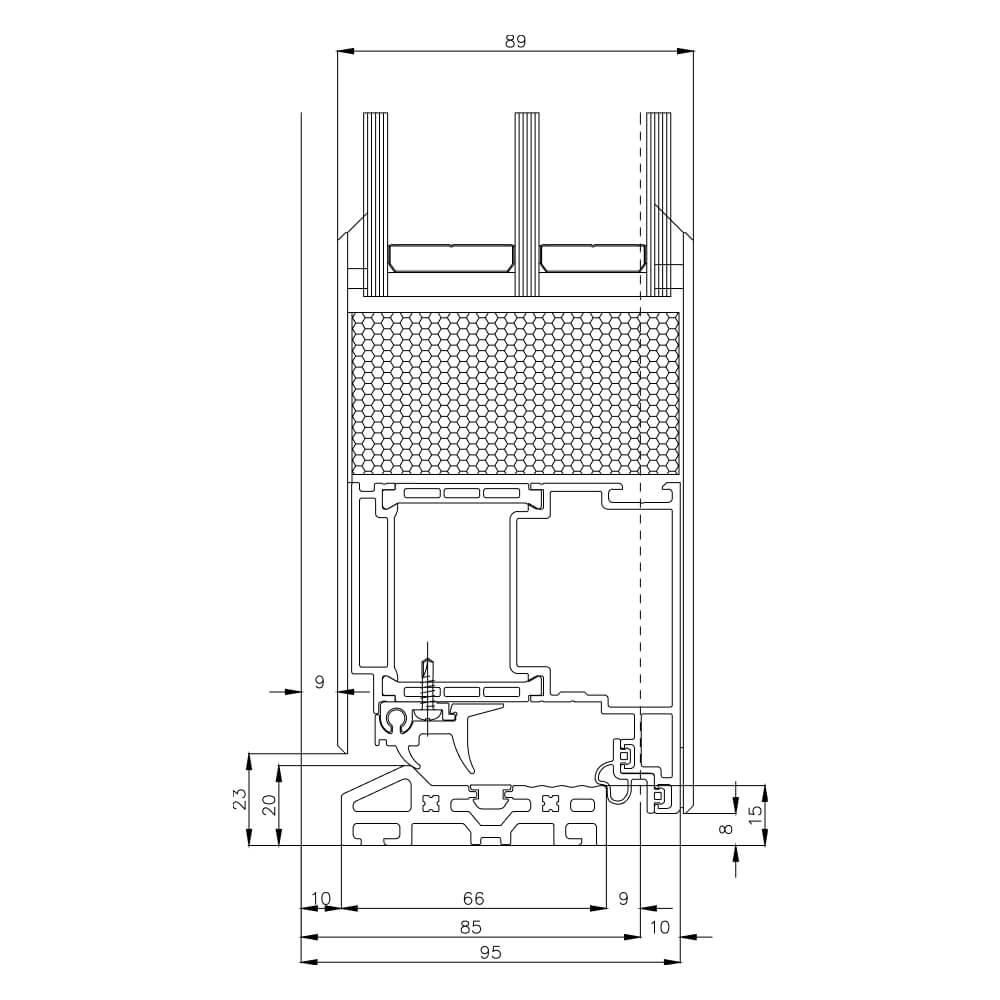

Exclusive Elegant: threshold with sash
Exclusive Elegant: threshold with sash

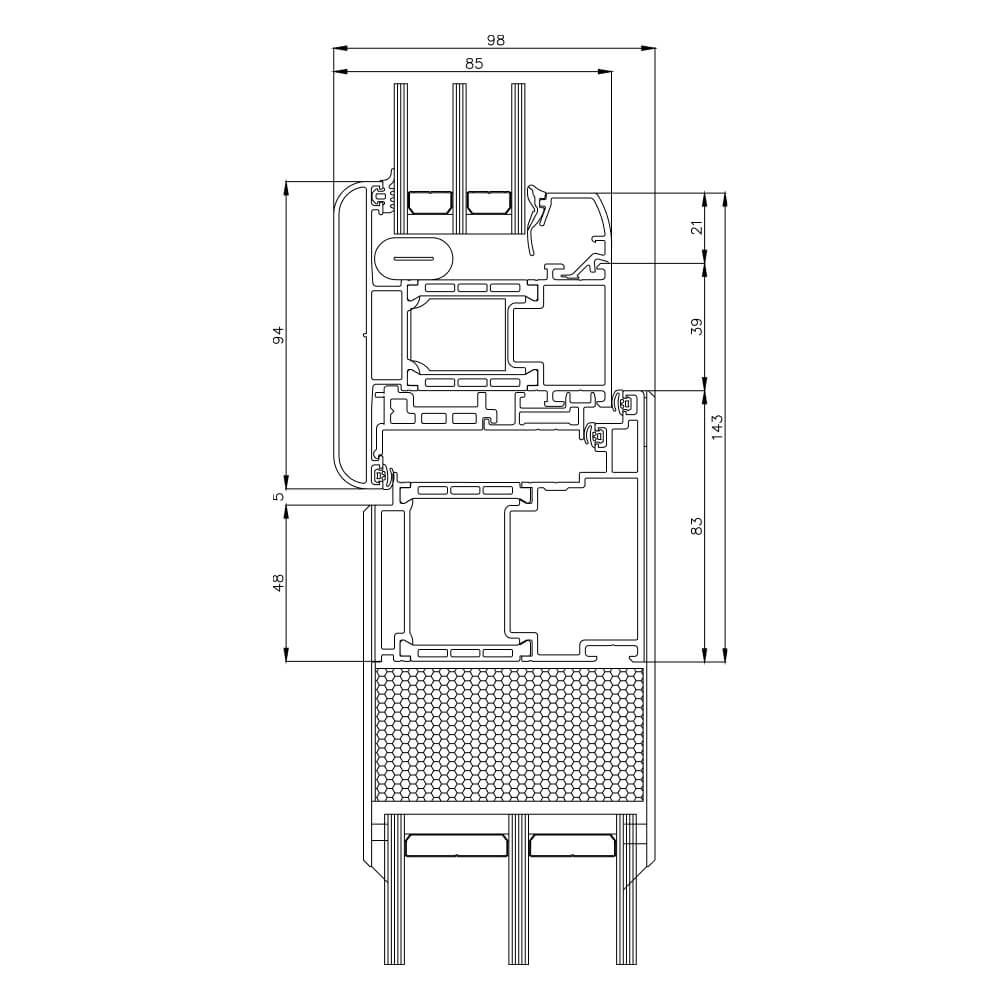

Exclusive Elegant: centre mullion with sash and fixed glazing
Exclusive Elegant: centre mullion with sash and fixed glazing

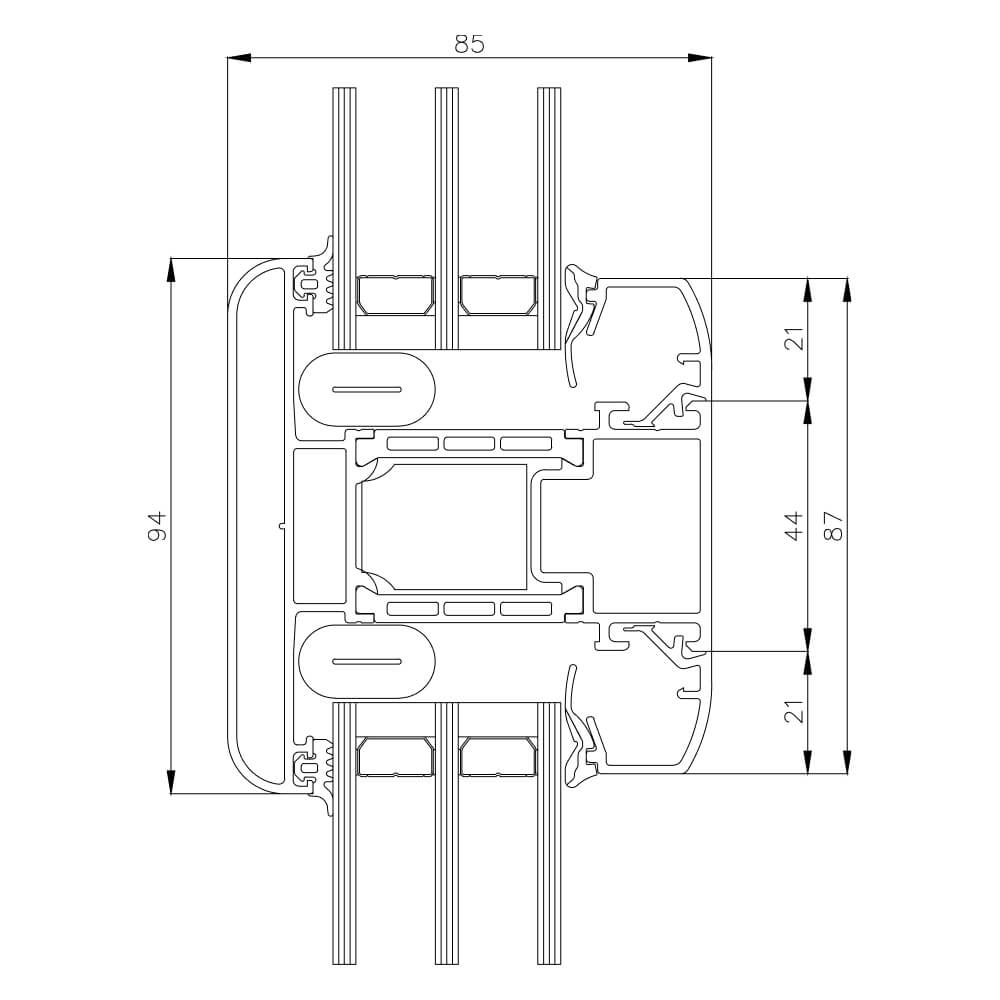

Exclusive Elegant: centre mullion and fixed glazing
Exclusive Elegant: centre mullion and fixed glazing

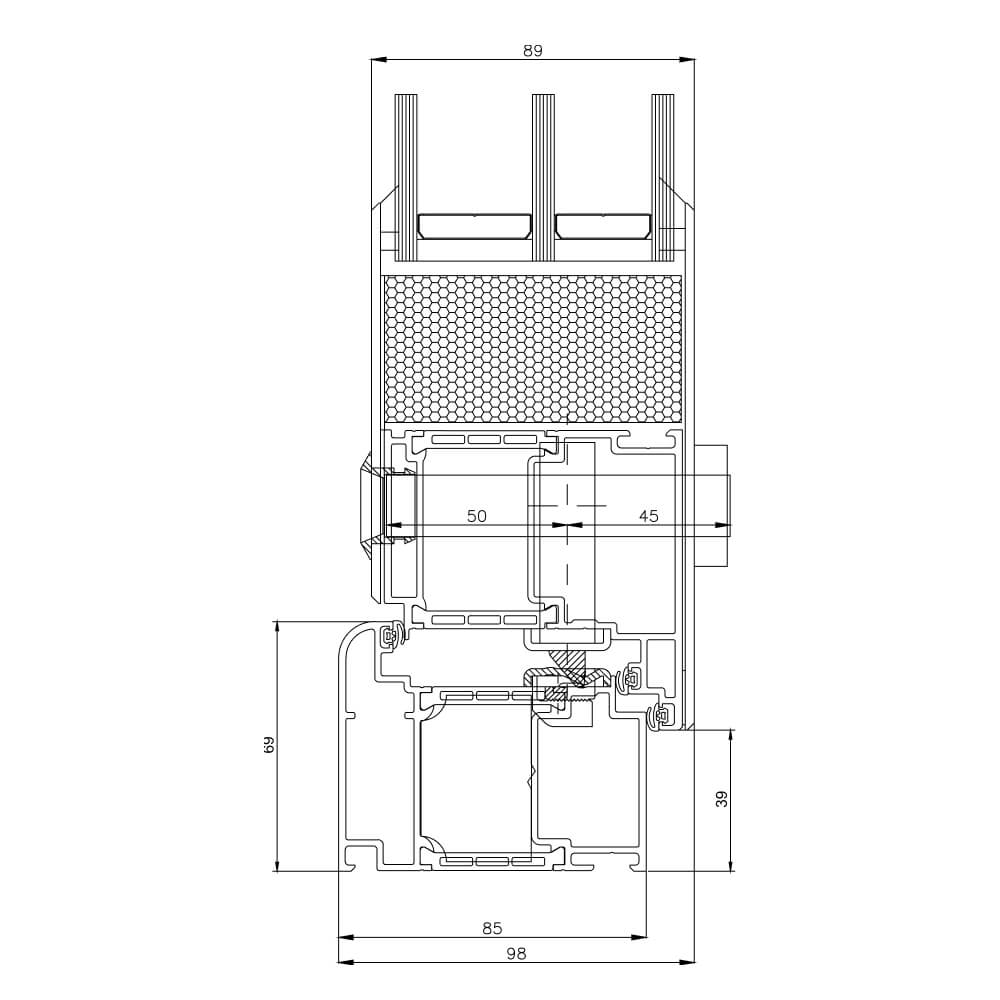

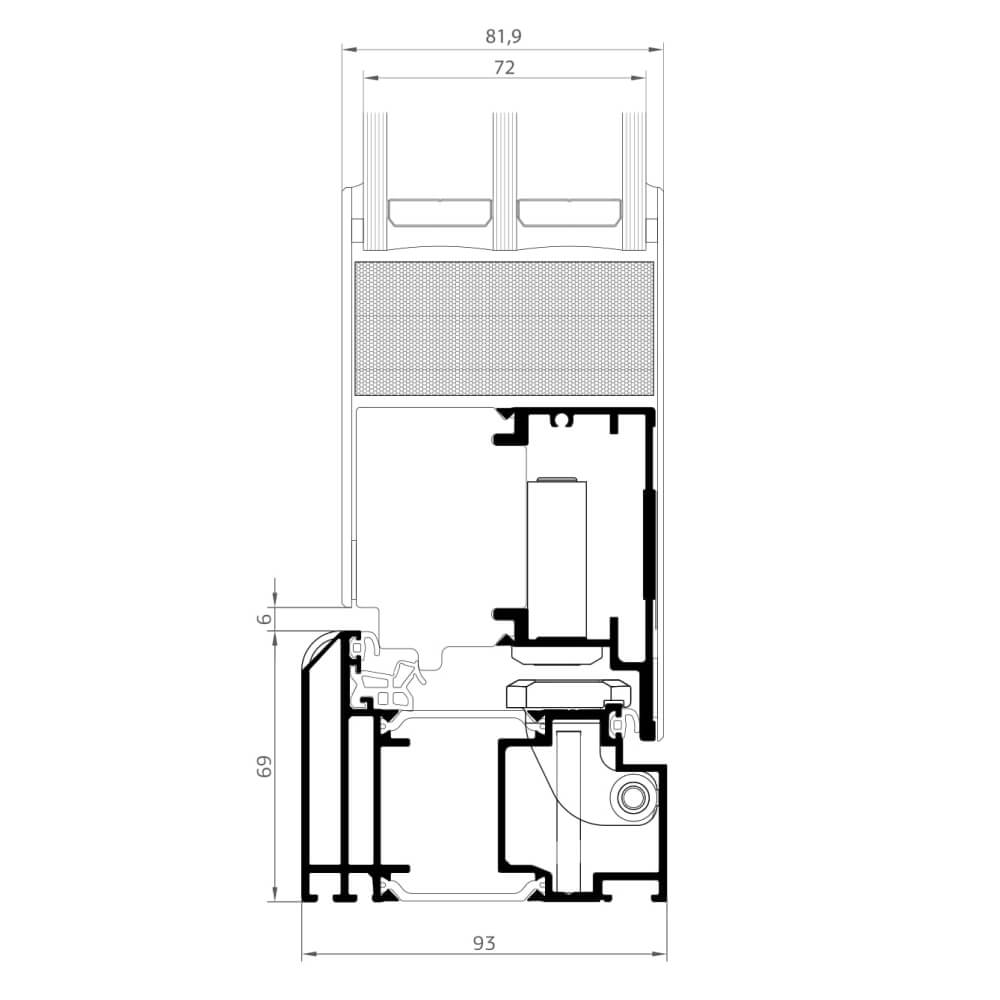

Exclusive Elegant: side frame (lock side) with sash
Exclusive Elegant: side frame (lock side) with sash

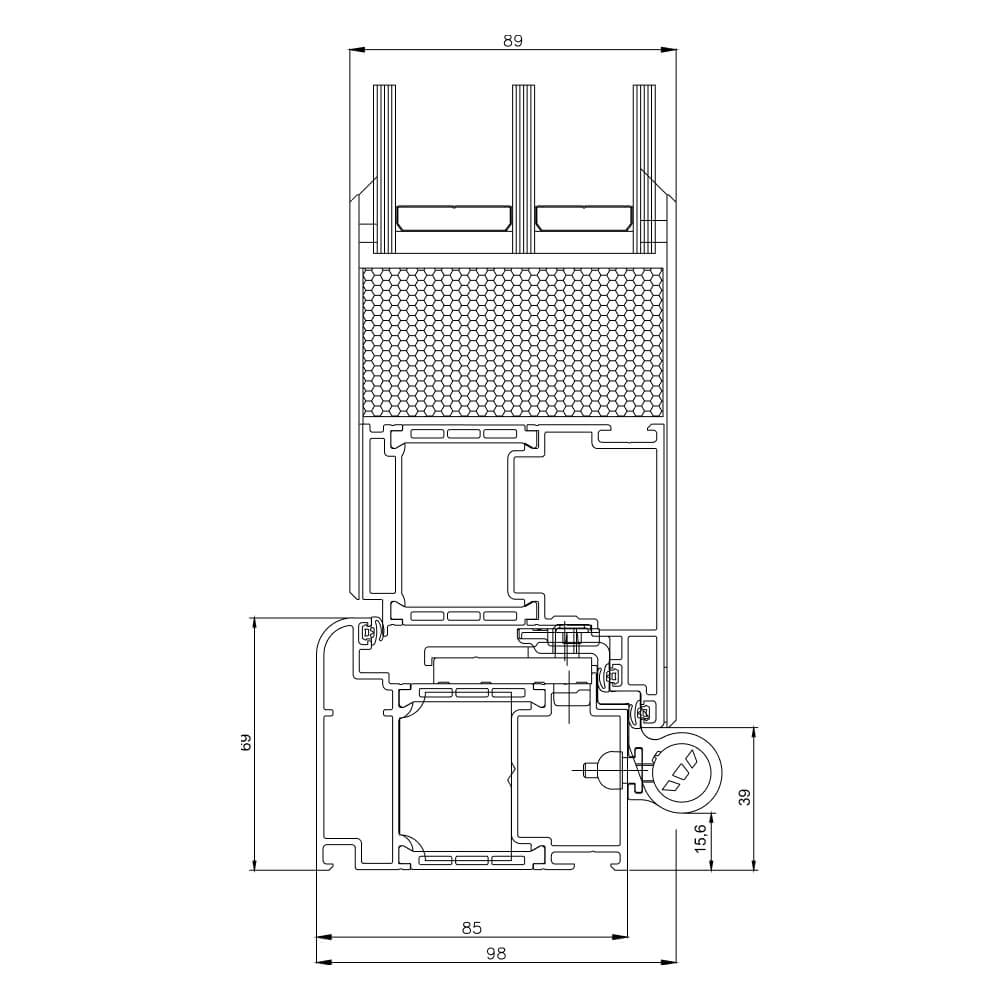

Exclusive Elegant: side frame (hinge side) with sash
Exclusive Elegant: side frame (hinge side) with sash

Modern

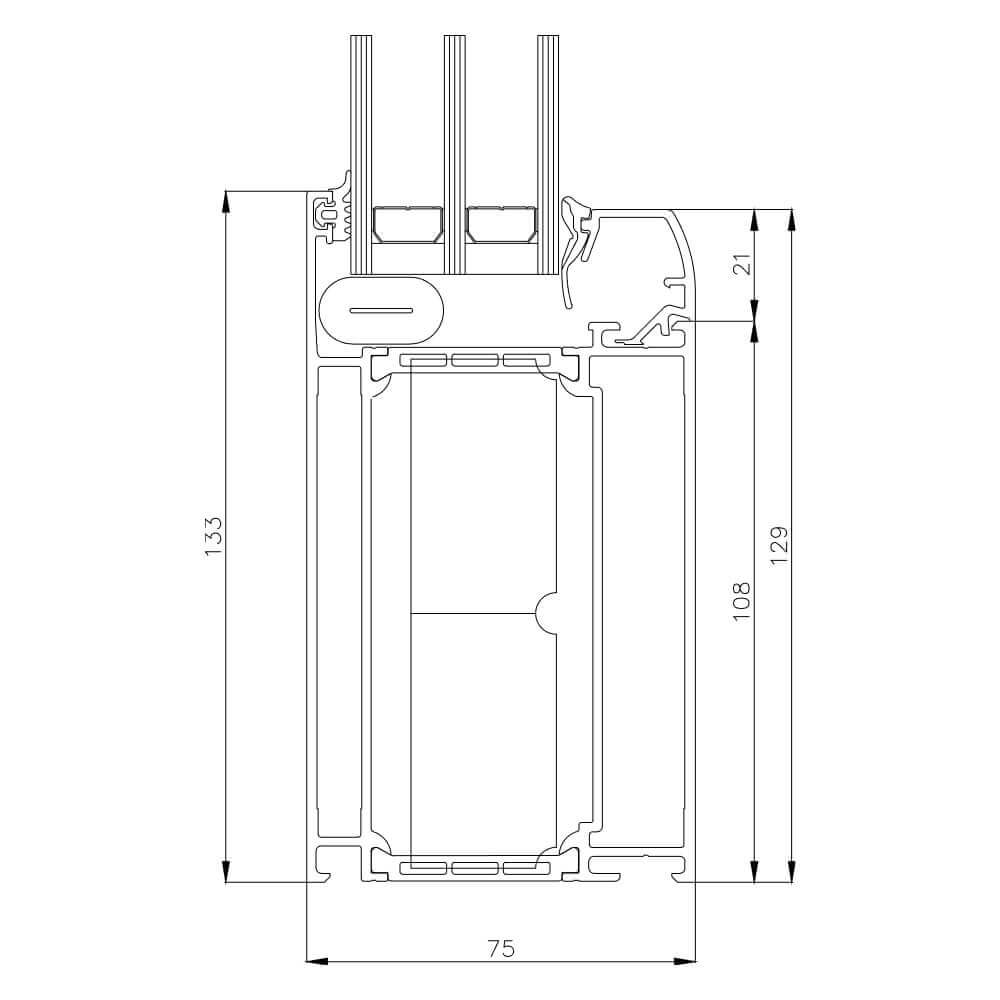

Exclusive Modern: frame with fixed glazing, wide
Exclusive Modern: frame with fixed glazing, wide

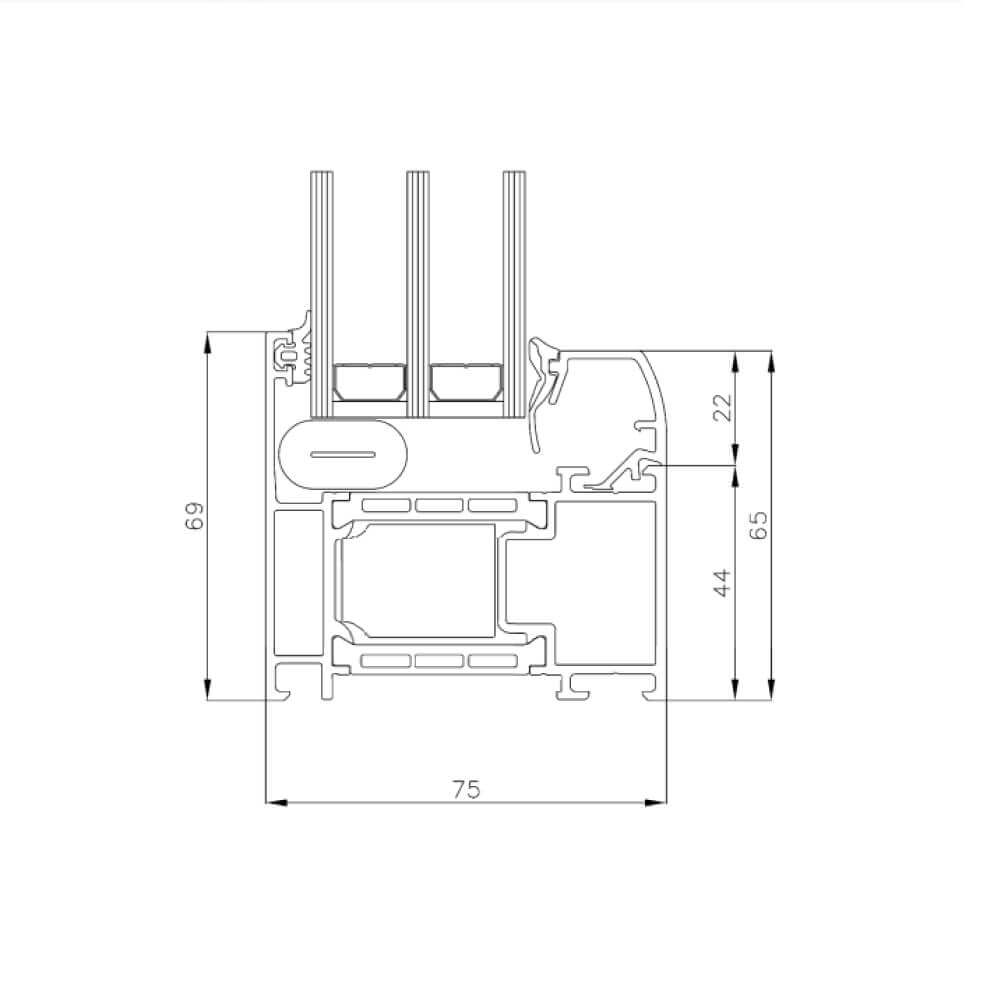

Exclusive Modern: frame with fixed glazing, narrow
Exclusive Modern: frame with fixed glazing, narrow

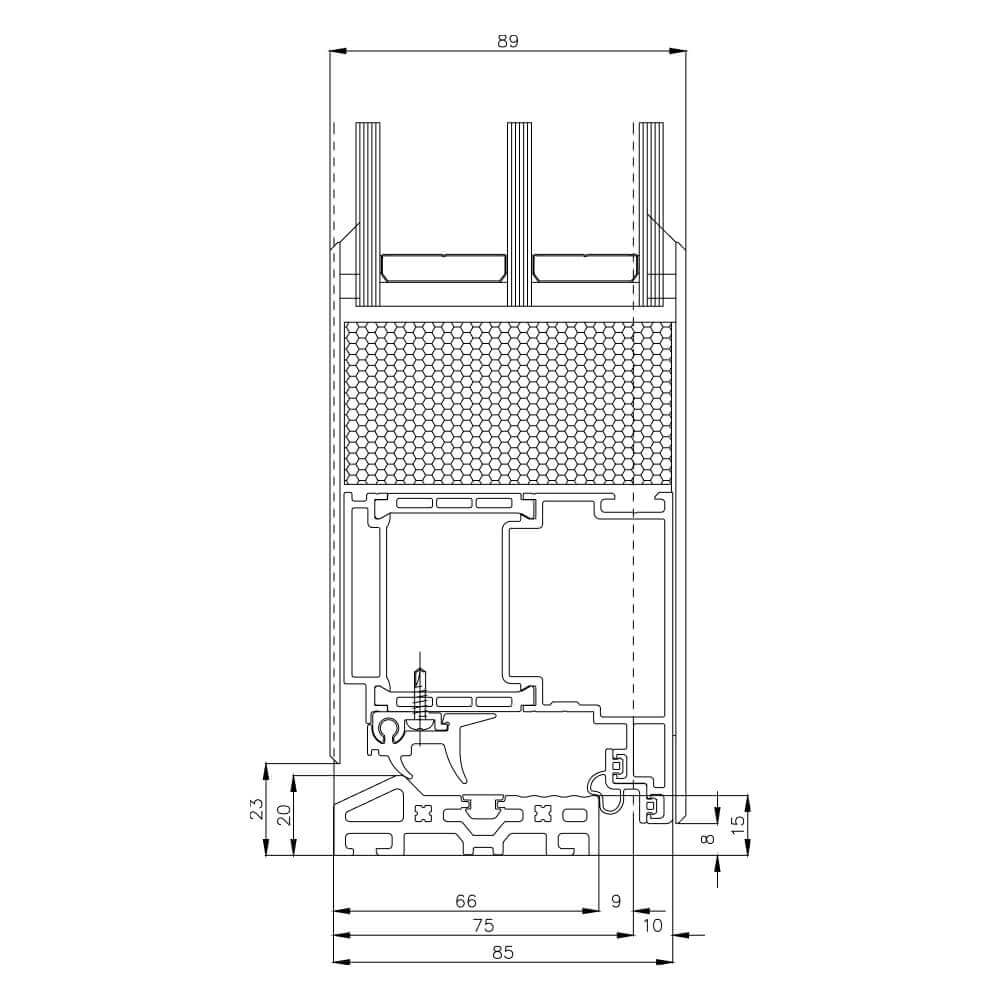

Exclusive Modern: threshold with sash
Exclusive Modern: threshold with sash

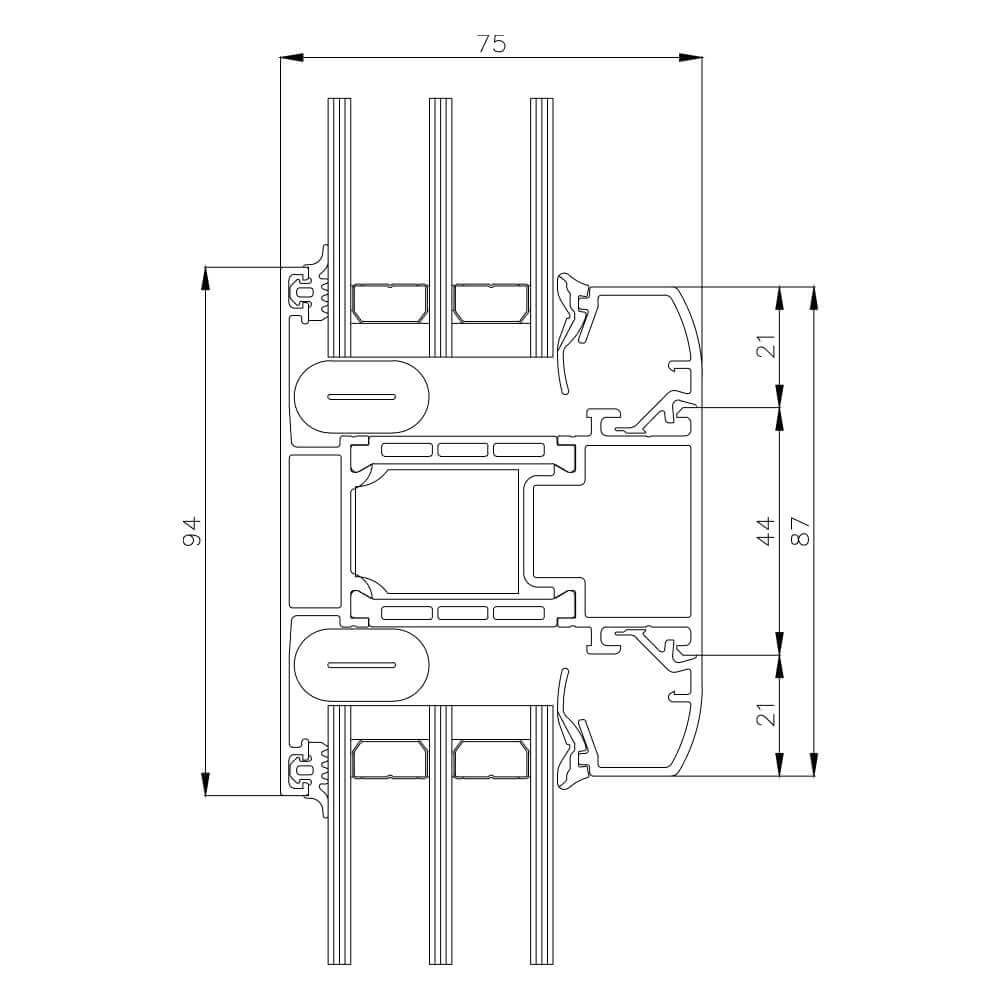

Exclusive Modern: centre mullion with fixed glazing
Exclusive Modern: centre mullion with fixed glazing

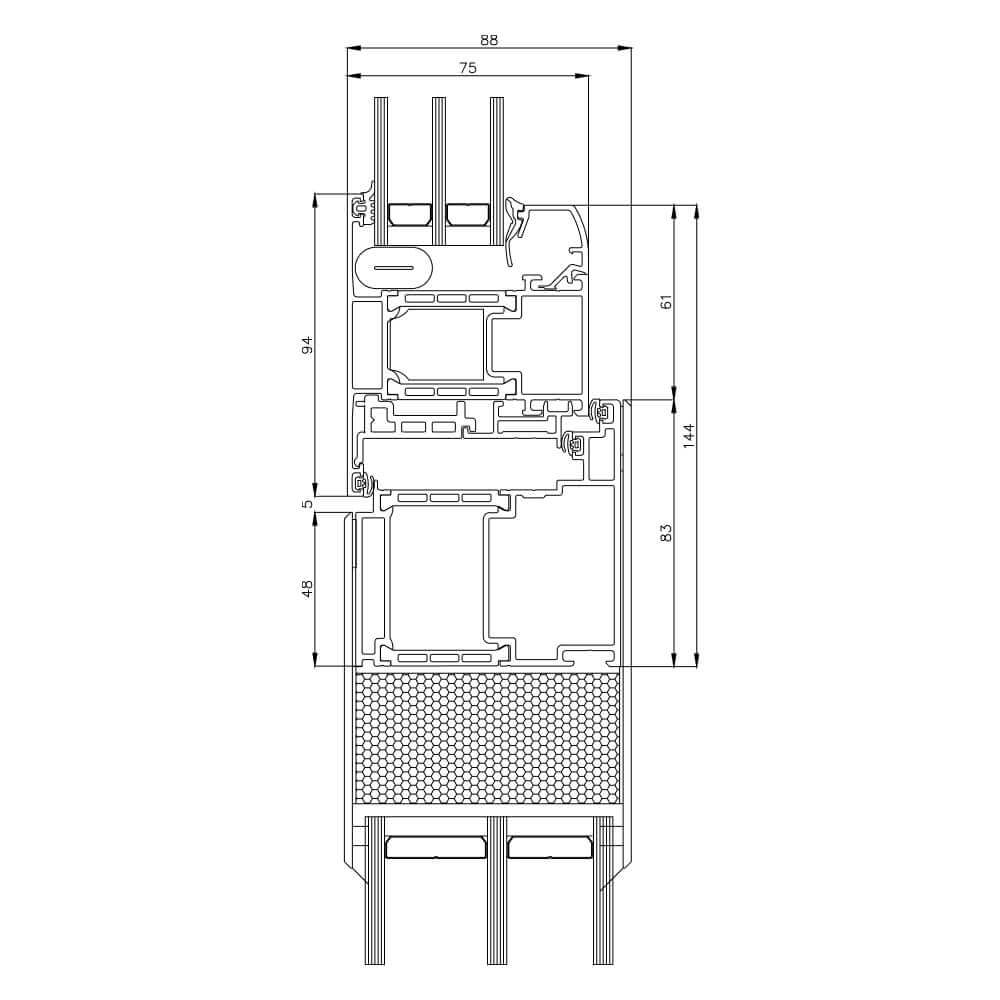

Exclusive Modern: centre mullion with fixed glazing and sash
Exclusive Modern: centre mullion with fixed glazing and sash

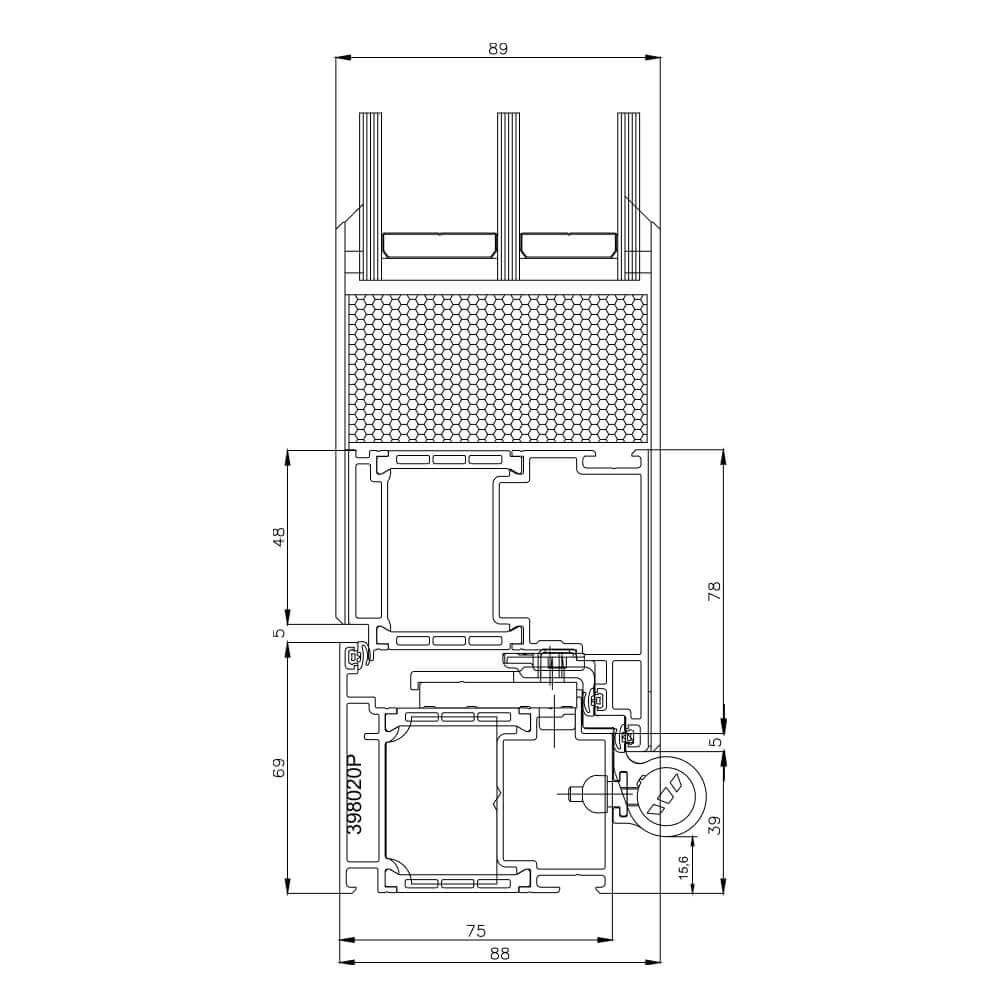

Exclusive Modern: side frame (hinge side) with sash
Exclusive Modern: side frame (hinge side) with sash

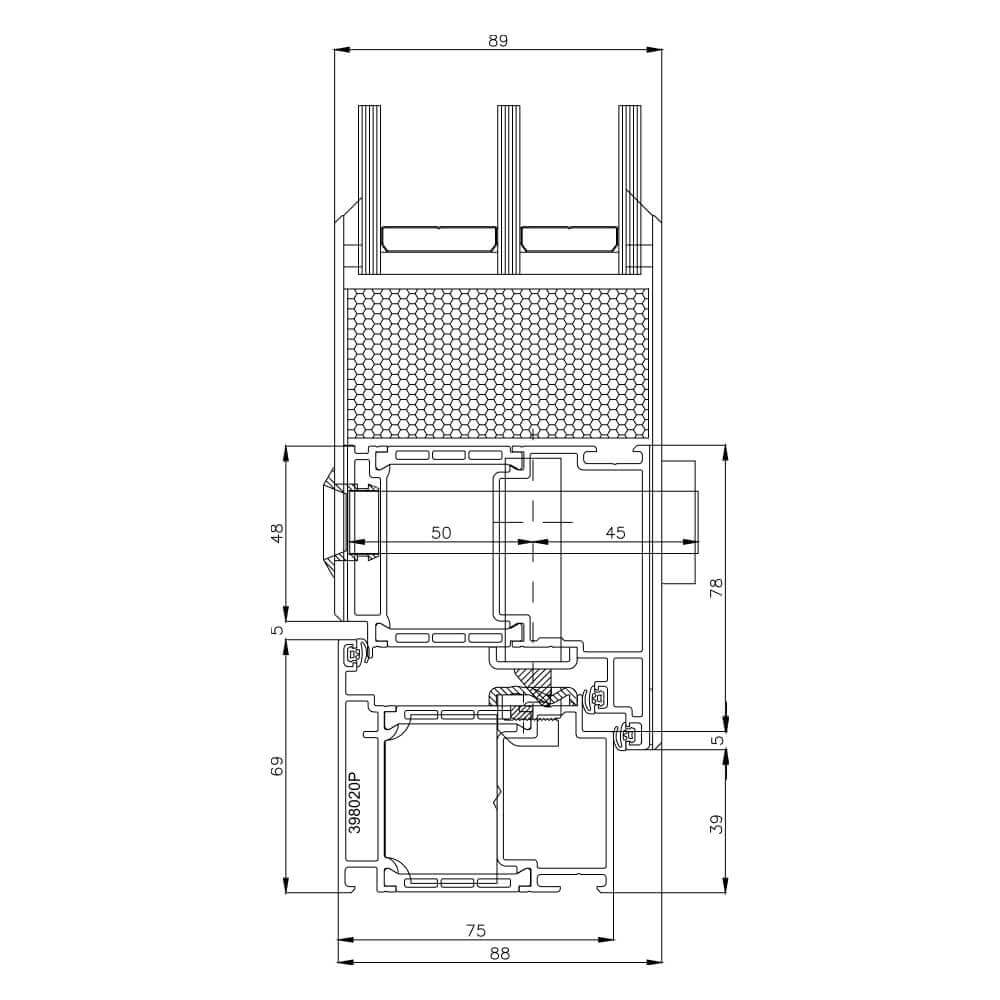

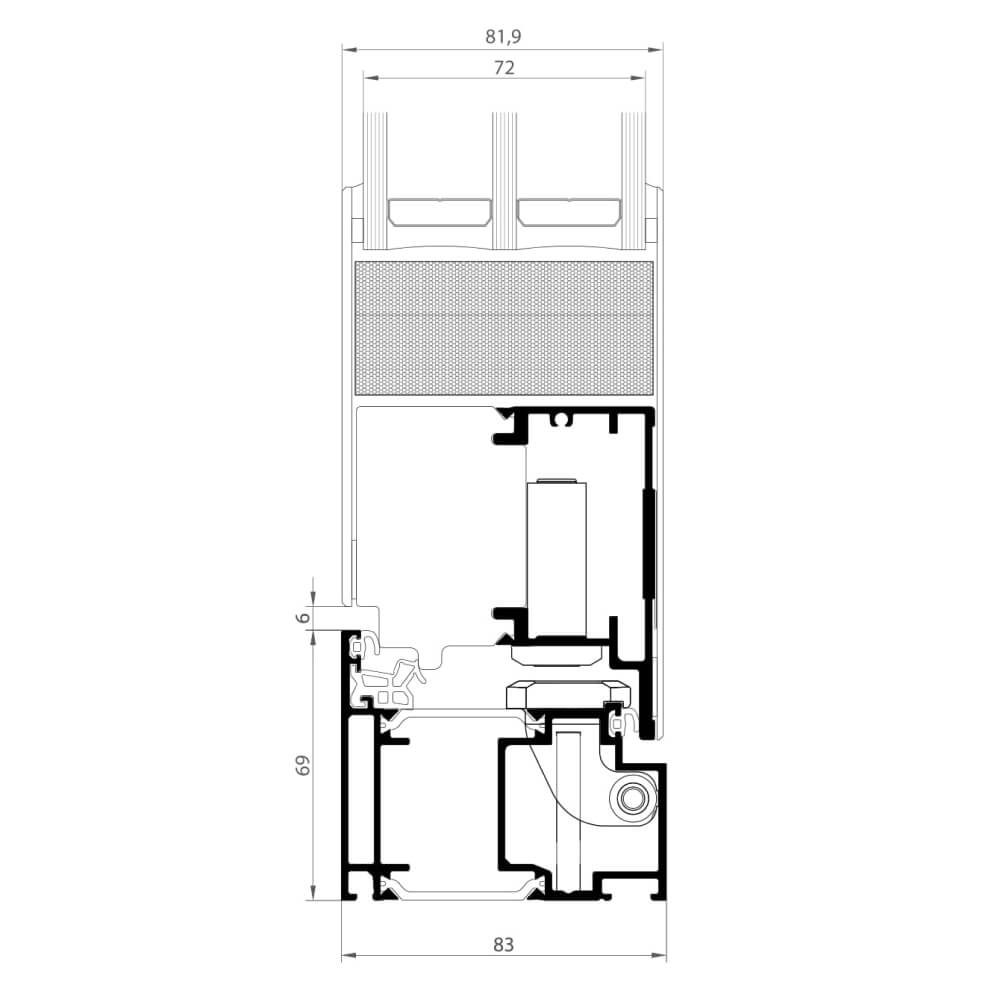

Exclusive Modern: side frame (lock side) with sash
Exclusive Modern: side frame (lock side) with sash

Modern outward opening

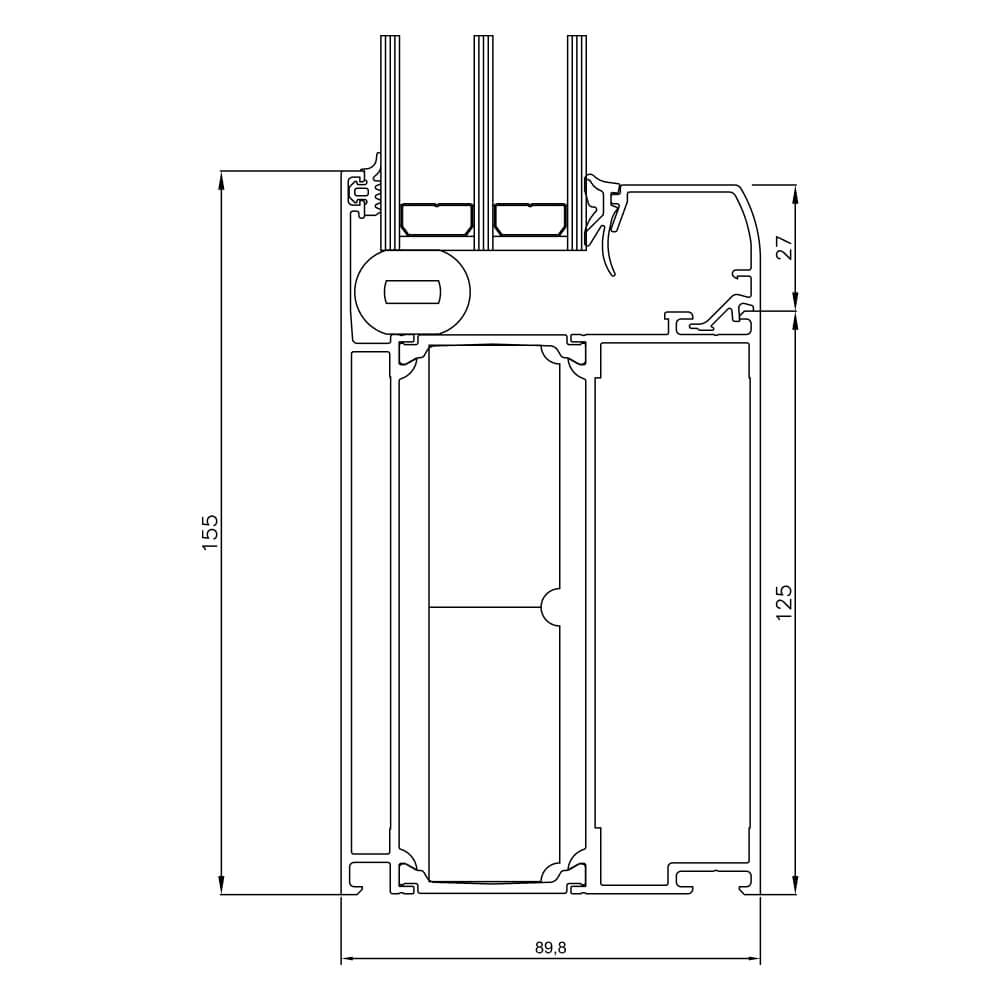

Exclusive Modern opening outwards: frame with fixed glazing, wide
Exclusive Modern opening outwards: frame with fixed glazing, wide

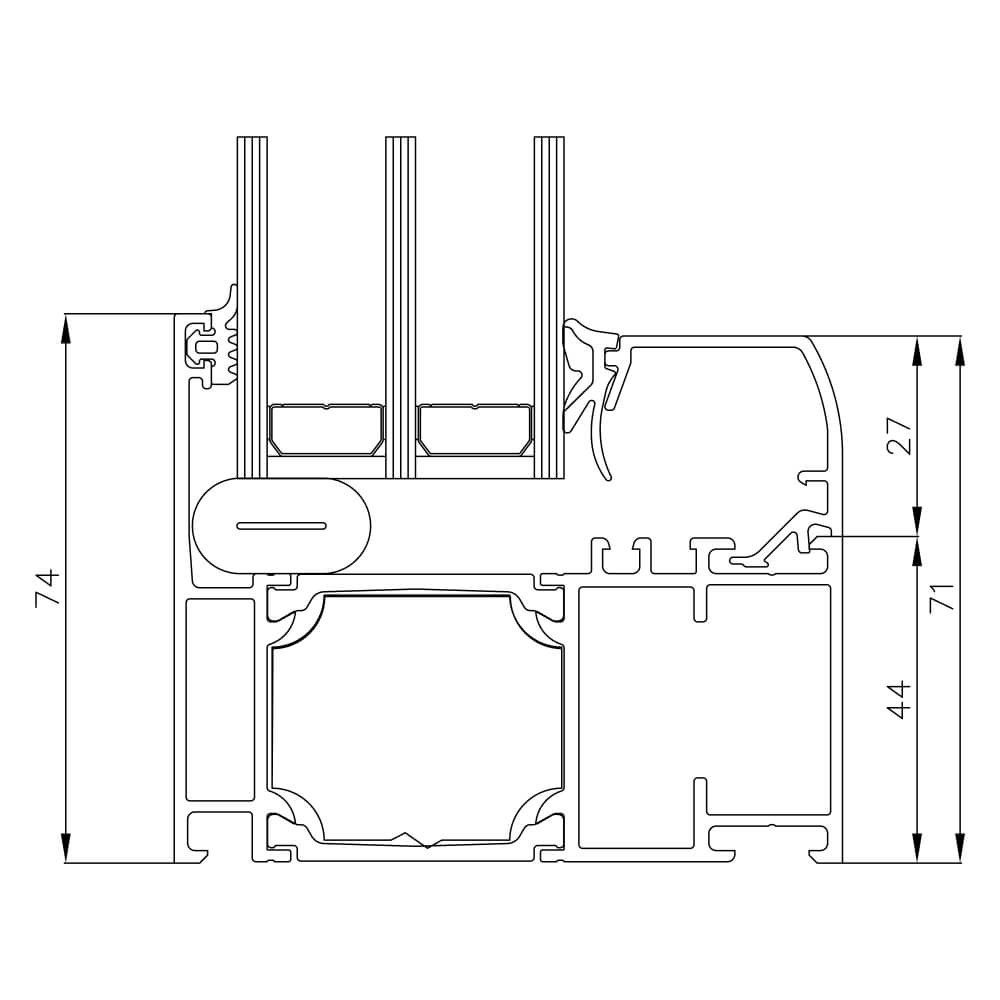

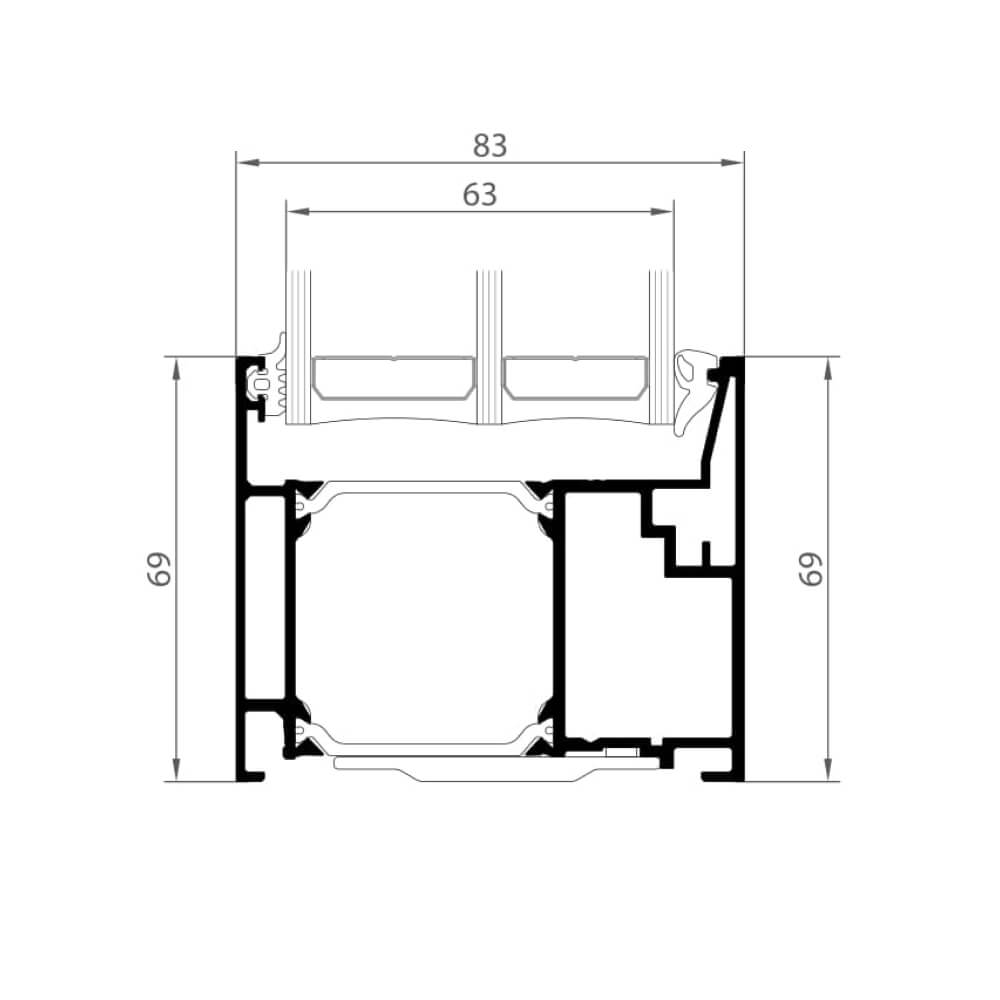

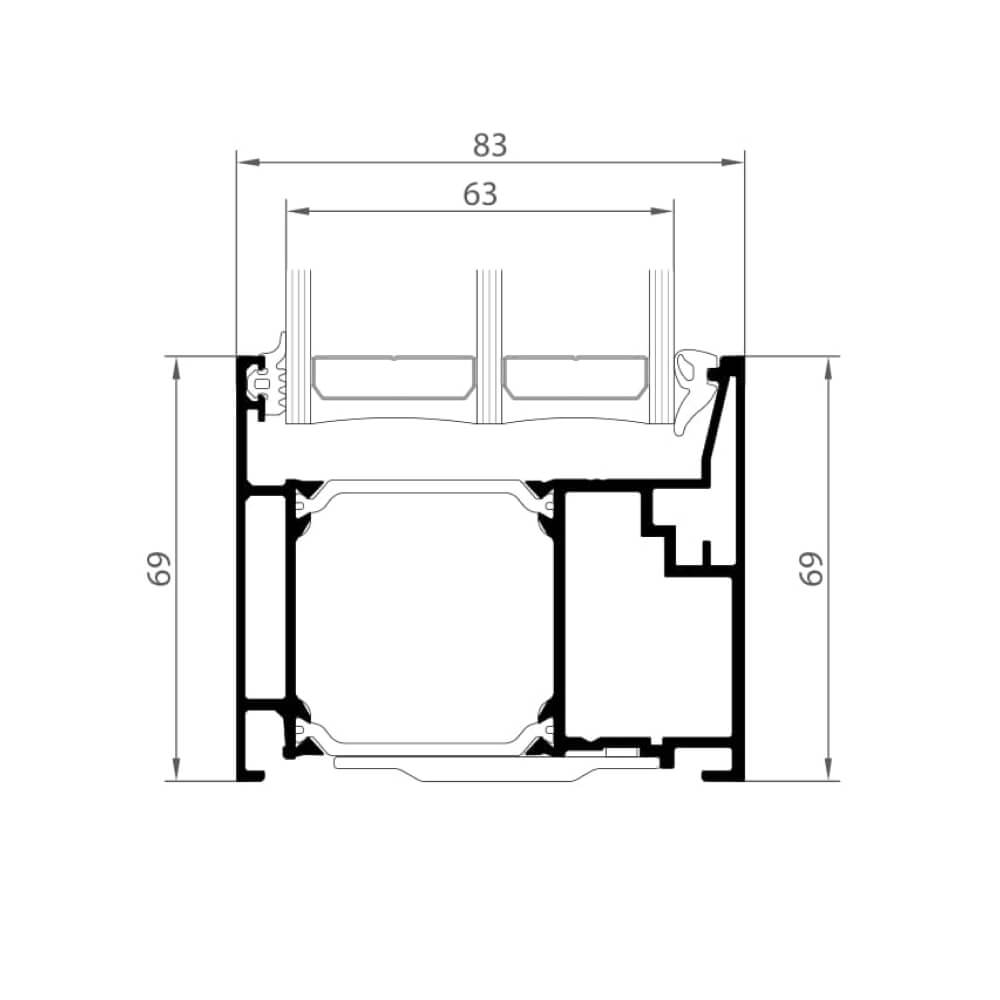

Exclusive Modern opening outwards: frame with fixed glazing, narrow
Exclusive Modern opening outwards: frame with fixed glazing, narrow

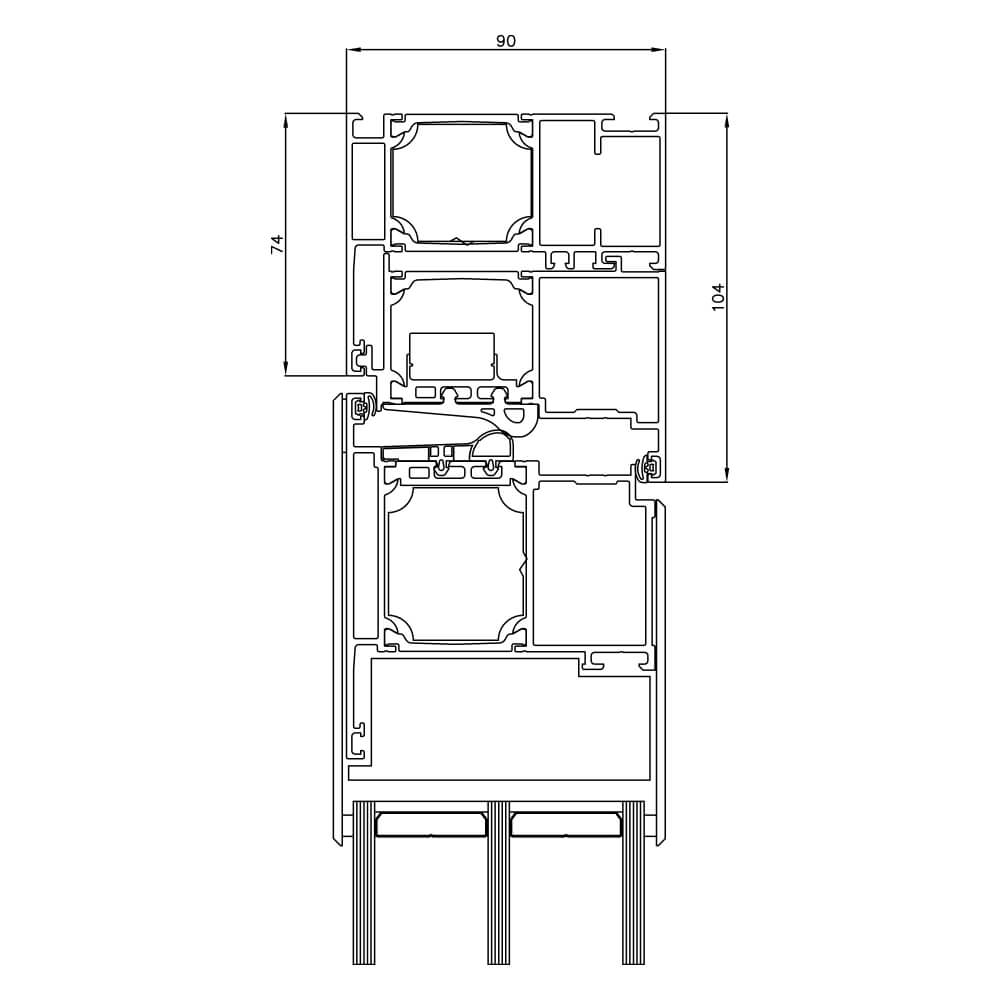

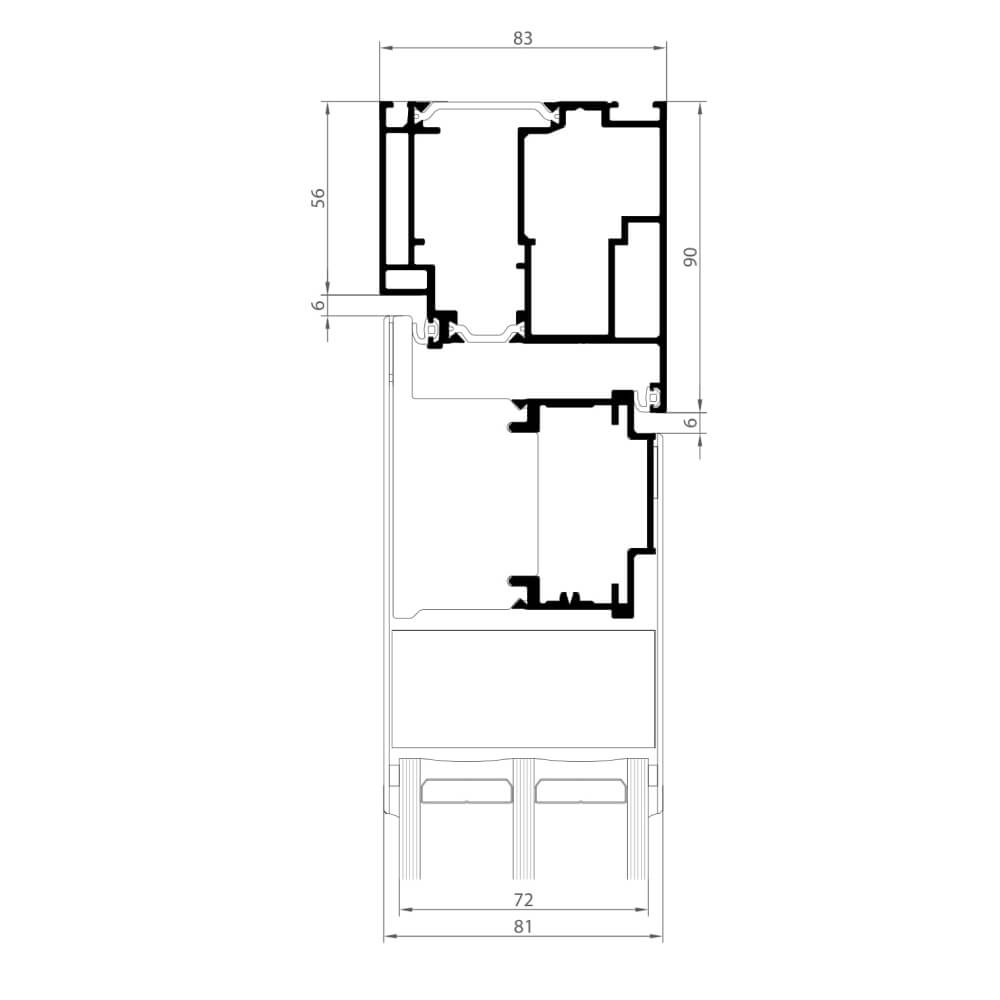

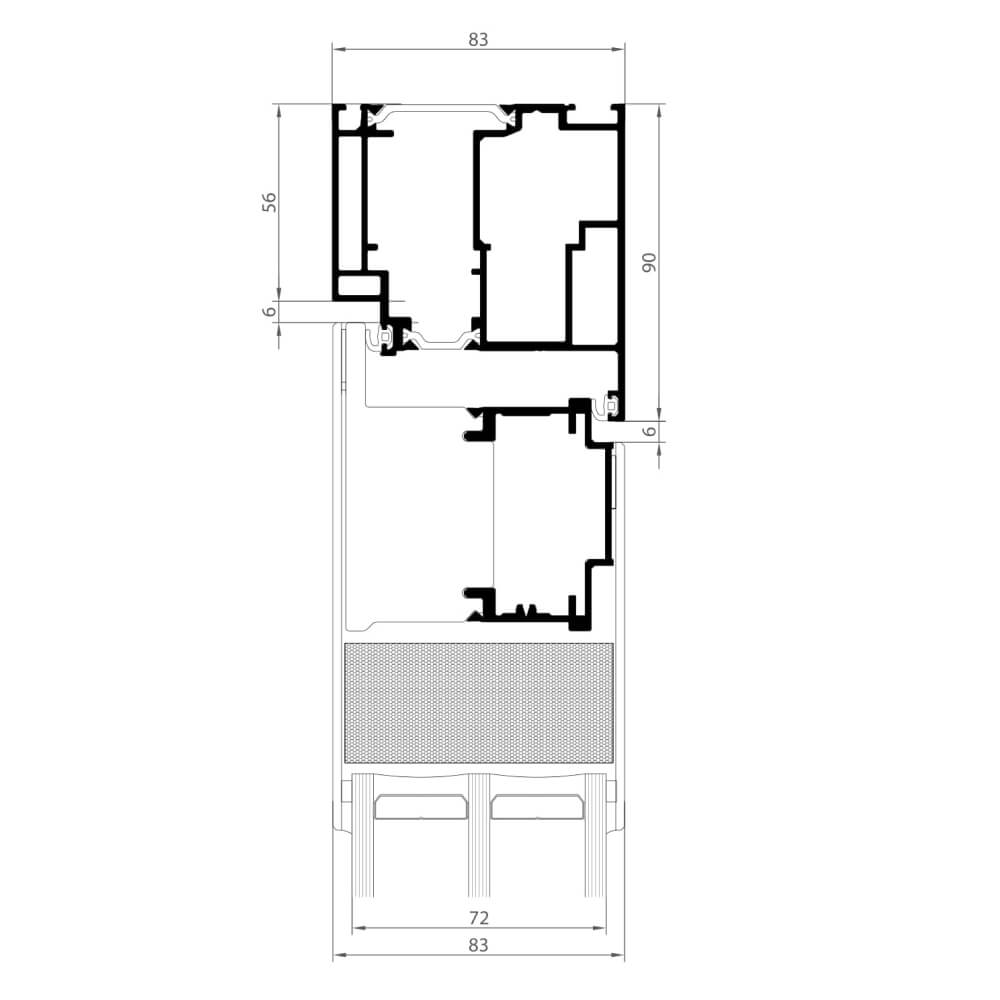

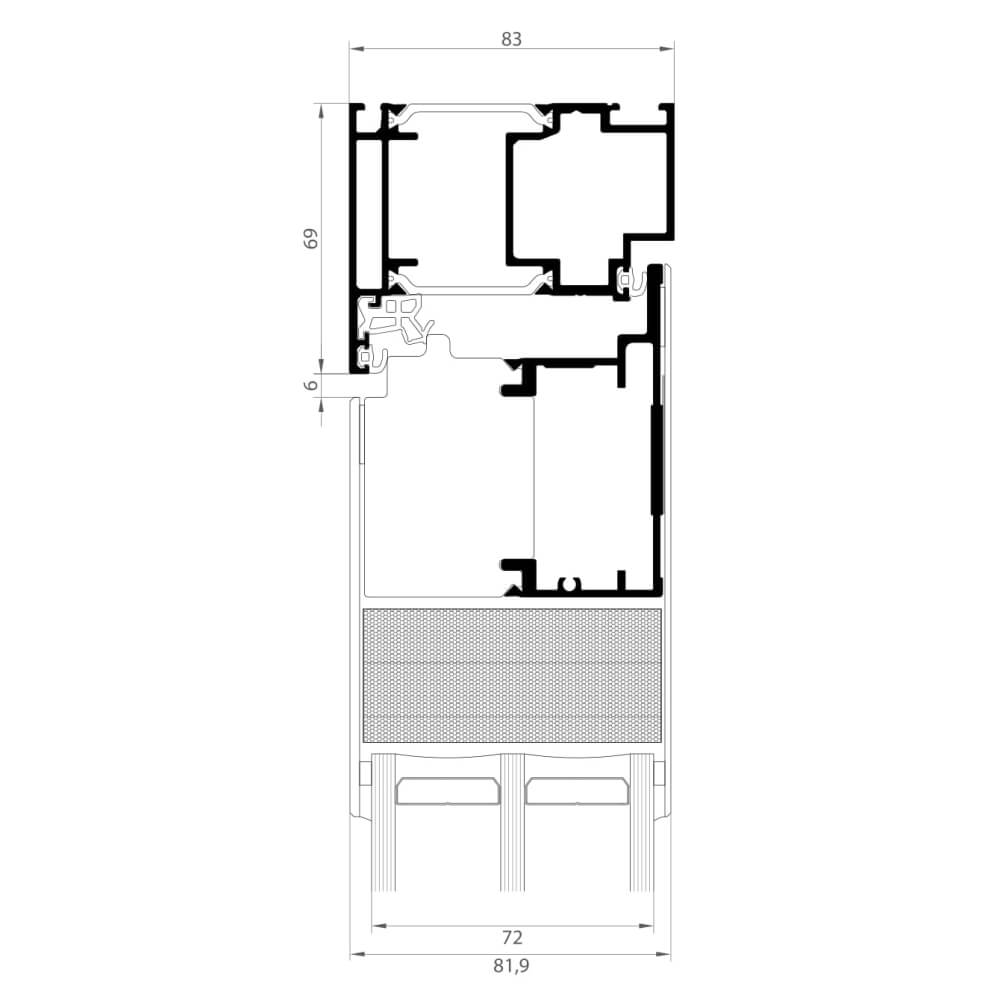

Exclusive Modern outward opening: upper frame with sash
Exclusive Modern outward opening: upper frame with sash

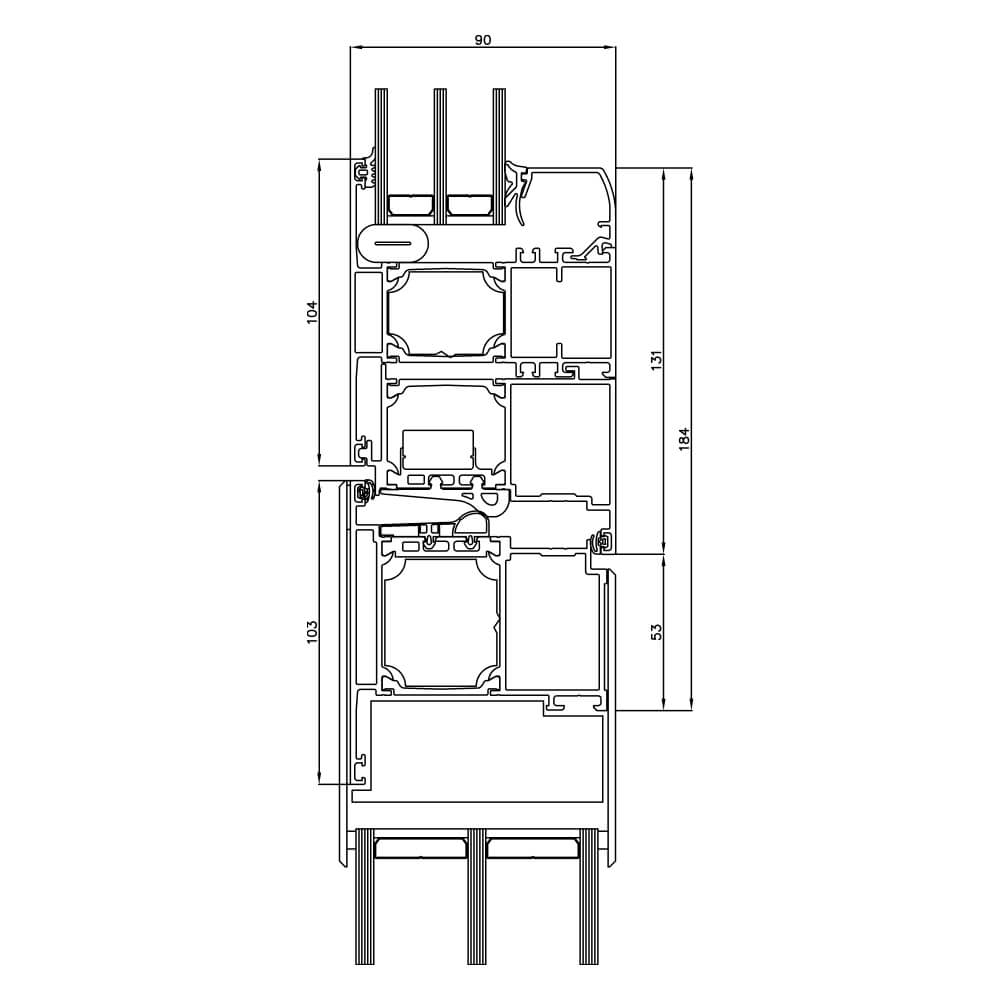

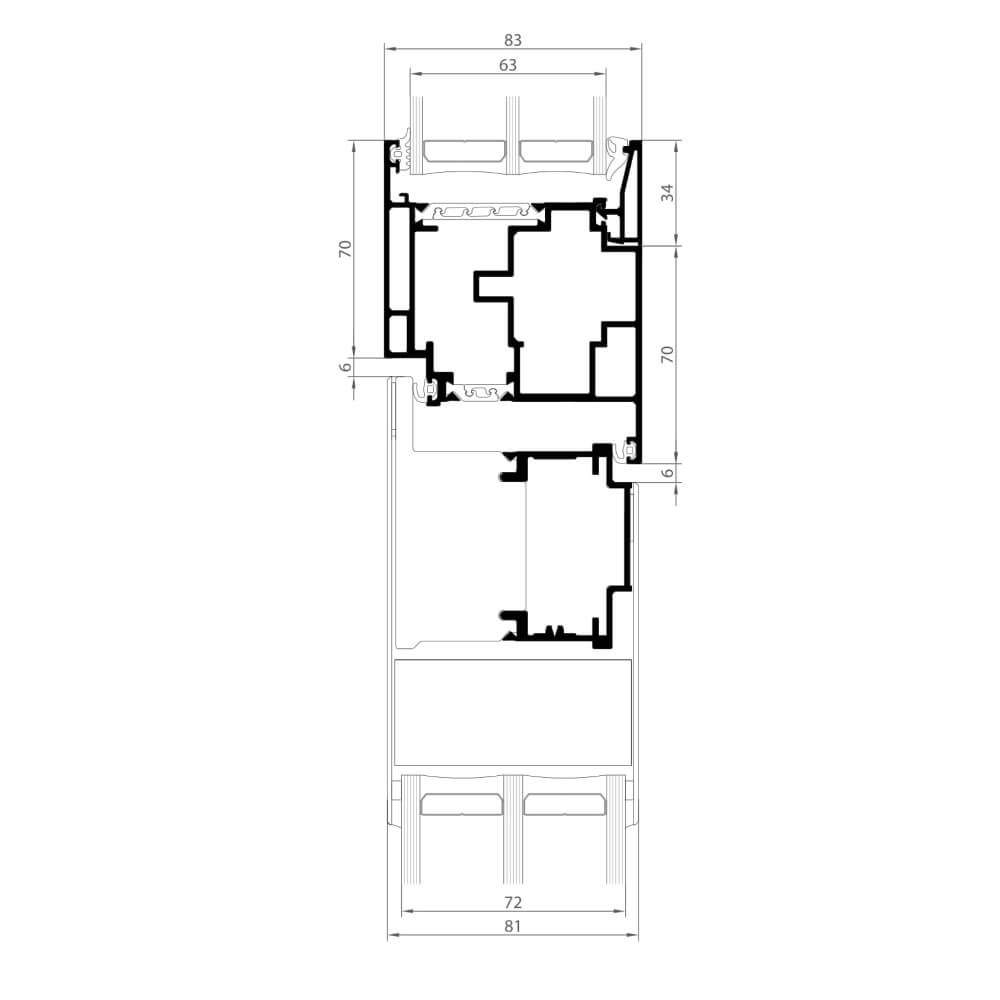

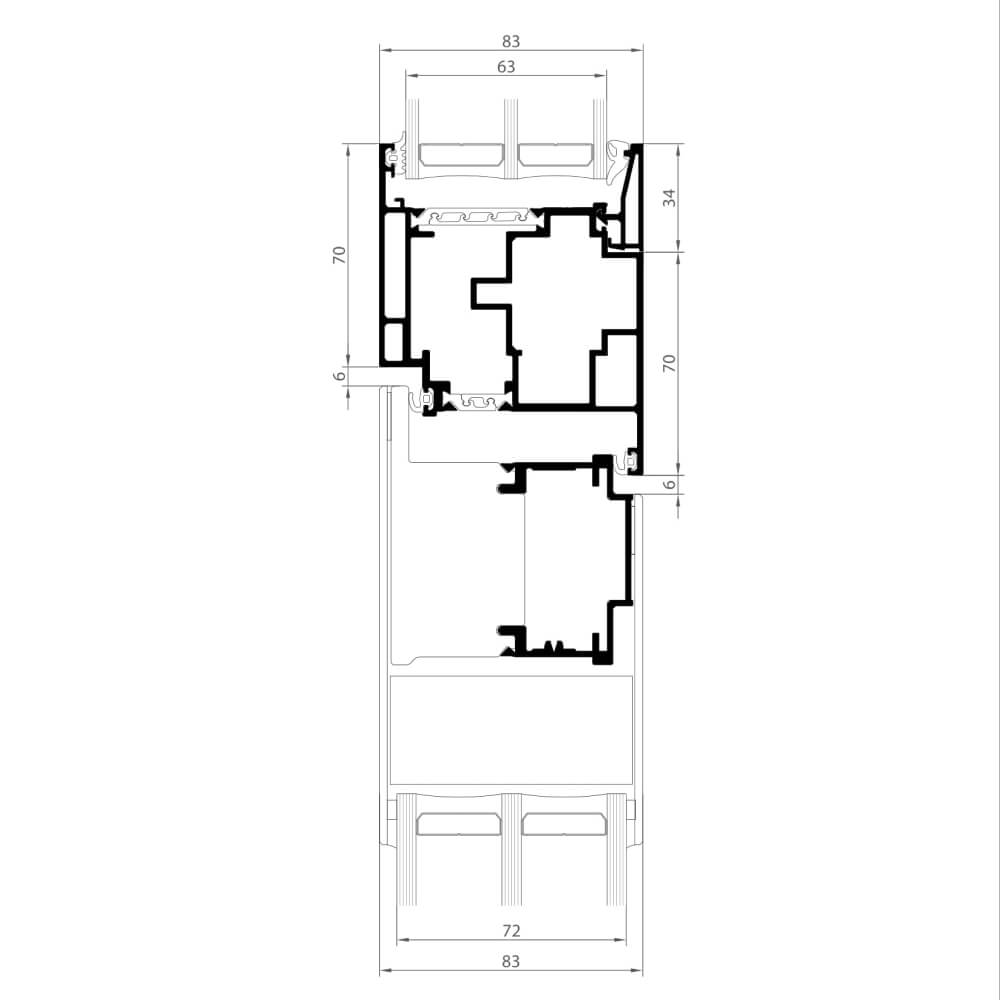

Exclusive Modern with outward opening and side panel: Mullion detail
Exclusive Modern with outward opening and side panel: Mullion detail

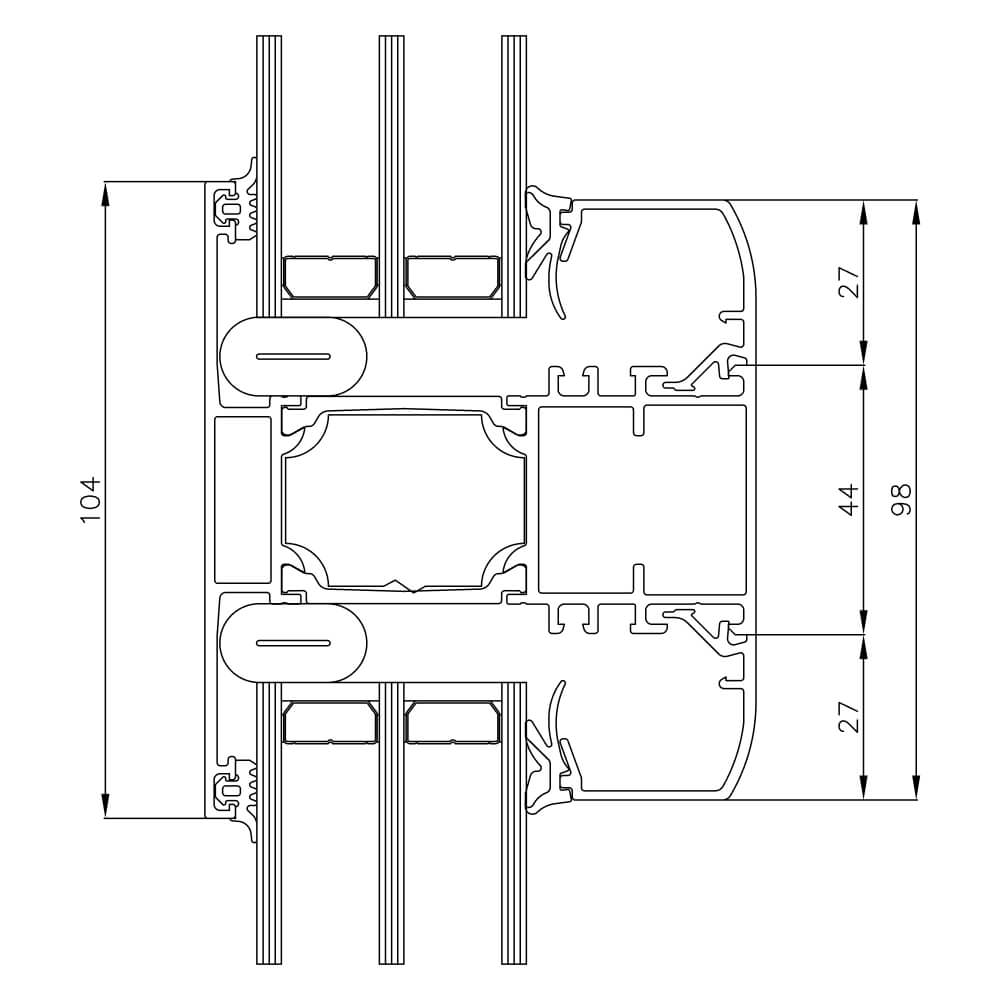

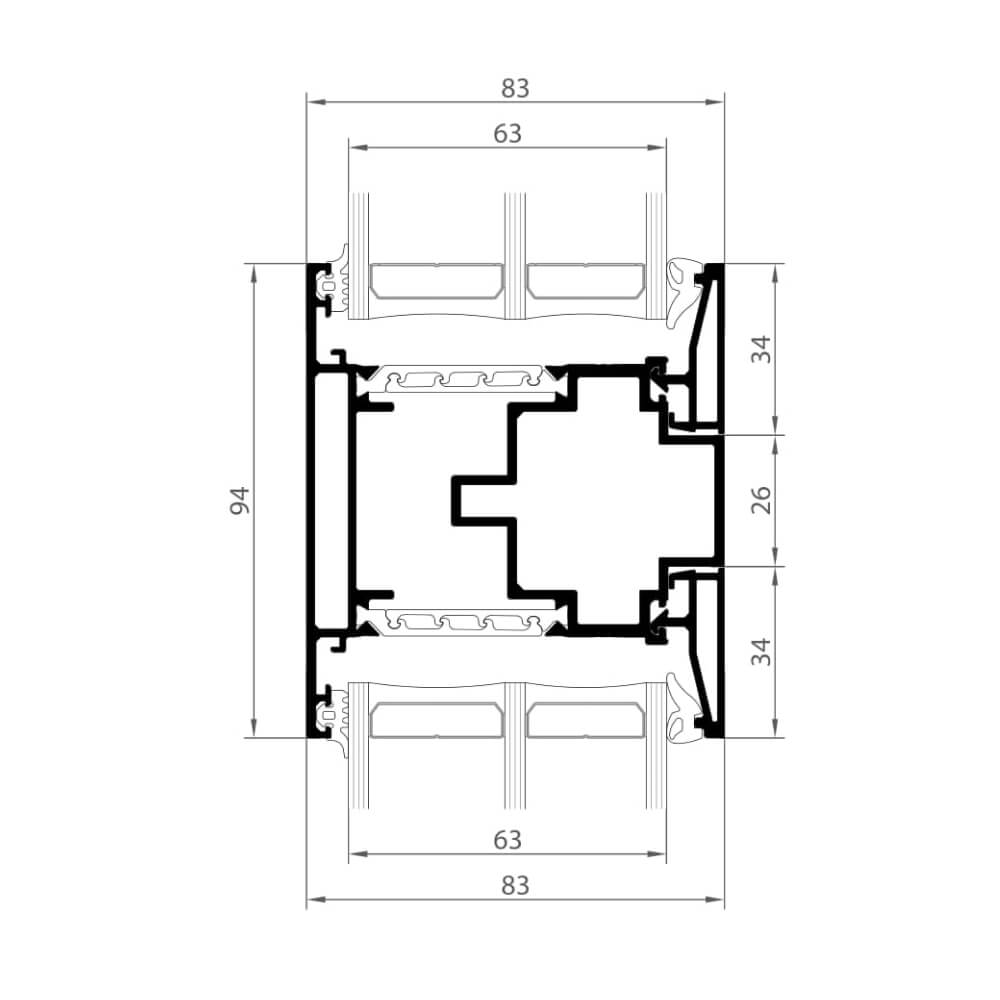

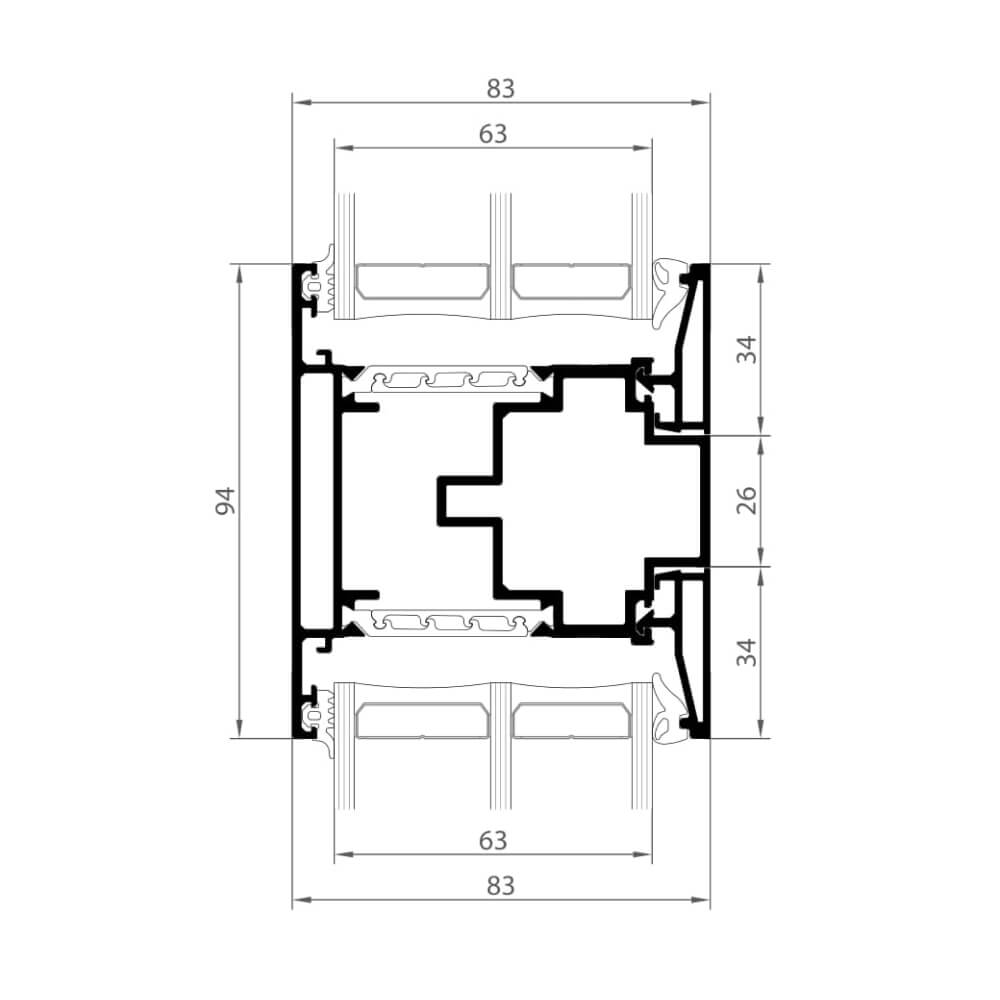

Exclusive Modern opening outwards: centre mullion / transom with fixed glazing / fanlight
Exclusive Modern opening outwards: centre mullion / transom with fixed glazing / fanlight

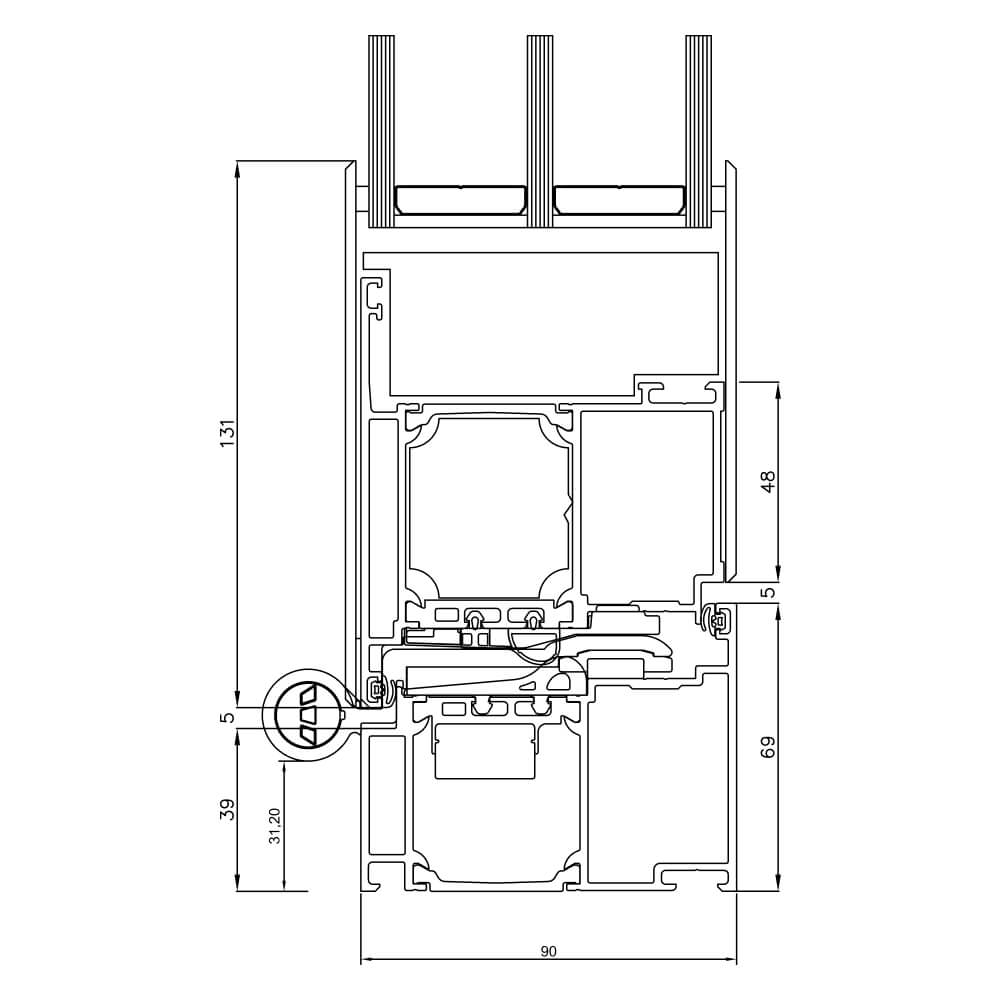

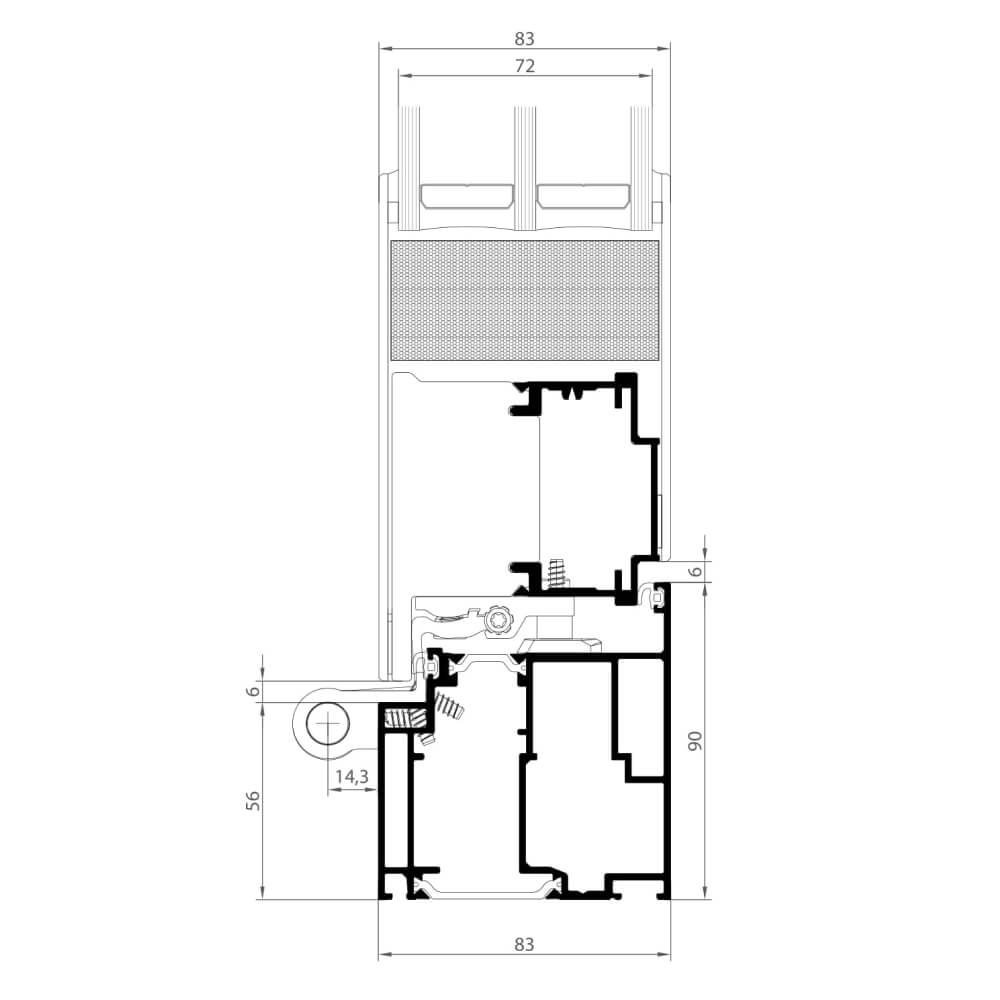

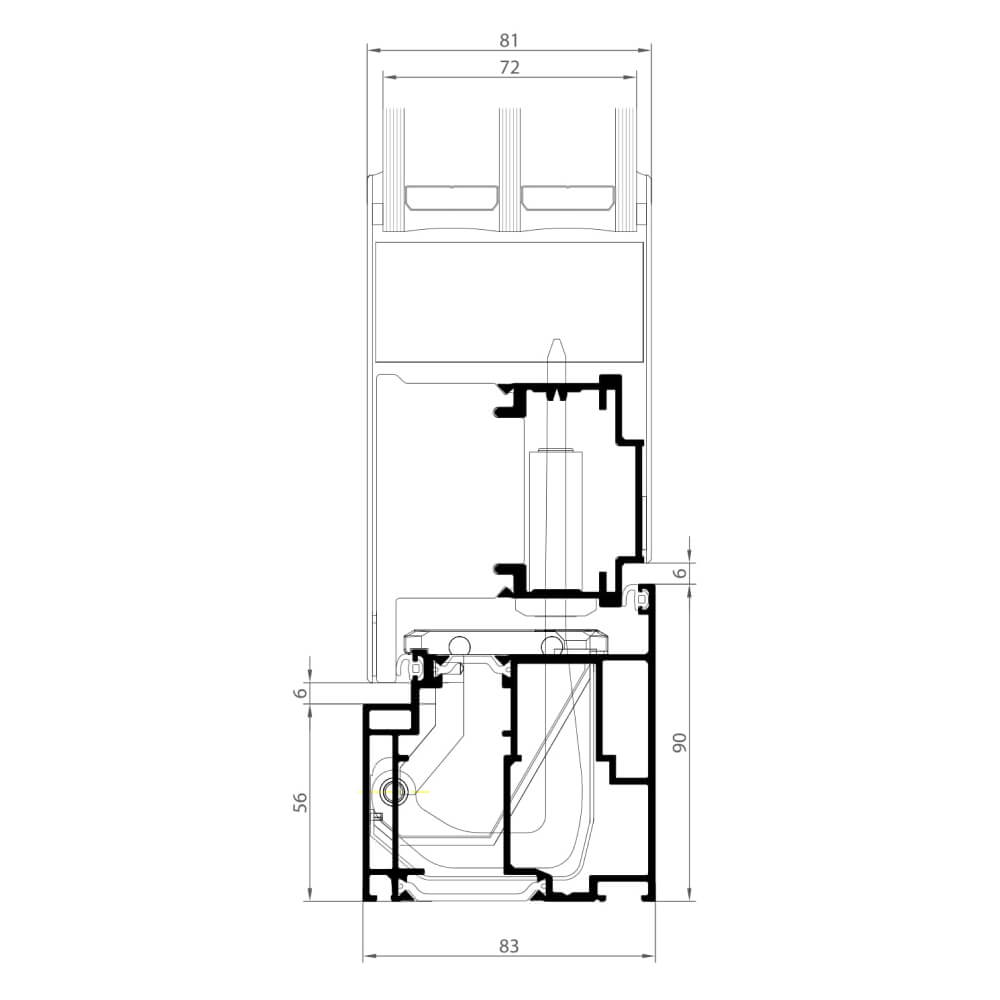

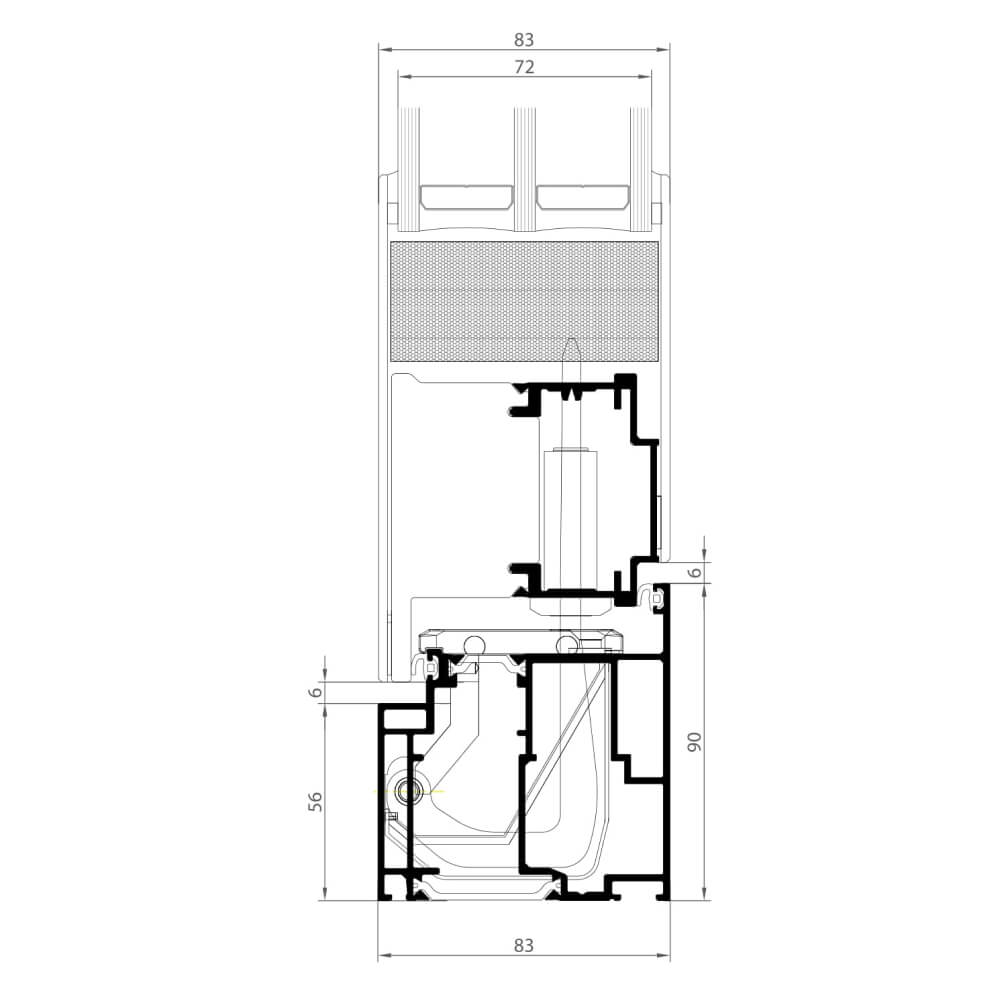

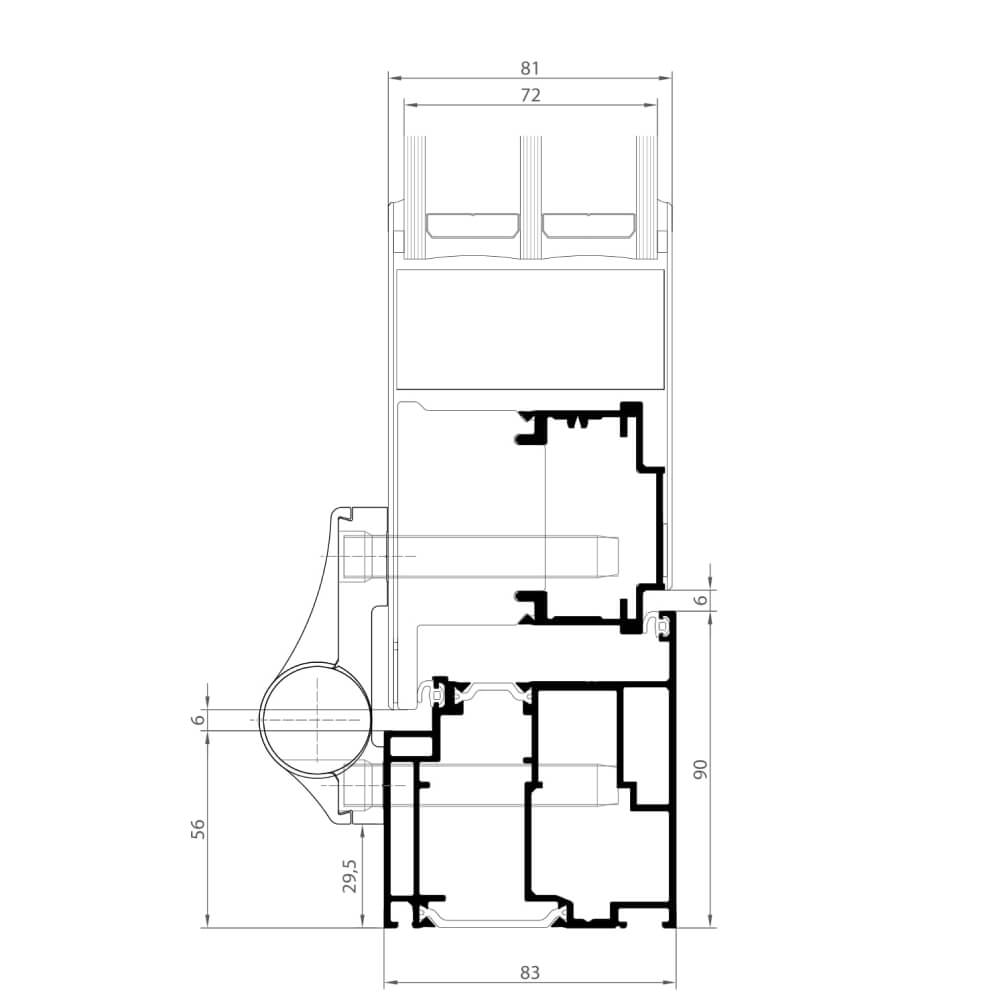

Exclusive Modern outward opening: side frame (hinge side) with sash
Exclusive Modern outward opening: side frame (hinge side) with sash

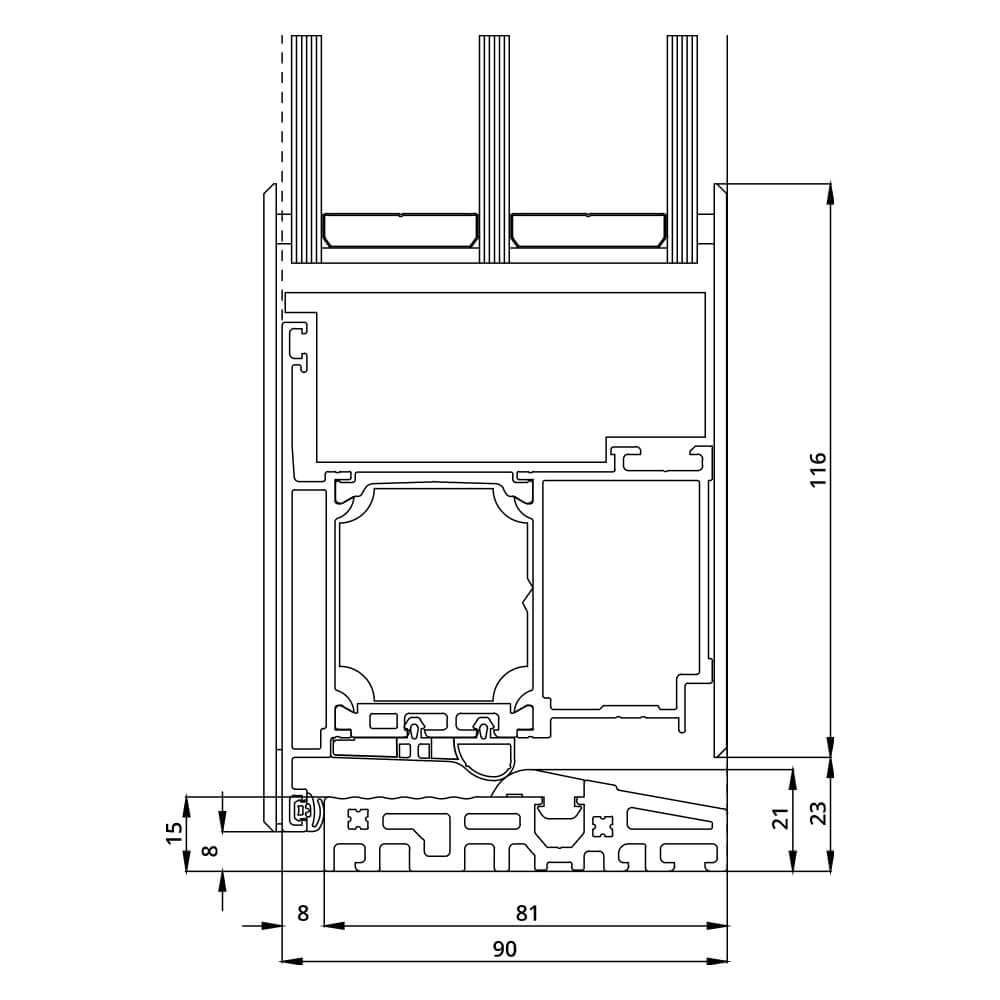

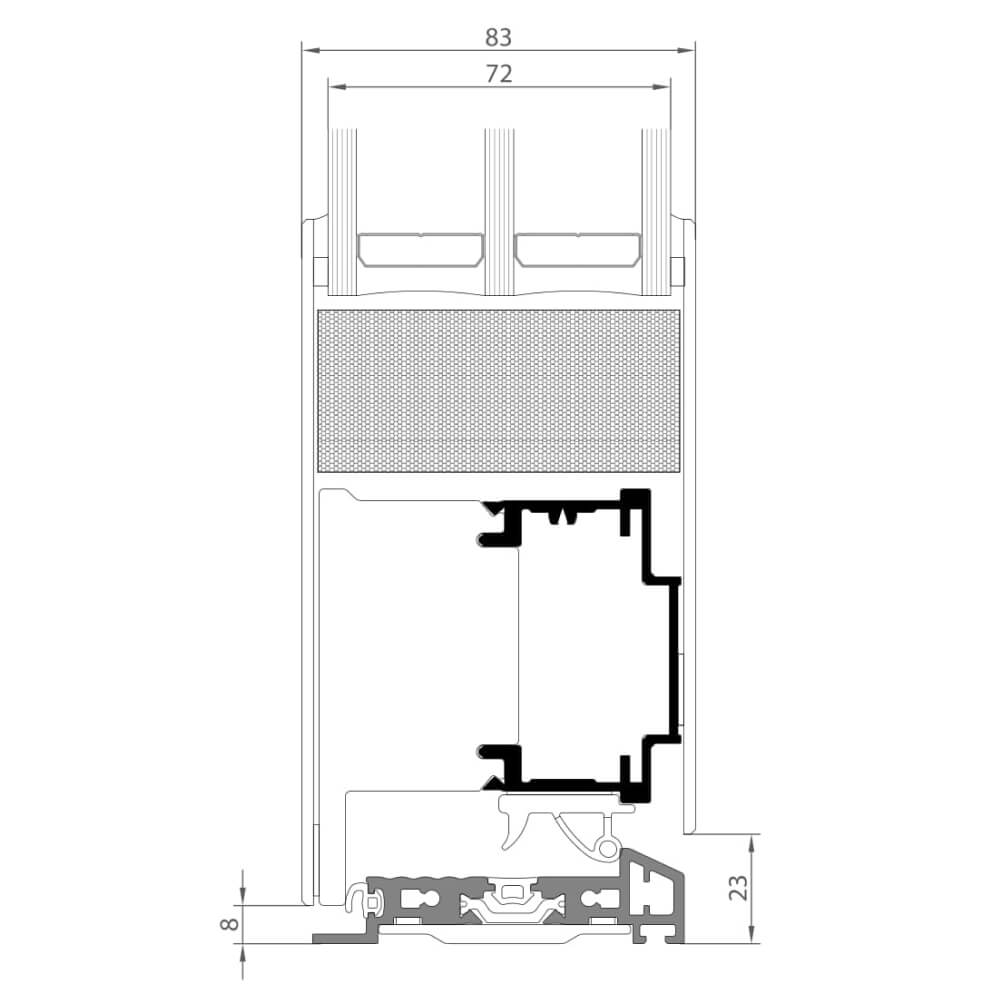

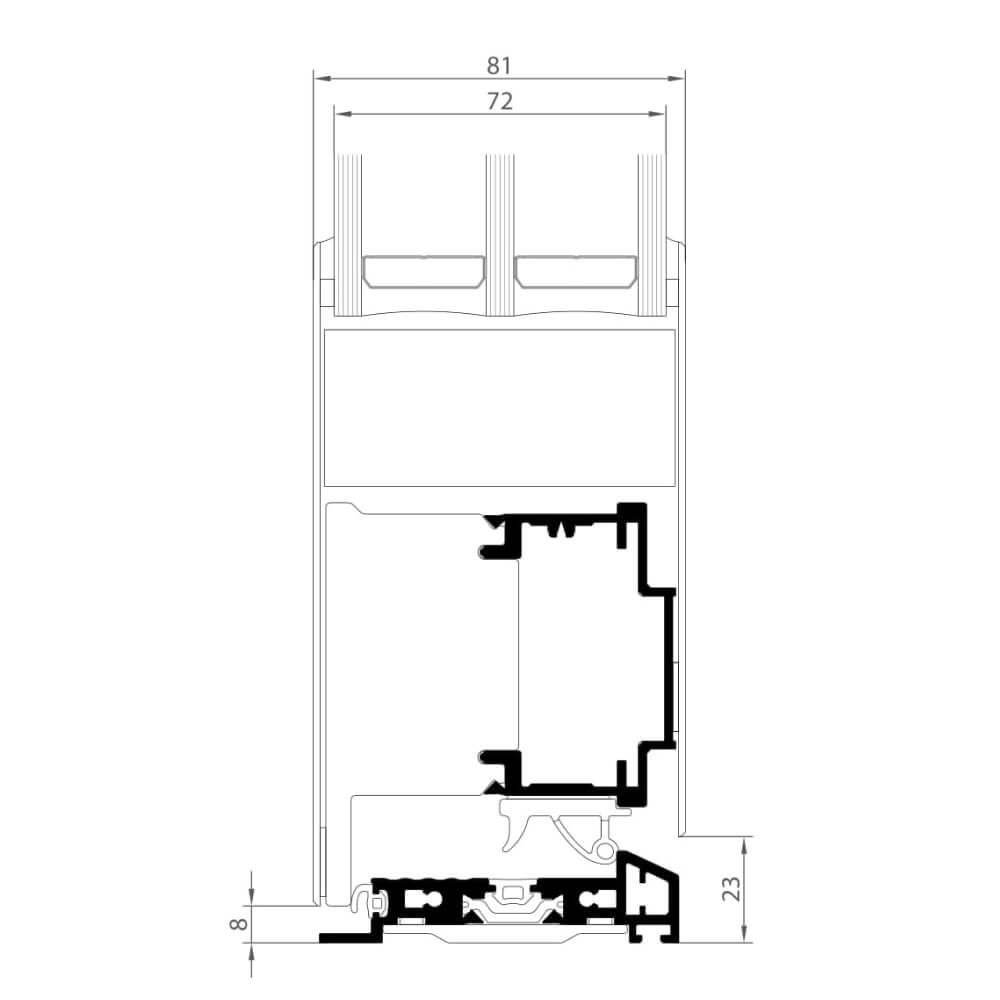

Exclusive Modern outward opening: threshold with sash
Exclusive Modern outward opening: threshold with sash

Classic

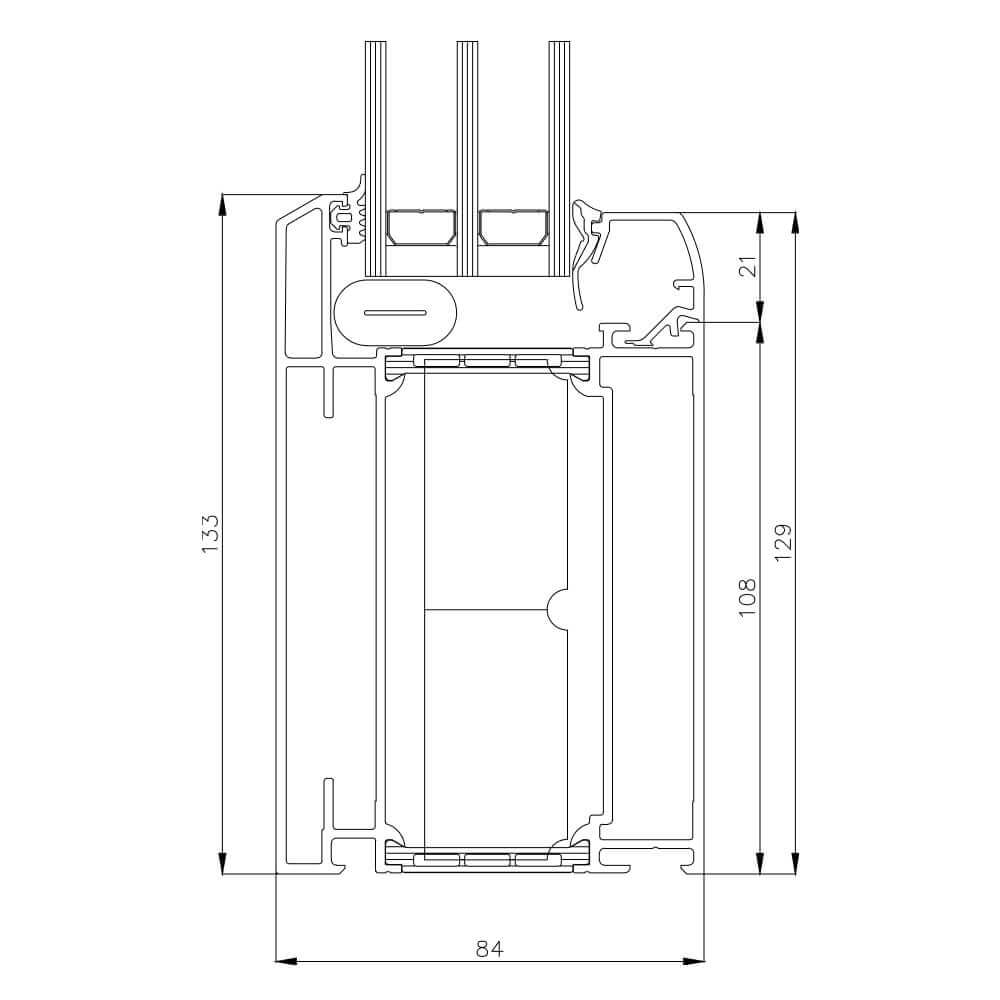

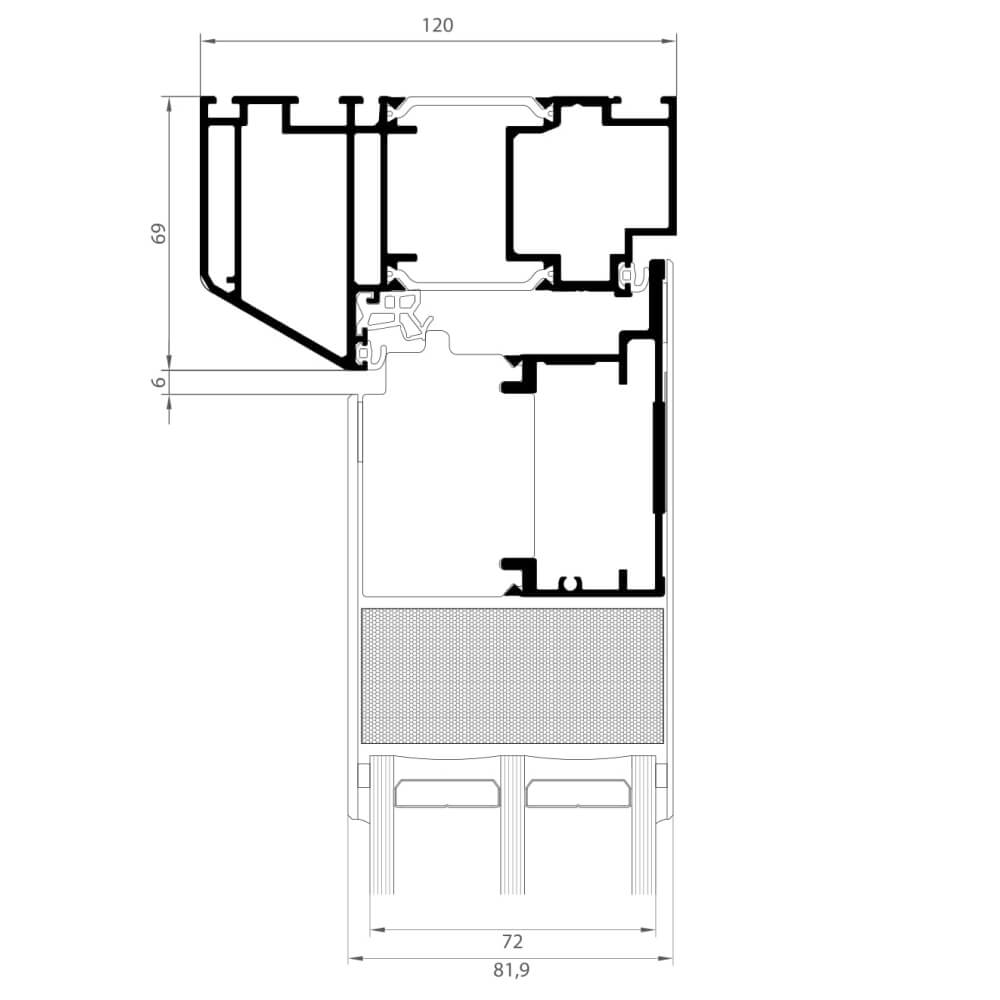

Exclusive Classic: frame with fixed glazing, wide
Exclusive Classic: frame with fixed glazing, wide

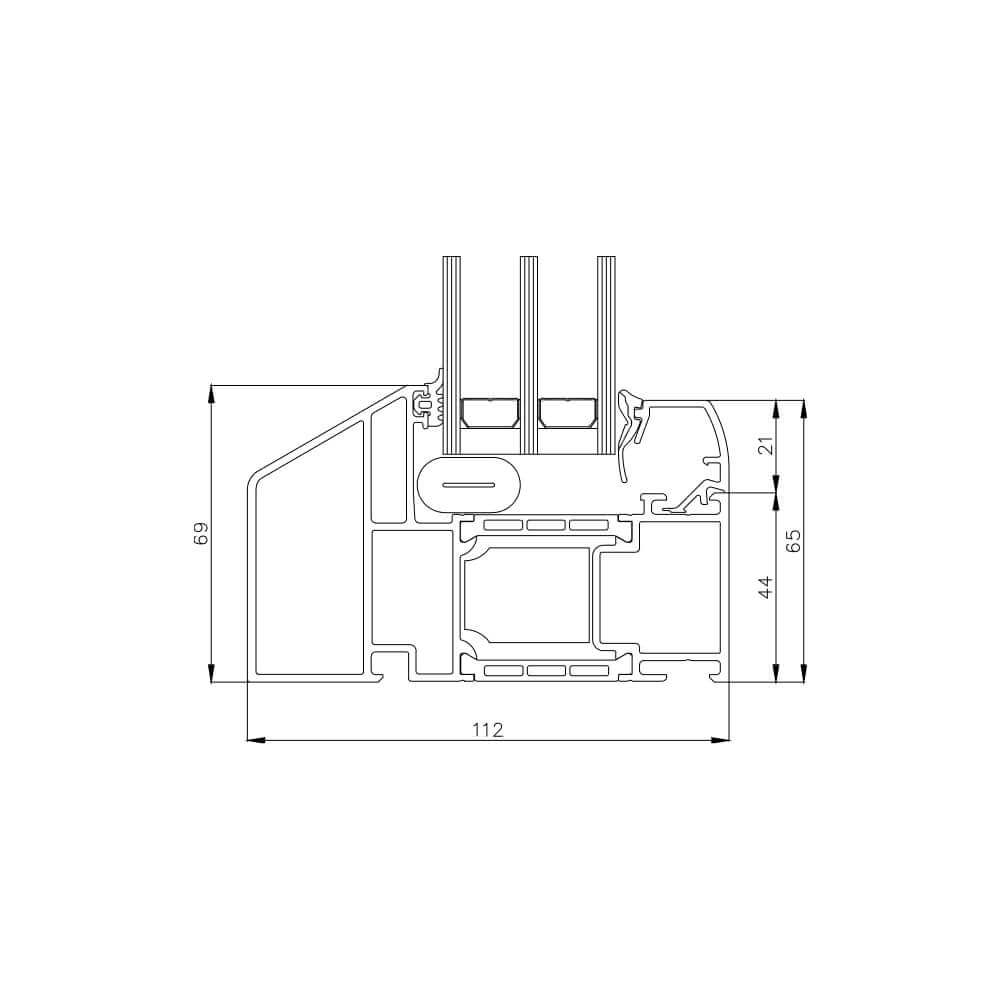

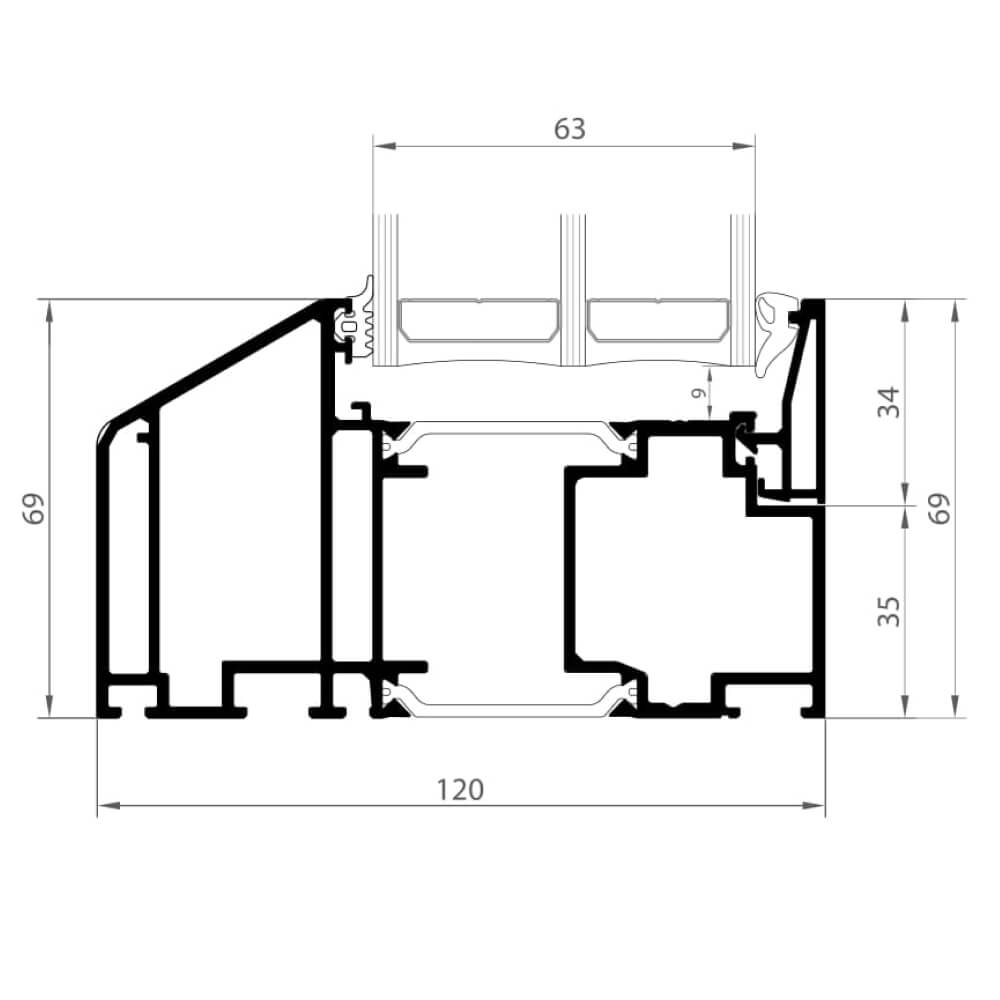

Exclusive Classic: frame with fixed glazing, narrow
Exclusive Classic: frame with fixed glazing, narrow

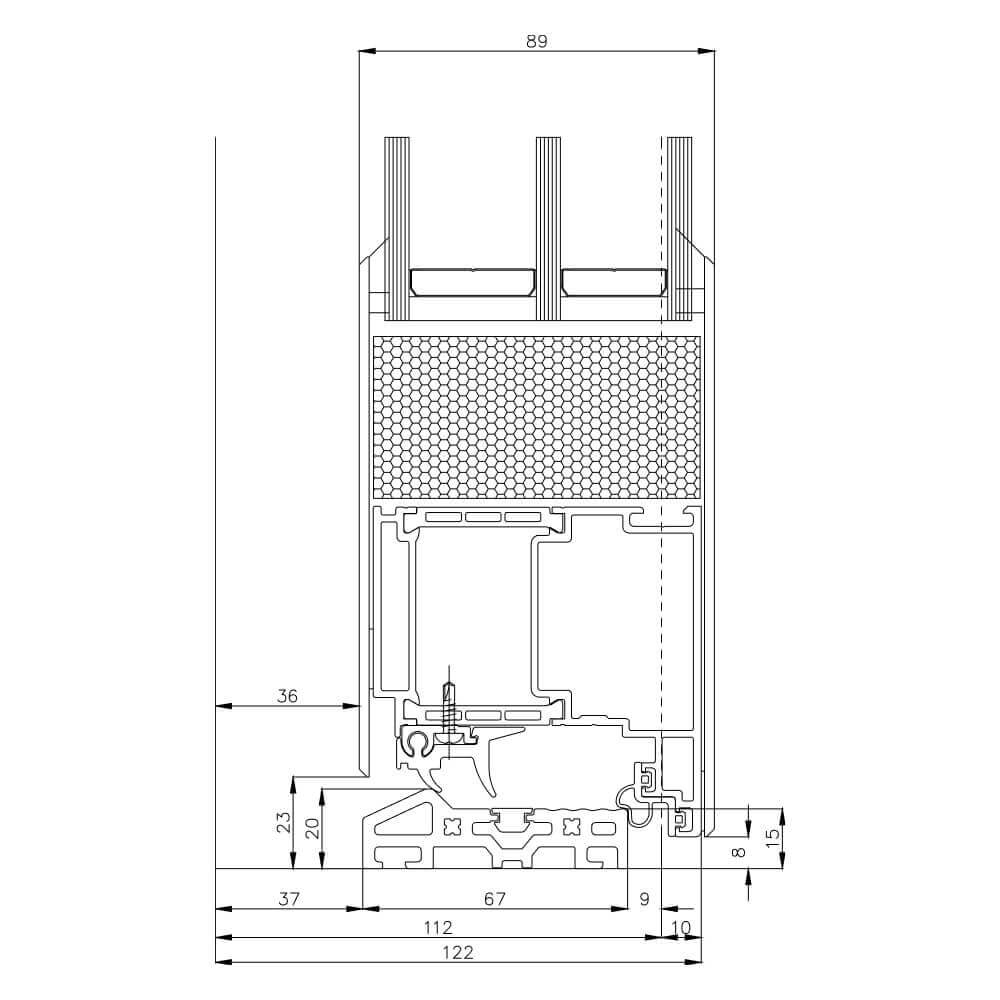

Exclusive Classic: threshold with sash
Exclusive Classic: threshold with sash

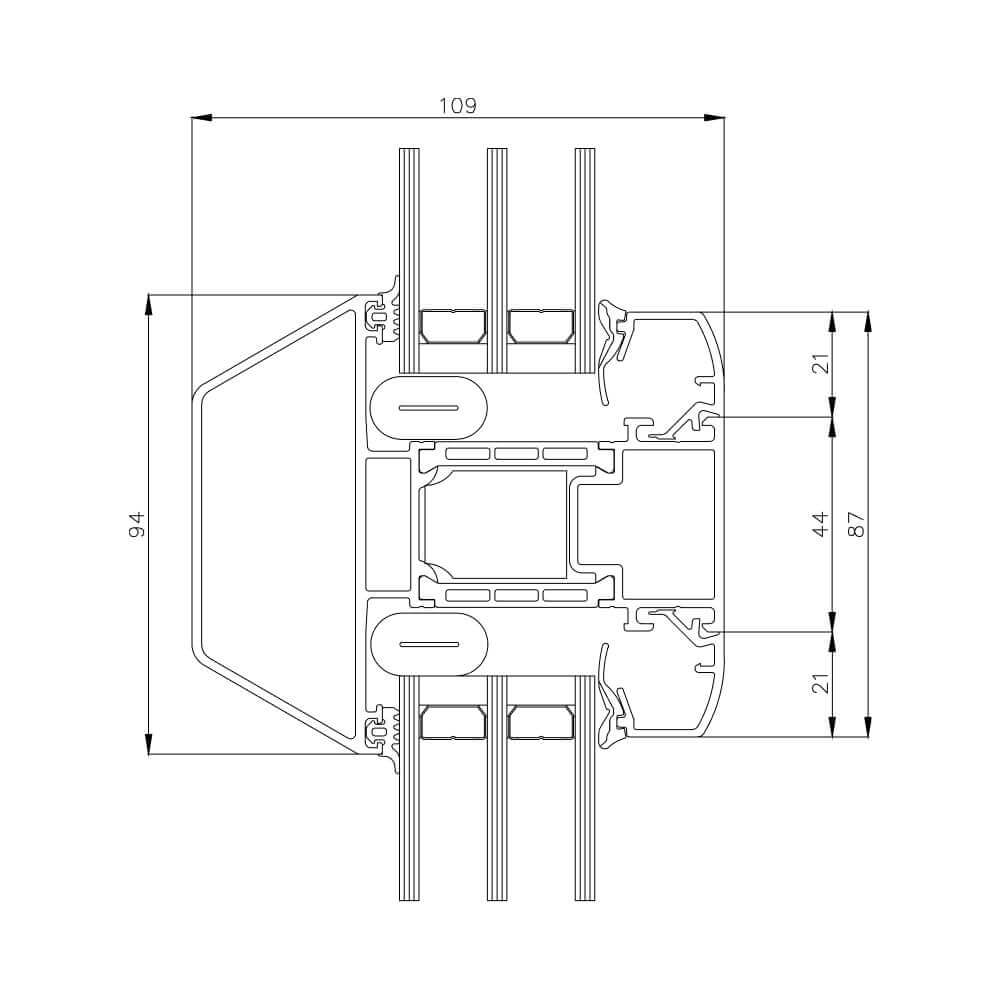

Exclusive Classic: centre mullion with fixed glazing
Exclusive Classic: centre mullion with fixed glazing

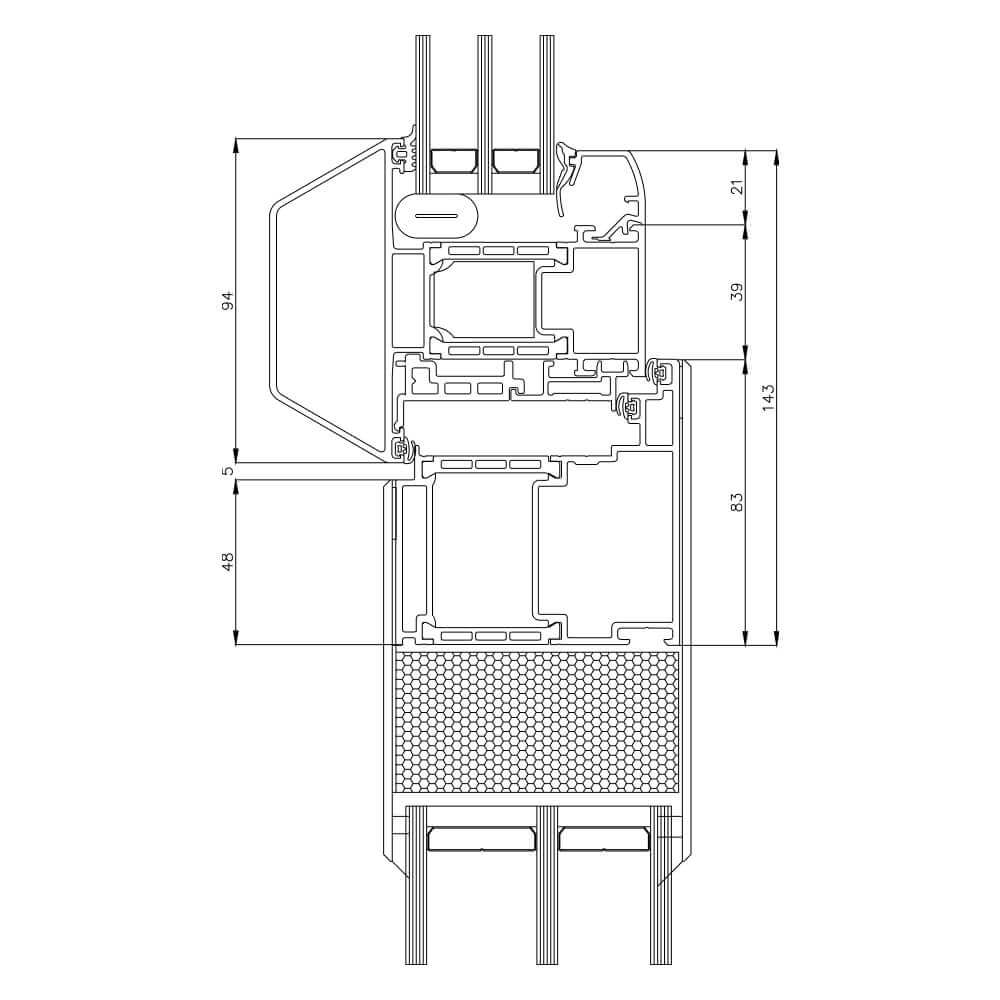

Exclusive Classic: centre mullion with fixed glazing and sash
Exclusive Classic: centre mullion with fixed glazing and sash

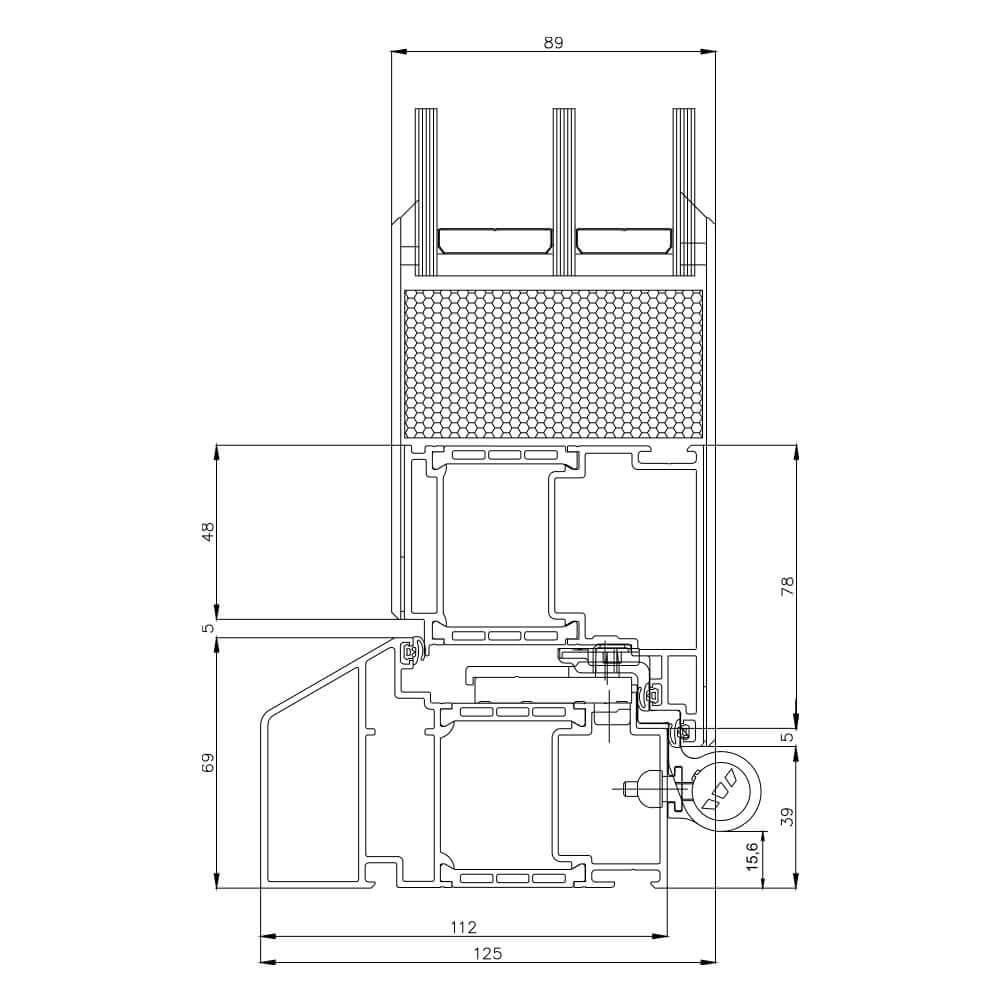

Exclusive Classic: side frame (hinge side) with sash
Exclusive Classic: side frame (hinge side) with sash

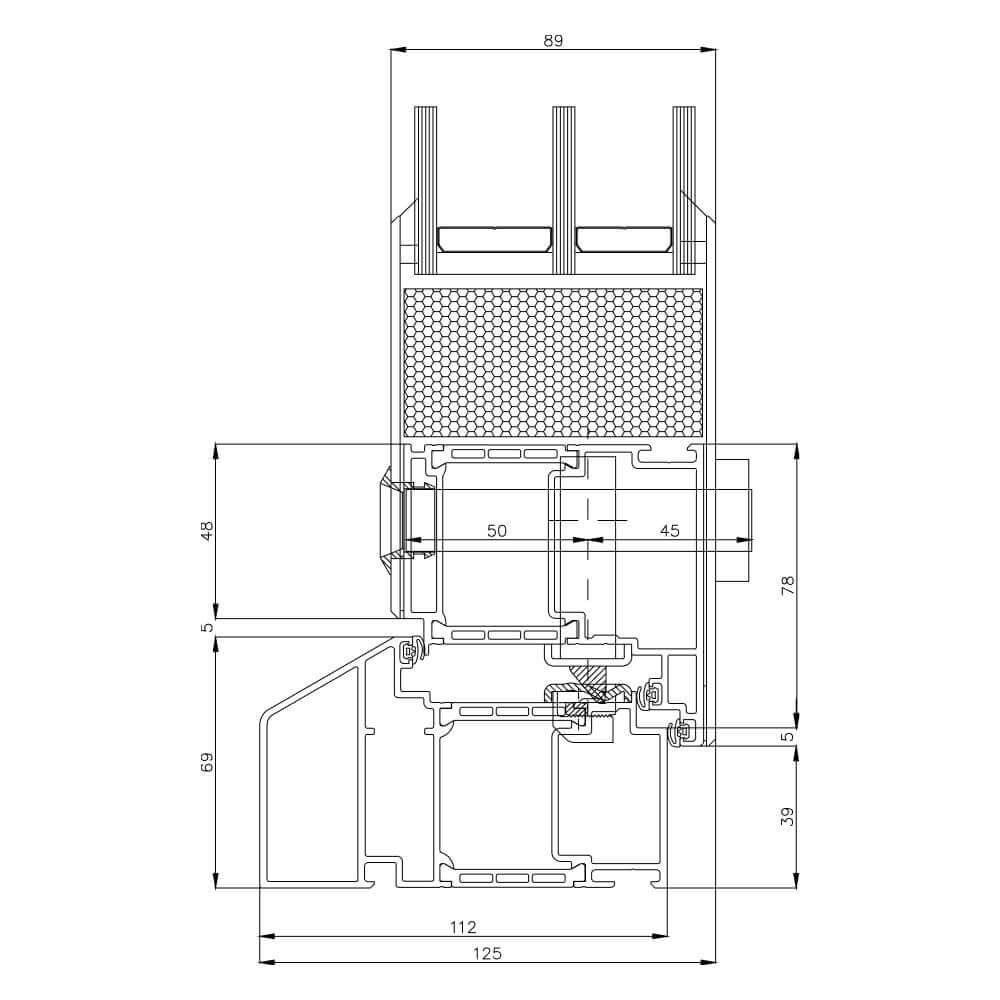

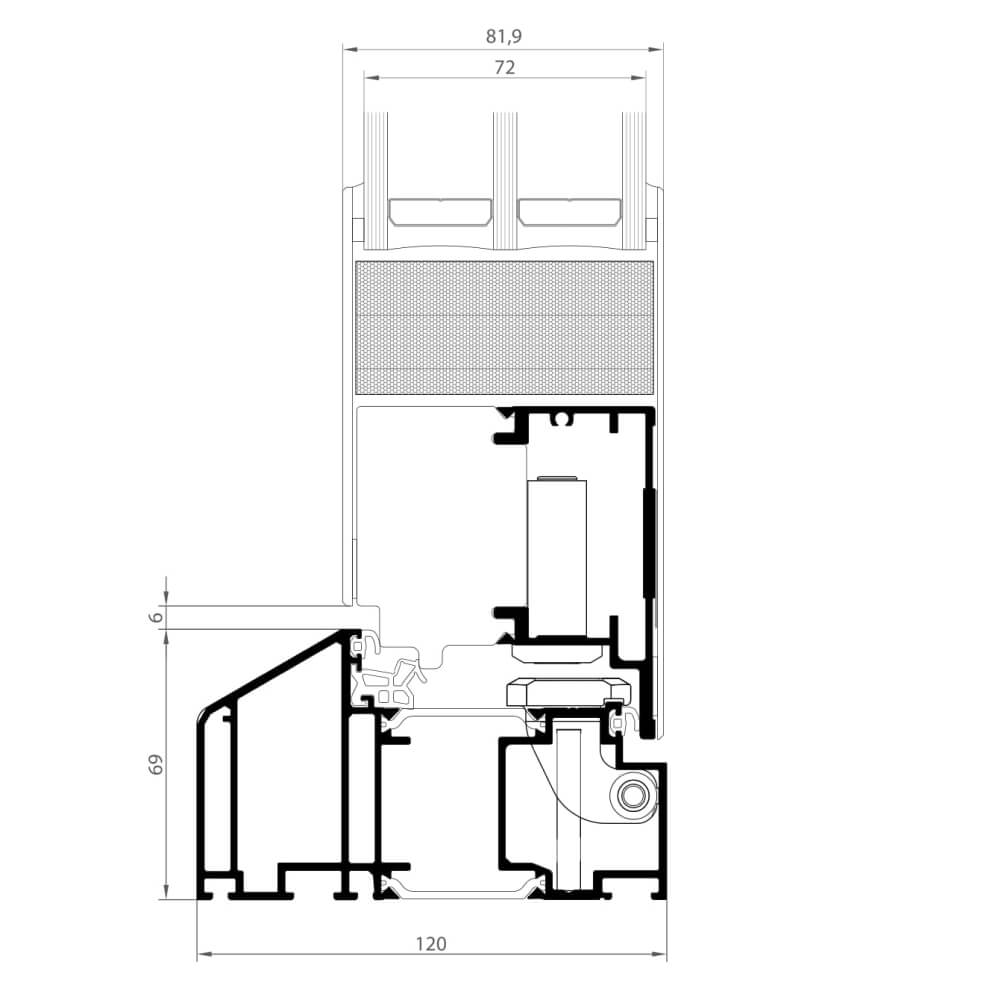

Exclusive Classic: side frame (lock side) with sash
Exclusive Classic: side frame (lock side) with sash

Please note that these are standard drawings. If you would like to know exactly which profiles and components are installed prior to delivery, please contact our customer service on +49 711 860 60 200 or by email at info@noSpamwindows24.com. Our experts would be happy to assist you with configuration and answer any questions about our products.
