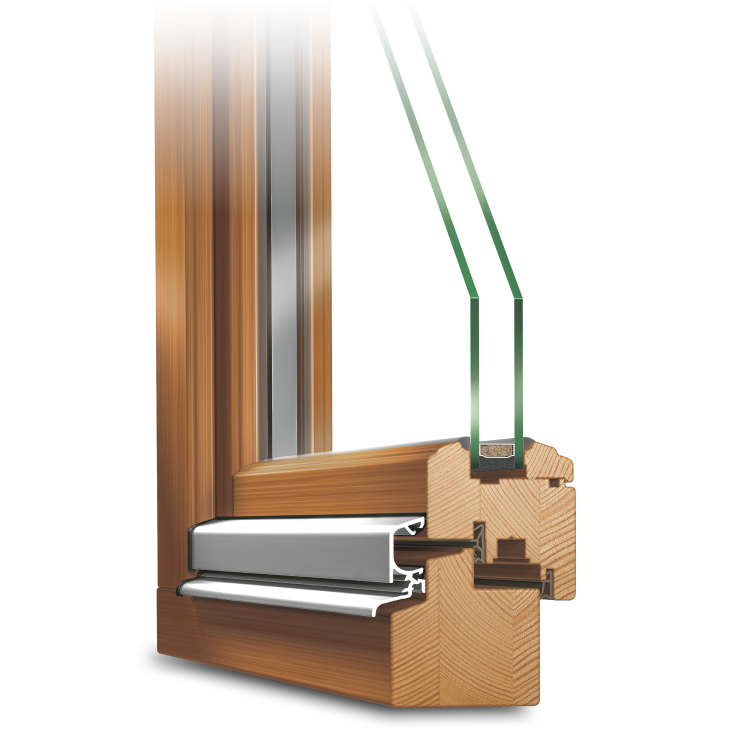

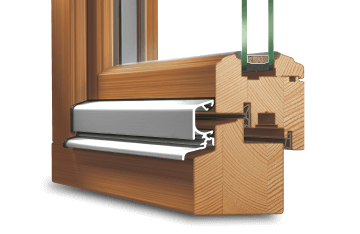

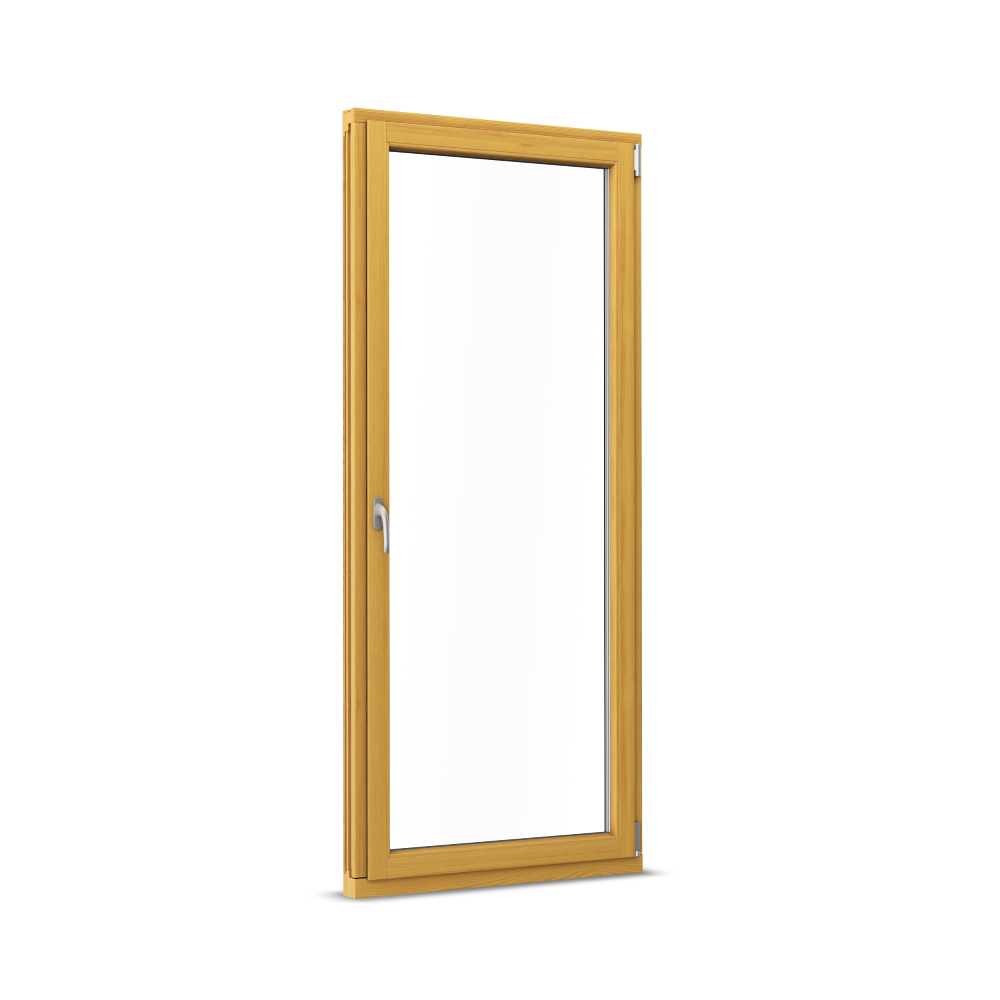

Wood balcony doors - Rustic IV 68 profile

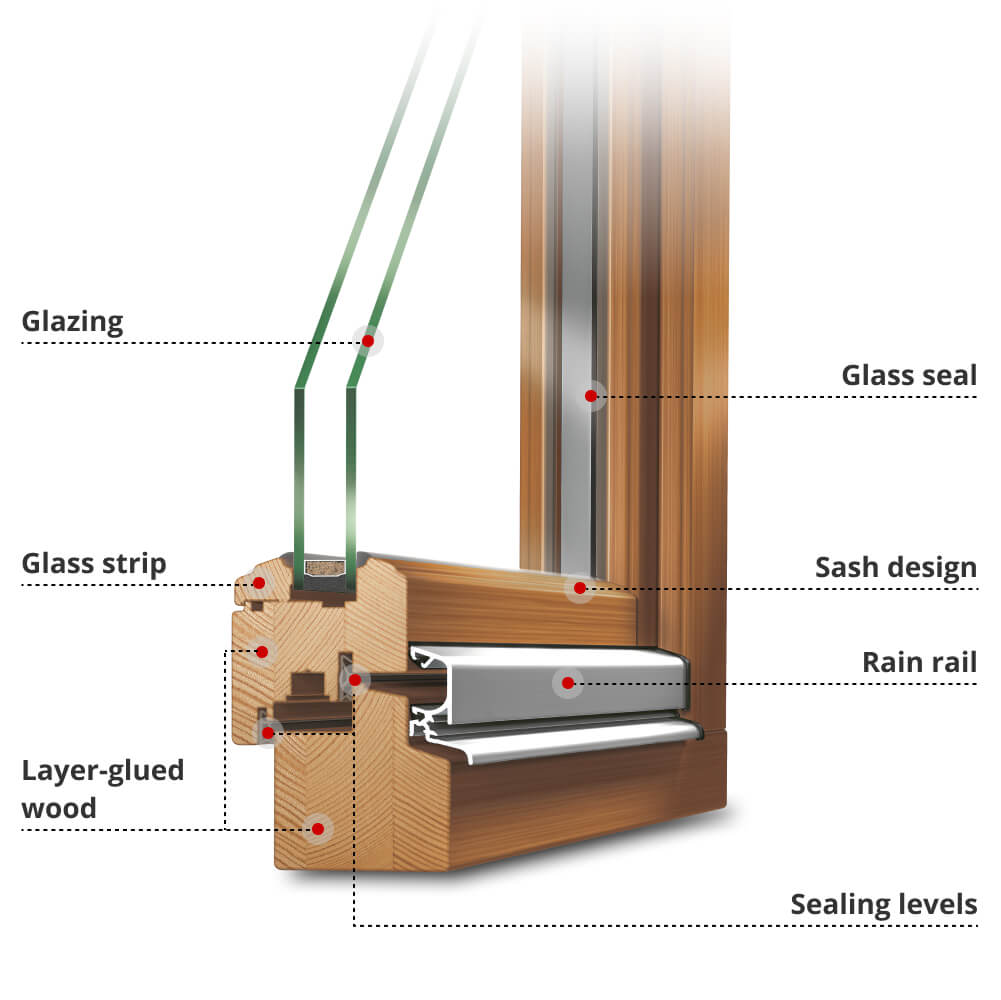

• Glazing: choose between double or triple glazing.

• Glazing gasket: The glazing gasket provides protection against water penetration.

• Glass strip: Provides the required contact pressure between the gaskets and glass.

• Sash design: The casement has a recessed design.

• Rain rail: The water drainage channel protects exposed surfaces.

• Layer glued wood: These glued wood edge bands with a continuous laminated top layer provide good stability and guarantee long durability.

• Sealing levels: Two sealing levels ensure good heat and noise insulation.

Fitting

• Corner hinges and shear bearing hinges with trunnions for a sash weight of up to 130 kg
• All fittings are available in a contemporary stainless steel look with cover caps on request
• Level switch lock as sash lifter and malfunction lock
• Balcony door handle on the outside is pulled shut, matches the window surface
• Balcony door catch, keeps the sash in the frame when pulled shut from the outside

Functionality

• Normal windows, thermal insulation, soundproof and security windows, sliding elements, balcony and patio doors

Options:

• Thermally separated balcony door threshold
• Integrated door lock, lockable from inside and outside
• Outwards opening

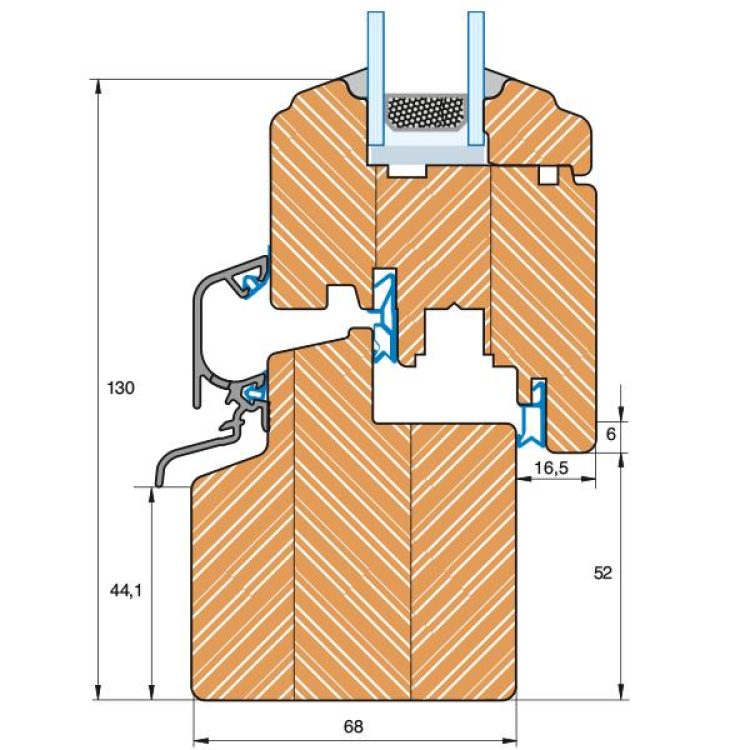

System and construction

• Layer-glued sawn timber, available in wood types: pine, spruce, Meranti, larch, eucalyptus or oak.
• Modern design with a striking look and profiled edges in a semi-offset shape

Surface

• Smooth wood surface due to hydro-tensioned fine planing
• Factory-applied finish to protect against UV rays and moisture
• Finished with an electrostatic spraying process using environmentally friendly paints and varnishes
• The lower frame moulds, which are particularly affected by the weather, are protected by a coated or anodised water drainage channel
