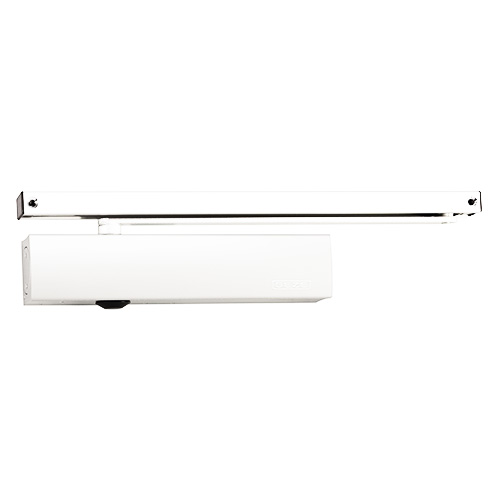

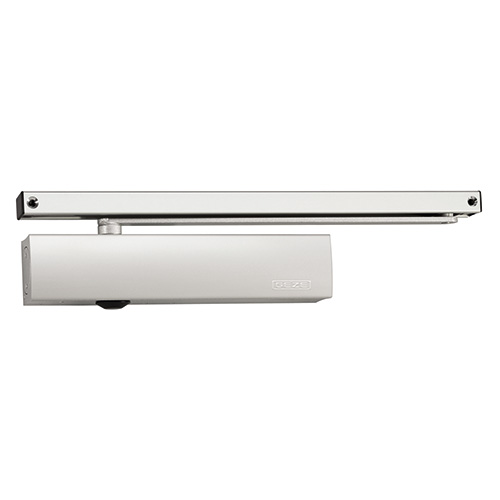

GEZE TS 5000 overhead door closer with a slide rail

TS 5000 overhead door closer

Adjustable closing speed
Suitable for fire and smoke protection doors
Backcheck and continuous size adjustment

For doors up to 1400 mm wide
For DIN compliant door hinges, can be attached on the left or the right
Closing force: 2 - 6 according to EN 1154
Closing speed: adjustable
Opening angle: up to 180°
Hydraulically adjustable back check
Area of application: hinge side

Security

Your ordered goods arrive safely and reliably at the agreed place of delivery.

Transport

All accessories and care items are delivered safely and correctly.

Warranty

The warranty for your accessory product lasts for 2 years.

Product Information

Properties and functional features of the TS 5000

This GEZE overhead door closer is particularly suitable for doors with a sash width of up to 1,400 mm, and is even available with an integrated slide rail. According to DIN EN 1154, the closing force of the GEZE TS 5000 is adjustable between the sizesEN 2-6 from the front depending on the mounting position.

The door closer from GEZE can be used for both right-hand and left-hand single-action doors without any complex conversions.

In addition, the TS 5000 impresses with additional functions and adjustment options:

Closing speed individually adjustable
Hydraulic end stop
Optical size indicator
Backcheck

Thanks to its thermally stabilised closing speed and good control option through its optical size indicator, the TS 5000 from GEZE can also be used without hesitation for fire and smoke protection doors or outdoors. A door leaf assembly with a mounting plate is important here. At windows24.com, you will find a high-quality separate mounting plate for the GEZE TS 5000 at a good price to be used for this purpose.

Scope of delivery, dimensions and colours for the GEZE TS 5000

In addition to cover caps for overhead door closers in various colours, when you buy a GEZE TS 5000, you will also receive the corresponding door holding magnets and holding counter plates.

A slide rail with a lever, a stop template and suitable screw accessories are also included in the scope of delivery.

The TS 5000 from GEZE comes in the dimensions 226 x 60 x 46 mm and is available in white and silver. According to European standard ( EN ) 2-6, there are door closers for the following sash widths:

Up to 850 mm (2)
850 - 950 mm (3)
950 - 1100 mm (4)
1,100 - 1,250 mm (5)
1,250 - 1,400 mm (6)

The closing speed of the doors of just under five seconds can also be individually adjusted and is therefore dependent on the closing force and sash width.
