Detailed Drawings of Wooden Windows & French Doors

detailed drawings

IV 68

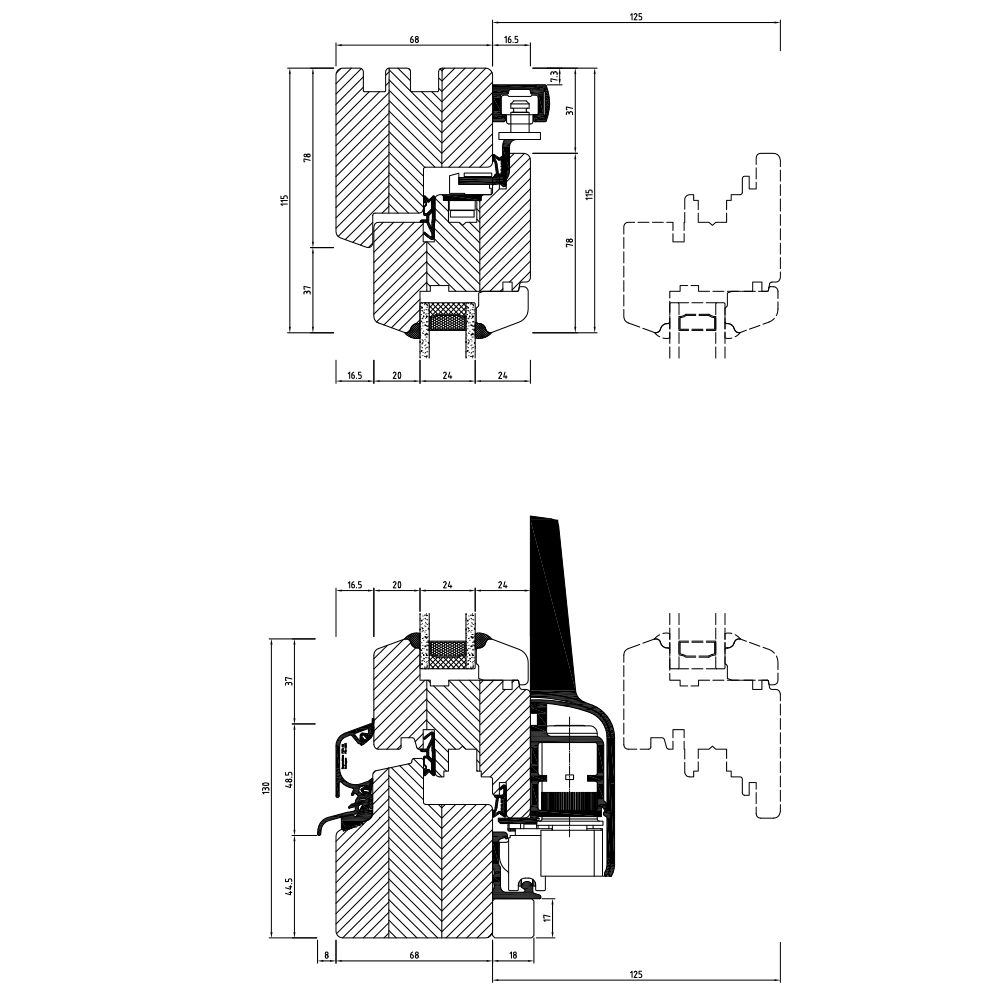

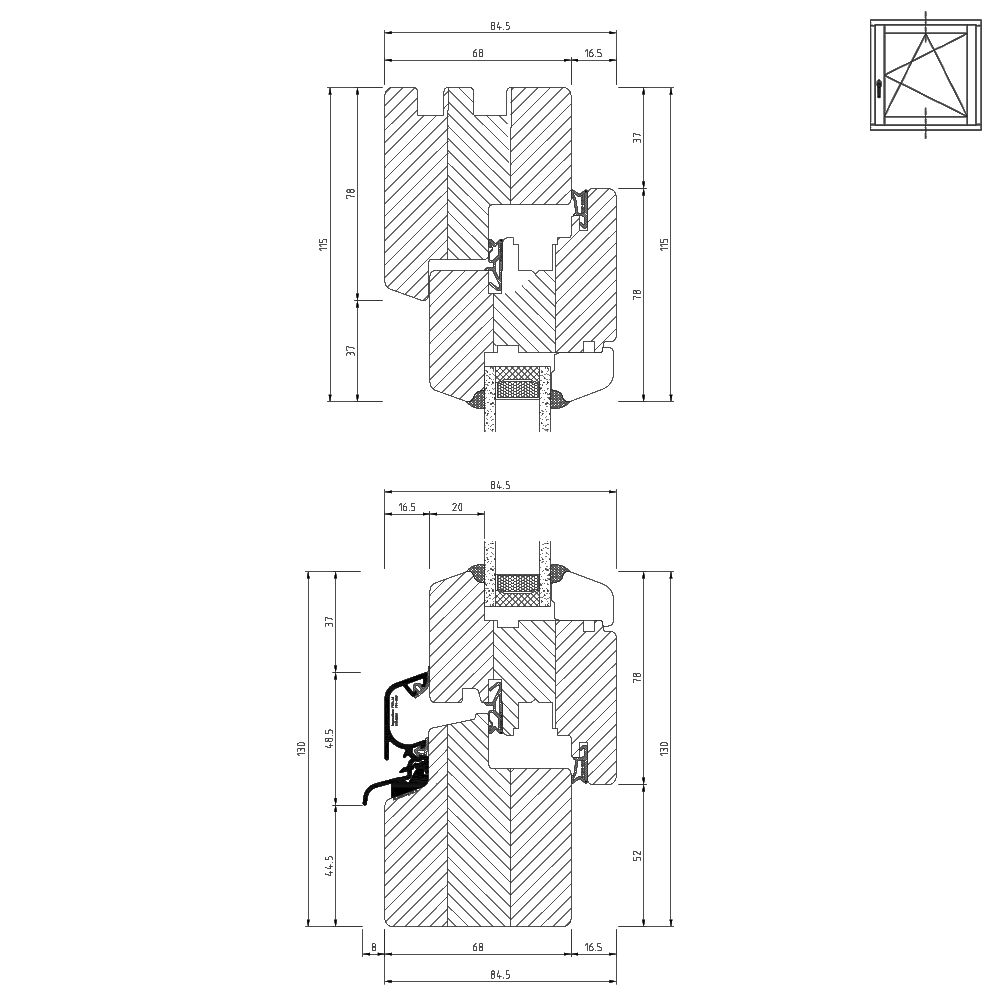

IV 68 - vertical cross section
IV 68 window - vertical cross section

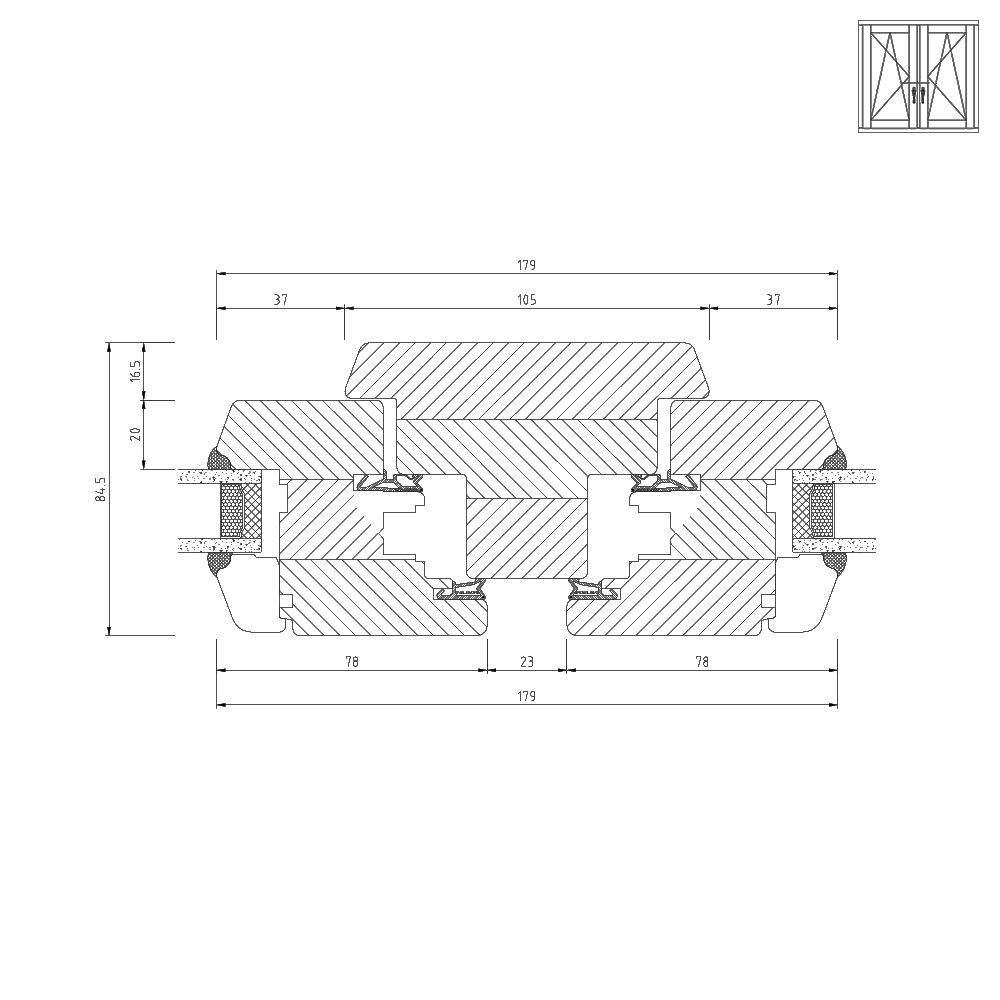

IV 68 - detail of central post
IV 68 window - detail of central post

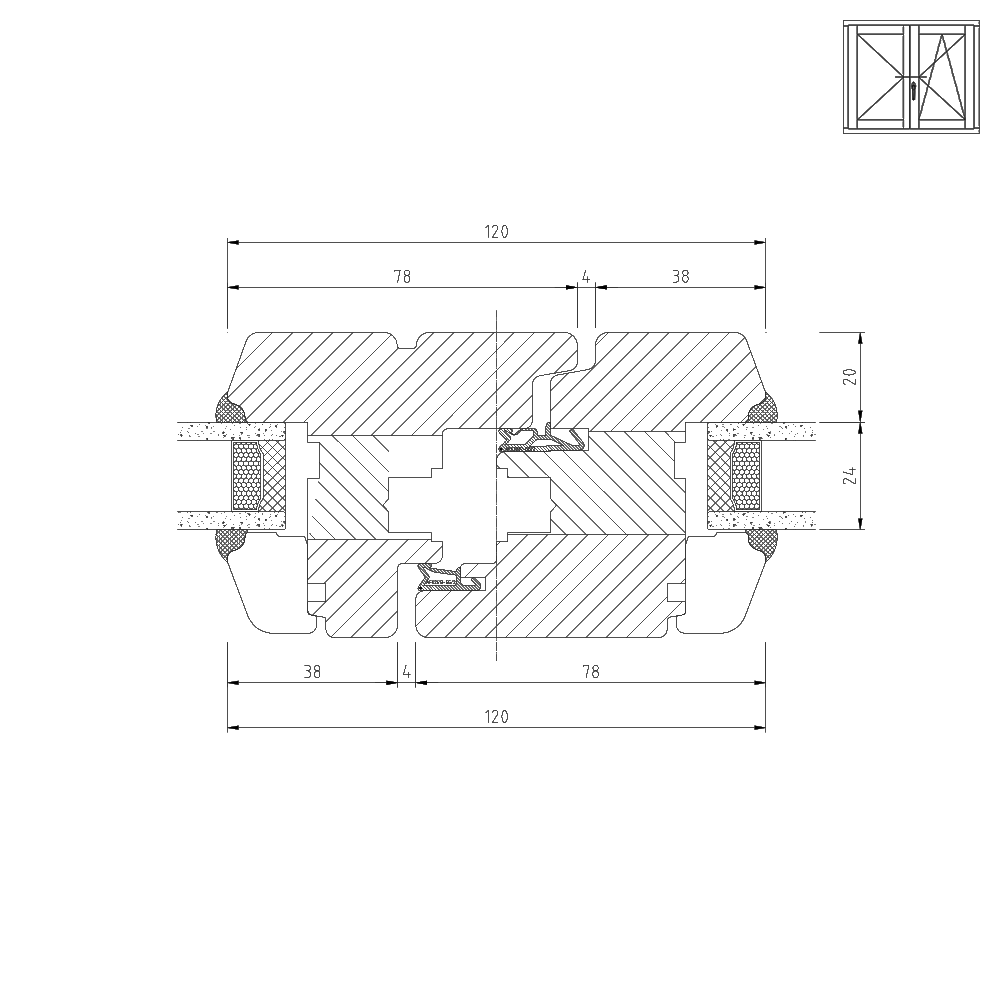

IV 68 - detail of flying mullion
IV 68 window - detail of flying mullion

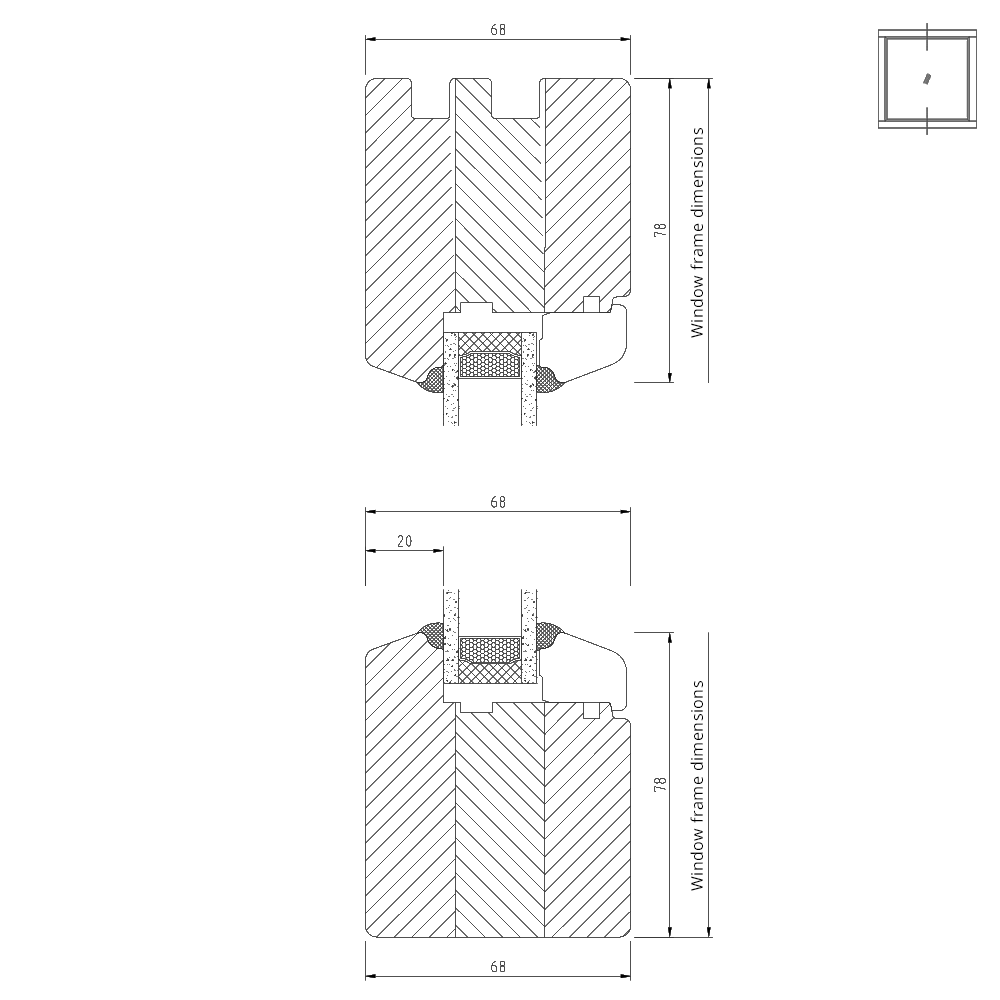

IV 68 - fixed glazing
IV 68 window - fixed glazing

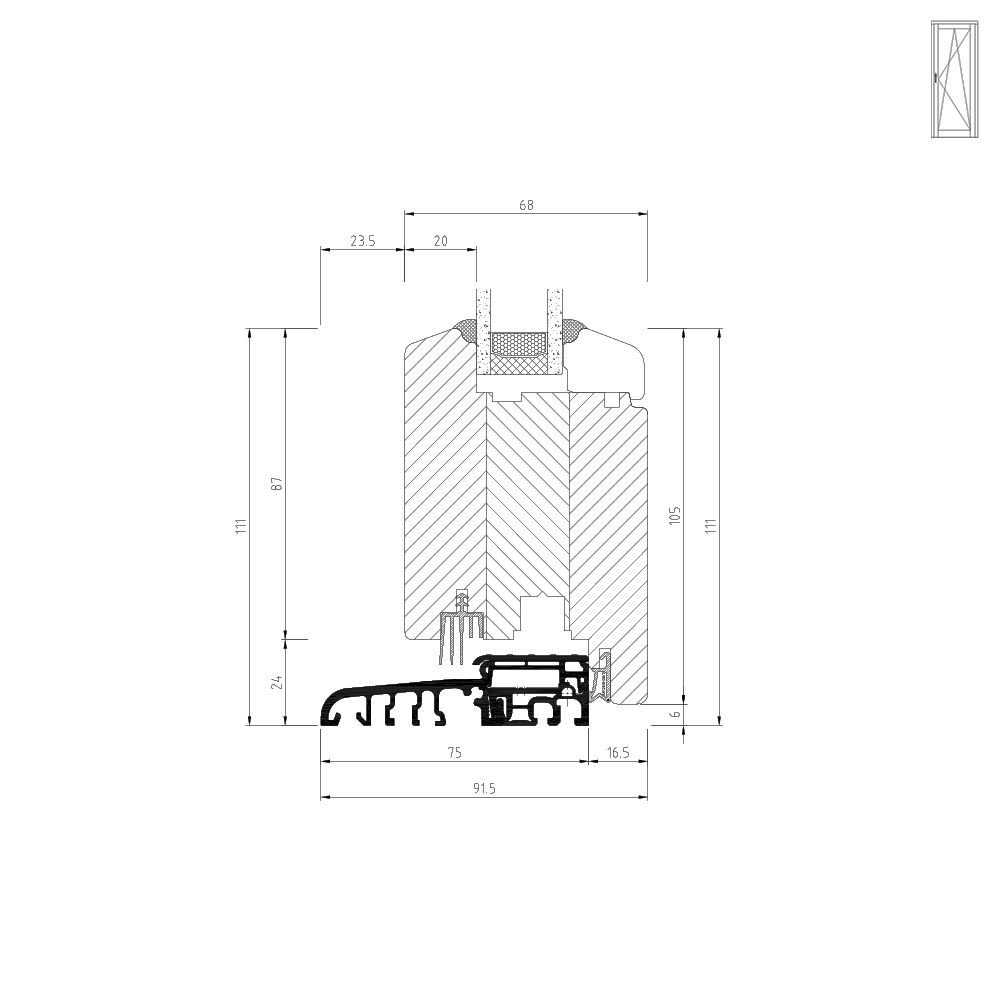

IV 68 - threshold
IV 68 French door - threshold
IV 68 - horizontal cross-section
IV 68 French door - horizontal cross-section

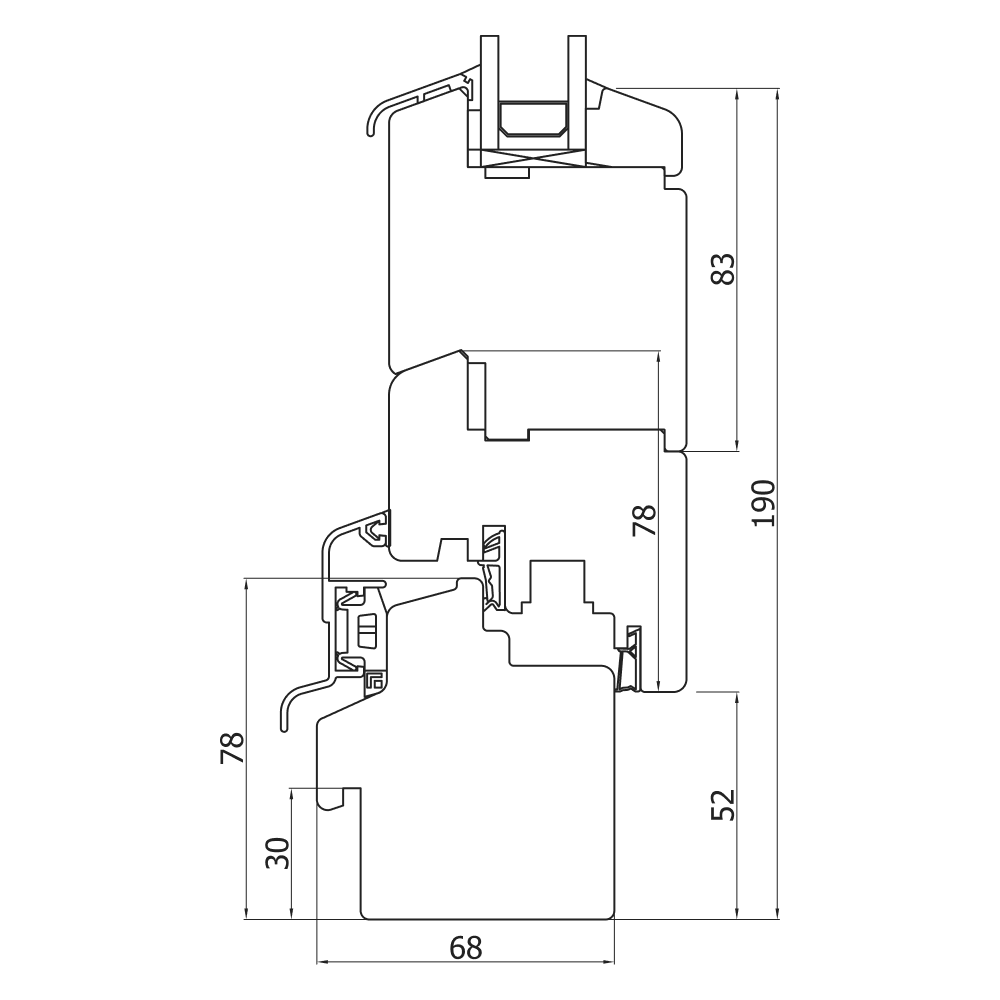

IV 68 - French door with sash extension
IV 68 - French door with sash extension

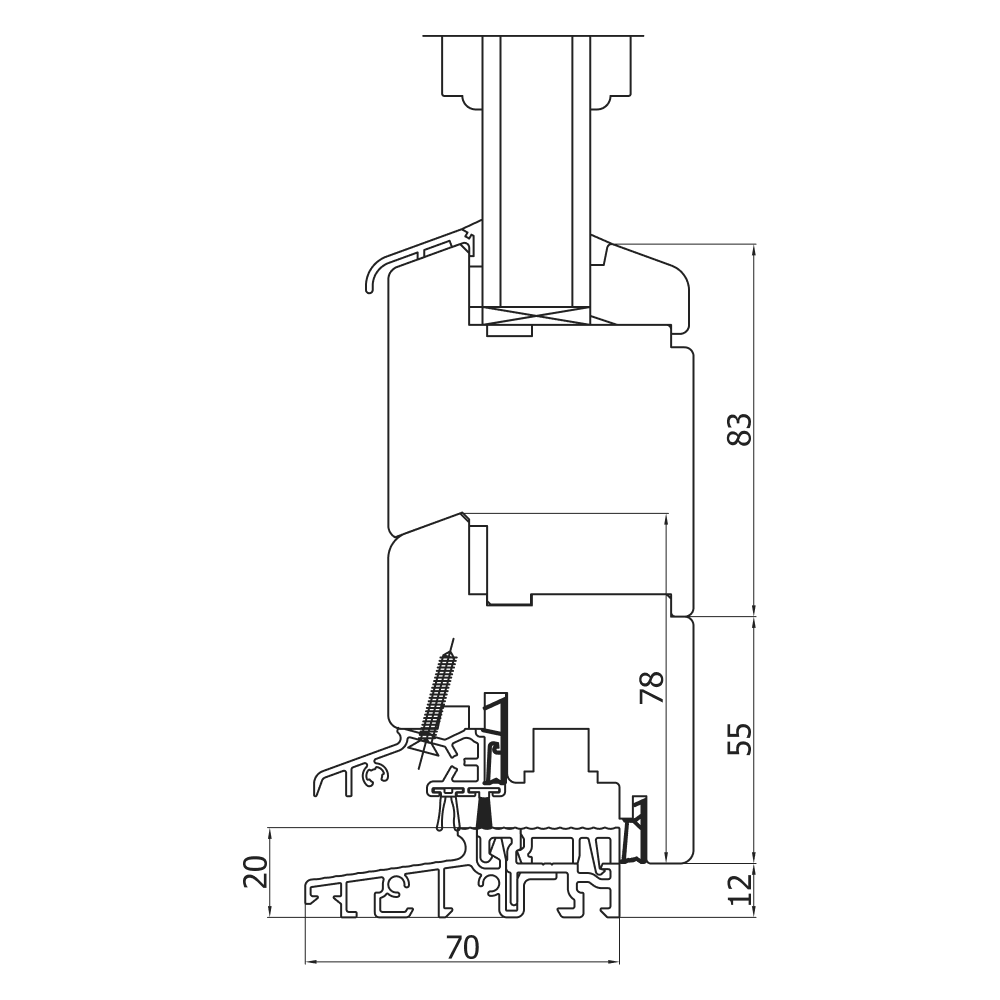

IV 68 - threshold variant 2
IV 68 - threshold variant 2

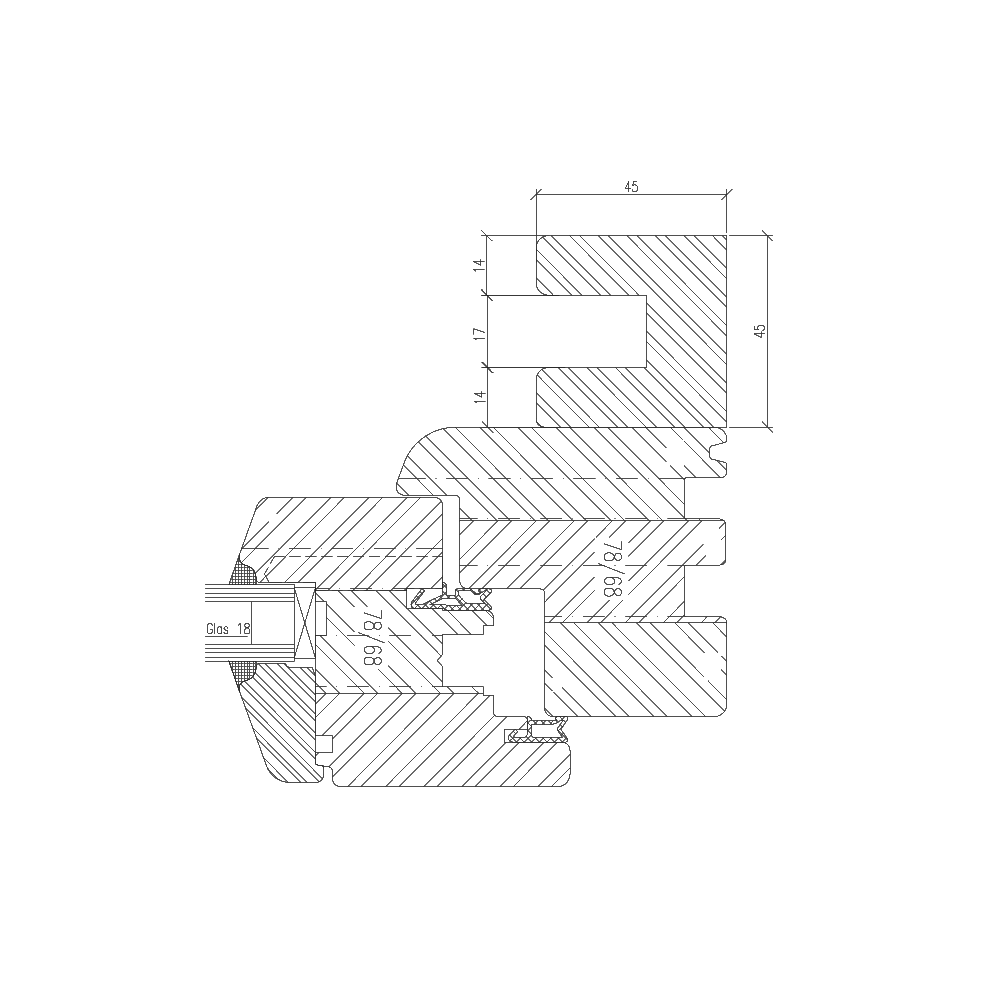

IV 68 - roller shutter guide rails
IV 68 - roller shutter guide rails

Window Sill Connection Profile

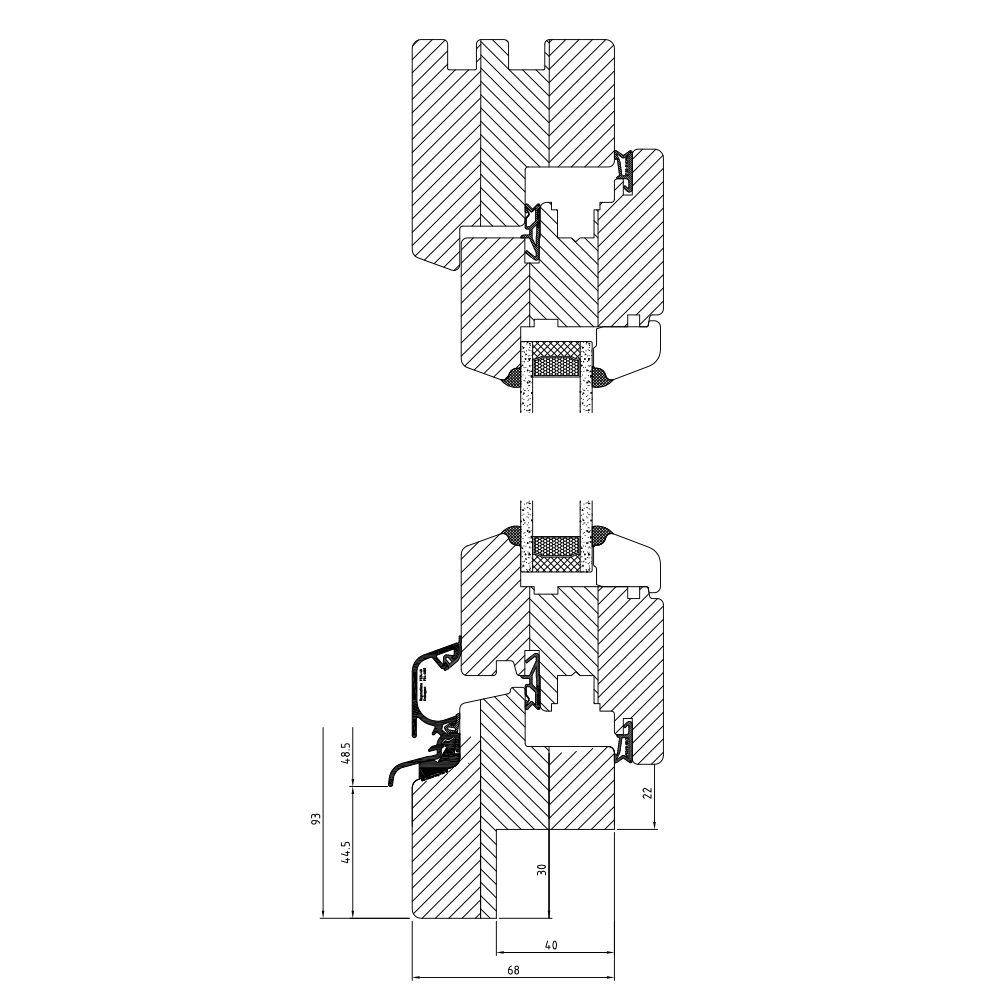

IV 68 - 30 mm window sill profile for older buildings
IV 68 - 30 mm window sill profile for older buildings

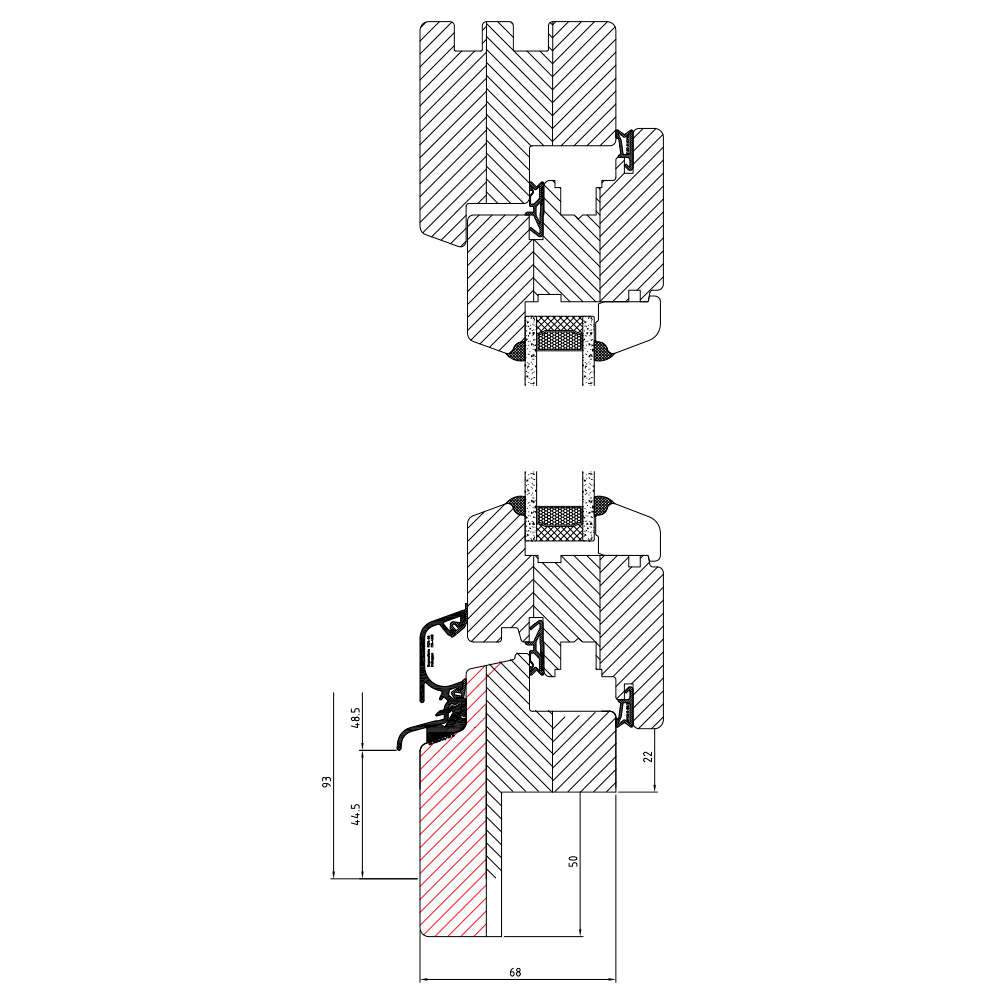

IV 68 - 50 mm window sill profile for older buildings
IV 68 - 50 mm window sill profile for older buildings

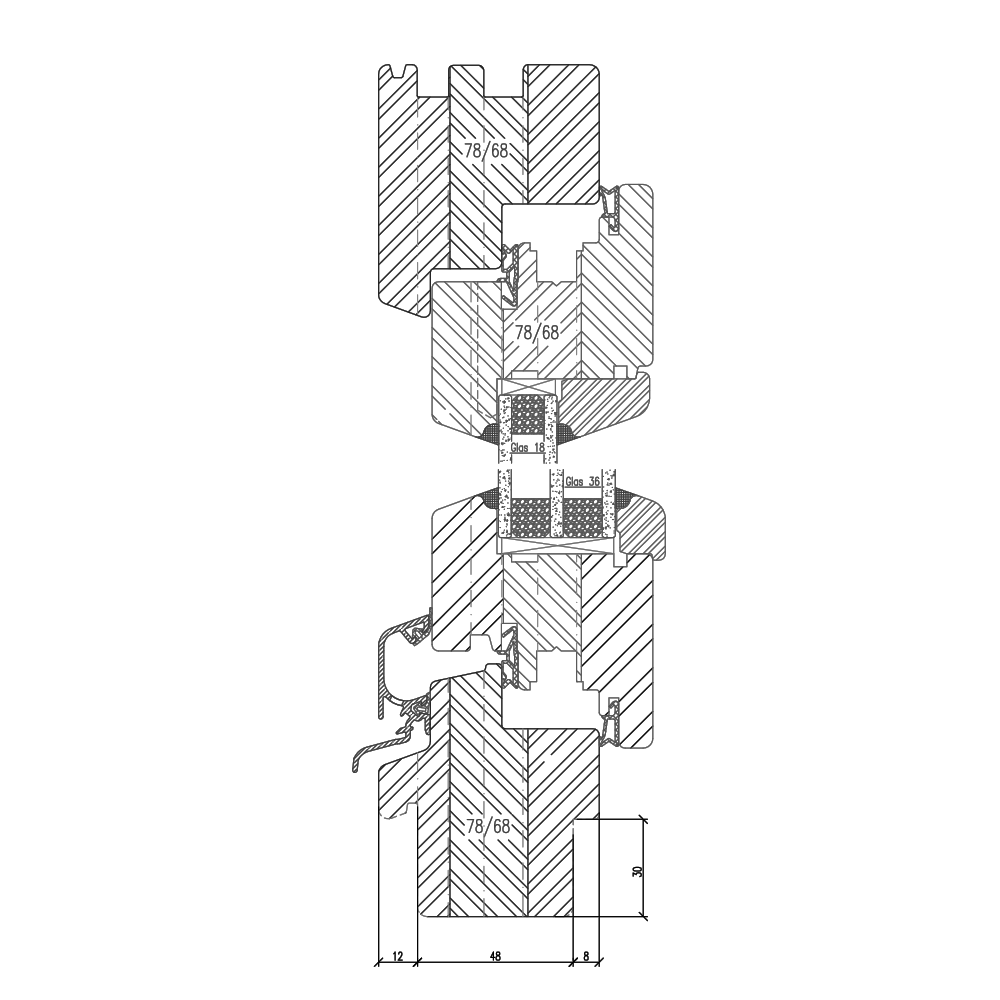

IV 68 - 30 mm window sill profile for new-builds
IV 68 - 30 mm window sill profile for new-builds

Couplers

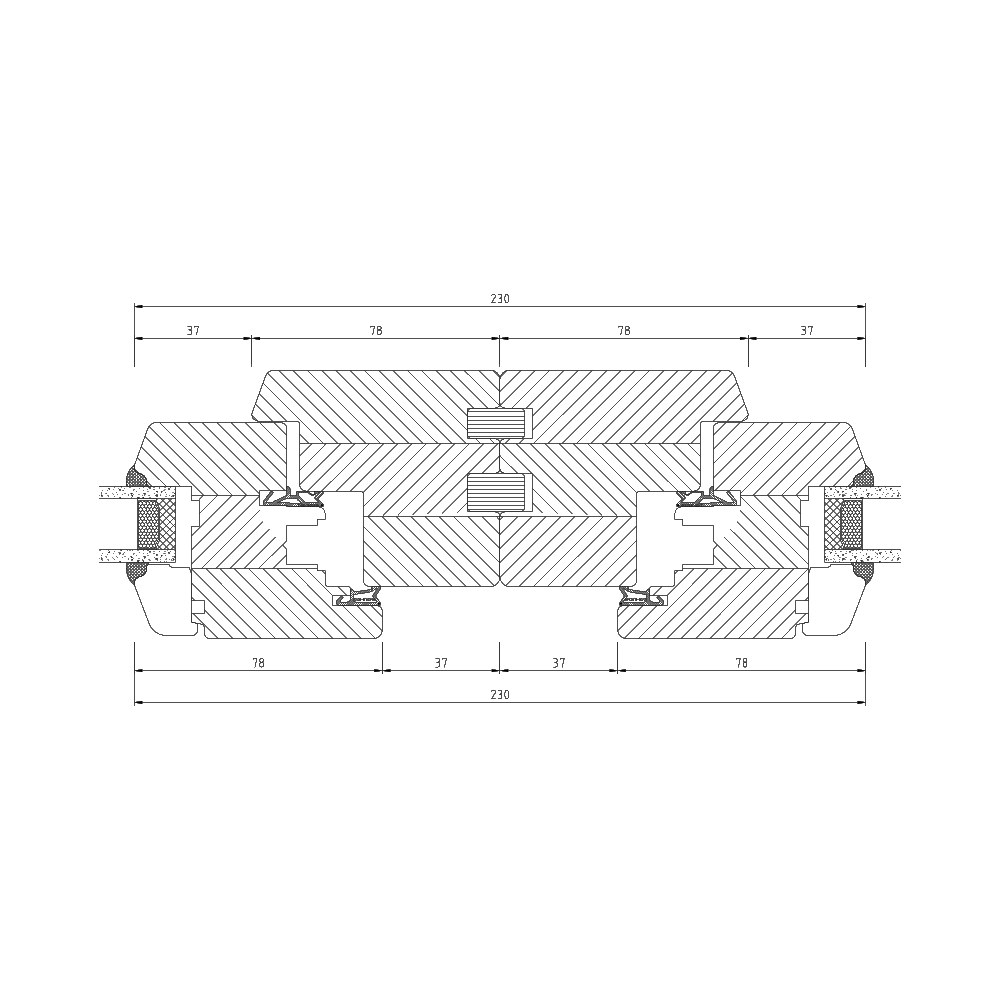

IV 68 - coupling
IV 68 - coupling

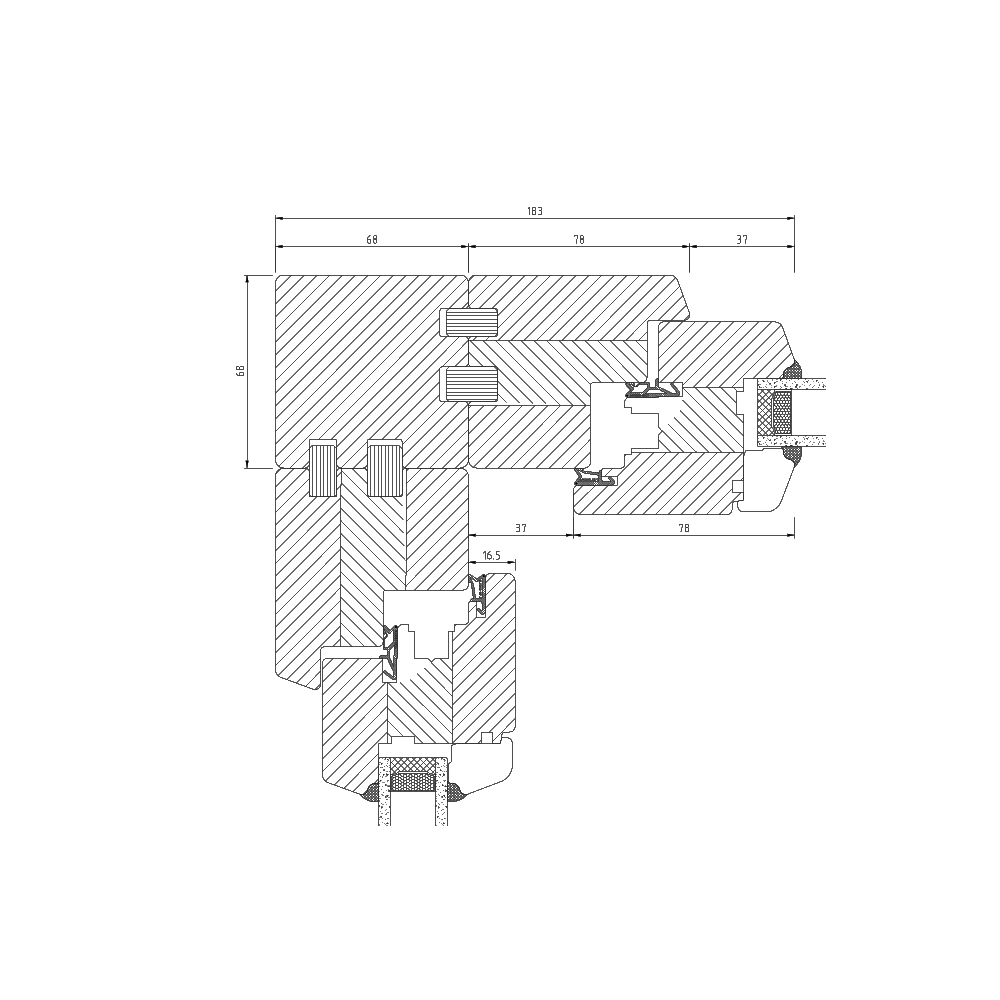

IV 68 - 90° coupling
IV 68 - 90° coupling

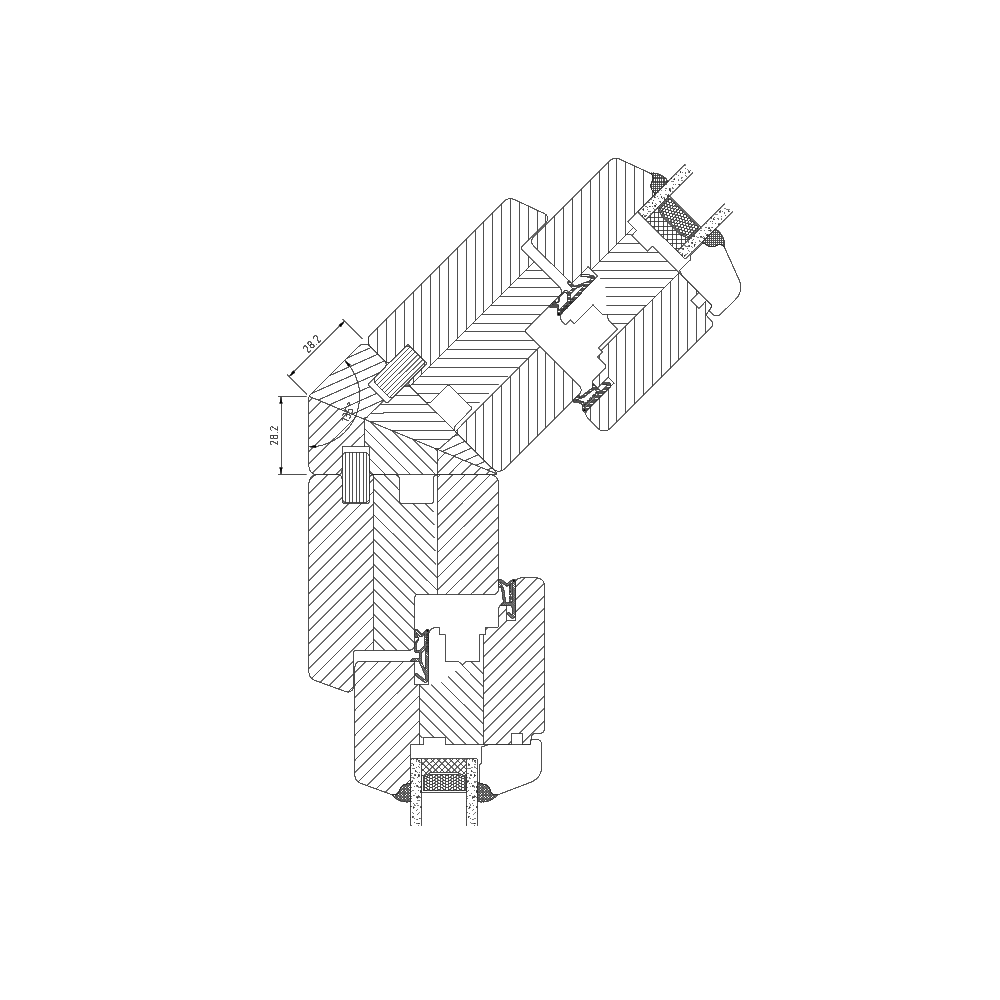

IV 68 - 135° coupling
IV 68 - 135° coupling

To top of page

IV 78

IV 78 window - vertical cross section
IV 78 window - vertical cross section

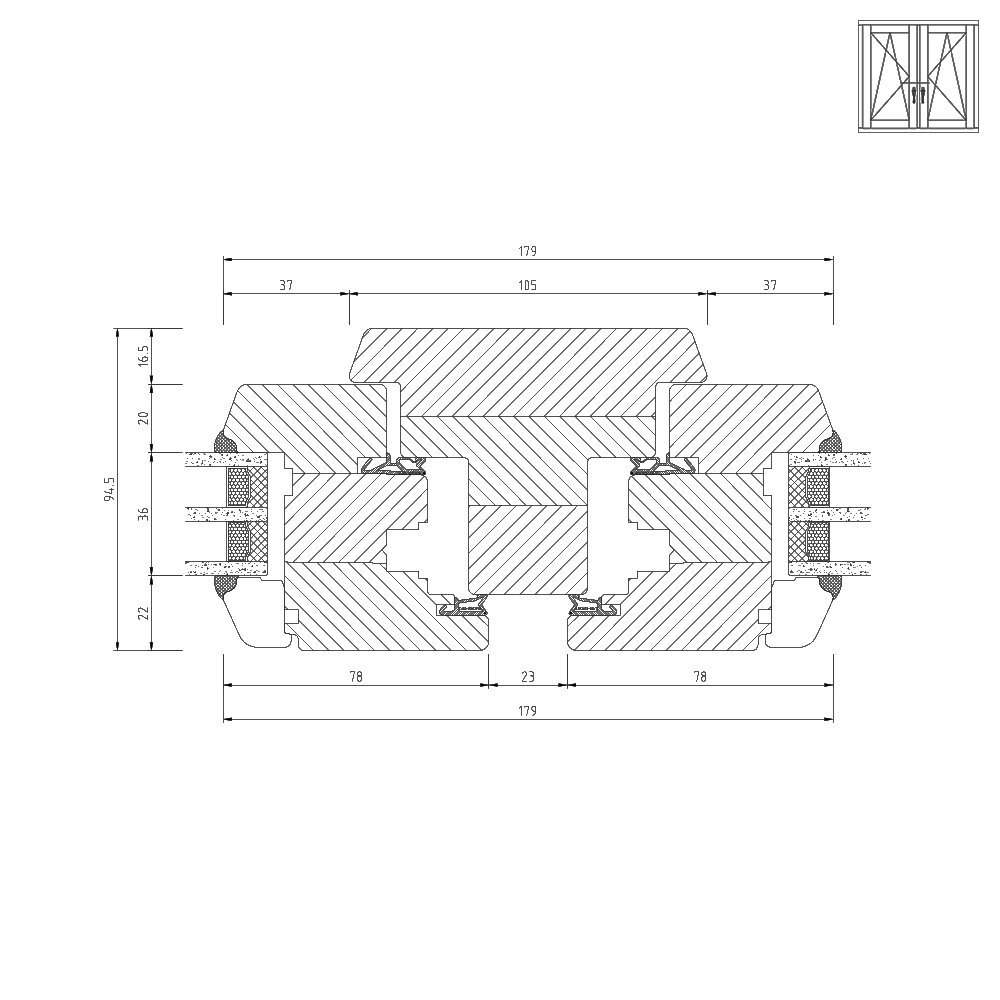

IV 78 window - detail of central post
IV 78 window - detail of central post

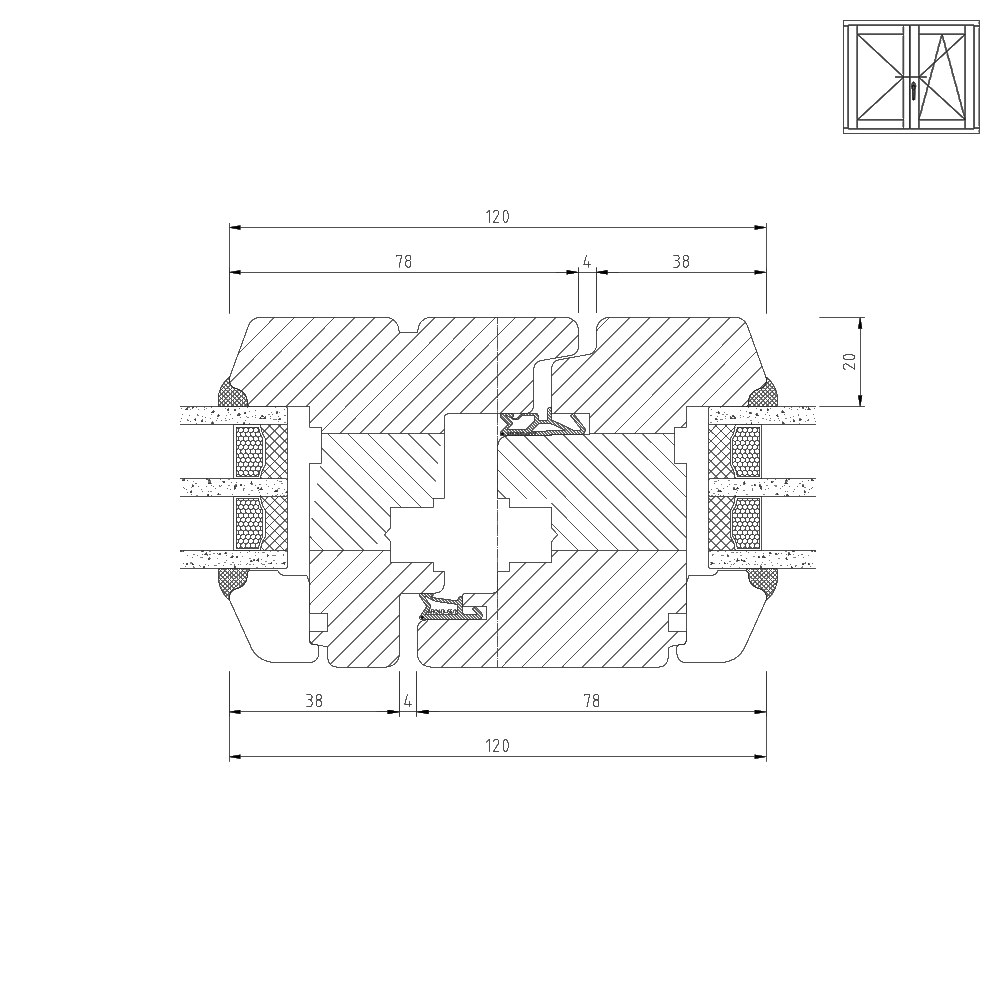

IV 78 window - detail of flying mullion
IV 78 window - detail of flying mullion

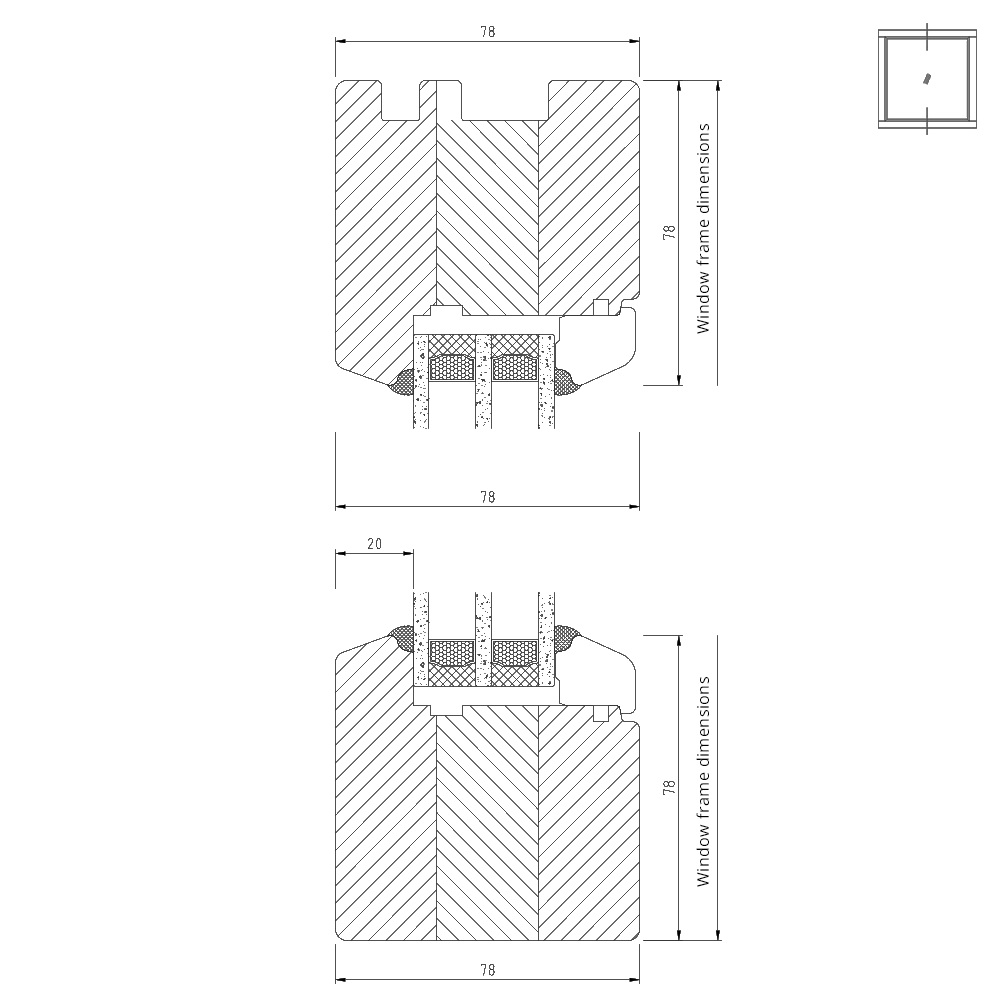

IV 78 window - fixed glazing
IV 78 window - fixed glazing

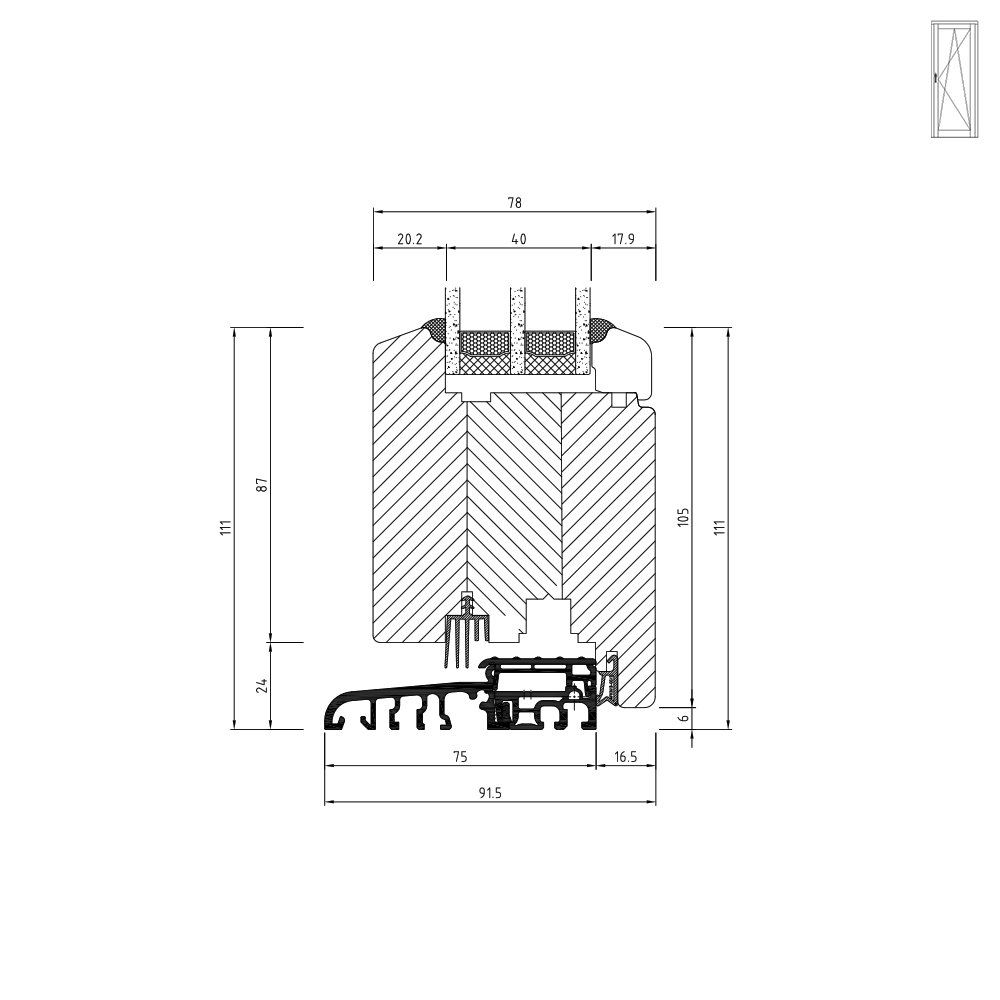

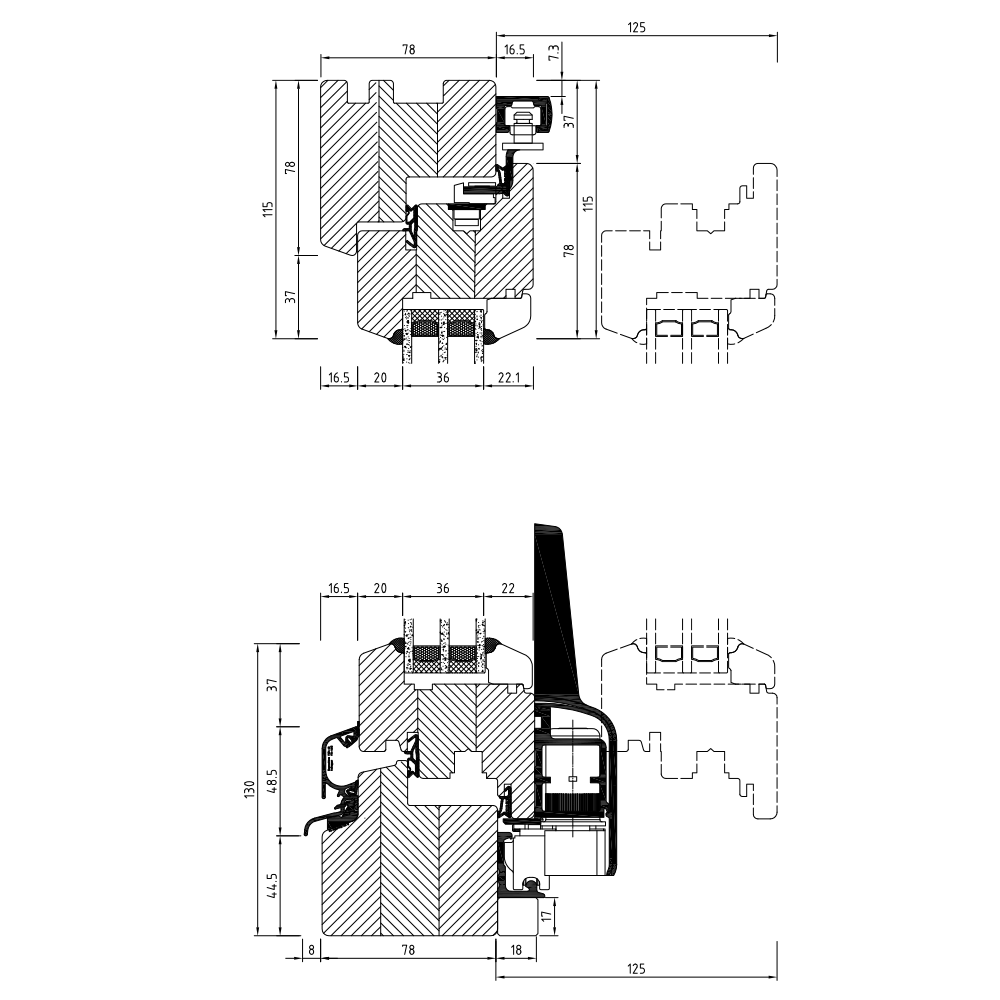

IV 78 French door - threshold
IV 78 French door - threshold
IV 78 French door - horizontal cross-section
IV 78 French door - horizontal cross-section

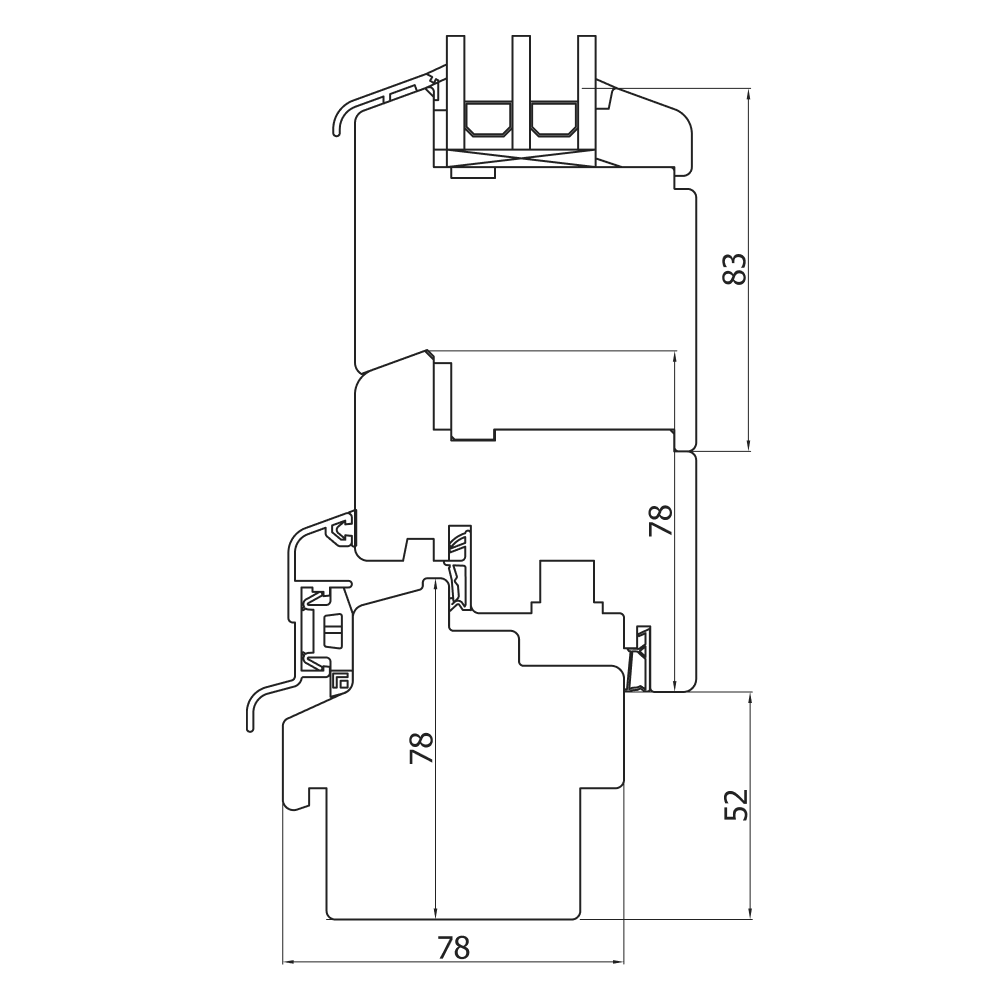

IV 78 - French door with sash extension
IV 78 - French door with sash extension

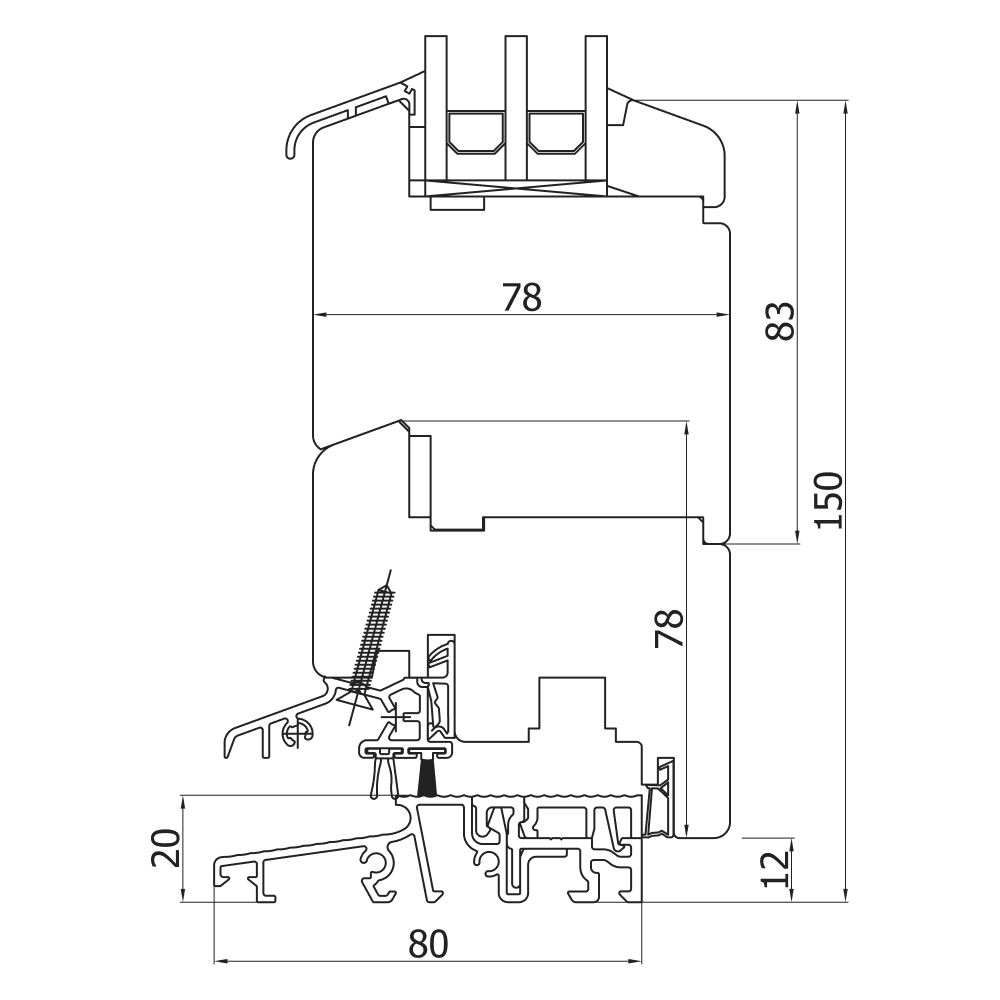

IV 78 - threshold variant 2
IV 78 - threshold variant 2

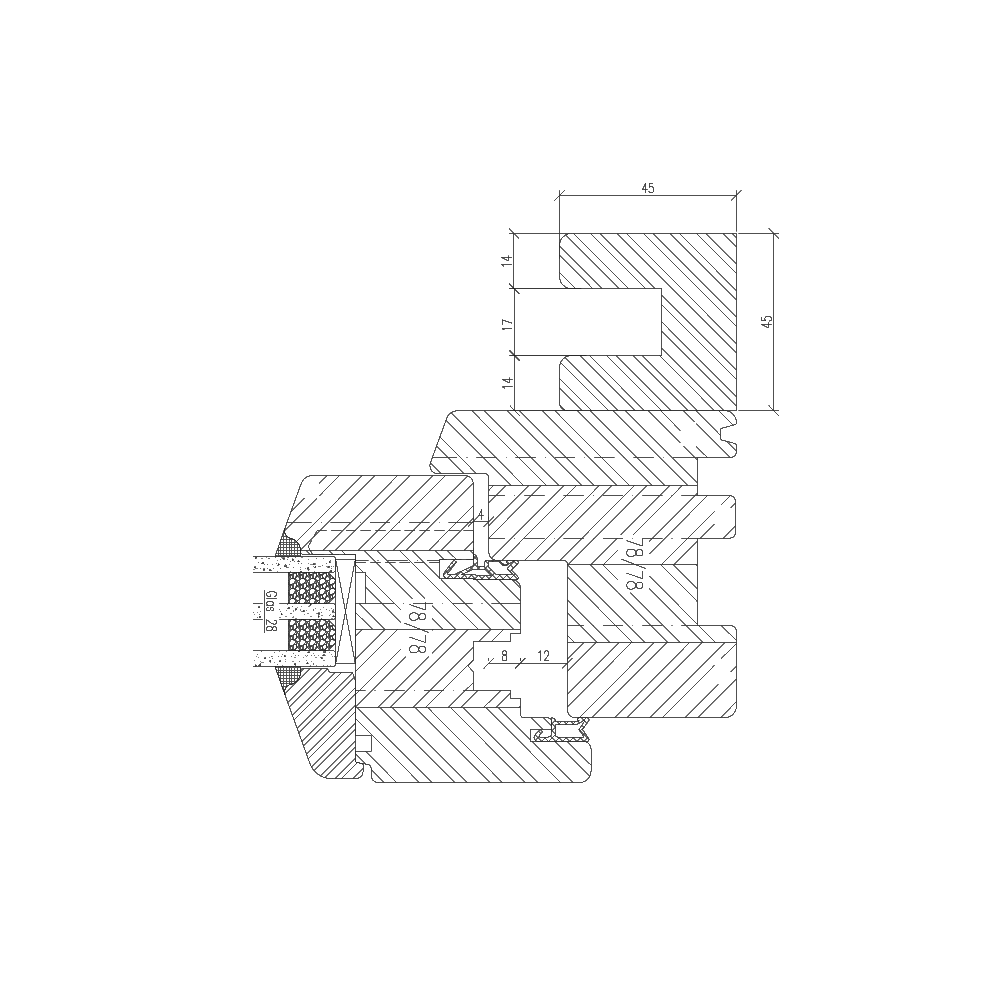

IV 78 - roller shutter guide rails
IV 78 - roller shutter guide rails

Couplers

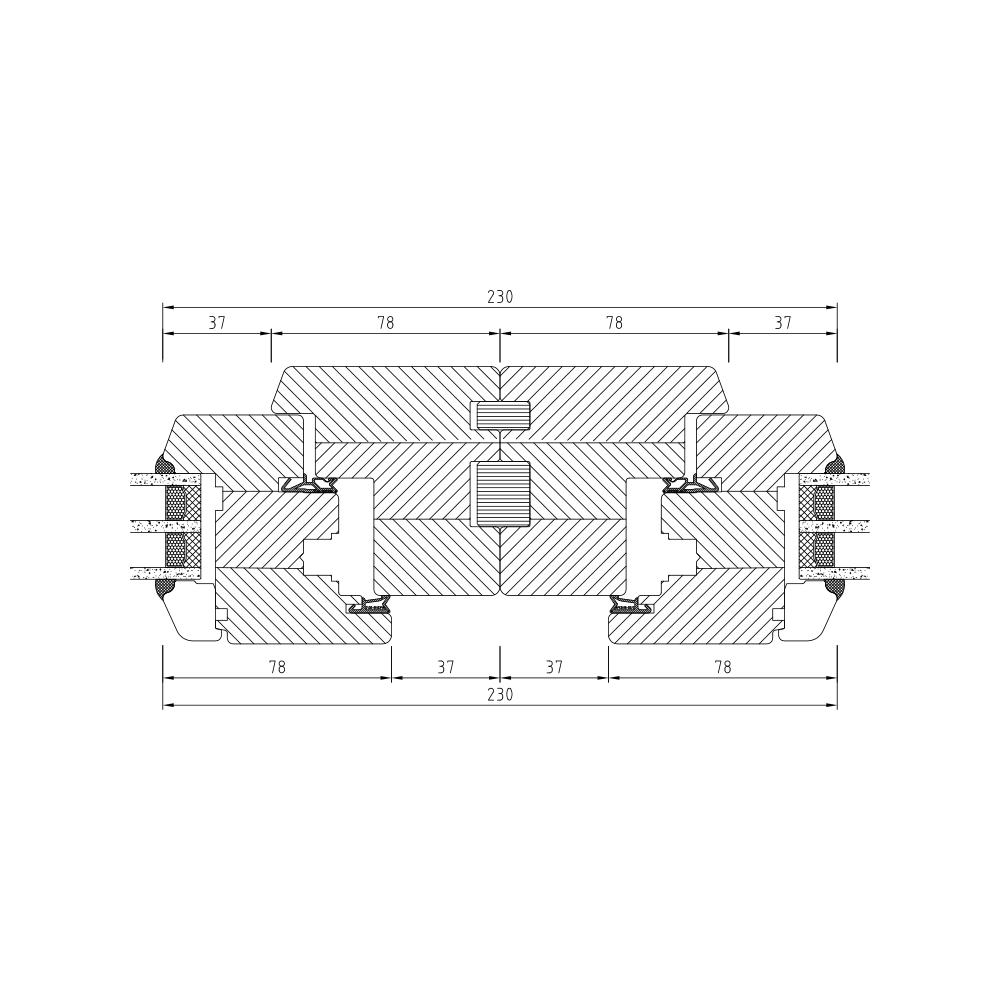

IV 78 - coupling
IV 78 - coupling
IV 78 - 90° coupling
IV 78 - 90° coupling

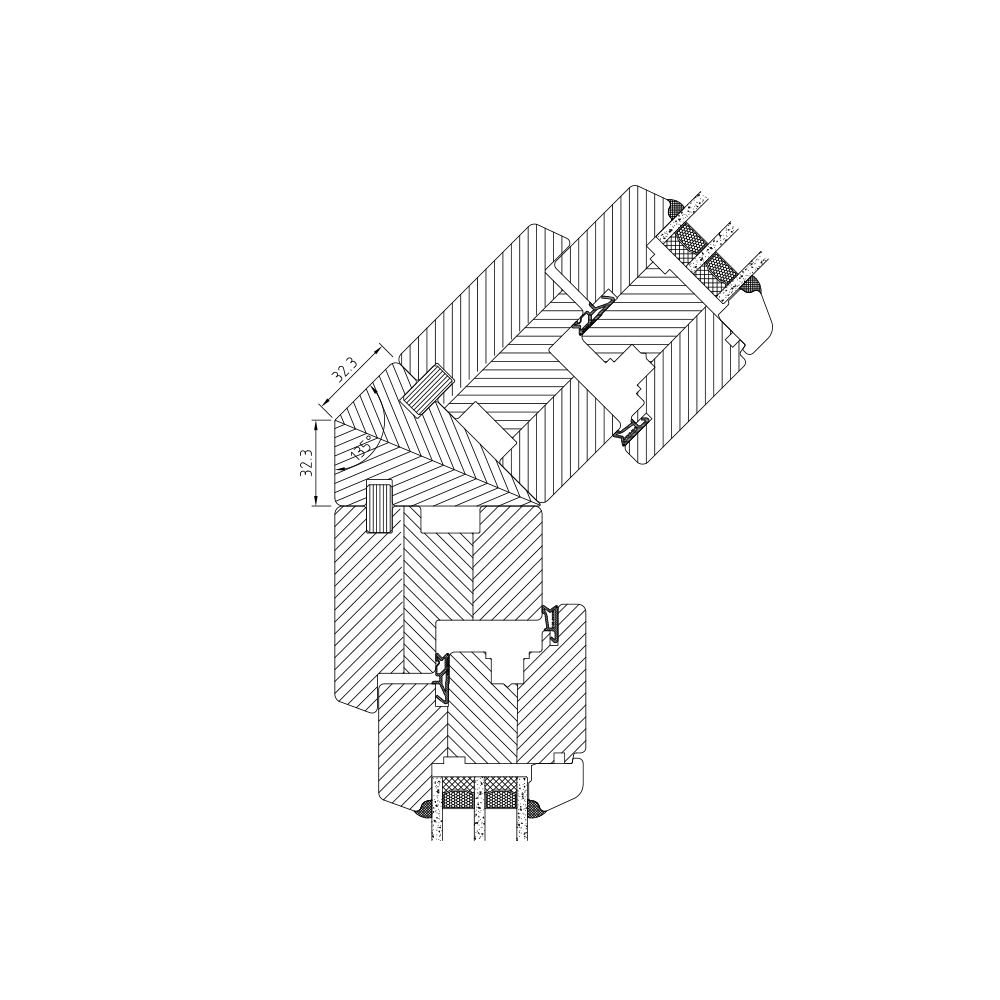

IV 78 - 135° coupling
IV 78 - 135° coupling

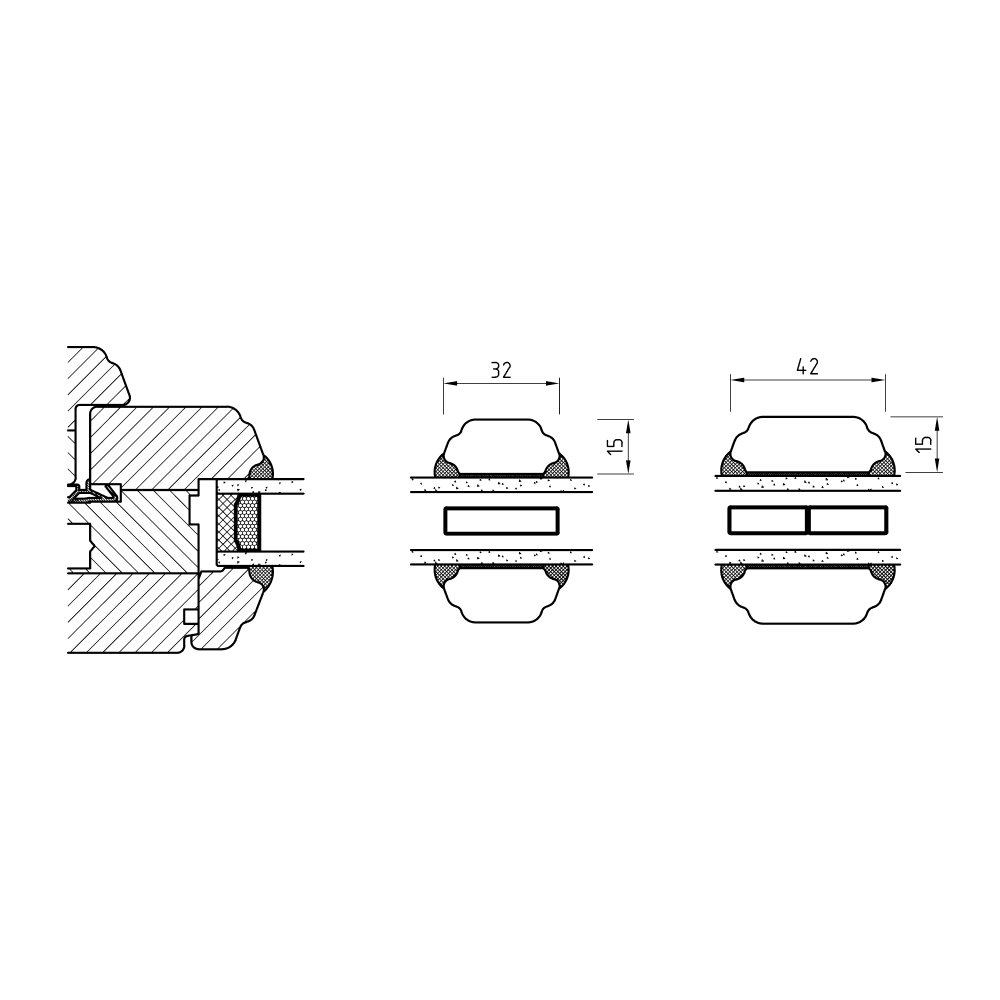

Glazing Bars

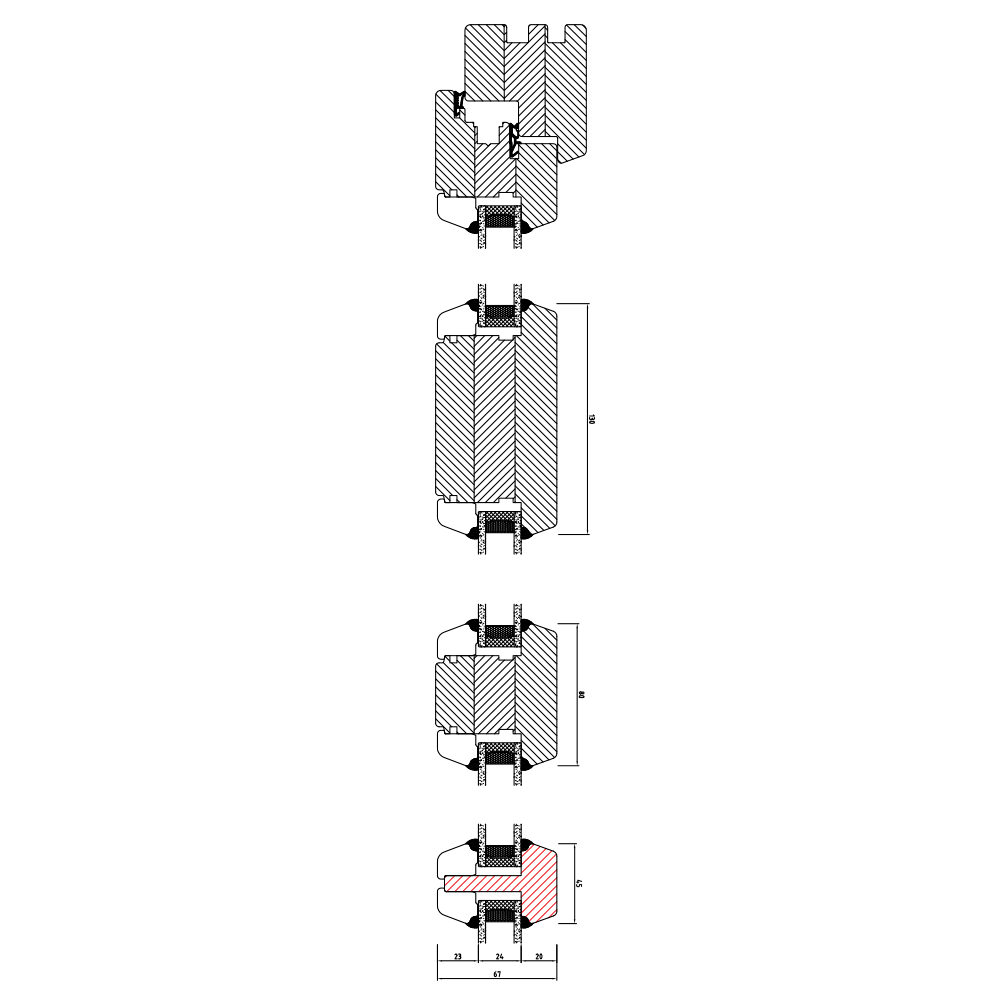

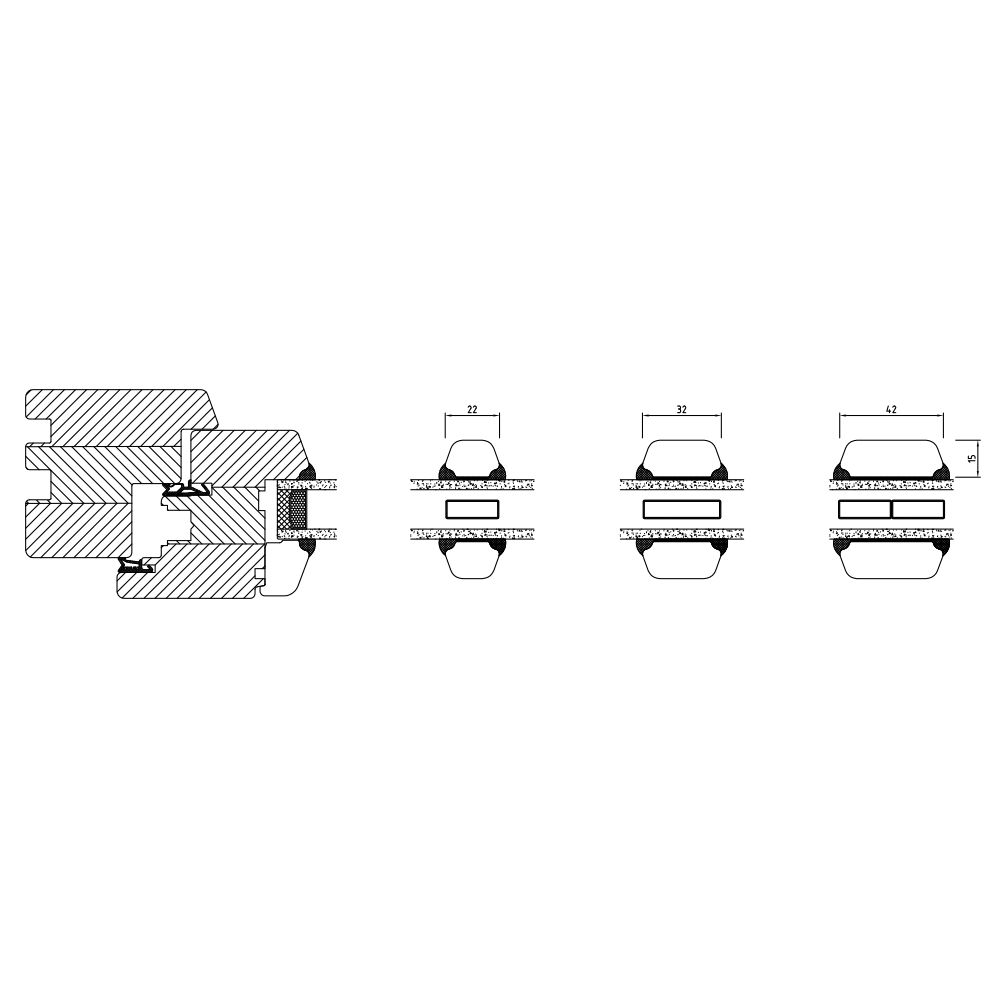

IV 68 - viennese glazing bars
IV 68 - viennese glazing bars
IV 68 - partitioning glazing bars
IV 68 - partitioning glazing bars

To top of page

Please note that these are standard drawings. If you would like to know, before ordering, exactly which profiles, models, and components will be used, just contact us on +49 711 860 60 200 or via e-mail at info@windows24.com. Our experts will be happy to help you with configuring your product and to answer any questions.

Order wooden windows online at low prices

Configure wooden windows now
« Wooden Glazing Bars for Windows
U-Values for Wood Windows »
