IDEAL 5000 Vinyl Windows Detailed Drawings

Ideal 5000 frame and casement
Ideal 5000 frame and casement
Ideal 5000 frame and casement – variant 2
Ideal 5000 frame and casement – variant 2
Ideal 5000 with no central jamb
Ideal 5000 with no central jamb
Ideal 5000 with no central jamb – variant 2
Ideal 5000 with no central jamb – variant 2
Ideal 5000 with no central jamb outwards opening
Ideal 5000 with no central jamb outwards opening
Ideal 5000 with central jamb
Ideal 5000 with central jamb
Ideal 5000 with large central jamb and fixed glazing
Ideal 5000 with large central jamb and fixed glazing
Ideal 5000 with medium large central jamb and fixed glazing
Ideal 5000 with medium large central jamb and fixed glazing
Ideal 5000 with small central jamb and fixed glazing
Ideal 5000 with small central jamb and fixed glazing
Ideal 5000 with fixed glazing
Ideal 5000 with fixed glazing
Ideal 5000 with fixed glazing – variant 2
Ideal 5000 with fixed glazing – variant 2
Ideal 5000 French door with flat threshold (barrier free)
Ideal 5000 French door with flat threshold (barrier free)

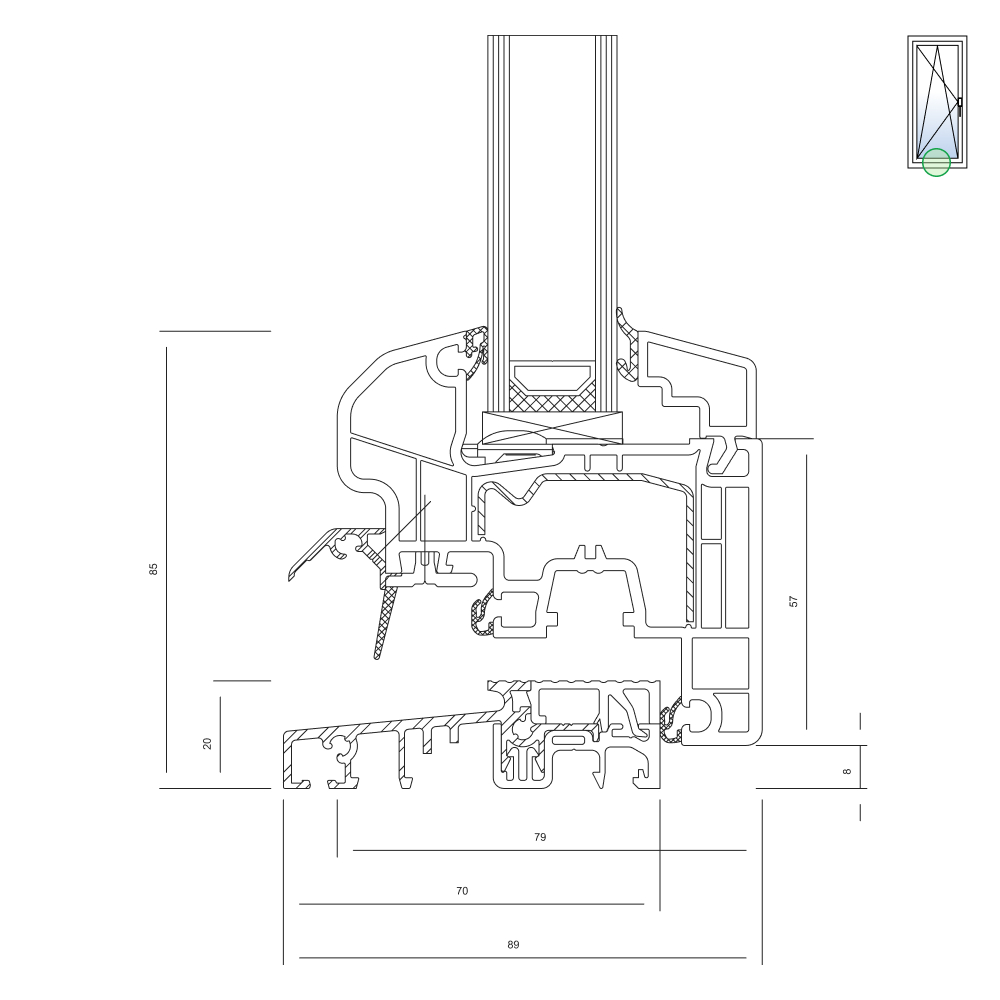

Ideal 5000 French door with flat threshold (barrier free) – variant 2
Ideal 5000 French door with flat threshold (barrier free) – variant 2

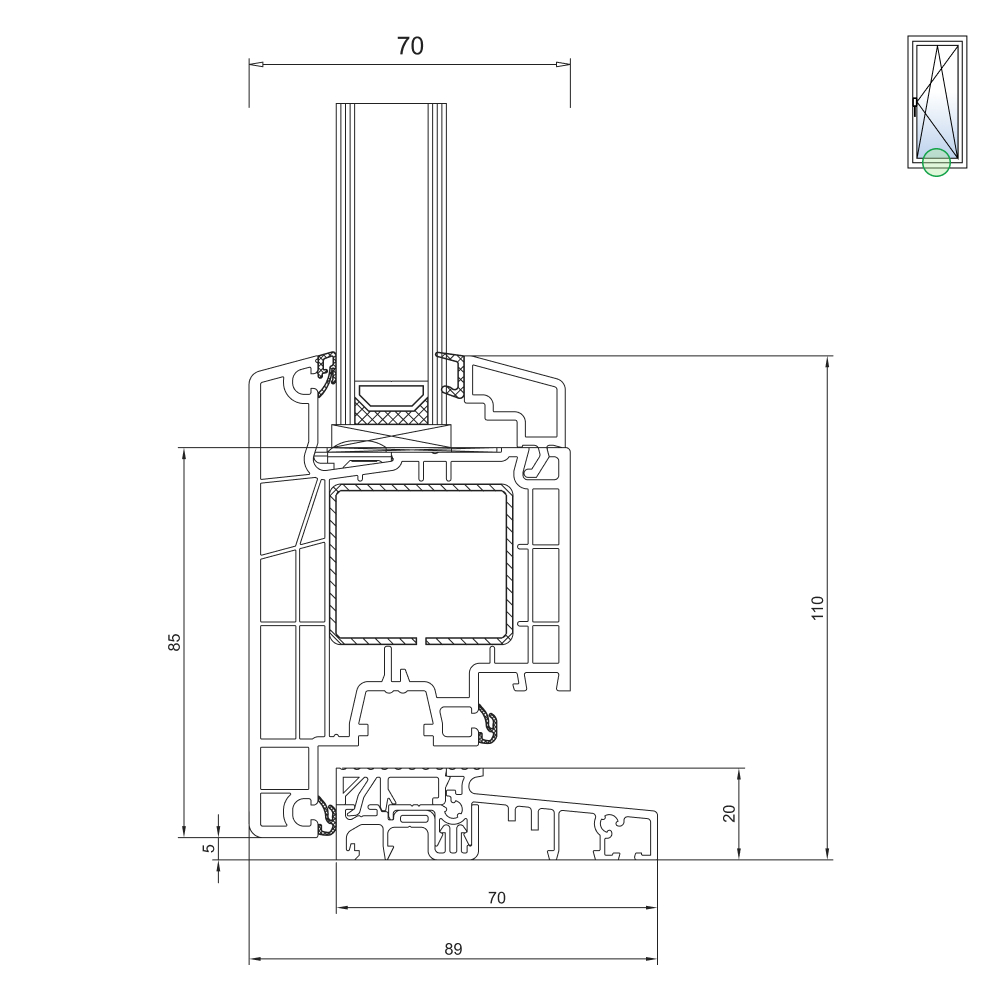

Ideal 5000 French door outwards opening with flat threshold (barrier free)
Ideal 5000 French door outwards opening with flat threshold (barrier free)
Ideal 5000 French door with large sash and flat threshold (barrier free)
Ideal 5000 French door with large sash and flat threshold (barrier free)
IDEAL 5000 French door outwards opening
IDEAL 5000 French door outwards opening

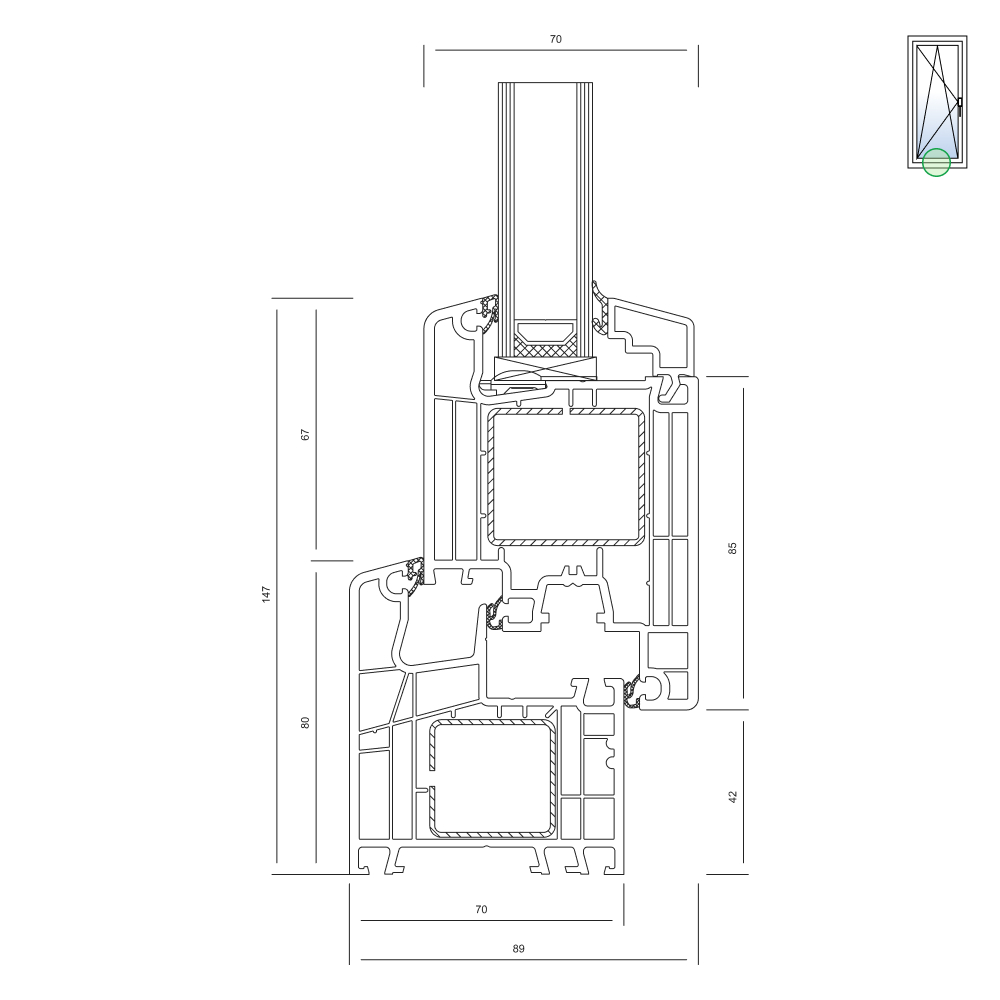

Ideal 5000 French door with large sash and door gear
Ideal 5000 French door with large sash and door gear
SHUTTER GUIDE RAILS
Shutter guide rails in new construction
Shutter guide rails in new construction
Shutter guide rails new construction – variant 2
Shutter guide rails new construction – variant 2
Shutter guide rails in old construction
Shutter guide rails in old construction
Sliding profile and roller shutter covers new construction
Sliding profile and roller shutter covers new construction
Sliding profile and roller shutter covers old construction
Sliding profile and roller shutter covers old construction
WINDOW SILL CONNECTION PROFILE
Window sill connection profile new construction 30mm
Window sill connection profile new construction 30mm
Window sill connection profile old construction 25mm
Window sill connection profile old construction 25mm
Window sill connection profile old building 50mm
Window sill connection profile old building 50mm
FRAME EXTENSION
Frame extension 15mm
Frame extension 15mm
Frame extension 35mm
Frame extension 35mm
Frame extension 60mm
Frame extension 60mm
Frame extension 100mm
Frame extension 100mm
COUPLINGS
One-piece coupler bar 70mm
One-piece coupler bar 70mm
Two-piece coupler bar 70mm
Two-piece coupler bar 70mm
Spring coupling 70mm
Spring coupling 70mm
Static coupling 1 -70 mm
Static coupling 1 -70 mm
Static coupling 2 -70 mm
Static coupling 2 -70 mm
Static coupling 3 -70 mm
Static coupling 3 -70 mm
Corner coupling 90° for exterior edge
Corner coupling 90° for exterior edge
Corner coupling 135° for exterior edge
Corner coupling 135° for exterior edge
Variable corner coupling for exterior edge
Variable corner coupling for exterior edge
GLAZING BARS
Glass partitioning bar 70 mm
Glass partitioning bar 70 mm
Glass partitioning bar 84 mm
Glass partitioning bar 84 mm
Glass partitioning bar 104 mm
Glass partitioning bar 104 mm
