Uw values for uPVC-aluminium windows and balcony doors

The Uw values given below refer to the sample size. The sample size refers to a single-sash window with a width of 1230 mm and a height of 1480 mm. All Uw values from German manufacturers are determined using this window size. As the window gets smaller, the Uw value goes down accordingly. For larger windows and balcony doors, the Uw value generally improves. Please note that the warm edge (thermally separated edge seal) is required to receive funding from the KfW (Reconstruction Loan Corporation).

Twinset 4000

Twinset 4000 Uw values

Glass Ug value W/(m²k) Frame Uf value W/(m²k) Uw value with aluminium insulating glass edge seal
W/(m²k)
Uw value with KSD insulating glass edge seal W/(m²k) Uw value
with Swisspacer Ultimate insulating glass edge seal
W/(m²k)
1.1 1.3 1.3 (1.33) 1.3 (1.26) 1.2 (1.24)
1.0 1.3 1.3 (1.26) 1.2 1.2 (1.18)
0.7 1.3 1.1 (1.05) 1.0 (0.99) 1.0 (0.97)
0.6 1/3 1.0 (0.98) 0.9 (0.92) 0.9 (0.90)
Table of Uw values for TwinSet 4000 profiles according to DIN EN ISO 10077-1, see comments 1) 2) 3)

TwinSet 4000 - profile section

Twinset 8000

Twinset 8000 Uw values

Glass Ug value W/(m²k) Frame Uf value W/(m²k) Uw value with aluminium insulating glass edge seal
W/(m²k)
Uw value with KSD insulating glass edge seal W/(m²k) Uw value with Swisspacer Ultimate insulating glass edge seal
W/(m²k)
1.1 1.0 1.2 (1.23) 1.1 (1.17) 1.2 (1.15)
1.0 1.0 1.2 (1.16) 1.1 1.1 (1.08)
0.7 1.0 1.0 (0.95) 0.9 (0.89) 0.9 (0.87)
0.6 1.0 0.9 (0.89) 0.8 (0.82) 0.8
Table of Uw values for TwinSet 8000 profiles according to DIN EN ISO 10077-1, see comments 1) 2) 3)

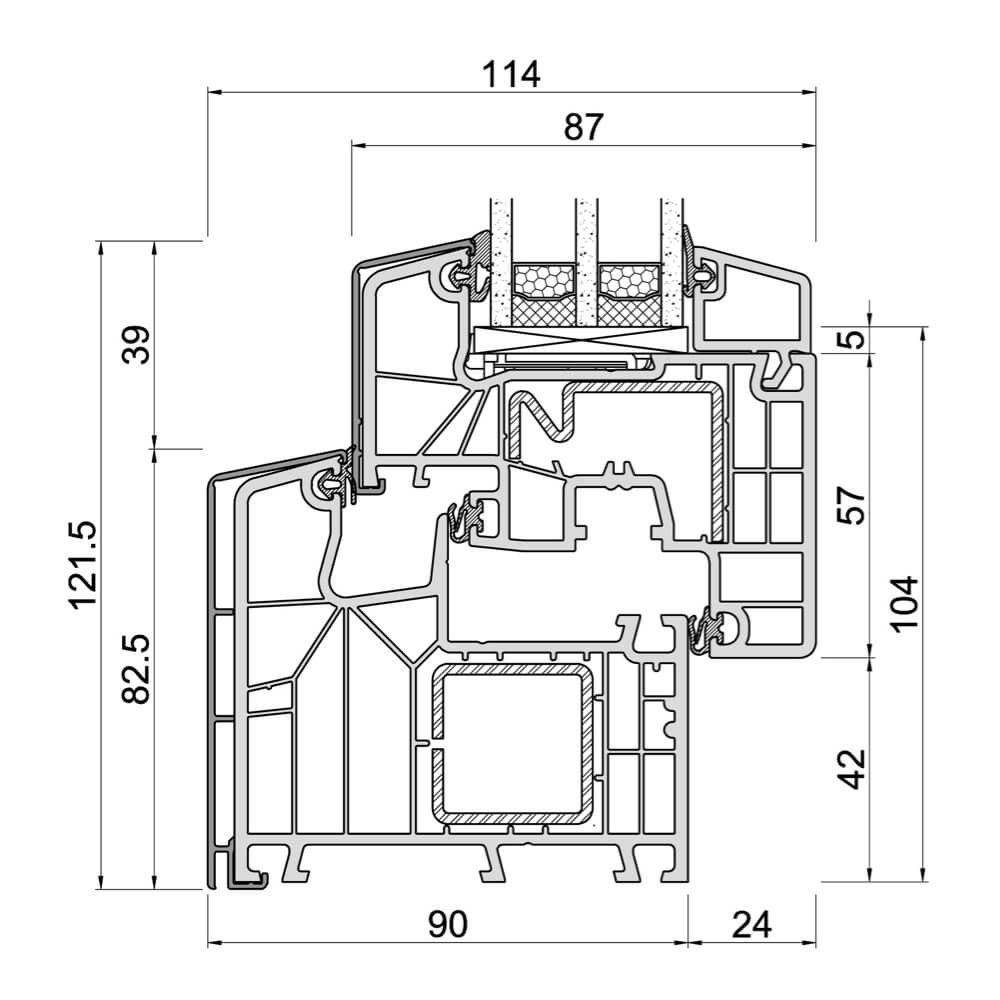

TwinSet 8000 - profile section

TwinSet 8000 ED

TwinSet 8000 ED Uw values

Glass Ug value W/(m²k) Frame Uf value W/(m²k) Uw value with aluminium insulating glass edge seal
W/(m²k)
Uw value with KSD insulating glass edge seal W/(m²k) Uw value with Swisspacer Ultimate insulating glass edge seal
W/(m²k)
1.1 0.8 (0.79) 1.2 (1.16) 1.1 1.1 (1.08)
1.0 0.8 (0.79) 1.1 (1.09) 1.0 (1.03) 1.0 (1.01)
0.7 0.8 (0.79) 0.9 (0.89) 0.8 (0.82) 0.8
0.6 0.8 (0.79) 0.8 (0.82) 0.8 (0.76) 0.7 (0.73)
Table of Uw values for TwinSet 8000 ED profiles according to DIN EN ISO 10077-1, see comments 1) 2) 3)

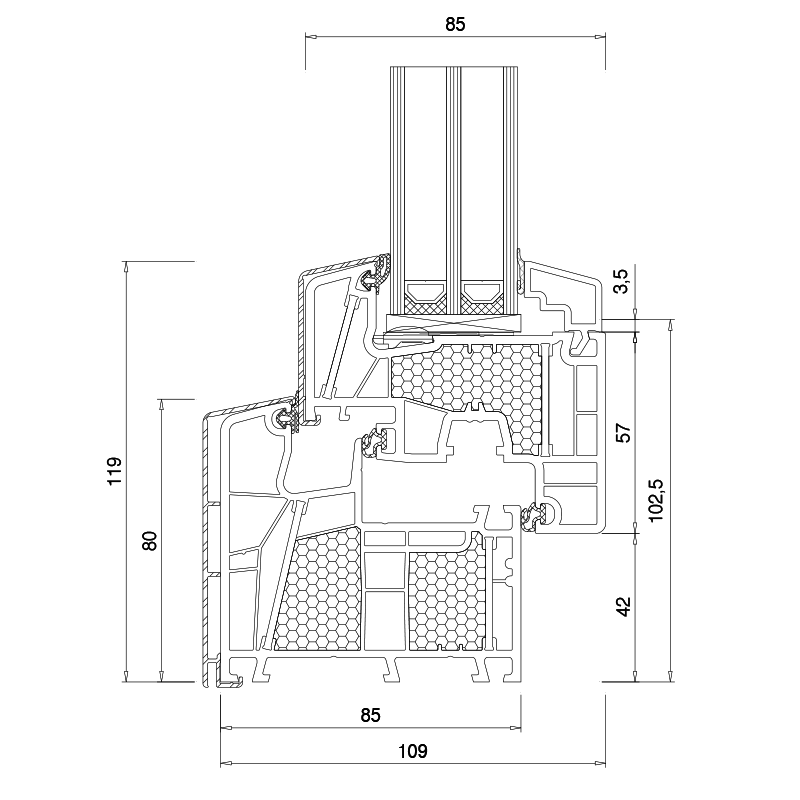

TwinSet 8000 ED - profile section

  1. Windows with a heat transfer coefficient of Ug < 1.9 W/m²K for the glazing may always be specified with the standard dimensions of 1.23 m x 1.48 m.
  2. According to DIN EN ISO 10077, Uw values < 1.0 W/m 2K are shown with 2 decimal points.
  3. The Uw values given in brackets are not rounded and are for information purposes only.

In the case of a uPVC-aluminium window, the Uw values are calculated using the individual U values of each window frame and glazing, as well as the heat loss along the edge of the glass. For the sake of comparison, a standard window size of 1230 x 1480 mm is usually used for the calculation, but it can generally be assumed that a larger window will result in a lower value.

A thermally separated edge seal along the insulating glass - the so-called "warm edge" - further improves the thermal insulation of the entire door.

The heat transfer coefficient of a window made of uPVC-aluminium determines whether a window can be classified as suitable for passive houses and also whether funding from the KfW is possible. Energy savings not only protect the environment, they also make an immediate difference on your energy bill.

The difference between a Uw value of 3.5 and a value of 0.83 can make a difference of more than 1000 litres of heating oil per year for an area of 30 m².
