aluplast Twinset 8000ED

The passive house system

from 214from 214

incl. 19% VAT, free delivery**

  • 6-chamber system with centre seal and 90mm construction depth
  • Offset optics with highly weatherproof aluminium shell
  • PHDS technology
Calculate Price
Estimated production time 4-7 weeks1
aluplast Twinset 8000ED

Overview of features

RAL quality-assured aluminium shell from "Stemeseder Alto Nova"

10 year guarantee

Sash and frame with state-of-the-art adhesive technology

Highly insulating thermal foam in 3 chambers

Frame with innovative Ultradur® High Speed reinforcement from BASF

KfW construction funding possible

Certified brand quality from a reputable company


Over 200,000 happy customers and counting

Jack’s Point, Otago, New Zealand
Residential building
Jack’s PointOtago, New Zealand
uPVC-alu windows and doors for a passive house

“windows24.com brought windows and doors with amazing quality to our project. The products are well-built and certified for passive house values.”

Heathmont, Melbourne, Australia
Residential building
HeathmontMelbourne, Australia
Composite windows and doors for a passive house

“We spent more than a year searching for a window manufacturer with high product quality and maximum design flexibility. At windows24.com we found the perfect solution for us.”

Cornwallis, Auckland, New Zealand
Residential building
CornwallisAuckland, New Zealand
uPVC windows and a sliding door for high wind zone

“Our architect recommended windows24.com to us. Their German-based window expert team was very helpful in finalising details, organising transport and training my onsite-builder.”

Private house Massachusetts
Residential building
Private houseMassachusetts, USA
uPVC windows

“windows24.com was a great partner for constructing our house. With their help we reached highest quality in terms of design and isolation.”

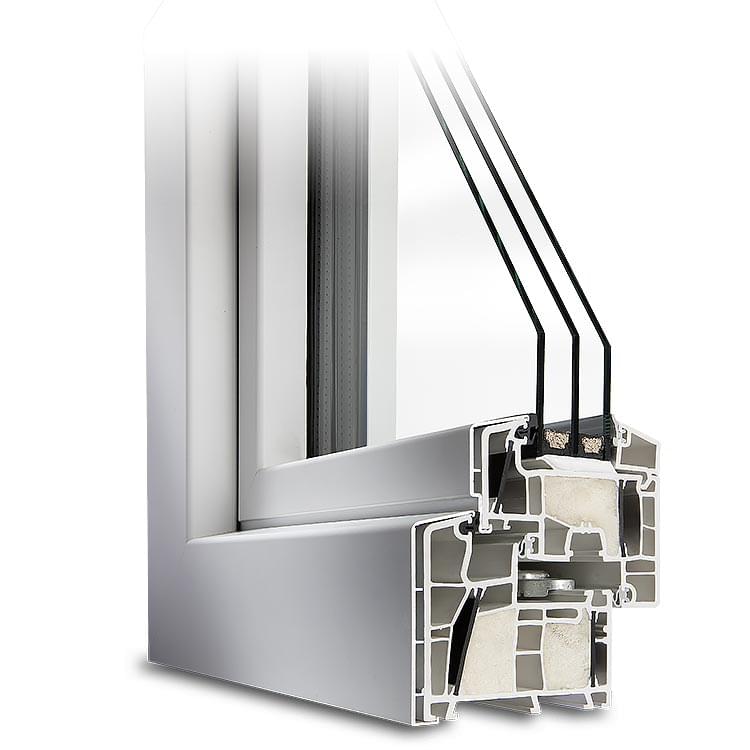

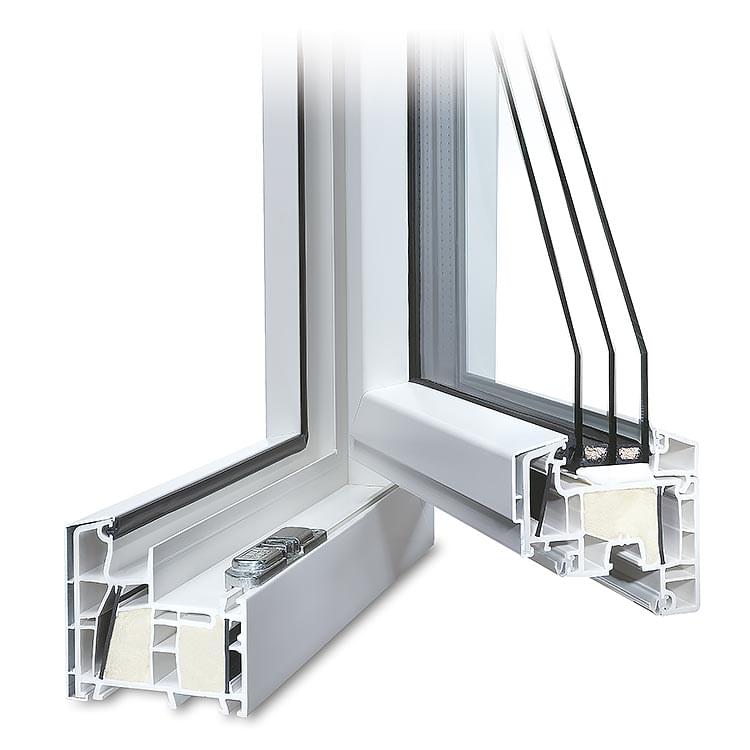

Profile description

  • Glazing: Depending on your requirements, you can opt for double or triple glazing
  • Glass seal: The glass seal provides optimal protection against water penetration
  • Glass strip: Provides the necessary contact pressure between the seals and glass
  • Highly weatherproof aluminium shell
  • Glass bonding: Achieve great stability even without steel reinforcement thanks to glass bonding

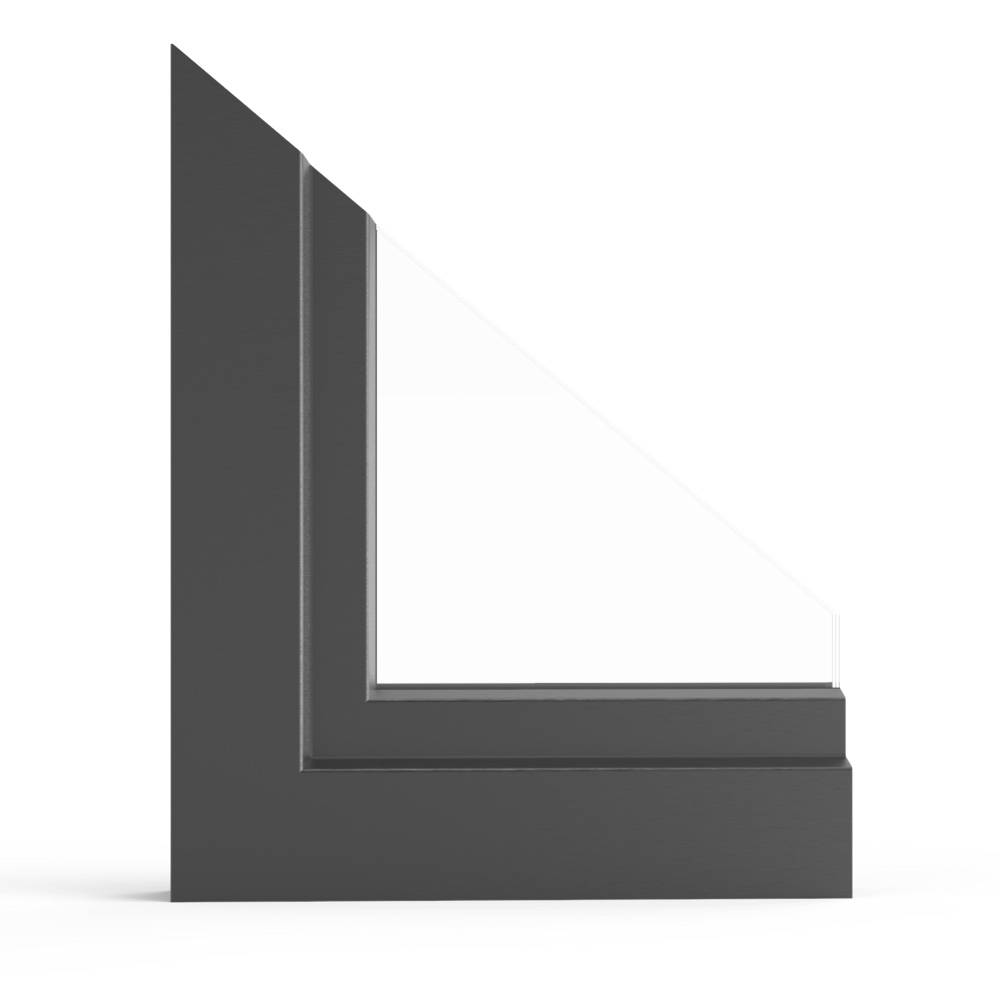

  • Sash design: The sash has a modern offset design
  • Sealing levels: Three sealing levels ensure very good thermal insulation and soundproofing
  • Profile chambers: In order to achieve good thermal insulation, the profiles are divided into several chambers
  • Insulating foam: The insulating foam within the large profile chambers ensures perfect thermal insulation
  • Carbon fibre reinforcement: Special carbon fibre reinforcement from BASF replaces steel, thus significantly improving thermal insulation

aluplast Twinset 8000ED - system description

  • Innovative uPVC/aluminium window.
  • with conventional glazing, 6-chamber system with aluminium shell
  • Frames and sash with a construction depth of 90mm.
  • Featuring innovative adhesive technology
  • Sleeker look with 77mm sash in offset model
  • 3 sealing levels papyrus white / outer seal black.
  • Thermal insulation Uw<=0.81 W/m2K
  • (when using glaze with Ug=0.7 W/m2K & "warm edge")
  • Thermal insulation possible up to Uw=0.67 W/m2K
  • (when using glaze with Ug=0.5 W/m2K & "warm edge") Window thickness from 24 to 50mm.
  • Sound insulation Rw ≤ 44dB.
  • activPilot fitting, offers perfect functionality and ergonomics, understated design.
  • Turn-tilt mechanism with malfunction lock
  • Basic security with two mushroom-head locking bolts and two safety strike plates.
  • Design: Inner uPVC profile in white or decor. Outside: weather-resistant, hard-wearing aluminium outer shell in an almost unlimited range of colours.
  • Extremely weather-resistant thanks to uPVC featuring modern additive technology.
  • Weatherproof thanks to extruding seals.
  • Highly insulating thermal foam in 3 chambers
  • Lead, cadmium and barium-free uPVC profile.

aluplast Twinset 8000ED - Detailed overview of features

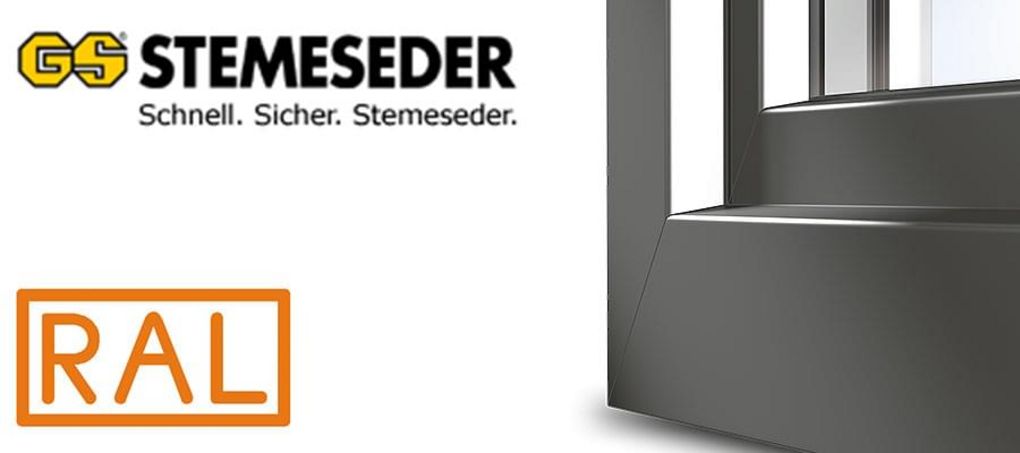

RAL quality-assured aluminium shell from "Stemeseder Alto Nova"

An RAL quality-assured, highly weather-resistant aluminium shell is constantly subject to third-party testing and monitoring; this, for you as the end user, means that our windows and doors are specially designed to suit your needs and wishes and ensure that they remain in excellent quality. Welded, multi-resistant corner joints in a high-quality look and high water resistance offer you a maintenance-free system in an almost unlimited range of RAL/DB colours.

10 year guarantee

We offer a 10-year quality guarantee on the aluminium outer shell of the uPVC-aluminium windows you ordered. This window is perfect for houses featuring modern architecture, as the sash and frame are flush on the outside. We too want you to be able to enjoy your house and the windows that go along with it for a long time to come.

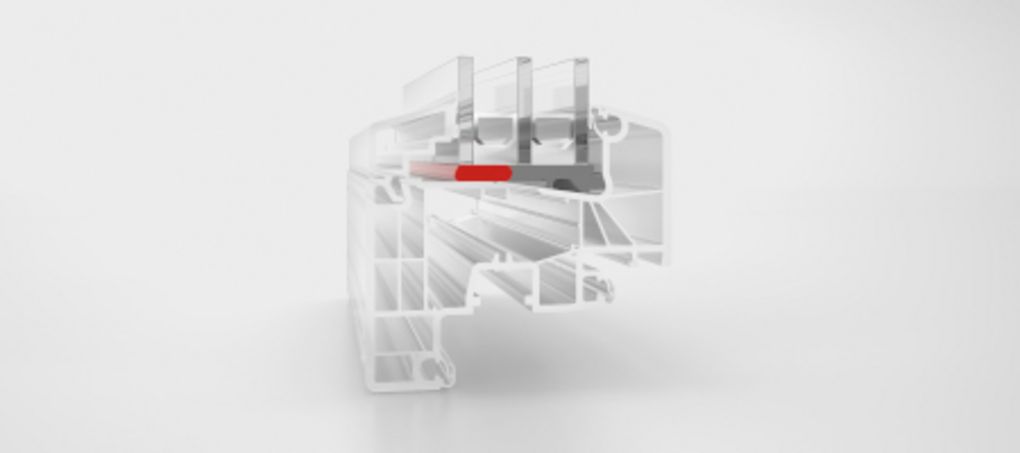

Sash and frame with state-of-the-art adhesive technology

During the pane gluing process, the casement frame and glass are joined using a single-component polyurethane adhesive. The frictional connection stiffens the entire window so that the sash does not require steel reinforcement.

The elastic adhesive joint also offers high system stability, as well as increased thermal insulation, soundproofing and break-in protection. This technology has been used successfully in the automotive industry for many years and has also been in use in window construction since 2005.

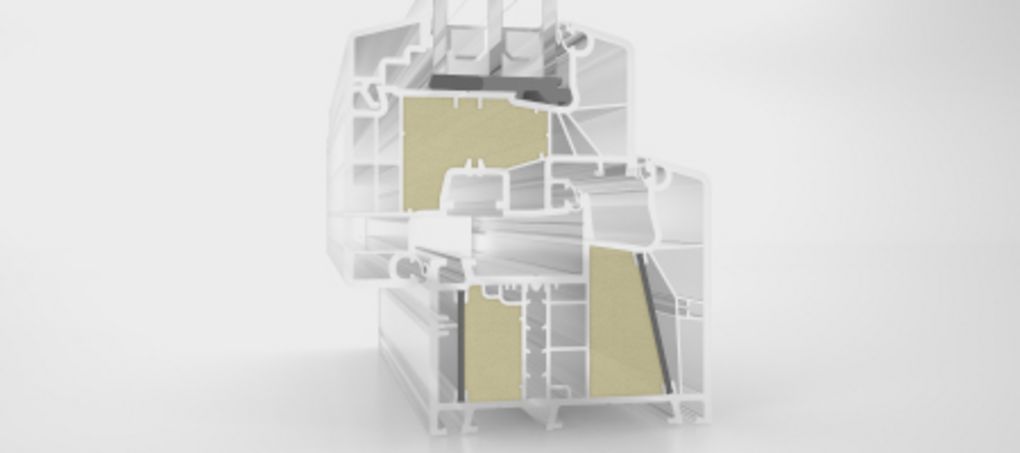

Highly insulating thermal foam in 3 chambers

Using a new type of precision high-pressure insulating foam process, three profile chambers in the fully welded window are filled all around with highly insulating thermal foam, which significantly increases the thermal insulation value of the window.

This innovative technology is ideal for houses with an external thermal insulation composite system and even for passive houses. Thanks to thermal foam, we can meet even the highest demands when it comes to thermal insulation.

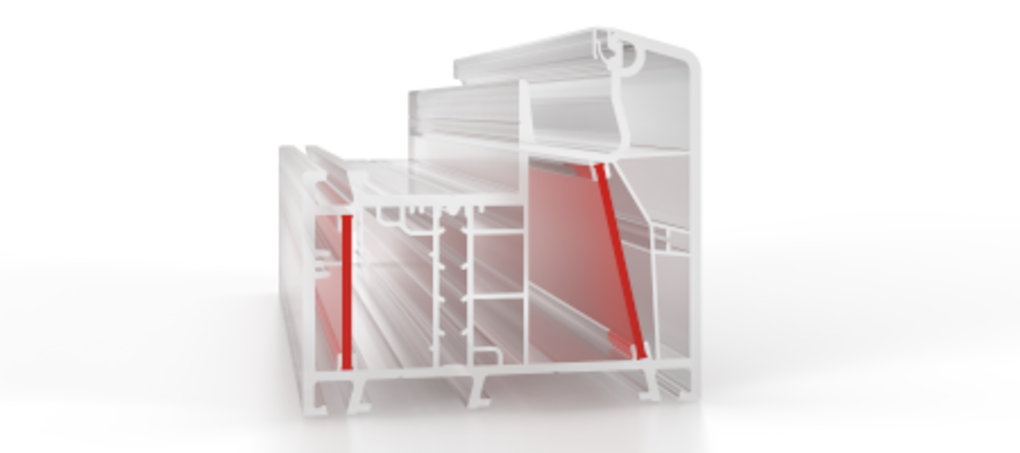

Frame with innovative Ultradur® High Speed reinforcement from BASF

This advanced technology, which has been in use since 2009, replaces the steel insert in the sash and frame with a high-tech reinforcement made of Ultradur® High Speed uPVC which is also welded in the corners.

This fusion of materials stabilises the complete frame from all sides. This results in optimal thermal insulation and higher corner strength compared to conventional steel-reinforced windows.

Certified brand quality from a reputable company

The uPVC window profiles featured here are made by Aluplast, arenowned profile manufacturer based in Baden-Württemberg. All uPVC window profile systems bear the RAL quality mark. Constant third-party monitoring of production guarantees the best quality.

When buying windows and doors, always look out for the RAL quality mark! You can only expect good quality from products with this seal.

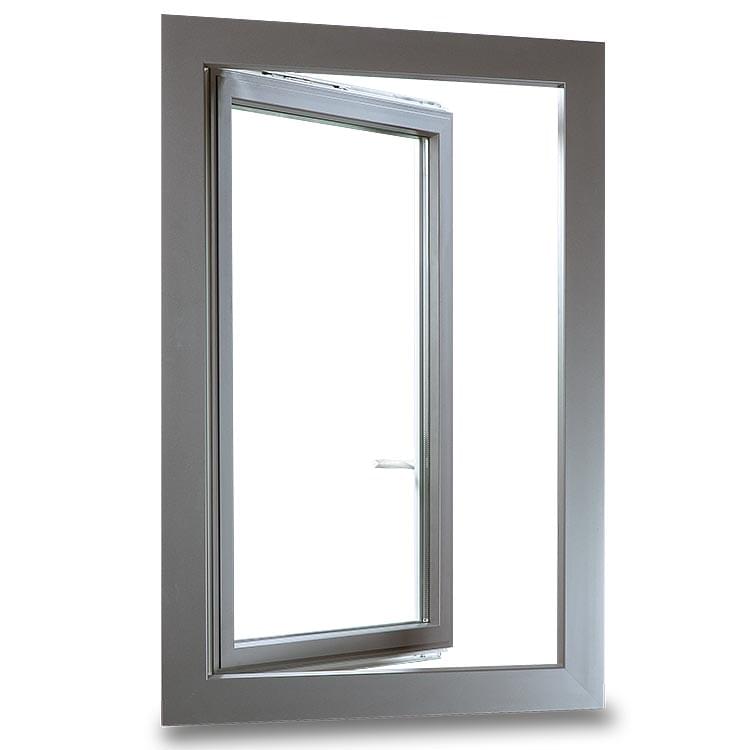

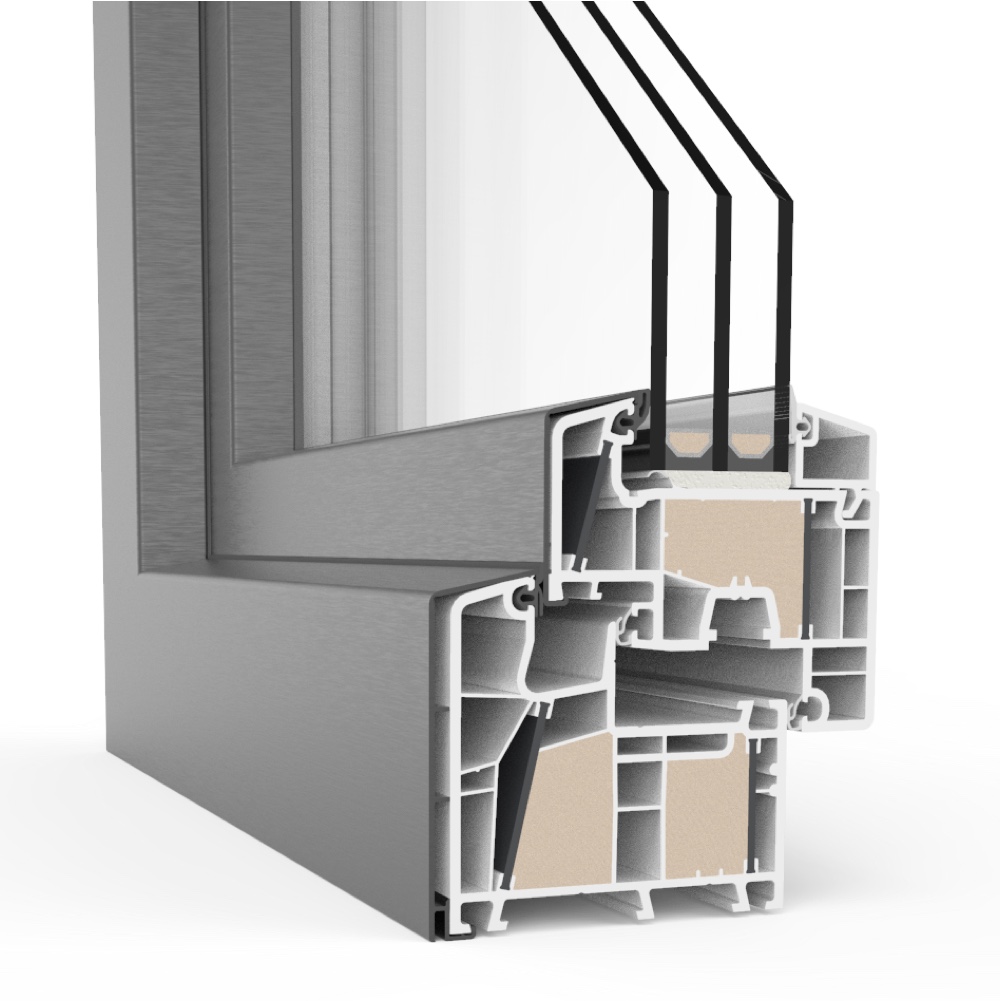

uPVC-aluminium window Twinset 8000ED

The Twinset 8000ED uPVC-aluminium window has a slim look and a 6-chamber system with a construction depth of 90mm.

ImageProfileModelProduct TypeWidthHeight
aluplastTwinset 8000EDuPVC-aluminium window from 51 cm from 51 cm
windows24.com available New White, Decor from € 214
