aluplast IDEAL® DESIGN

The new ALUPLAST uPVC window with a construction depth of 70 mm

from 45from 45

incl. 19% VAT, plus delivery costs**

  • Excellent thermal insulation with Uf 1.1 W/m2K
  • Filigree profile view with narrow sash
  • Original fittings from WINKHAUS
Calculate Price

Overview of features

Quality made in Germany

Modular security

Innovative PowerDur® technology on the window sash

First-class surface quality

Flush, slim aesthetic

Customer satisfaction

Over 200,000 happy customers and counting

The delivery was on time and even exceeded my expectations!

The price was well below that of other competitors!

Windows ordered according to our measurements. Driver very helpful with carrying.

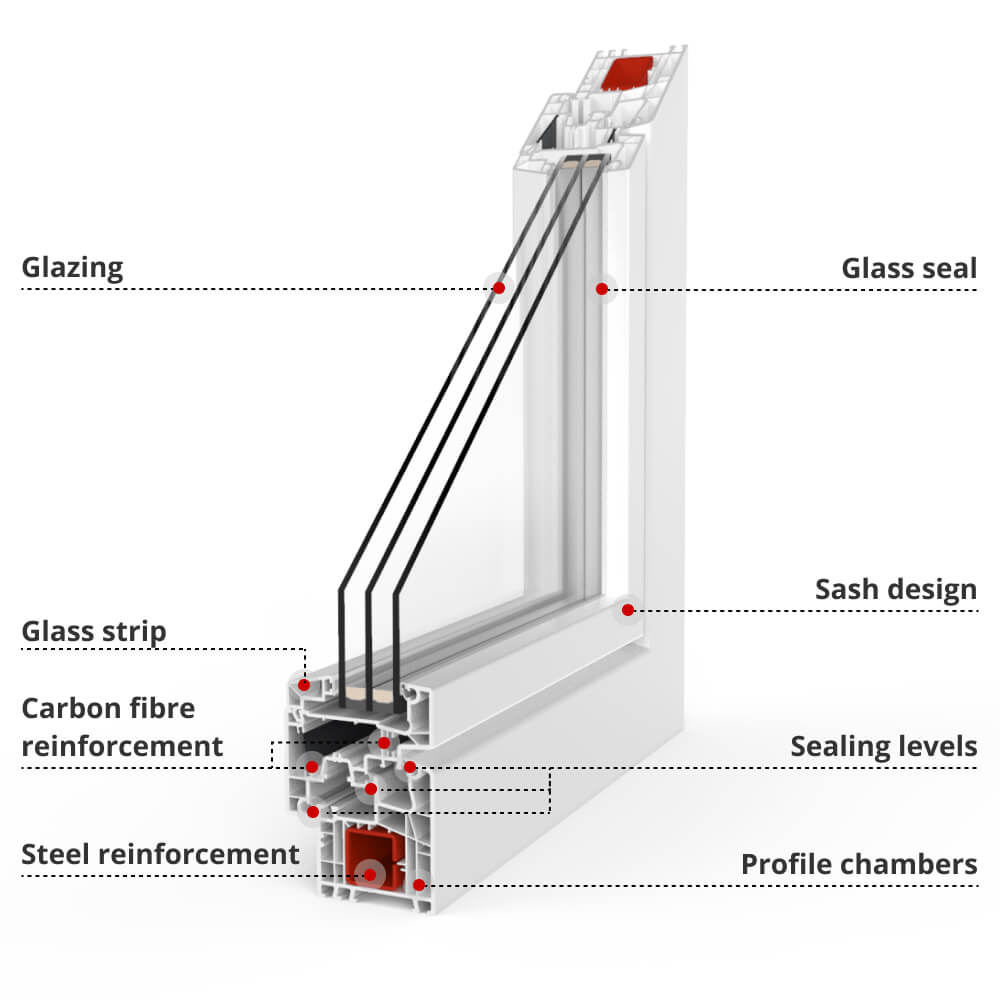

Profile description

  • Glazing: Only suitable for triple glazing
  • Glass seal: The glass seal provides optimal protection against water penetration
  • Sash design: The sash is designed to be flush
  • Glass strip: It provides the necessary contact pressure between the seals and the glass
  • Carbon fibre reinforcement: Special carbon fibre reinforcement from BASF replaces steel, thus significantly improving thermal insulation
  • Sealing levels: Three sealing levels ensure very good heat and sound insulation
  • Steel reinforcement: The steel reinforcement achieves a very high level of stability
  • Profile chambers: In order to achieve good thermal insulation, the profiles are divided into several chambers

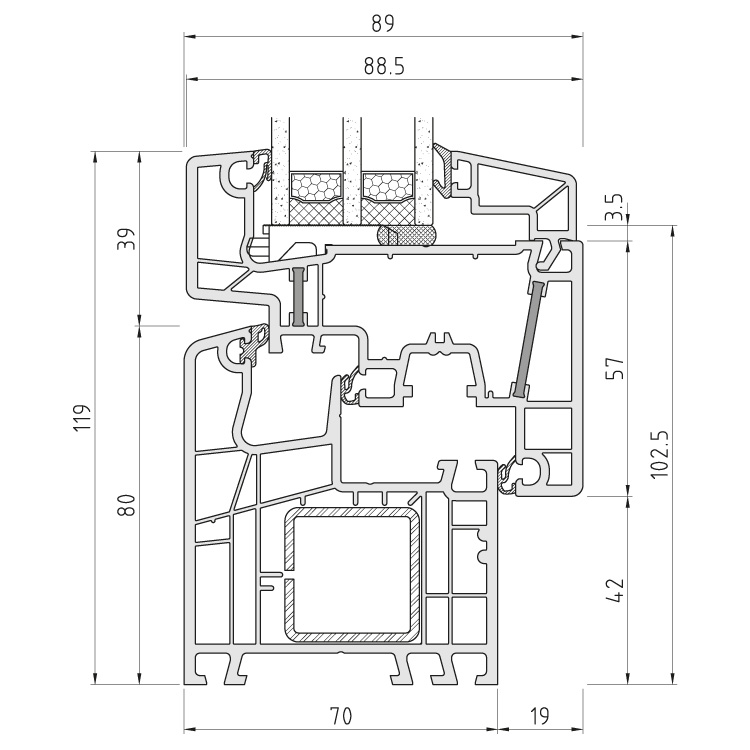

Technical details

IDEAL DESIGN – system description

  • 70 mm construction depth
  • Basic U-value of 1.25W/m2K, best value up to 0.76 W/m2K
  • Uf = 1.1 W/m2K
  • Triple glazing with a Ug-value of up to 0.6 W/m²K
  • Pane thickness from 36 to 51 mm
  • Frame with bolted steel insert with a visible width of 70 mm
  • Centre sealing system with 3 seals
  • Turn-tilt mechanism with malfunction lock
  • Seals for decor: grey or black
  • Standard security with mushroom head locks and WINKHAUS activPilot® fittings with two security strike plates
  • Choose from: BASIS plus or IDEAL secure (RH2) & RC2
  • Available in white or patterned
  • Weather-resistant thanks to uPVC with modern additive technology and extruded seals in accordance with DIN18055
  • Up to 97% recyclable materials
  • Thermal, safety and soundproof glazing possible

Configure uPVC windows online now at windows24.com

Order windows cheaply

IDEAL DESIGN – the advantages in detail


The Ideal DESIGN uPVC window from aluplast has a centre sealing system with 3 seals and is extremely weather-resistant.

ImageProfileModelProduct TypeWidthHeight
aluplastIDEAL DESIGNuPVC window from 51 cm from 51 cm
windows24.com available New White, Decor from € 45
